Technical Tip: Matching multiple parameters on application control signatures
Description
Application control signatures that support parameters (such as SCADA protocols) can have multiple parameters grouped together and matched at the same time.
To match a member, traffic has to match all of the parameters.
To match a signature, at least one member has to be matched.
Solution
To configure an application sensor with multiple parameters from GUI.
1) Go to Security Profiles -> Application Control.
2) Select 'Create New' to create a new application sensor, or edit an existing sensor.
3) In the Application and Filter Overrides table, select 'Create New'.
4) Add an application signature that has parameters, such as Facebook.App_Name.
Application control signatures that support parameters (such as SCADA protocols) can have multiple parameters grouped together and matched at the same time.
To match a member, traffic has to match all of the parameters.
To match a signature, at least one member has to be matched.
Solution
To configure an application sensor with multiple parameters from GUI.
1) Go to Security Profiles -> Application Control.
2) Select 'Create New' to create a new application sensor, or edit an existing sensor.
3) In the Application and Filter Overrides table, select 'Create New'.

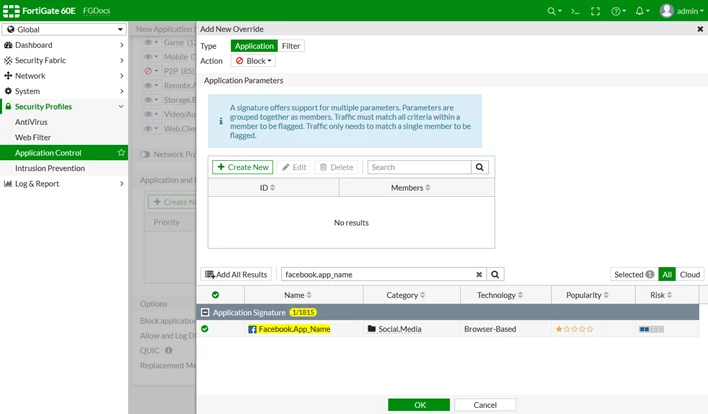

4) Add an application signature that has parameters, such as Facebook.App_Name.

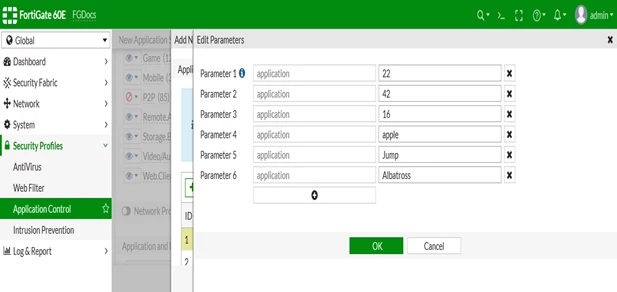

5) Select 'Create New' to add parameters. Multiple parameters can be added to a member.
6) Select 'OK'.

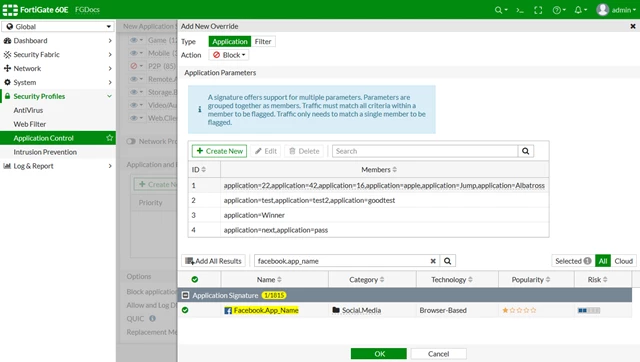

7) Add more members as needed.8) Select 'OK'.To configure an application sensor with multiple parameters from CLI.# config application list
edit "g-test"
set other-application-log enable
# config entries
edit 1
set application 23813
# config parameters
edit 1
# config members
edit 1
set name "application"
set value "22"
next
...
edit 6
set name "application"
set value "Albatross"
next
end
next
edit 2
# config members
edit 1
set name "application"
set value "test"
next
...
end
next
edit 3
# config members
edit 1
set name "application"
set value "Winner"
next
end
next
edit 4
# config members
edit 1
set name "application"
set value "next"
next
edit 2
set name "application"
set value "pass"
next
end
next
end
next
edit 2
set category 2 6
next
end
next
end
