Technical Tip: LACP support for entry level E-series
Description
Link Aggregation Control Protocol (LACP) is now supported on FortiGate and FortiWiFi-90E, 80E, 60E, 50E, and 30E.
Scope
FortiGate.
Solution

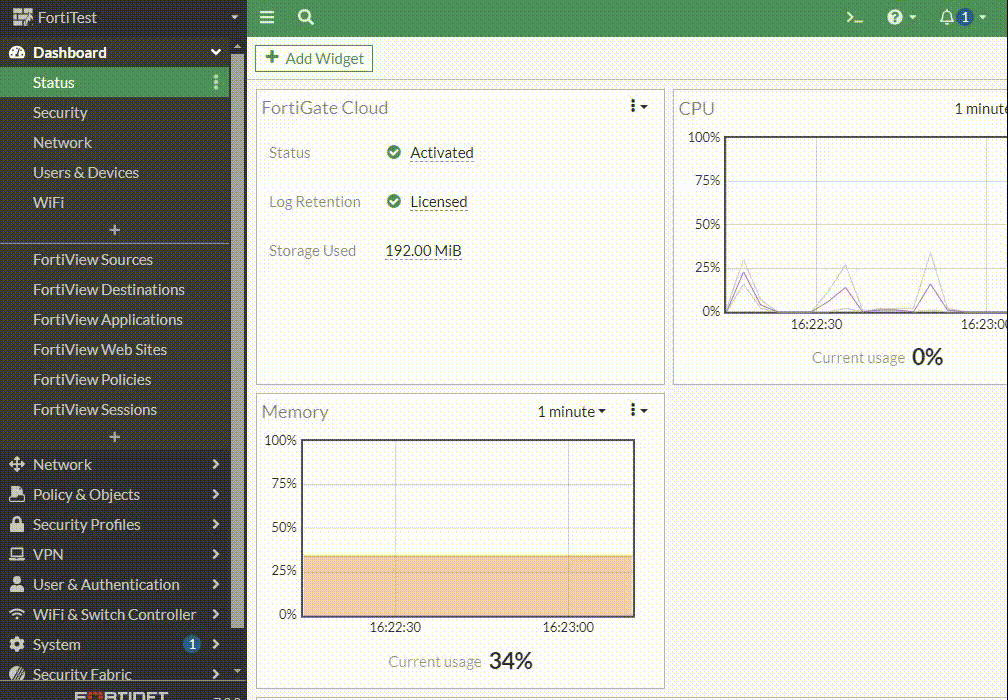

- Go to Network -> Interfaces.
- Select 'Create New' -> Interface.
- Set Type to '802.3ad Aggregate'.
- Configure the other settings as required.
- Select 'OK'.
Example:
To create a link aggregation interface from CLI:
configure system interface
edit "Aggregate Intf"
set vdom "root"
set type aggregate
set member "port 8" "port 10"
set device-identification enable
set lldp-transmission enable
set role lan
set snmp-index 13
next
end
To check the aggregate interface status:
FGT# diagnose netlink aggregate name "Aggregate Intf"
LACP flags: (A|P)(S|F)(A|I)(I|O)(E|D)(E|D)
(A|P) - LACP mode is Active or Passive
(S|F) - LACP speed is Slow or Fast
(A|I) - Aggregatable or Individual
(I|O) - Port In sync or Out of sync
(E|D) - Frame collection is Enabled or Disabled
(E|D) - Frame distribution is Enabled or Disabled
status: up
distribution algorithm: L4
LACP mode: active
LACP speed: slow
LACP HA: enable
aggregator ID: 1
ports: 2
actor key: 17
actor MAC address: 00:09:0f:68:35:94
partner key: 17
partner MAC address: 00:09:0f:68:37:d8
slave: port8
status: up
link failure count: 3
permanent MAC addr: 00:09:0f:68:35:94
actor state: ASAIEE
partner state: ASAIEE
aggregator ID: 1
slave: port10
status: up
link failure count: 2
permanent MAC addr: 00:09:0f:68:35:95
actor state: ASAIEE
partner state: ASAIEE
aggregator ID: 1
Troubleshooting commands:
diagnose netlink aggregate name your_aggregate_link
diagnose hardware deviceinfo nic <all_interface_in_your_aggregation>
diagnose sniff packet your_aggregate_link " " 6 0 l
diagnose sniffer packet any "ether proto 0X8809" 6 0 a
