Technical Tip: IPsec between 2 FortiGates using a loopback interface

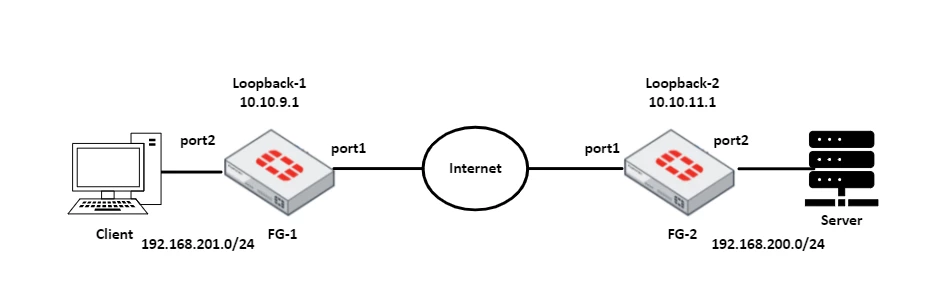

• FG-1 with loopback interface 10.10.9.1.
• FG-2 with loopback interface 10.10.11.1.
• The IPsec between both devices will be bound to the loopback interface.
• Port1 of every of the FortiGates is used for the internet connection.
• A previously established connectivity between both loopback interfaces must be guaranteed. (In this article, there is communication between 10.10.9.1 and 10.10.11.1 through the WAN network of port 1.)
• If this communication does not previously exist and port1 has public IPs in exchange for private addressing, the public IPs of both gateways must be associated on their respective public WAN interfaces (this scenario is explained at the end of this article).

Configuration:

• Firewall rules are needed on every FortiGate, allowing traffic to/from loopback/port1.
• Static route for the remote loopback IP on every FortiGate.
• Rules which allow the traffic to/from local/remote encryption domains.
• Static route for the remote encryption domain.

FG-1 Loopback interface :

edit "loopback_FG1"

    set vdom "root"

    set ip 10.10.9.1 255.255.255.255

    set allowaccess ping https http

    set type loopback

    set role lan

    set snmp-index 16

    set ip-managed-by-fortiipam disable

next

FG-1 static route for remote IPsec bound to loopback on FG-2:

edit 1

    set dst 10.10.11.1 255.255.255.255

    set gateway 192.168.1.113

    set device "port1"

next

• 10.10.11.1 is the Loopback interface in the FG-2.
• 192.168.1.113 is the port1 gateway associated with this FG-1.

FG-1  firewall rules allow the traffic from loopback loopback_FG1 to port1 and vice versa, only ESP (proto 50) and IKE (UDP 500) are allowed, if NAT-T is used then UDP 4500 needs to be added.

edit 2

    set name "Traffic_for_loopback_IPSEC"

    set uuid f5a16342-7b79-51ef-6e44-02c65af6bb78

    set srcintf "loopback_FG1" "port1"

    set dstintf "loopback_FG1" "port1"

    set action accept

    set srcaddr "h-10.10.11.1-32" "h-10.10.9.1-32"

    set dstaddr "h-10.10.9.1-32" "h-10.10.11.1-32"

    set schedule "always"

    set service "ESP" "IKE"

next

FG-1 IPsec phase-1 configuration :

config vpn ipsec phase1-interface
    edit "IPsec_to_FG2"
        set interface "loopback_FG1"
        set ike-version 2
        set peertype any
        set net-device disable

     set proposal aes128-sha256
     set remote-gw 10.10.11.1
     set psksecret XXXX

    next
end

FG-2 Loopback interface :

edit "loopback_FG2"

    set vdom "root"

    set ip 10.10.11.1 255.255.255.255

    set allowaccess ping https ssh snmp http fgfm ftm

    set type loopback

    set role lan

    set snmp-index 16

    set ip-managed-by-fortiipam disable
next

FG-2 static route for remote IPsec bound to loopback on FG-1:

edit 1

    set dst 10.10.9.1 255.255.255.255

    set gateway 192.168.1.117

    set device "port1"
next

10.10.9.1 is the Loopback interface in the FG-1
In this case, 192.168.1.117 is the port1 gateway associated with this FG-2.

FG-2  firewall rules allow the traffic from loopback loopback_FG2 to port1 and vice versa, only ESP (proto 50) and IKE (UDP 500) are allowed, if NAT-T is use,d then UDP 4500 needs to be added.

edit 1

    set name "Loopback_traffic"

    set uuid f36aa980-7bce-51ef-b6ec-5fb2dd7121d3

    set srcintf "loopback_FG2" "port1"

    set dstintf "loopback_FG2" "port1"

    set action accept

    set srcaddr "h-10.10.9.1-32" "h-10.10.11.1-32"

    set dstaddr "h-10.10.11.1-32" "h-10.10.9.1-32"

    set schedule "always"

    set service "ESP" "IKE"

next

FG-1 IPsec phase-1 configuration:

config vpn ipsec phase1-interface
    edit "IPsec_to_FG1"
        set interface "loopback_FG2"
        set ike-version 2
        set peertype any
        set net-device disable
        set proposal aes128-sha256
        set remote-gw 10.10.9.1
        set psksecret ENC XXXX

    next
end

Like every IPsec tunnel, there are also added Firewall rules from the local encryption domain towards the remote encryption domain and static routes.

FG-1 Static route and firewall rule for the IPsec traffic:

edit 2

    set dst 192.168.200.0 255.255.255.0

    set device "IPsec_to_FG2"

next

edit 3

    set name "IPsec_rules"

    set uuid ef3a8ed8-7b7a-51ef-3a3c-ef366951d68d

    set srcintf "IPsec_to_FG2" "port2"

    set dstintf "IPsec_to_FG2" "port2"

    set action accept

    set srcaddr "all"

    set dstaddr "all"

    set schedule "always"

    set service "ALL"

next

FG-2 Static route and firewall rule for the IPsec traffic:

edit 4

    set dst 192.168.201.0 255.255.255.0

    set device "IPsec_to_FG1"

next

edit 2

    set name "IPsec_rule"

    set uuid 72a34e28-7bcf-51ef-586b-9eecbe1fe9e8

    set srcintf "port2" "IPsec_to_FG1"

    set dstintf "IPsec_to_FG1" "port2"

    set action accept

    set srcaddr "h-192.168.200.0-24" "h-192.168.201.0-24"

    set dstaddr "h-192.168.200.0-24" "h-192.168.201.0-24"

    set schedule "always"

    set service "ALL"

next

FG-1 phase-1/phase-2 status:

vd: root/0
name: IPsec_to_FG2
version: 2
interface: 0
addr: 10.10.9.1:500 -> 10.10.11.1:500
tun_id: 10.10.11.1/::10.10.11.1
remote_location: 0.0.0.0
network-id: 0
transport: UDP
created: 51312s ago
peer-id: 10.10.11.1
peer-id-auth: no
pending-queue: 0
PPK: no
IKE SA: created 1/2 established 1/1 time 10/10/10 ms
IPsec SA: created 1/4 established 1/3 time 0/0/0 ms

id/spi: 66 ab6676e60cc712c8/95ca53fb7b92420d
direction: responder
status: established 51289-51289s ago = 10ms
proposal: aes128-sha256
child: no
SK_ei: d0551876481f6da6-a0ff7446a19964c2
SK_er: 254d54d4be17e084-a0b0aba1d3f710b5
SK_ai: f2a7df4e691d90c7-c5927297fadda91d-fd30a36b92b6ede4-d63b237f30193836
SK_ar: fafd6c0df23f6cdb-c3c674f6971dfad3-031950961ca2e44b-c7498d752ab6b3d3
PPK: no
message-id sent/recv: 3/6
QKD: no
lifetime/rekey: 86400/34840
DPD sent/recv: 00000000/00000000
peer-id: 10.10.11.1

name=IPsec_to_FG2 ver=2 serial=2 10.10.9.1:0->10.10.11.1:0 nexthop=192.168.1.113 tun_id=10.10.11.1 tun_id6=::10.10.11.1 status=up dst_mtu=1500 weight=1
bound_if=0 real_if=3 lgwy=static/1 tun=intf mode=auto/1 encap=none/552 options[0228]=npu frag-rfc run_state=0 role=primary accept_traffic=1 overlay_id=0

proxyid_num=1 child_num=0 refcnt=4 ilast=50234 olast=50234 ad=/0
stat: rxp=1000 txp=943 rxb=84000 txb=79212
dpd: mode=on-demand on=1 status=ok idle=20000ms retry=3 count=0 seqno=10
natt: mode=none draft=0 interval=0 remote_port=0
fec: egress=0 ingress=0
proxyid=IPsec_to_FG2 proto=0 sa=1 ref=2 serial=1 auto-negotiate
src: 0:0.0.0.0-255.255.255.255:0
dst: 0:0.0.0.0-255.255.255.255:0
SA: ref=3 options=38203 type=00 soft=0 mtu=1438 expire=34535/0B replaywin=2048
seqno=1 esn=0 replaywin_lastseq=00000000 qat=0 rekey=0 hash_search_len=1
life: type=01 bytes=0/0 timeout=42902/43200
dec: spi=6c2ea39b esp=aes key=16 a71f0120828076bf7de0255ab89056a5
ah=sha1 key=20 01f5764a2d5964102274ba633c4a1c7f47efbf6b
enc: spi=ea345265 esp=aes key=16 de9e1f65afb7122f1e7901a8569accd0
ah=sha1 key=20 0d5aa05d33a759dc4f98d5695c196864c9b9a849
dec:pkts/bytes=0/0, enc:pkts/bytes=0/0
npu_flag=00 npu_rgwy=10.10.11.1 npu_lgwy=10.10.9.1 npu_selid=0 dec_npuid=0 enc_npuid=0

FG-2  phase-1/phase-2 status:

vd: root/0
name: IPsec_to_FG1
version: 2
interface: 0
addr: 10.10.11.1:500 -> 10.10.9.1:500
tun_id: 10.10.9.1/::10.10.9.1
remote_location: 0.0.0.0
network-id: 0
transport: UDP
created: 51370s ago
peer-id: 10.10.9.1
peer-id-auth: no
pending-queue: 0
PPK: no
IKE SA: created 1/1 established 1/1 time 10/10/10 ms
IPsec SA: created 1/3 established 1/3 time 0/3/10 ms

id/spi: 48 ab6676e60cc712c8/95ca53fb7b92420d
direction: initiator
status: established 51370-51370s ago = 10ms
proposal: aes128-sha256
child: no
SK_ei: d0551876481f6da6-a0ff7446a19964c2
SK_er: 254d54d4be17e084-a0b0aba1d3f710b5
SK_ai: f2a7df4e691d90c7-c5927297fadda91d-fd30a36b92b6ede4-d63b237f30193836
SK_ar: fafd6c0df23f6cdb-c3c674f6971dfad3-031950961ca2e44b-c7498d752ab6b3d3
PPK: no
message-id sent/recv: 6/3
QKD: no
lifetime/rekey: 86400/34729
DPD sent/recv: 00000003/00000003
peer-id: 10.10.9.1

name=IPsec_to_FG1 ver=2 serial=3 10.10.11.1:0->10.10.9.1:0 nexthop=192.168.1.117 tun_id=10.10.9.1 tun_id6=::10.10.9.1 status=up dst_mtu=1500 weight=1
bound_if=0 real_if=3 lgwy=static/1 tun=intf mode=auto/1 encap=none/552 options[0228]=npu frag-rfc run_state=0 role=primary accept_traffic=1 overlay_id=0

proxyid_num=1 child_num=0 refcnt=4 ilast=50347 olast=50347 ad=/0
stat: rxp=943 txp=1000 rxb=79212 txb=84000
dpd: mode=on-demand on=1 status=ok idle=20000ms retry=3 count=0 seqno=3
natt: mode=none draft=0 interval=0 remote_port=0
fec: egress=0 ingress=0
proxyid=IPsec_to_FG1 proto=0 sa=1 ref=2 serial=2 auto-negotiate
src: 0:0.0.0.0-255.255.255.255:0
dst: 0:0.0.0.0-255.255.255.255:0
SA: ref=3 options=38203 type=00 soft=0 mtu=1438 expire=34452/0B replaywin=2048
seqno=1 esn=0 replaywin_lastseq=00000000 qat=0 rekey=0 hash_search_len=1
life: type=01 bytes=0/0 timeout=42932/43200
dec: spi=ea345265 esp=aes key=16 de9e1f65afb7122f1e7901a8569accd0
ah=sha1 key=20 0d5aa05d33a759dc4f98d5695c196864c9b9a849
enc: spi=6c2ea39b esp=aes key=16 a71f0120828076bf7de0255ab89056a5
ah=sha1 key=20 01f5764a2d5964102274ba633c4a1c7f47efbf6b
dec:pkts/bytes=0/0, enc:pkts/bytes=0/0
npu_flag=00 npu_rgwy=10.10.9.1 npu_lgwy=10.10.11.1 npu_selid=3 dec_npuid=0 enc_npuid=0

If communication is not established between the private Loopback interface addresses, it is necessary to associate the WAN public addresses as follows:

FG-1 IPsec phase-1, phase-2 and static route alternative configuration:

config vpn ipsec phase1-interface

    edit "IPsec_to_FG2"

        set interface "port1"

        set ike-version 2

        set peertype any

        set net-device disable

        set proposal aes128-sha256 aes256-sha256

        set dpd on-idle

        set remote-gw 18.74.X.X   <- Public remote gateway of FG-2.

        set psksecret ENC XXXXXXXXXXXX

    next

end

config vpn ipsec phase2-interface

    edit "IPsec_to_FG2"

        set phase1name "IPsec_to_FG2"

        set proposal aes128-sha1 aes256-sha1

        set src-subnet 10.10.9.1 255.255.255.255    <- Local Loopback located in FG-1.

        set dst-subnet 10.10.11.1 255.255.255.255   <- Remote Loopback located in FG-2.

    next

end

config router static

    edit 2

        set dst 10.10.11.1 255.255.255.255 <- Remote Loopback interface of FG-2.

        set device "IPsec_to_FG2"

    next

end

FG-2 IPsec phase-1, phase-2 and static route alternative configuration:

config vpn ipsec phase1-interface

    edit "IPsec_to_FG1"

        set interface "port1"

        set ike-version 2

        set peertype any

        set net-device disable

        set proposal aes128-sha256 aes256-sha256

        set dpd on-idle

        set remote-gw 18.178.X.X <- Public remote gateway of FG-1.

        set psksecret ENC XXXXXXXXXX

    next

end

config vpn ipsec phase2-interface

    edit "IPsec_to_FG1"

        set phase1name "IPsec_to_FG1"

        set proposal aes128-sha1 aes256-sha1

        set src-subnet 10.10.11.1 255.255.255.255 <- Local Loopback interface of FG-2.

        set dst-subnet 10.10.9.1 255.255.255.255 <- Remote Loopback interface of FG-1.

    next

end

config router static

    edit 4

        set dst 10.10.9.1 255.255.255.255 <- Remote Loopback interface of FG-1.

        set device "IPsec_to_FG1"

    next

end

Related article:

Technical Tip: Best practice when IPSec VPN is bound to loopback interface
