Technical Tip: Inspection Mode Changes

  • Apr 16, 2026 12:53 PM UTC
  • 0 replies
  • 5057 views
  • Translate All
Description
This article describes the changes made to the Inspection Mode in version 6.2. In earlier firmware versions, the Inspection Mode was configured globally to all the policies to either Proxy-based or Flow-based.

Solution
In version 6.2 the Inspection Mode has been moved per policy and cannot be set globally enabling more flexible setup for different policies.

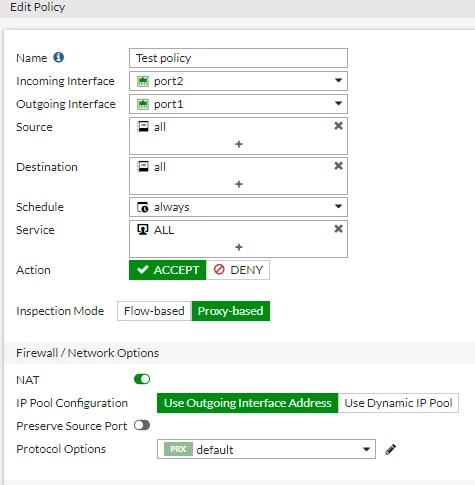

When a policy is configured, it is possible to select either Flow-based or proxy-based Inspection mode.
Default is Flow-based Inspection.




To view inspection mode changes in the CLI:
# config firewall policy
    edit 1
        set inspection-mode
        proxy    <--- Proxy based inspection.
        flow     <--- Flow based inspection.

        set inspection-mode proxy
end

# config firewall policy
    edit 1
        set name "Test policy"
        set uuid 79d80fb4-bfe9-51e9-38a2-86aefe9dea5e
        set srcintf "port2"
        set dstintf "port1"
        set srcaddr "all"
        set dstaddr "all"
        set schedule "always"
        set schedule-timeout disable
        set service "ALL"
        set inspection-mode proxy
        set nat enable
    next
end
