Description This article describes how to Implement FortiGate as a Local DNS server database.
Scope FortiGate DNS feature. Version  6.4.10.
Solution

Scenario:

1) FortiGate will be used as a local DNS server database.



2) Global DNS server will be used to resolve global domain.



Local domain name : 40gate.co.id

DNS interface (port4) : 172.16.10.254

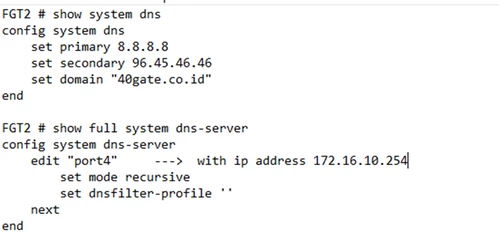

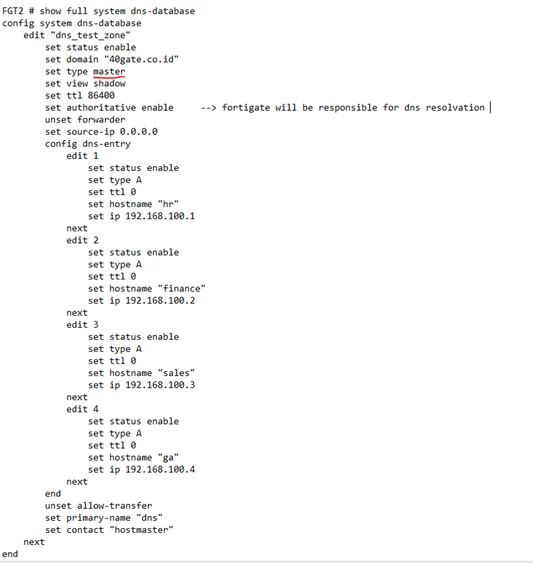

FortiGate DNS config: no firewall policy rule is required.






User testing:

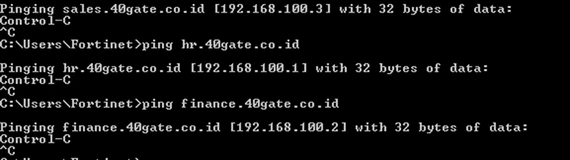

Local DNS can successfully be resolved.

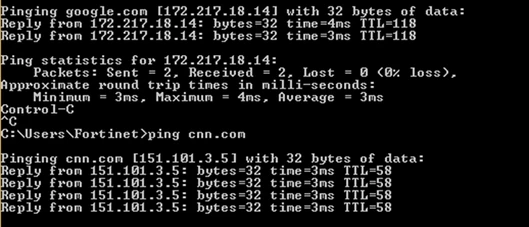

Global DNS can successfully be resolved.






DNS request process on FortiGate –-> for local entry, FortiGate will check its own database – cause FortiGate is aware of its local domain name.



'40gate.co.id'.

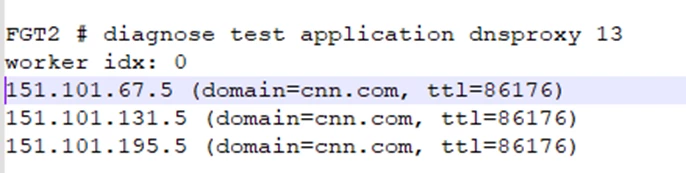

DNS cache: local entry database will not be cached.

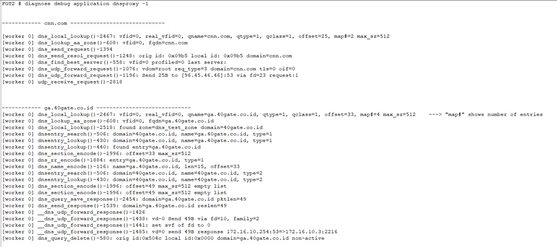

Dumb DNS database.






Related documents:

https://docs.fortinet.com/document/fortigate/6.2.0/cookbook/960561/fortigate-dns-server

https://docs.fortinet.com/document/fortigate/6.2.0/cookbook/121810/using-a-fortigate-as-a-dns-server

https://community.fortinet.com/t5/FortiGate/Technical-Tip-DNS-database-with-FortiGate-as-a-slave-to-a/ta-p/192942
