Technical Tip: GUI Untrusted HTTPS server certificate

In v7.2.1, a new default certificate 'Fortinet_GUI_Server' is introduced for HTTPS administrative access.

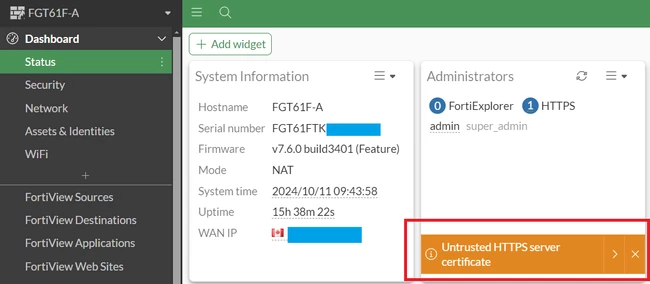

If a self-signed certificate is used, the error 'Untrusted HTTPS server certificate' will be shown on the dashboard.

It is best practice to use a signed and trusted HTTPS server certificate (refer to this article: Technical Tip: FortiGate HTTPS/SSL Certificate Installation (PFX, PKCS12, PEM and CER), but it is also possible to remove this warning by using the 'Fortinet_GUI_Server' certificate.

To do so, see below:

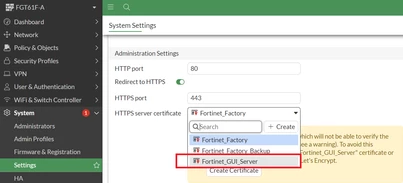

1. Go to System -> Settings -> HTTPS Server Certificate, select 'Fortinet_GUI_Server', and select 'Apply'.


   If it is not required for this PC to trust the new Fortinet_GUI_Server certificate, skip to Step 6. To resolve browser-based certificate warnings, continue to the remaining steps.

2. Ensure that the certificate option is enabled under System -> Feature Visibility -> Certificates.





    

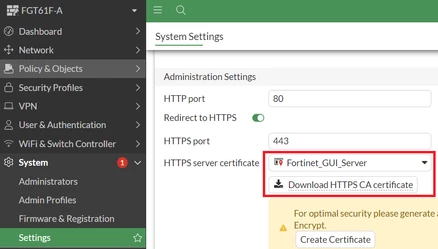

3. Download the certificate from System -> Settings -> HTTPS Server Certificate. In this step, select 'Download HTTPS CA certificate'. 'Fortinet_CA_SSL' will be downloaded:


   An alternative path to download the same CA certificate is System -> Certificates -> Fortinet_CA_SSL -> Download.




4. Install the certificate in the PC's trusted root CA certificate store:

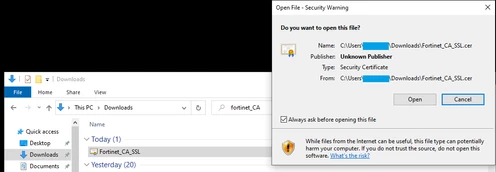

   Since installing certificates can affect which certificates the browser will show as trusted, opening the file will show a warning.


   Select Store Location -> 'Local Machine'.


   Place the certificate in 'Trusted Root Certification Authorities'.

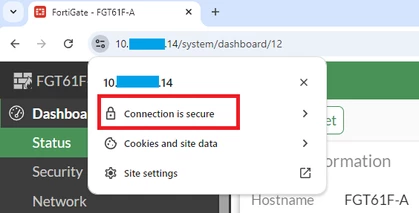

5. Clear the browser cache and log in to the GUI in a new browser window to verify that the HTTPS server certificate is now trusted by the PC.

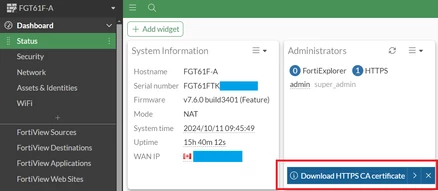

6. 'Untrusted HTTPS server certificate' has been replaced with a link to download the current HTTPS CA certificate.

Repeat steps 2 to 5 as needed for any other PC's that are required to trust the FortiGate's CA certificate.

Note:

To assign an HTTPS server certificate for older versions, use the following commands:

config system global

    set admin-server-cert <new_cert>
end

By default, 'Fortinet_CA_SSL' is used to sign 'Fortinet_GUI_Server' and firewall block pages. It is also the default CA used if the deep inspection is configured. Installing the certificate on a PC will also remove certificate warnings for those functions. See the documents 'Technical Tip: Certificate error when accessing blocked page' and 'Deep Inspection' for more details.

Additional Note :
In some instances, despite the Fortinet_GUI_Server certificate being imported to the administrator's Windows Trusted Root CA store, the FortiGate login page may still show up as 'Not secure'. From Fortinet_GUI_Server certificate being the default HTTPS GUI certificate, try to change it to a different certificate (for example, Fortinet_Factory), then revert it to the original (Fortinet_GUI_Server). More information in this article: Technical Tip: Getting 'Not Secure' warning despite importing Fortinet_GUI_Server certificate for GUI Admin Access.

config system global
    set admin-server-cert Fortinet_Factory
end

config system global
    set admin-server-cert Fortinet_GUI_Server
end
