Technical Tip: Get backup config file on FortiGate using RestAPI via Python script

1. Create a REST API Admin in FortiGate under System -> Administrators -> Create New -> REST API Admin to have access to it via API.

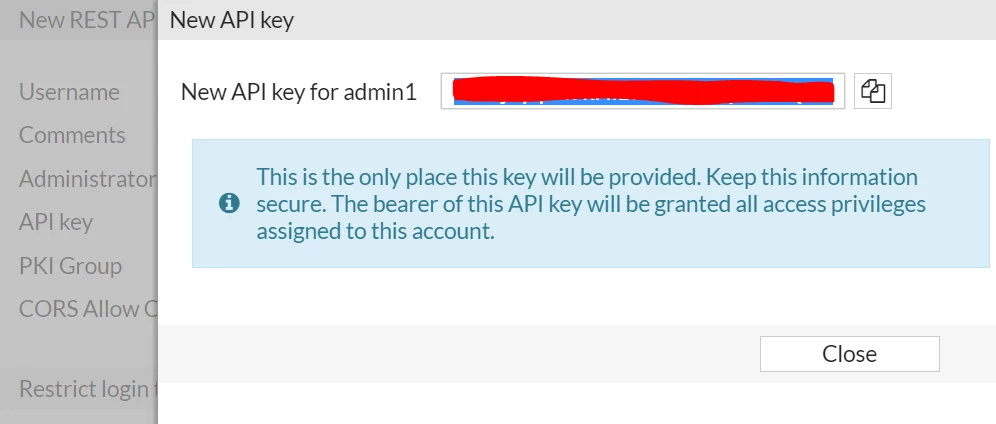

2. Save the API key that is generated immediately after selecting on 'Save' button as in the screenshot below:

3. Ensure that the API admin is set with super_admin rights. CLI must be used:


config system api-user
    edit "test"
        set api-key ENC blahblah
        set accprofile "super_admin"
        set vdom "root"
    next
end

4. Create an empty file in Linux using the command: nano /home/backup.py.


5. Add the following Python script to the file and save it:

Import requests:

       import requests

api_url = 'https://10.191.20.122/api/v2/monitor/system/config/backup?scope=global&access_token=Api_Key_Generated'

requests.packages.urllib3.disable_warnings()

data = requests.get(api_url, verify=False)

with open('/home/api_configbackup.conf' ,'wb') as f:

         for line in data:

               f.write(line)

Where 10.191.20.122 is the IP of the FortiGate.

For FortiOS v7.4.5 +, the authentication needs to be passed in the header, and Api_Key_Generated needs to be moved from the link inside the get request header. Script will be:

    import requests

    api_url = 'https://10.191.20.122/api/v2/monitor/system/config/backup?scope=global'

    requests.packages.urllib3.disable_warnings()
    headers = {"Authorization": "Bearer Api_Key_Generated"}
    data = requests.get(api_url, verify=False, headers=headers)

    with open('/home/api_configbackup.conf' ,'wb') as f:

        for line in data:

            f.write(line)

The scope is global for the global configuration of the FortiGate.

Api_Key_Generated is the value of the token previously generated.

 /home/api_configbackup.conf is the place in the Linux machine where to save the backup file.

Tip: Before executing the command python3/home/backup.py, it is possible to intuitively test whether the config backup file can be retrieved successfully using the following command.

curl -k -H "Authorization: Bearer Api_Key_Generated" "https://10.191.20.122/api/v2/monitor/system/config/backup?scope=global" -o api_configbackup.conf

% Total % Received % Xferd Average Speed Time Time Time Current
Dload Upload Total Spent Left Speed
100 385k 100 385k 0 0 533k 0 --:--:-- --:--:-- --:--:-- 533k

6. Execute the Python script created with the command python3 /home/backup.py.

The file api_configbackup will be created in the specified directory with the configurations of the FortiGate included.

Exporting in YAML format:

Just add '&file_format=yaml' as additional parameter as follows:

..."https://10.191.20.122/api/v2/monitor/system/config/backup?scope=global&file_format=yaml"...

For chassis-based products (such as 6K - 7K), it may be necessary to set the scope to Global in the account profile to make this work as expected:

config system accprofile
    edit "API-BACKUP"
        set scope global <----- Set the scope to global under the relevant accprofile.
        set secfabgrp read-write
        set ftviewgrp read-write
        set authgrp read-write
        set sysgrp read-write
        set netgrp read-write
        set loggrp read-write
        set fwgrp read-write
        set vpngrp read-write
        set utmgrp read-write
        set wifi read-write
    next

end
