Technical Tip: Extended logging for SSL traffic

In FortiOS 6.4.0, a new option 'set ssl-negotiation-log {enable | disable}' was added to the SSL/SSH profile option set. This new option captures results of unsupported SSL negotiations.

To log unsupported SSL negotiation:

config firewall ssl-ssh-profile

    edit <name>

        set ssl-negotiation-log {enable | disable}

    next

end

For reference, see WAD and Proxyd SSL logging improvement.

Starting in FortiOS 7.0.1, new options have been added to the SSL/SSH profile to log server certificate information and TLS handshakes. New fields are added to the UTM SSL logs when these options are enabled.

config firewall ssl-ssh-profile

    edit <name>

        set ssl-server-cert-log {enable | disable}

        set ssl-handshake-log {enable | disable}

    next

end

For for more information, see the following documents:

• Enhance TLS logging
• What's New - FortiOS log message reference

Important: In order for the SNI and Extended Logging feature to work, it is necessary to reference a Web Filter profile in the Firewall Policy.

The latest options added to FortiOS 7.0.1 are particularly helpful if customer needs further details for reporting purposes, such as TLS version, Key Exchange, SNI, SAN, Certificate Issuer.

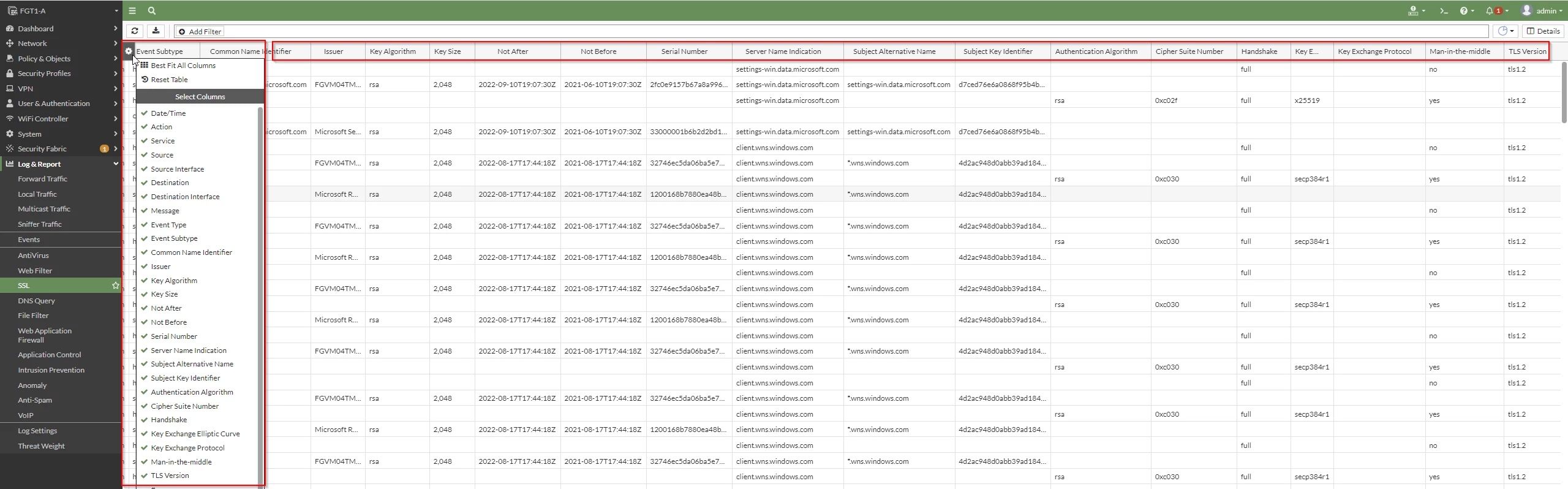

The new fields are added to the raw logs, which can also be displayed on GUI. To be able to see those new fields on GUI, navigate to 'Log & Report', select SSL, then hover over the title row and click on the gear icon to customize columns as shown in the image below.

Note:
Those new fields were also added to FortiAnalyzer in firmware version 7.0.1, meaning data for those fields will only be parsed and populated in the Log Viewer if the FortiAnalyzer is running at least firmware version 7.0.1.
