Technical Tip: Enabling passive-interface when using OSPF

  • April 19, 2020
  • 0 replies
  • 13290 views

Description



This article describes how to enable passive-interface in the CLI.



Scope



FortiGate.

Solution


The OSPF 'network' command adds all interfaces with a subnet within the range of the network command to OSPF, and OSPF hello packets are sent on those interfaces.

Sometimes, it is necessary to advertise a subnet using OSPF but not send OSPF hello packets on this interface.

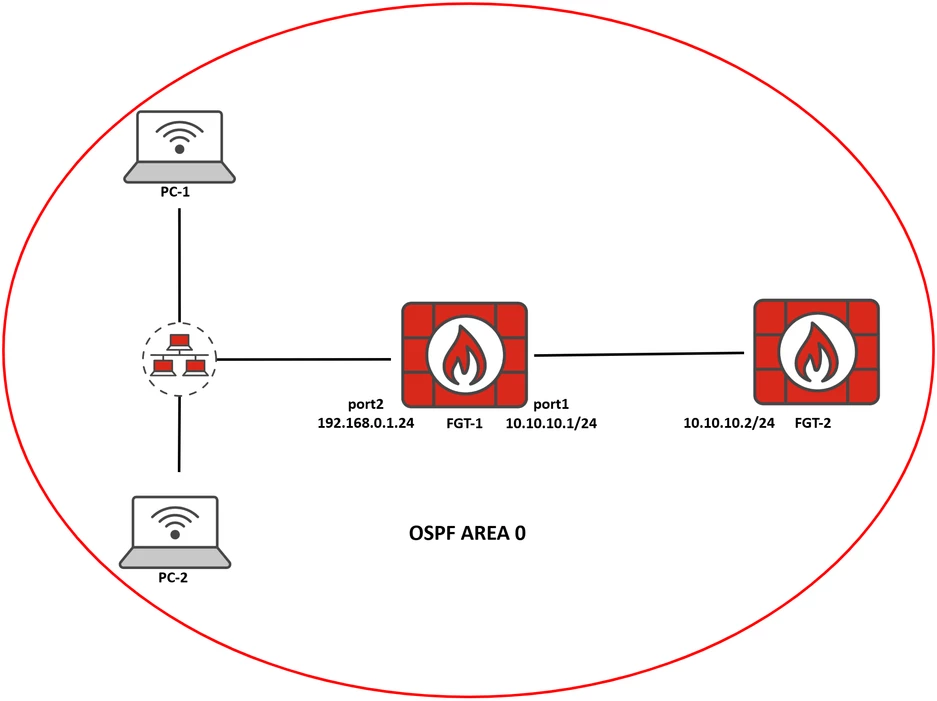

In the topology above, 'FGT-1' and 'FGT-2' are OSPF neighbors over port1. With the default configuration, if the 192.168.0.0/24 network is added to FGT-1's OSP configuration, the firewall will start to advertise the 192.168.0.0/24 network to 'FGT-2', but will also send OSPF hello packets over port2.

config router ospf
    set router-id 8.8.8.8
        config area
            edit 0.0.0.0
            next
        end
        config network
            edit 1
                set prefix 10.10.10.0 255.255.255.0
            next
            edit 2
                set prefix 192.168.0.0 255.255.255.0
            next
        end
end

In this case, when a sniffer is checked for IP Protocol 89, the following output will appear.

diagnose sniffer packet port2 'proto 89' 4 none l
interfaces=[port2]
filters=[proto 89]
2020-04-19 10:11:01.771921 port2 -- 192.168.0.1 -> 224.0.0.5:  ip-proto-89 44
2020-04-19 10:11:11.393576 port2 -- 192.168.0.1 -> 224.0.0.5:  ip-proto-89 44
2020-04-19 10:11:21.805370 port2 -- 192.168.0.1 -> 224.0.0.5:  ip-proto-89 44


The debug shows the following output:


diagnose ip router ospf level info
diagnose ip router ospf packet hello enable<----- This command only filters OSPF hello packets.
diagnose debug enable



[root] OSPF: RECV[Hello]: From 192.168.0.1 via port2:x.x.x.x (x.x.x.x -> 224.0.0.5)
[root] OSPF: SEND[Hello]: To 224.0.0.5 via port2:x.x.x.x, length 48
[root] OSPF: RECV[Hello]: From 192.168.0.1 via port2:x.x.x.x (x.x.x.x -> 224.0.0.5)
[root] OSPF: SEND[Hello]: To 224.0.0.5 via port2:x.x.x.x, length 48



diagnose debug reset


In this environment, it is not desirable to send OSPF hello packets from port2 since there is no other networking unit (i.e., router, firewall) running OSPF on this segment. If OSPF remains active on this interface, an attacker using PC-1 or PC-2 could form an unwanted OSPF neighborship to FGT-1 and advertise some fake routes.

To stop sending hello packets over 'port2', configure 'port2' as a passive-interface.

config router ospf
    set passive-interface port2
end

Once 'passive-interface' is enabled for port2, 'FGT-1' will stop sending hello packets over port2 and will not listen for incoming OSPF Hello messages on this interface.

diagnose sniffer packet port2 'proto 89' 4 none l
interfaces=[port2]
filters=[proto 89]

If the passive interface is enabled on port1, the following output can be seen in the debugs:


diagnose ip router ospf level info
diagnose ip router ospf packet hello enable
diagnose debug enable



[root] OSPF: RECV[Hello]: From 10.10.10.2 via port1:x.x.x.x (x.x.x.x -> 224.0.0.5)
[root] OSPF: RECV[Hello]: From 10.10.10.2 via port1:x.x.x.x: Interface is passive
[root] OSPF: ospf_ipc_server_accept:1200:8f8 create ipc_handler=0x7fd0f718dac0 for sock=20
[root] OSPF: ospf_ih_on_read:1070:8f9 request type=18 len=24 vfid=0 start=0 count=8000 flags=0x1
[root] OSPF: ospf_ih_on_read:1166:8fa response type=18 len=24 vfid=0 start=0 count=0 flags=0x1 total=0 ret=32
[root] OSPF: ospf_ih_on_close:1180:8fb delete ipc_handler=0x7fd0f718dac0 for sock=20



diagnose debug reset
