Technical Tip: Changing default ports for SNMP
Description
This article describes the default ports used for SNMP traffic on the FortiGate platforms and how to change them.
Further information on SNMP can be found here
Scope
FortiGate.
Solution
The FortiGate SNMP traffic is by default configured to use ports 161 (for queries) and 162 (for traps). Use the following commands to change these default ports:
config system snmp community
edit <index_number>
set query-v1-port <port_number> <---- port that the FortiGate should open for queries
set trap-v1-lport <port_number> <---- local port for traps
set trap-v1-rport <port_number> <---- remote port for traps
set query-v2c-port <port_number>
set trap-v2c-lport <port_number>
set trap-v2c-rport <port_number>
end

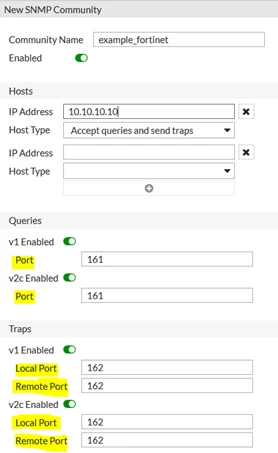

The option is also available on the GUI, as shown below:

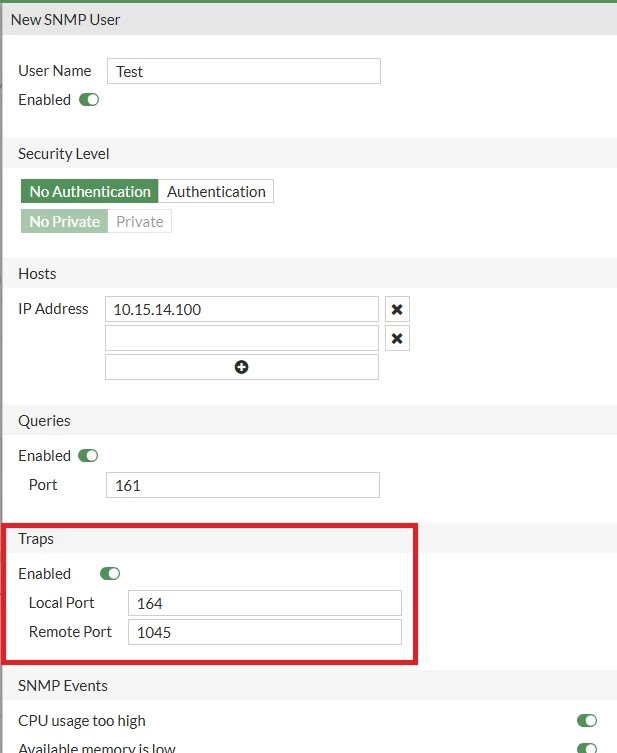

In SNMPv3, local and remote trap ports can be changed as follows:
GUI:
CLI:
FG61F-Home # config system snmp user
FG61F-Home (user) # edit Test
FG61F-Home (Test) # set trap-lport 164
FG61F-Home (Test) # set trap-rport 1045
