Technical Tip: AWS HA issue when using different instance types

Description

This article describes the FortiGate sync issue if different types of EC2 instances are selected.

Scope

Issues can occur in both single-zone and multi-zone high-availability setups.

Refer to below article to set up HA:

Technical Tip: How to setup FortiGate-VM A-P HA on AWS within one zone

Solution

Case 1:

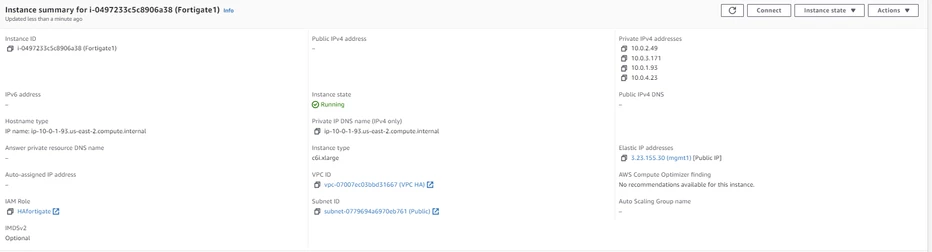

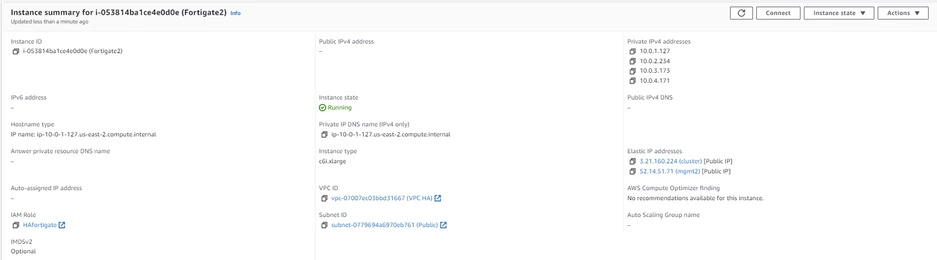

When both FortiGate instances are of the same size: Pictures are attached for reference:









High Availability (HA) can be observed in sync:

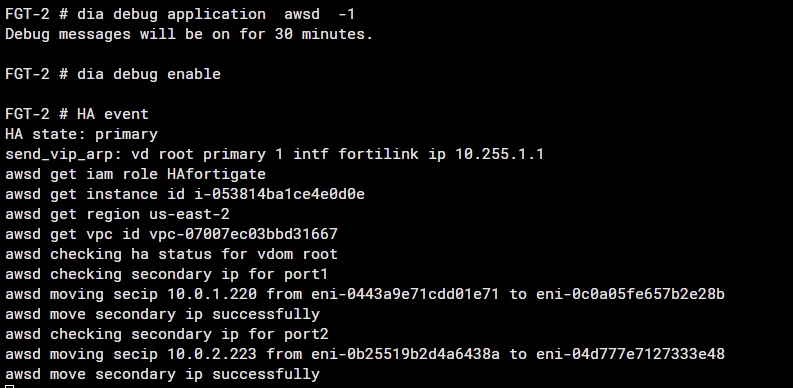

Failover is happening as expected:






Case2:

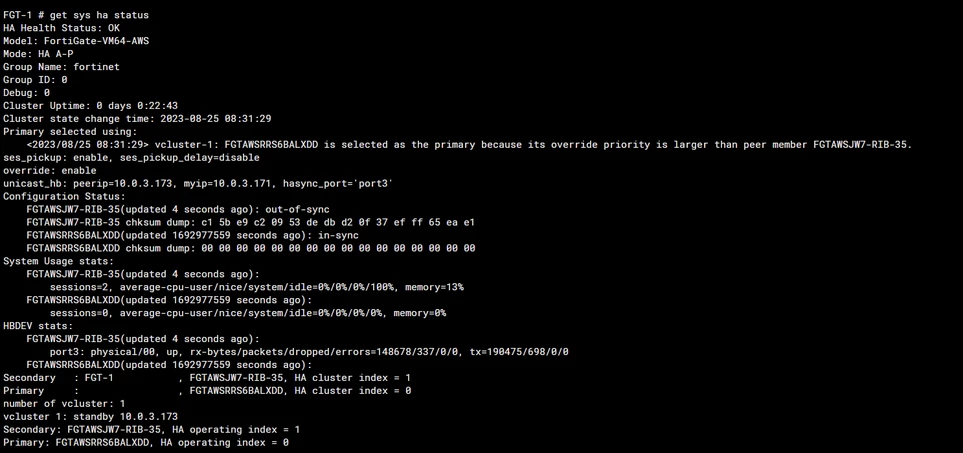

The instance type is different (FortiGate1 is t3.xlarge and FortiGate2 is c6i.xlarge). With identical configurations, it can be observed that HA is not in sync, as shown below:












Result:

For HA to function in AWS, it is necessary to have instances of the same type and size.
