Technical Tip: An error 'Node_check_object fail! for name' occurs while adding the interface to the policy

Description

This article describes why the interface cannot be added to the policy.

Scope

FortiGate.

Solution

If the interface is not part of a zone, the policy will not show an error.

If the interface belongs to a zone and is added as a source or destination in the policy, the FortiGate will display the following error.

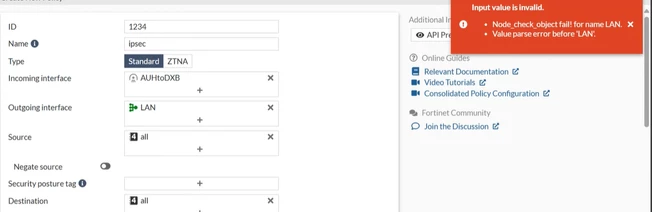

Node_check_object fail! for name LAN.

Value parse error before 'LAN'.

In this case, the VLAN 'LAN' interface is part of the zone 'LAN-Zone'.

As a result, when attempting to add the interface as the outgoing interface, an error occurs.

image (63).png

To resolve this issue,

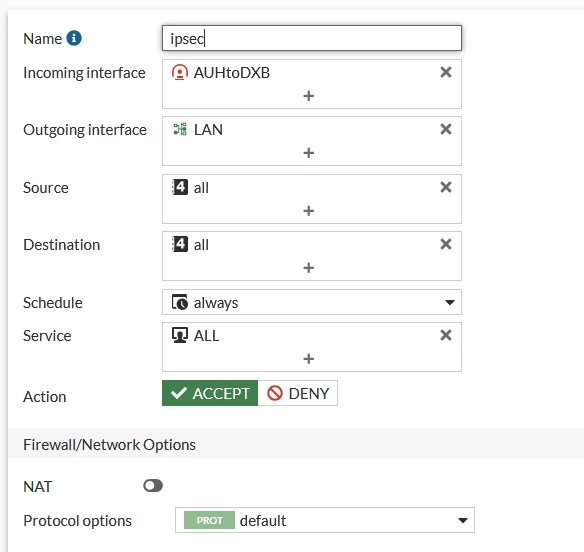

Remove the interface from the zone, and then create the policy with interface 'LAN'.

For any issue related to the FortiGate GUI, Fortinet support tool output can be collected to get more information.
