Technical Note: OSPFv3 (OSPF for IPv6) configuration example

Forum|Forum|16 years ago
June 25, 2009
0 replies
17775 views

Purpose

This technical note explains with an example how OSPFv3 (OSPF for IPv6) should be configured on a FortiGate unit.

The architecture chosen includes OSPFv3 over an inter-vdom link, redistribution filtering and summarization.

Useful commands to verify and troubleshoot OSPFv3 using FortiGates is covered in this article.

Scope

FortiGate or VDOM operating in Nat/route mode.

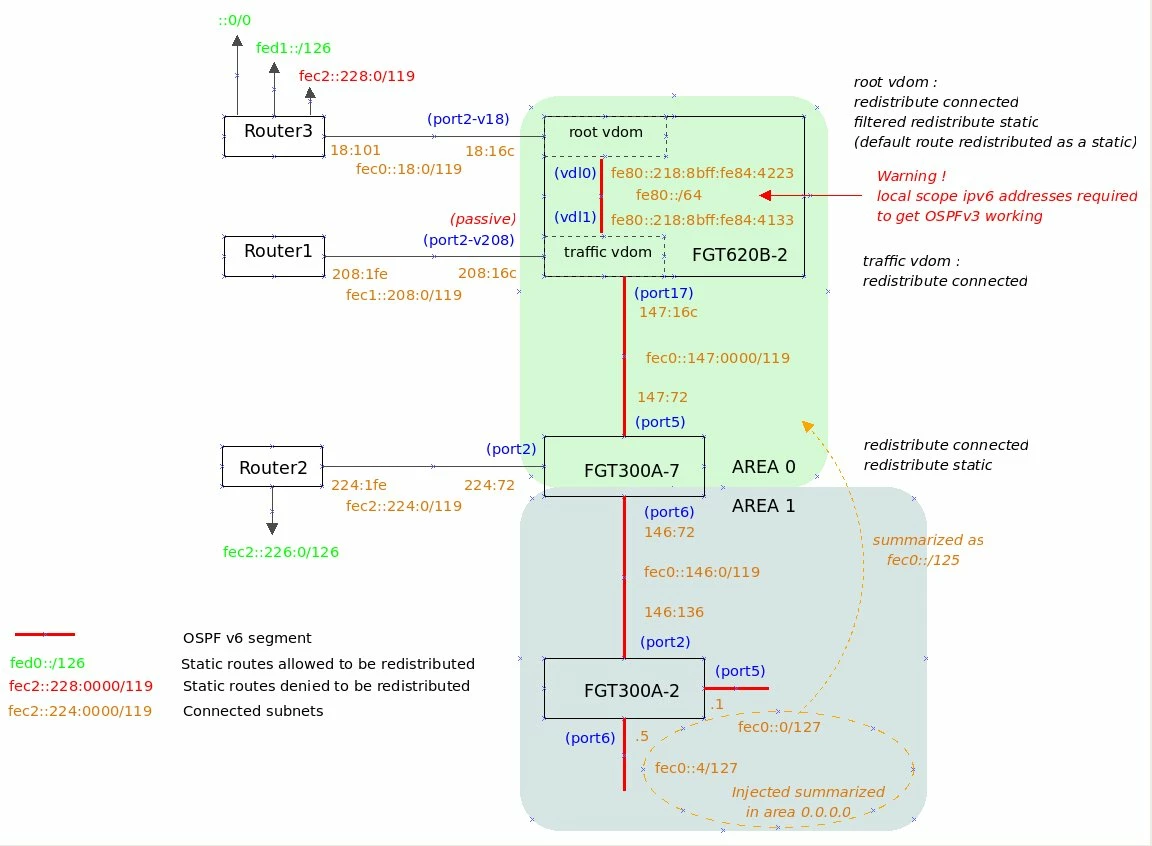

Diagram
The following network scenario is used to illustrate this example.

Expectations, Requirements

Expectations

Based on the diagram above, the following rules are defined.

FGT620B-2
- runs OSPFv3 on 2 vdoms 'root' and 'traffic'
  - vdom 'root'
    - redistributes connected routes
    - redistributes static routes with filtering
      - Distributed routes : default route ::0/0, fed1::/126
      - Denied route in redistribution : fec2::228:0000/119
    - runs OSPFv3 on inter-vdom link interface (vdl0) towards vdom 'traffic'
  - vdom 'traffic'
    - redistributes connected routes
    - has a passive interface port2-v208
    - runs OSPFv3 on inter-vdom link interface (vdl1) towards vdom 'root'
FGT300A-7
- redistributes connected routes
- redistributes static route
- ABR summarization : fec0::0/126 + fec0::4/126 => fec0::0/125
- runs OSPFv3 as ABR for area 0.0.0.0 and area 0.0.0.1
FGT300A-2
- runs OSPFv3

Requirement

Firmware version should be 4.1.0 or higher.
Configuration

FGT620B-2

config vdom
edit root
end

config vdom
edit traffic
end

config global
config system global
    set vdom-admin enable
end

config system vdom-link
    edit "vdl"
    next
end

config system interface
    edit "port17"
        set vdom "traffic"
        set allowaccess ping https ssh http telnet
        set type physical
            config ipv6
                set ip6-address fec0::147:16c/119
                set ip6-allowaccess ping
            end
    next
   edit "vdl0"
        set vdom "root"
        set type vdom-link
            config ipv6
                set ip6-address fe80::218:8bff:fe84:4223/64
                set ip6-allowaccess ping
            end
    next
    edit "vdl1"
        set vdom "traffic"
        set type vdom-link
            config ipv6
                set ip6-address fe80::218:8bff:fe84:4133/64
                set ip6-allowaccess ping
            end
    next
    edit "port2-v208"
        set vdom "traffic"
            config ipv6
                set ip6-address fec1::208:16c/119
                set ip6-allowaccess ping
            end
        set interface "port2"
        set vlanid 208
    next
    edit "port2-v18"
        set vdom "root"
            config ipv6
                set ip6-address fec0::18:16c/119
                set ip6-allowaccess ping
            end
        set interface "port2"
        set vlanid 18
    next
end

config vdom
edit root
config router prefix-list6
    edit "pl6_filter_static_distrib"
            config rule
                edit 1
                    set action deny
                    set prefix6 "fec2::228:0000/119"
                    unset ge
                    unset le
                next
                edit 2
                    set prefix6 "any"
                    unset ge
                    unset le
                next
            end
    next
end
config router route-map
    edit "rm_filter_static_redistrib"
            config rule
                edit 1
                    set match-ip6-address "pl6_filter_static_distrib"
                next
            end
    next
end
config router static6
    edit 1
        set device "port2-v18"
        set gateway fec0::18:101
    next
    edit 2
        set device "port2-v18"
        set dst fed1::/126
        set gateway fec0::18:101
    next
    edit 3
        set device "port2-v18"
        set dst fec2::228:0/119
        set gateway fec0::18:101
    next
end
config router ospf6
        config area
            edit 0.0.0.0
            next
        end
        config ospf6-interface
            edit "vdl0"
                set interface "vdl0"
            next
            edit "port2-v18"
                set interface "port2-v18"
            next
        end
        set passive-interface "port2-v18"
        config redistribute "connected"
            set status enable
        end
        config redistribute "static"
            set status enable
            set routemap "rm_filter_static_redistrib"
        end
        config redistribute "rip"
        end
        config redistribute "bgp"
        end
    set router-id 1.1.1.1
end

config vdom
edit traffic
config router ospf6
        config area
            edit 0.0.0.0
            next
        end
        config ospf6-interface
            edit "vdl1"
                set interface "vdl1"
            next
            edit "port17"
                set interface "port17"
            next
            edit "port2-v208"
                set interface "port2-v208"
            next
        end
        set passive-interface "port2-v208"
        config redistribute "connected"
            set status enable
        end
        config redistribute "static"
        end
        config redistribute "rip"
        end
        config redistribute "bgp"
        end
    set router-id 2.2.2.2
end

FGT300A-7

config system interface
    edit "port2"
        set vdom "root"
        set allowaccess ping https ssh http telnet
        set type physical
            config ipv6
                set ip6-address fec2::224:72/119
                set ip6-allowaccess ping
            end
    next
    edit "port5"
        set vdom "root"
        set allowaccess ping
        set type physical
            config ipv6
                set ip6-address fec0::147:72/119
                set ip6-allowaccess ping
            end
    next
    edit "port6"
        set vdom "root"
        set allowaccess ping https ssh http telnet
        set type physical
            config ipv6
                set ip6-address fec0::146:72/119
                set ip6-allowaccess ping https ssh
            end
    next
end
config router static6
    edit 1
        set device "port2"
        set dst fec2::226:0/119
        set gateway fec2::224:1fe
    next
end
config router ospf6
        config area
            edit 0.0.0.0
            next
            edit 0.0.0.1
                    config range
                        edit 1
                            set prefix6 fec0::/125   (#1)
                        next
                    end
            next
        end
        config ospf6-interface
            edit "port5"
                set interface "port5"
            next
            edit "port2"
                set interface "port2"
            next
            edit "port6"
                set area-id 0.0.0.1
                set interface "port6"
            next
        end
        set passive-interface "port2"
        config redistribute "connected"
        end
        config redistribute "static"
            set status enable
        end
        config redistribute "rip"
        end
        config redistribute "bgp"
        end
    set router-id 3.3.3.3
end

(#1) : Summarization on ABR

FGT300A-2

config system interface
   edit "port2"
        set vdom "root"
        set allowaccess ping
        set type physical
            config ipv6
                set ip6-address fec0::146:136/119
                set ip6-allowaccess ping https ssh
            end
    next
    edit "port5"
        set vdom "root"
        set allowaccess ping
        set type physical
            config ipv6
                set ip6-address fec0::1/127
                set ip6-allowaccess ping https ssh
            end
    next
    edit "port6"
        set vdom "root"
        set allowaccess ping
        set type physical
            config ipv6
                set ip6-address fec0::5/127
                set ip6-allowaccess ping https ssh
            end
    next
end

config router ospf6
        config area
            edit 0.0.0.1
            next
        end
        config ospf6-interface
            edit "port2"
                set area-id 0.0.0.1
                set interface "port2"
            next
            edit "port5"
                set area-id 0.0.0.1
                set interface "port5"
            next
            edit "port6"
                set area-id 0.0.0.1
                set interface "port6"
            next
        end
        config redistribute "connected"
        end
        config redistribute "static"
        end
        config redistribute "rip"
        end
        config redistribute "bgp"
        end
    set router-id 4.4.4.4
end

Comments on the configuration

Using inter-vdom links with OSPFv3

As OSPFv3 is using the next-hop interface local scope ipv6 address for routing, each interface used as next-hop must have a local scope IPv6 address configured. This is automatically the case for physical ports or VLAN interfaces for which a MAC address is always existing (local scope IPv6 address is derived from the underlying port MAC address). However, because a vdom-link does not have such MAC address as it is a point-to-point type of connection, it is mandatory to configured an IPv6 address which is part of the local scope on vdom-link interfaces.

This is the reason why in this setup, (vdl0) and (vdl1) are configured respectively with and fe80::218:8bff:fe84:4223 and fe80::218:8bff:fe84:4133.

If the inter vdom-link interfaces are not configured with local scope ipv6 address, OSPFv3 would not work.
Redistribution of the default gateway

Unlike standard OSPF configuration, there is no specific statement such as "default-information-originate" to specifically redistribute the IPv6 default route ::0/0. The default route is considered as any other static routes and processed as such.

Verification
The following commands are used for verification

get router info6 routing-table
diagnose ipv6 address list
diagnose ipv6 neighbor-cache list
get router info6 ospf status
get router info6 ospf interface
get router info6 ospf topology
get router info6 ospf neighbor
get router info6 ospf neighbor <neighbor router_id>
get router info6 ospf route

FGT620B-2 [VDOM root]

FGT620B-2 (root) # get router info6 routing-table
IPv6 Routing Table
Codes: K - kernel route, C - connected, S - static, R - RIP, O - OSPF,
       I - IS-IS, B - BGP
Timers: Uptime

S   ::/0 [1/0] via fec0::18:101, port2-v18, 00:54:25
C   ::1/128 via ::, root, 00:54:30
C   fe80::/10 via ::, port2-v18, 00:54:30
C   fe80::/64 via ::, vdl0, 00:54:30
O   fec0::/125 [110/121] via fe80::218:8bff:fe84:4133, vdl0, 00:49:59
C   fec0::18:0/119 via ::, port2-v18, 00:54:30
O   fec0::146:0/119 [110/111] via fe80::218:8bff:fe84:4133, vdl0, 00:53:48
O   fec0::147:0/119 [110/101] via fe80::218:8bff:fe84:4133, vdl0, 00:53:48
O   fec1::208:0/119 [110/200] via fe80::218:8bff:fe84:4133, vdl0, 00:54:09
O   fec2::224:0/119 [110/111] via fe80::218:8bff:fe84:4133, vdl0, 00:53:48
O   fec2::226:0/119 [110/10] via fe80::218:8bff:fe84:4133, vdl0, 00:53:47
S   fec2::228:0/119 [1/0] via fec0::18:101, port2-v18, 00:54:25
S   fed1::/126 [1/0] via fec0::18:101, port2-v18, 00:54:25

FGT620B-2 (root) # diagnose ipv6 address list
dev=33 devname=vsys_fgfm flag=P scope=254 prefix=128 addr=::1
dev=31 devname=vsys_ha flag=P scope=254 prefix=128 addr=::1
dev=29 devname=port2-v208 flag=P scope=200 prefix=119 addr=fec1::208:16c
dev=25 devname=traffic flag=P scope=254 prefix=128 addr=::1
dev=23 devname=root flag=P scope=254 prefix=128 addr=::1
dev=30 devname=port2-v18 flag=P scope=200 prefix=119 addr=fec0::18:16c
dev=2 devname=port17 flag=P scope=253 prefix=10 addr=fe80::209:fff:feb7:3c88
dev=28 devname=vdl1 flag=P scope=253 prefix=64 addr=fe80::218:8bff:fe84:4133
dev=2 devname=port17 flag=P scope=200 prefix=119 addr=fec0::147:16c
dev=27 devname=vdl0 flag=P scope=253 prefix=64 addr=fe80::218:8bff:fe84:4223
dev=30 devname=port2-v18 flag=P scope=253 prefix=10 addr=fe80::209:fff:feb7:3c79
dev=29 devname=port2-v208 flag=P scope=253 prefix=10 addr=fe80::209:fff:feb7:3c79

FGT620B-2 (root) # diagnose ipv6 neighbor-cache list
ifindex=2 ifname=port17 ff02::5 33:33:00:00:00:05 state=00000040 use=1089 confirm=10023854 update=10017854 ref=1
ifindex=2 ifname=port17 ff02::9 33:33:00:00:00:09 state=00000040 use=990 confirm=10310626 update=10304626 ref=0
ifindex=23 ifname=root :: 00:00:00:00:00:00 state=00000040 use=10308448 confirm=10314448 update=10308448 ref=5
ifindex=25 ifname=traffic :: 00:00:00:00:00:00 state=00000040 use=10308448 confirm=10314448 update=10308448 ref=6
ifindex=31 ifname=vsys_ha :: 00:00:00:00:00:00 state=00000040 use=10308078 confirm=10314078 update=10308078 ref=1
ifindex=27 ifname=vdl0 ff02::5 state=00000040 use=15792 confirm=21792 update=15792 ref=1
ifindex=28 ifname=vdl1 ff02::5 state=00000040 use=15792 confirm=21792 update=15792 ref=1
ifindex=33 ifname=vsys_fgfm :: 00:00:00:00:00:00 state=00000040 use=10307736 confirm=10313736 update=10307736 ref=1
ifindex=27 ifname=vdl0 ff02::9 state=00000040 use=19790 confirm=25790 update=19790 ref=0
ifindex=28 ifname=vdl1 ff02::9 state=00000040 use=19790 confirm=25790 update=19790 ref=0
ifindex=30 ifname=port2-v18 fec0::18:101 state=00000000 use=8301444 confirm=8307444 update=8301444 ref=3
ifindex=2 ifname=port17 fe80::209:fff:fe85:b7a9 00:09:0f:85:b7:a9 state=00000004 use=230025 confirm=230025 update=227734 ref=4
ifindex=27 ifname=vdl0 fe80::218:8bff:fe84:4133 state=00000040 use=548849 confirm=554849 update=548849 ref=6
ifindex=28 ifname=vdl1 fe80::218:8bff:fe84:4223 state=00000040 use=548852 confirm=554852 update=548852 ref=3

FGT620B-2 (root) # get router info6 ospf status
Routing Process "OSPFv3 (*null*)" with ID 1.1.1.1
Process uptime is 33 minutes
SPF schedule delay 5 secs, Hold time between SPFs 10 secs
Minimum LSA interval 5 secs, Minimum LSA arrival 1 secs
Number of incomming current DD exchange neighbors 0/5
Number of outgoing current DD exchange neighbors 0/5
Number of external LSA 3. Checksum Sum 0xBEAA
Number of AS-Scoped Unknown LSA 0
Number of LSA originated 6
Number of LSA received 44
Number of areas in this router is 1
    Area BACKBONE(0)
        Number of interfaces in this area is 2(2)
        SPF algorithm executed 4 times
        Number of LSA 10. Checksum Sum 0x4CE92
        Number of Unknown LSA 0

FGT620B-2 (root) # get router info6 ospf interface
vdl0 is up, line protocol is up
Interface ID 27
IPv6 Prefixes
    fe80::218:8bff:fe84:4223/64 (Link-Local Address)
OSPFv3 Process (*null*), Area 0.0.0.0, Instance ID 0
    Router ID 1.1.1.1, Network Type POINTOPOINT, Cost: 100
    Transmit Delay is 1 sec, State Point-To-Point, Priority 1
    Timer interval configured, Hello 10, Dead 40, Wait 40, Retransmit 5
      Hello due in 00:00:04
    Neighbor Count is 1, Adjacent neighbor count is 1
port2-v18 is up, line protocol is up
Interface ID 30
IPv6 Prefixes
    fe80::209:fff:feb7:3c79/10 (Link-Local Address)
    fec0::18:16c/119
OSPFv3 Process (*null*), Area 0.0.0.0, Instance ID 0
    Router ID 1.1.1.1, Network Type BROADCAST, Cost: 100
    Transmit Delay is 1 sec, State DR, Priority 1
    Designated Router (ID) 1.1.1.1
      Interface Address fe80::209:fff:feb7:3c79
    No backup designated router on this link
    Timer interval configured, Hello 10, Dead 40, Wait 40, Retransmit 5
      No Hellos (Passive interface)
    Neighbor Count is 0, Adjacent neighbor count is 0

FGT620B-2 (root) # get router info6 ospf topology

OSPFv3 Process (*null*)
OSPFv3 paths to Area (0.0.0.0) routers
Router ID        Bits Metric     Next-Hop             Interface
1.1.1.1            E   --
2.2.2.2            E   100        2.2.2.2              vdl0
3.3.3.3            EB 101        2.2.2.2              vdl0

FGT620B-2 (root) # get router info6 ospf neighbor
OSPFv3 Process (*null*)
Neighbor ID     Pri   State           Dead Time   Interface Instance ID
2.2.2.2           1   Full/ -         00:00:40    vdl0       0

FGT620B-2 (root) # get router info6 ospf neighbor 2.2.2.2
OSPFv3 Process (*null*)
Neighbor 2.2.2.2, interface address fe80::218:8bff:fe84:4133
    In the area 0.0.0.0 via interface vdl0
    DR is 0.0.0.0 BDR is 0.0.0.0
    Options is 0x000013 (-|R|-|-|E|V6)
    Dead timer due in 00:00:32
    Database Summary List 0
    Link State Request List 0
    Link State Retransmission List 0

FGT620B-2 (root) # get router info6 ospf route
OSPFv3 Process (*null*)
Codes: C - connected, D - Discard, O - OSPF, IA - OSPF inter area
       E1 - OSPF external type 1, E2 - OSPF external type 2

   Destination                                   Metric
     Next-hop
IA fec0::/125                                       121
     via fe80::218:8bff:fe84:4133, vdl0, Area 0.0.0.0
C fec0::18:0/119                                   100
     directly connected, port2-v18, Area 0.0.0.0
IA fec0::146:0/119                                  111
     via fe80::218:8bff:fe84:4133, vdl0, Area 0.0.0.0
O fec0::147:0/119                                  101
     via fe80::218:8bff:fe84:4133, vdl0, Area 0.0.0.0
O fec1::208:0/119                                  200
     via fe80::218:8bff:fe84:4133, vdl0, Area 0.0.0.0
O fec2::224:0/119                                  111
     via fe80::218:8bff:fe84:4133, vdl0, Area 0.0.0.0
E2 fec2::226:0/119                               111/10
     via fe80::218:8bff:fe84:4133, vdl0

FGT620B-2 [VDOM traffic]

FGT620B-2 (traffic) # get router info6 routing-table
IPv6 Routing Table
Codes: K - kernel route, C - connected, S - static, R - RIP, O - OSPF,
       I - IS-IS, B - BGP
Timers: Uptime

O   ::/0 [110/10] via fe80::218:8bff:fe84:4223, vdl1, 01:08:22
C   ::1/128 via ::, traffic, 01:08:44
C   fe80::/10 via ::, port2-v208, 01:08:44
              via ::, port17, 01:08:44
C   fe80::/64 via ::, vdl1, 01:08:44
O   fec0::/125 [110/21] via fe80::209:fff:fe85:b7a9, port17, 01:04:14
O   fec0::18:0/119 [110/200] via fe80::218:8bff:fe84:4223, vdl1, 01:08:23
O   fec0::146:0/119 [110/11] via fe80::209:fff:fe85:b7a9, port17, 01:08:03
C   fec0::147:0/119 via ::, port17, 01:08:44
C   fec1::208:0/119 via ::, port2-v208, 01:08:44
O   fec2::224:0/119 [110/11] via fe80::209:fff:fe85:b7a9, port17, 01:07:53
O   fec2::226:0/119 [110/10] via fe80::209:fff:fe85:b7a9, port17, 01:07:52
O   fed1::/126 [110/10] via fe80::218:8bff:fe84:4223, vdl1, 01:08:22

FGT620B-2 (traffic) # diagnose ipv6 address list
dev=33 devname=vsys_fgfm flag=P scope=254 prefix=128 addr=::1
dev=31 devname=vsys_ha flag=P scope=254 prefix=128 addr=::1
dev=29 devname=port2-v208 flag=P scope=200 prefix=119 addr=fec1::208:16c
dev=25 devname=traffic flag=P scope=254 prefix=128 addr=::1
dev=23 devname=root flag=P scope=254 prefix=128 addr=::1
dev=30 devname=port2-v18 flag=P scope=200 prefix=119 addr=fec0::18:16c
dev=2 devname=port17 flag=P scope=253 prefix=10 addr=fe80::209:fff:feb7:3c88
dev=28 devname=vdl1 flag=P scope=253 prefix=64 addr=fe80::218:8bff:fe84:4133
dev=2 devname=port17 flag=P scope=200 prefix=119 addr=fec0::147:16c
dev=27 devname=vdl0 flag=P scope=253 prefix=64 addr=fe80::218:8bff:fe84:4223
dev=30 devname=port2-v18 flag=P scope=253 prefix=10 addr=fe80::209:fff:feb7:3c79
dev=29 devname=port2-v208 flag=P scope=253 prefix=10 addr=fe80::209:fff:feb7:3c79

FGT620B-2 (traffic) # diagnose ipv6 neighbor-cache list
ifindex=2 ifname=port17 ff02::5 33:33:00:00:00:05 state=00000040 use=749 confirm=10202614 update=10196614 ref=1
ifindex=2 ifname=port17 ff02::9 33:33:00:00:00:09 state=00000040 use=3450 confirm=10489386 update=10483386 ref=0
ifindex=23 ifname=root :: 00:00:00:00:00:00 state=00000040 use=10487208 confirm=10493208 update=10487208 ref=5
ifindex=25 ifname=traffic :: 00:00:00:00:00:00 state=00000040 use=10487208 confirm=10493208 update=10487208 ref=6
ifindex=31 ifname=vsys_ha :: 00:00:00:00:00:00 state=00000040 use=10486838 confirm=10492838 update=10486838 ref=1
ifindex=27 ifname=vdl0 ff02::5 state=00000040 use=194552 confirm=200552 update=194552 ref=1
ifindex=28 ifname=vdl1 ff02::5 state=00000040 use=194552 confirm=200552 update=194552 ref=1
ifindex=33 ifname=vsys_fgfm :: 00:00:00:00:00:00 state=00000040 use=10486496 confirm=10492496 update=10486496 ref=1
ifindex=27 ifname=vdl0 ff02::9 state=00000040 use=3450 confirm=9450 update=3450 ref=0
ifindex=28 ifname=vdl1 ff02::9 state=00000040 use=3450 confirm=9450 update=3450 ref=0
ifindex=30 ifname=port2-v18 fec0::18:101 state=00000000 use=8480204 confirm=8486204 update=8480204 ref=3
ifindex=2 ifname=port17 fe80::209:fff:fe85:b7a9 00:09:0f:85:b7:a9 state=00000004 use=408785 confirm=408785 update=406494 ref=4
ifindex=27 ifname=vdl0 fe80::218:8bff:fe84:4133 state=00000040 use=727609 confirm=733609 update=727609 ref=6
ifindex=28 ifname=vdl1 fe80::218:8bff:fe84:4223 state=00000040 use=727612 confirm=733612 update=727612 ref=3

FGT620B-2 (traffic) # get router info6 ospf status
Routing Process "OSPFv3 (*null*)" with ID 2.2.2.2
Process uptime is 1 hour 8 minutes
SPF schedule delay 5 secs, Hold time between SPFs 10 secs
Minimum LSA interval 5 secs, Minimum LSA arrival 1 secs
Number of incomming current DD exchange neighbors 0/5
Number of outgoing current DD exchange neighbors 0/5
Number of external LSA 3. Checksum Sum 0xB8AD
Number of AS-Scoped Unknown LSA 0
Number of LSA originated 7
Number of LSA received 57
Number of areas in this router is 1
    Area BACKBONE(0)
        Number of interfaces in this area is 3(3)
        SPF algorithm executed 5 times
        Number of LSA 10. Checksum Sum 0x4B89D
        Number of Unknown LSA 0

FGT620B-2 (traffic) # get router info6 ospf interface
port17 is up, line protocol is up
Interface ID 2
IPv6 Prefixes
    fe80::209:fff:feb7:3c88/10 (Link-Local Address)
    fec0::147:16c/119
OSPFv3 Process (*null*), Area 0.0.0.0, Instance ID 0
    Router ID 2.2.2.2, Network Type BROADCAST, Cost: 1
    Transmit Delay is 1 sec, State DR, Priority 1
    Designated Router (ID) 2.2.2.2
      Interface Address fe80::209:fff:feb7:3c88
    Backup Designated Router (ID) 3.3.3.3
      Interface Address fe80::209:fff:fe85:b7a9
    Timer interval configured, Hello 10, Dead 40, Wait 40, Retransmit 5
      Hello due in 00:00:04
    Neighbor Count is 1, Adjacent neighbor count is 1
vdl1 is up, line protocol is up
Interface ID 28
IPv6 Prefixes
    fe80::218:8bff:fe84:4133/64 (Link-Local Address)
OSPFv3 Process (*null*), Area 0.0.0.0, Instance ID 0
    Router ID 2.2.2.2, Network Type POINTOPOINT, Cost: 100
    Transmit Delay is 1 sec, State Point-To-Point, Priority 1
    Timer interval configured, Hello 10, Dead 40, Wait 40, Retransmit 5
      Hello due in 00:00:04
    Neighbor Count is 1, Adjacent neighbor count is 1
port2-v208 is up, line protocol is up
Interface ID 29
IPv6 Prefixes
    fe80::209:fff:feb7:3c79/10 (Link-Local Address)
    fec1::208:16c/119
OSPFv3 Process (*null*), Area 0.0.0.0, Instance ID 0
    Router ID 2.2.2.2, Network Type BROADCAST, Cost: 100
    Transmit Delay is 1 sec, State DR, Priority 1
    Designated Router (ID) 2.2.2.2
      Interface Address fe80::209:fff:feb7:3c79
    No backup designated router on this link
    Timer interval configured, Hello 10, Dead 40, Wait 40, Retransmit 5
      No Hellos (Passive interface)
    Neighbor Count is 0, Adjacent neighbor count is 0

FGT620B-2 (traffic) # get router info6 ospf topology

OSPFv3 Process (*null*)
OSPFv3 paths to Area (0.0.0.0) routers
Router ID        Bits Metric     Next-Hop             Interface
1.1.1.1            E   100        1.1.1.1              vdl1
2.2.2.2            E   --
3.3.3.3            EB 1          3.3.3.3              port17

FGT620B-2 (traffic) # get router info6 ospf neighbor
OSPFv3 Process (*null*)
Neighbor ID     Pri   State           Dead Time   Interface Instance ID
3.3.3.3           1   Full/Backup     00:00:30    port17     0
1.1.1.1           1   Full/ -         00:00:38    vdl1       0

FGT620B-2 (traffic) # get router info6 ospf neighbor 1.1.1.1
OSPFv3 Process (*null*)
Neighbor 1.1.1.1, interface address fe80::218:8bff:fe84:4223
    In the area 0.0.0.0 via interface vdl1
    DR is 0.0.0.0 BDR is 0.0.0.0
    Options is 0x000013 (-|R|-|-|E|V6)
    Dead timer due in 00:00:31
    Database Summary List 0
    Link State Request List 0
    Link State Retransmission List 0

FGT620B-2 (traffic) # get router info6 ospf neighbor 3.3.3.3
OSPFv3 Process (*null*)
Neighbor 3.3.3.3, interface address fe80::209:fff:fe85:b7a9
    In the area 0.0.0.0 via interface port17
    DR is 2.2.2.2 BDR is 3.3.3.3
    Options is 0x000013 (-|R|-|-|E|V6)
    Dead timer due in 00:00:38
    Database Summary List 0
    Link State Request List 0
    Link State Retransmission List 0

FGT620B-2 (traffic) # get router info6 ospf route
OSPFv3 Process (*null*)
Codes: C - connected, D - Discard, O - OSPF, IA - OSPF inter area
       E1 - OSPF external type 1, E2 - OSPF external type 2

   Destination                                   Metric
     Next-hop
E2 ::/0                                          200/10
     via fe80::218:8bff:fe84:4223, vdl1
IA fec0::/125                                        21
     via fe80::209:fff:fe85:b7a9, port17, Area 0.0.0.0
O fec0::18:0/119                                   200
     via fe80::218:8bff:fe84:4223, vdl1, Area 0.0.0.0
IA fec0::146:0/119                                   11
     via fe80::209:fff:fe85:b7a9, port17, Area 0.0.0.0
C fec0::147:0/119                                    1
     directly connected, port17, Area 0.0.0.0
C fec1::208:0/119                                  100
     directly connected, port2-v208, Area 0.0.0.0
O fec2::224:0/119                                   11
     via fe80::209:fff:fe85:b7a9, port17, Area 0.0.0.0
E2 fec2::226:0/119                                11/10
     via fe80::209:fff:fe85:b7a9, port17
E2 fed1::/126                                    200/10
     via fe80::218:8bff:fe84:4223, vdl1

FGT300A-7

FGT300A-7 # get router info6 routing-table
IPv6 Routing Table
Codes: K - kernel route, C - connected, S - static, R - RIP, O - OSPF,
       I - IS-IS, B - BGP
Timers: Uptime

O   ::/0 [110/10] via fe80::209:fff:feb7:3c88, port5, 01:12:06
C   ::1/128 via ::, root, 01:12:37
C   fe80::/10 via ::, port5, 01:12:37
              via ::, port6, 01:12:37
              via ::, port2, 01:12:37
O   fec0::/125 [110/0] via ::1, root, 01:08:21
O   fec0::/127 [110/20] via fe80::209:fff:fe85:3fc4, port6, 01:08:21
O   fec0::4/127 [110/20] via fe80::209:fff:fe85:3fc4, port6, 01:08:21
O   fec0::18:0/119 [110/210] via fe80::209:fff:feb7:3c88, port5, 01:12:06
C   fec0::146:0/119 via ::, port6, 01:12:37
C   fec0::147:0/119 via ::, port5, 01:12:37
O   fec1::208:0/119 [110/110] via fe80::209:fff:feb7:3c88, port5, 01:12:06
C   fec2::224:0/119 via ::, port2, 01:12:37
S   fec2::226:0/119 [1/0] via fec2::224:1fe, port2, 01:12:32
O   fed1::/126 [110/10] via fe80::209:fff:feb7:3c88, port5, 01:12:06

FGT300A-7 # diagnose ipv6 address list
dev=6 devname=port6 flag=P scope=253 prefix=10 addr=fe80::209:fff:fe85:b7aa
dev=3 devname=port2 flag=P scope=200 prefix=119 addr=fec2::224:72
dev=13 devname=vsys_fgfm flag=P scope=254 prefix=128 addr=::1
dev=11 devname=vsys_ha flag=P scope=254 prefix=128 addr=::1
dev=9 devname=root flag=P scope=254 prefix=128 addr=::1
dev=7 devname=port5 flag=P scope=253 prefix=10 addr=fe80::209:fff:fe85:b7a9
dev=6 devname=port6 flag=P scope=200 prefix=119 addr=fec0::146:72
dev=7 devname=port5 flag=P scope=200 prefix=119 addr=fec0::147:72
dev=3 devname=port2 flag=P scope=253 prefix=10 addr=fe80::209:fff:fe85:b7a6

FGT300A-7 # diagnose ipv6 neighbor-cache list
ifindex=9 ifname=root :: 00:00:00:00:00:00 state=00000040 use=10327665 confirm=10333665 update=10327665 ref=7
ifindex=6 ifname=port6 ff02::5 33:33:00:00:00:05 state=00000040 use=665 confirm=10154401 update=10148401 ref=1
ifindex=11 ifname=vsys_ha :: 00:00:00:00:00:00 state=00000040 use=10327494 confirm=10333494 update=10327494 ref=1
ifindex=7 ifname=port5 ff02::5 33:33:00:00:00:05 state=00000040 use=766 confirm=10204077 update=10198077 ref=1
ifindex=13 ifname=vsys_fgfm :: 00:00:00:00:00:00 state=00000040 use=10327404 confirm=10333404 update=10327404 ref=1
ifindex=7 ifname=port5 ff02::9 33:33:00:00:00:09 state=00000040 use=37760 confirm=43760 update=37760 ref=0
ifindex=3 ifname=port2 fec2::224:1fe 00:19:b9:f8:e7:e9 state=00000004 use=550293 confirm=550293 update=545862 ref=1
ifindex=7 ifname=port5 fe80::209:fff:feb7:3c88 00:09:0f:b7:3c:88 state=00000004 use=434128 confirm=435928 update=433457 ref=4
ifindex=6 ifname=port6 fe80::209:fff:fe85:3fc4 00:09:0f:85:3f:c4 state=00000004 use=410166 confirm=411607 update=408361 ref=2

FGT300A-7 # get router info6 ospf status
Routing Process "OSPFv3 (*null*)" with ID 3.3.3.3
Process uptime is 1 hour 12 minutes
SPF schedule delay 5 secs, Hold time between SPFs 10 secs
Minimum LSA interval 5 secs, Minimum LSA arrival 1 secs
Number of incomming current DD exchange neighbors 0/5
Number of outgoing current DD exchange neighbors 0/5
Number of external LSA 3. Checksum Sum 0xB8AD
Number of AS-Scoped Unknown LSA 0
Number of LSA originated 20
Number of LSA received 61
Number of areas in this router is 2
    Area BACKBONE(0)
        Number of interfaces in this area is 2(2)
        SPF algorithm executed 3 times
        Number of LSA 10. Checksum Sum 0x4B89D
        Number of Unknown LSA 0
    Area 0.0.0.1
        Number of interfaces in this area is 1(1)
        SPF algorithm executed 5 times
        Number of LSA 11. Checksum Sum 0x52B66
        Number of Unknown LSA 0

FGT300A-7 # get router info6 ospf interface
port2 is up, line protocol is up
Interface ID 3
IPv6 Prefixes
    fe80::209:fff:fe85:b7a6/10 (Link-Local Address)
    fec2::224:72/119
OSPFv3 Process (*null*), Area 0.0.0.0, Instance ID 0
    Router ID 3.3.3.3, Network Type BROADCAST, Cost: 10
    Transmit Delay is 1 sec, State DR, Priority 1
    Designated Router (ID) 3.3.3.3
      Interface Address fe80::209:fff:fe85:b7a6
    No backup designated router on this link
    Timer interval configured, Hello 10, Dead 40, Wait 40, Retransmit 5
      No Hellos (Passive interface)
    Neighbor Count is 0, Adjacent neighbor count is 0
port6 is up, line protocol is up
Interface ID 6
IPv6 Prefixes
    fe80::209:fff:fe85:b7aa/10 (Link-Local Address)
    fec0::146:72/119
OSPFv3 Process (*null*), Area 0.0.0.1, Instance ID 0
    Router ID 3.3.3.3, Network Type BROADCAST, Cost: 10
    Transmit Delay is 1 sec, State DR, Priority 1
    Designated Router (ID) 3.3.3.3
      Interface Address fe80::209:fff:fe85:b7aa
    Backup Designated Router (ID) 4.4.4.4
      Interface Address fe80::209:fff:fe85:3fc4
    Timer interval configured, Hello 10, Dead 40, Wait 40, Retransmit 5
      Hello due in 00:00:07
    Neighbor Count is 1, Adjacent neighbor count is 1
port5 is up, line protocol is up
Interface ID 7
IPv6 Prefixes
    fe80::209:fff:fe85:b7a9/10 (Link-Local Address)
    fec0::147:72/119
OSPFv3 Process (*null*), Area 0.0.0.0, Instance ID 0
    Router ID 3.3.3.3, Network Type BROADCAST, Cost: 10
    Transmit Delay is 1 sec, State Backup, Priority 1
    Designated Router (ID) 2.2.2.2
      Interface Address fe80::209:fff:feb7:3c88
    Backup Designated Router (ID) 3.3.3.3
      Interface Address fe80::209:fff:fe85:b7a9
    Timer interval configured, Hello 10, Dead 40, Wait 40, Retransmit 5
      Hello due in 00:00:06
    Neighbor Count is 1, Adjacent neighbor count is 1

FGT300A-7 # get router info6 ospf topology

OSPFv3 Process (*null*)
OSPFv3 paths to Area (0.0.0.0) routers
Router ID        Bits Metric     Next-Hop             Interface
1.1.1.1            E   110        2.2.2.2              port5
2.2.2.2            E   10         2.2.2.2              port5
3.3.3.3            EB --

OSPFv3 paths to Area (0.0.0.1) routers
Router ID        Bits Metric     Next-Hop             Interface
3.3.3.3            EB --
4.4.4.4                10         4.4.4.4              port6

FGT300A-7 # get router info6 ospf neighbor

OSPFv3 Process (*null*)
Neighbor ID     Pri   State           Dead Time   Interface Instance ID
4.4.4.4           1   Full/Backup     00:00:31    port6      0
2.2.2.2           1   Full/DR         00:00:30    port5      0

FGT300A-7 # get router info6 ospf neighbor 2.2.2.2
OSPFv3 Process (*null*)
Neighbor 2.2.2.2, interface address fe80::209:fff:feb7:3c88
    In the area 0.0.0.0 via interface port5
    DR is 2.2.2.2 BDR is 3.3.3.3
    Options is 0x000013 (-|R|-|-|E|V6)
    Dead timer due in 00:00:32
    Database Summary List 0
    Link State Request List 0
    Link State Retransmission List 0

FGT300A-7 # get router info6 ospf neighbor 4.4.4.4
OSPFv3 Process (*null*)
Neighbor 4.4.4.4, interface address fe80::209:fff:fe85:3fc4
    In the area 0.0.0.1 via interface port6
    DR is 3.3.3.3 BDR is 4.4.4.4
    Options is 0x000013 (-|R|-|-|E|V6)
    Dead timer due in 00:00:37
    Database Summary List 0
    Link State Request List 0
    Link State Retransmission List 0

FGT300A-2

FGT300A-2 # get router info6 routing-table
IPv6 Routing Table
Codes: K - kernel route, C - connected, S - static, R - RIP, O - OSPF,
       I - IS-IS, B - BGP
Timers: Uptime

O   ::/0 [110/10] via fe80::209:fff:fe85:b7aa, port2, 01:11:49
C   ::1/128 via ::, root, 23:41:09
C   fe80::/10 via ::, port5, 23:41:09
              via ::, port6, 23:41:09
              via ::, port2, 23:41:09
C   fec0::/127 via ::, port5, 10:12:03
C   fec0::4/127 via ::, port6, 10:11:33
O   fec0::18:0/119 [110/220] via fe80::209:fff:fe85:b7aa, port2, 01:11:49
C   fec0::146:0/119 via ::, port2, 23:41:09
O   fec0::147:0/119 [110/20] via fe80::209:fff:fe85:b7aa, port2, 01:11:49
O   fec1::208:0/119 [110/120] via fe80::209:fff:fe85:b7aa, port2, 01:11:49
O   fec2::224:0/119 [110/20] via fe80::209:fff:fe85:b7aa, port2, 01:11:49
O   fec2::226:0/119 [110/10] via fe80::209:fff:fe85:b7aa, port2, 01:11:49
O   fed1::/126 [110/10] via fe80::209:fff:fe85:b7aa, port2, 01:11:49

FGT300A-2 # diagnose ipv6 address list
dev=7 devname=port5 flag=P scope=200 prefix=127 addr=fec0::1
dev=13 devname=vsys_fgfm flag=P scope=254 prefix=128 addr=::1
dev=11 devname=vsys_ha flag=P scope=254 prefix=128 addr=::1
dev=9 devname=root flag=P scope=254 prefix=128 addr=::1
dev=6 devname=port6 flag=P scope=253 prefix=10 addr=fe80::209:fff:fe85:3fc8
dev=6 devname=port6 flag=P scope=200 prefix=127 addr=fec0::5
dev=3 devname=port2 flag=P scope=200 prefix=119 addr=fec0::146:136
dev=3 devname=port2 flag=P scope=253 prefix=10 addr=fe80::209:fff:fe85:3fc4
dev=7 devname=port5 flag=P scope=253 prefix=10 addr=fe80::209:fff:fe85:3fc7

FGT300A-2 # diagnose ipv6 neighbor-cache list
ifindex=3 ifname=port2 ff02::5 33:33:00:00:00:05 state=00000040 use=257 confirm=10129952 update=10123952 ref=1
ifindex=9 ifname=root :: 00:00:00:00:00:00 state=00000040 use=3910605 confirm=3910605 update=10148483 ref=7
ifindex=6 ifname=port6 ff02::5 33:33:00:00:00:05 state=00000040 use=1057 confirm=441503 update=435503 ref=1
ifindex=11 ifname=vsys_ha :: 00:00:00:00:00:00 state=00000040 use=10148192 confirm=10154192 update=10148192 ref=1
ifindex=7 ifname=port5 ff02::5 33:33:00:00:00:05 state=00000040 use=157 confirm=441503 update=435503 ref=1
ifindex=13 ifname=vsys_fgfm :: 00:00:00:00:00:00 state=00000040 use=10147439 confirm=10153439 update=10147439 ref=1
ifindex=3 ifname=port2 fe80::209:fff:fe85:b7aa 00:09:0f:85:b7:aa state=00000004 use=433215 confirm=433215 update=430599 ref=7

FGT300A-2 # get router info6 ospf status
Routing Process "OSPFv3 (*null*)" with ID 4.4.4.4
Process uptime is 1 hour 12 minutes
SPF schedule delay 5 secs, Hold time between SPFs 10 secs
Minimum LSA interval 5 secs, Minimum LSA arrival 1 secs
Number of incomming current DD exchange neighbors 0/5
Number of outgoing current DD exchange neighbors 0/5
Number of external LSA 3. Checksum Sum 0xB8AD
Number of AS-Scoped Unknown LSA 0
Number of LSA originated 54
Number of LSA received 808
Number of areas in this router is 1
    Area 0.0.0.1
        Number of interfaces in this area is 3(3)
        SPF algorithm executed 43 times
        Number of LSA 11. Checksum Sum 0x52B66
        Number of Unknown LSA 0

FGT300A-2 # get router info6 ospf interface
port2 is up, line protocol is up
Interface ID 3
IPv6 Prefixes
    fe80::209:fff:fe85:3fc4/10 (Link-Local Address)
    fec0::146:136/119
OSPFv3 Process (*null*), Area 0.0.0.1, Instance ID 0
    Router ID 4.4.4.4, Network Type BROADCAST, Cost: 10
    Transmit Delay is 1 sec, State Backup, Priority 1
    Designated Router (ID) 3.3.3.3
      Interface Address fe80::209:fff:fe85:b7aa
    Backup Designated Router (ID) 4.4.4.4
      Interface Address fe80::209:fff:fe85:3fc4
    Timer interval configured, Hello 10, Dead 40, Wait 40, Retransmit 5
      Hello due in 00:00:00
    Neighbor Count is 1, Adjacent neighbor count is 1
port6 is up, line protocol is up
Interface ID 6
IPv6 Prefixes
    fe80::209:fff:fe85:3fc8/10 (Link-Local Address)
    fec0::5/127
OSPFv3 Process (*null*), Area 0.0.0.1, Instance ID 0
    Router ID 4.4.4.4, Network Type BROADCAST, Cost: 10
    Transmit Delay is 1 sec, State DR, Priority 1
    Designated Router (ID) 4.4.4.4
      Interface Address fe80::209:fff:fe85:3fc8
    No backup designated router on this link
    Timer interval configured, Hello 10, Dead 40, Wait 40, Retransmit 5
      Hello due in 00:00:02
    Neighbor Count is 0, Adjacent neighbor count is 0
port5 is up, line protocol is up
Interface ID 7
IPv6 Prefixes
    fe80::209:fff:fe85:3fc7/10 (Link-Local Address)
    fec0::1/127
OSPFv3 Process (*null*), Area 0.0.0.1, Instance ID 0
    Router ID 4.4.4.4, Network Type BROADCAST, Cost: 10
    Transmit Delay is 1 sec, State DR, Priority 1
    Designated Router (ID) 4.4.4.4
      Interface Address fe80::209:fff:fe85:3fc7
    No backup designated router on this link
    Timer interval configured, Hello 10, Dead 40, Wait 40, Retransmit 5
      Hello due in 00:00:02
    Neighbor Count is 0, Adjacent neighbor count is 0

FGT300A-2 # get router info6 ospf topology

OSPFv3 Process (*null*)
OSPFv3 paths to Area (0.0.0.1) routers
Router ID        Bits Metric     Next-Hop             Interface
3.3.3.3            EB 10         3.3.3.3              port2
4.4.4.4                --

FGT300A-2 # get router info6 ospf neighbor
OSPFv3 Process (*null*)
Neighbor ID     Pri   State           Dead Time   Interface Instance ID
3.3.3.3           1   Full/DR         00:00:35    port2      0

FGT300A-2 # get router info6 ospf neighbor 3.3.3.3
OSPFv3 Process (*null*)
Neighbor 3.3.3.3, interface address fe80::209:fff:fe85:b7aa
    In the area 0.0.0.1 via interface port2
    DR is 3.3.3.3 BDR is 4.4.4.4
    Options is 0x000013 (-|R|-|-|E|V6)
    Dead timer due in 00:00:37
    Database Summary List 0
    Link State Request List 0
    Link State Retransmission List 0

Troubleshooting

OSPF database can be dumped using commands "get router info6 ospf database" or detailed extracts of database if followed by a keyword.

FGT620B-2 (root) # get router info6 ospf database ?
router          show ospf database router-lsa
network         show ospf database network-lsa
inter-prefix    show ospf database inter-prefix-lsa
inter-router    show ospf database inter-router-lsa
external        show ospf database external-lsa
link            show ospf database link-lsa
intra-prefix    show ospf database intra-prefix-lsa

Use the sniffer to capture Ipv6 packets.
Turn on ipv6 debug using "diagnose ipv6 router ospf" commands.

FGT300A-7 # diagnose debug enable
FGT300A-7 # diagnose ipv6 router ospf level info
FGT300A-7 # diagnose ipv6 router ospf all enable

OSPFv3: IFSM[port5]: Hello timer expire
OSPFv3: SEND[Hello]: src(fe80::209:fff:fe85:b7a9) -> dst(ff02::5) on port5
OSPFv3: OSPFv3 Header
OSPFv3:   Version 3
OSPFv3:   Type 1 (Hello)
OSPFv3:   Packet length 40
OSPFv3:   Router ID 3.3.3.3
OSPFv3:   Area ID 0.0.0.0
OSPFv3:   Checksum 0x0000
OSPFv3:   Instance ID 0
OSPFv3: OSPFv3 Hello
OSPFv3:   Interface ID 7
OSPFv3:   RtrPriority 1
OSPFv3:   Options 0x000013 (-|R|-|-|E|V6)
OSPFv3:   HelloInterval 10
OSPFv3:   RtrDeadInterval 40
OSPFv3:   DRouter 2.2.2.2
OSPFv3:   BDRouter 3.3.3.3
OSPFv3:   # Neighbors 1
OSPFv3:     Neighbor 2.2.2.2
aOSPFv3: IFSM[port6]: Hello timer expire
OSPFv3: SEND[Hello]: src(fe80::209:fff:fe85:b7aa) -> dst(ff02::5) on port6
OSPFv3: OSPFv3 Header
OSPFv3:   Version 3
OSPFv3:   Type 1 (Hello)
OSPFv3:   Packet length 40
OSPFv3:   Router ID 3.3.3.3
OSPFv3:   Area ID 0.0.0.1
OSPFv3:   Checksum 0x0000
OSPFv3:   Instance ID 0
OSPFv3: OSPFv3 Hello
OSPFv3:   Interface ID 6
OSPFv3:   RtrPriority 1
OSPFv3:   Options 0x000013 (-|R|-|-|E|V6)
OSPFv3:   HelloInterval 10
OSPFv3:   RtrDeadInterval 40
OSPFv3:   DRouter 3.3.3.3
OSPFv3:   BDRouter 4.4.4.4
OSPFv3:   # Neighbors 1
OSPFv3:     Neighbor 4.4.4.4
OSPFv3: IFSM[port2]: Hello timer expire
OSPFv3: RECV[Hello]: src(fe80::209:fff:feb7:3c88) -> dst(ff02::5) on port5
OSPFv3: OSPFv3 Header
OSPFv3:   Version 3
OSPFv3:   Type 1 (Hello)
OSPFv3:   Packet length 40
OSPFv3:   Router ID 2.2.2.2
OSPFv3:   Area ID 0.0.0.0
OSPFv3:   Checksum 0x9c29
OSPFv3:   Instance ID 0
OSPFv3: OSPFv3 Hello
OSPFv3:   Interface ID 2
OSPFv3:   RtrPriority 1
OSPFv3:   Options 0x000013 (-|R|-|-|E|V6)
OSPFv3:   HelloInterval 10
OSPFv3:   RtrDeadInterval 40
OSPFv3:   DRouter 2.2.2.2
OSPFv3:   BDRouter 3.3.3.3
OSPFv3:   # Neighbors 1
OSPFv3:     Neighbor 3.3.3.3
OSPFv3: NFSM[2.2.2.2-00000002]: Full (HelloReceived)
OSPFv3: NFSM[2.2.2.2-00000002]: nfsm_ignore called
OSPFv3: NFSM[2.2.2.2-00000002]: Full (2-WayReceived)
OSPFv3: RECV[Hello]: Neighbor(2.2.2.2) declare 2.2.2.2 as DR, 3.3.3.3 as Backup
OSPFv3: RECV[Hello]: src(fe80::209:fff:fe85:3fc4) -> dst(ff02::5) on port6
OSPFv3: OSPFv3 Header
OSPFv3:   Version 3
OSPFv3:   Type 1 (Hello)
OSPFv3:   Packet length 40
OSPFv3:   Router ID 4.4.4.4
OSPFv3:   Area ID 0.0.0.1
OSPFv3:   Checksum 0x9115
OSPFv3:   Instance ID 0
OSPFv3: OSPFv3 Hello
OSPFv3:   Interface ID 3
OSPFv3:   RtrPriority 1
OSPFv3:   Options 0x000013 (-|R|-|-|E|V6)
OSPFv3:   HelloInterval 10
OSPFv3:   RtrDeadInterval 40
OSPFv3:   DRouter 3.3.3.3
OSPFv3:   BDRouter 4.4.4.4
OSPFv3:   # Neighbors 1
OSPFv3:     Neighbor 3.3.3.3
OSPFv3: NFSM[4.4.4.4-00000003]: Full (HelloReceived)
OSPFv3: NFSM[4.4.4.4-00000003]: nfsm_ignore called
OSPFv3: NFSM[4.4.4.4-00000003]: Full (2-WayReceived)
OSPFv3: RECV[Hello]: Neighbor(4.4.4.4) declare 3.3.3.3 as DR, 4.4.4.4 as Backup
OSPFv3: IFSM[port5]: Hello timer expire
OSPFv3: SEND[Hello]: src(fe80::209:fff:fe85:b7a9) -> dst(ff02::5) on port5
OSPFv3: OSPFv3 Header
OSPFv3:   Version 3
OSPFv3:   Type 1 (Hello)
OSPFv3:   Packet length 40
OSPFv3:   Router ID 3.3.3.3
OSPFv3:   Area ID 0.0.0.0
OSPFv3:   Checksum 0x0000
OSPFv3:   Instance ID 0
OSPFv3: OSPFv3 Hello
OSPFv3:   Interface ID 7
OSPFv3:   RtrPriority 1
OSPFv3:   Options 0x000013 (-|R|-|-|E|V6)
OSPFv3:   HelloInterval 10
OSPFv3:   RtrDeadInterval 40
OSPFv3:   DRouter 2.2.2.2
OSPFv3:   BDRouter 3.3.3.3
OSPFv3:   # Neighbors 1
OSPFv3:     Neighbor 2.2.2.2
OSPFv3: IFSM[port2]: Hello timer expire
OSPFv3: IFSM[port6]: Hello timer expire
OSPFv3: SEND[Hello]: src(fe80::209:fff:fe85:b7aa) -> dst(ff02::5) on port6
OSPFv3: OSPFv3 Header
OSPFv3:   Version 3
OSPFv3:   Type 1 (Hello)
OSPFv3:   Packet length 40
OSPFv3:   Router ID 3.3.3.3
OSPFv3:   Area ID 0.0.0.1
OSPFv3:   Checksum 0x0000
OSPFv3:   Instance ID 0
OSPFv3: OSPFv3 Hello
OSPFv3:   Interface ID 6
OSPFv3:   RtrPriority 1
OSPFv3:   Options 0x000013 (-|R|-|-|E|V6)
OSPFv3:   HelloInterval 10
OSPFv3:   RtrDeadInterval 40
OSPFv3:   DRouter 3.3.3.3
OSPFv3:   BDRouter 4.4.4.4
OSPFv3:   # Neighbors 1
OSPFv3:     Neighbor 4.4.4.4
OSPFv3: RECV[Hello]: src(fe80::209:fff:feb7:3c88) -> dst(ff02::5) on port5
OSPFv3: OSPFv3 Header
OSPFv3:   Version 3
OSPFv3:   Type 1 (Hello)
OSPFv3:   Packet length 40
OSPFv3:   Router ID 2.2.2.2
OSPFv3:   Area ID 0.0.0.0
OSPFv3:   Checksum 0x9c29
OSPFv3:   Instance ID 0
OSPFv3: OSPFv3 Hello
OSPFv3:   Interface ID 2
OSPFv3:   RtrPriority 1
OSPFv3:   Options 0x000013 (-|R|-|-|E|V6)
OSPFv3:   HelloInterval 10
OSPFv3:   RtrDeadInterval 40
OSPFv3:   DRouter 2.2.2.2
OSPFv3:   BDRouter 3.3.3.3
OSPFv3:   # Neighbors 1
OSPFv3:     Neighbor 3.3.3.3
OSPFv3: NFSM[2.2.2.2-00000002]: Full (HelloReceived)
OSPFv3: NFSM[2.2.2.2-00000002]: nfsm_ignore called
OSPFv3: NFSM[2.2.2.2-00000002]: Full (2-WayReceived)
OSPFv3: RECV[Hello]: Neighbor(2.2.2.2) declare 2.2.2.2 as DR, 3.3.3.3 as Backup
OSPFv3: RECV[Hello]: src(fe80::209:fff:fe85:3fc4) -> dst(ff02::5) on port6
.../...

Related Articles

Technical Tip: IPv6 support

Expectations

Requirement

FGT620B-2

FGT620B-2 [VDOM root]

FGT620B-2 [VDOM traffic]

FGT300A-7

FGT300A-2

Sign up

Login with SSO

Login to the community

Login with SSO

Scanning file for viruses.

This file cannot be downloaded
