Technical Note: HTTPS management access to FortiGate after upgrade

  • March 11, 2015
  • 0 replies
  • 15429 views

Description

Starting with FortiOS release 5.2.2 a new global system parameter is added.

This parameter, with default setting, restricts access to TLS V 1.1 and TLS V 1.2 only.

Therefore, if the browser uses TLS v 1.0 or SSL v3 CLI configuration change is required for HTTPS GUI access.



New default setting with FortiOS release 5.2.2 :

FGT-1 # config system global
FGT-1 (global) # get admin-concurrent   : enable  admin-console-timeout: 0 admin-https-pki-required: disable
 admin-https-redirect: disable
 admin-https-ssl-versions: tlsv1-1 tlsv1-2  <--- new default setting
 admin-lockout-duration: 60
 admin-lockout-threshold: 3

Available options :

HTTPS SSL available versions are : TLS 1.0, TLS 1.1, TLS 1.2, SSLV3

Configuration changes :

To allow  TLS 1.0 for FortiGate management access the require config change are :

FGT-1 # config system global
FGT-1(global) # append admin-https-ssl-versions tlsv1-0
End

Example :

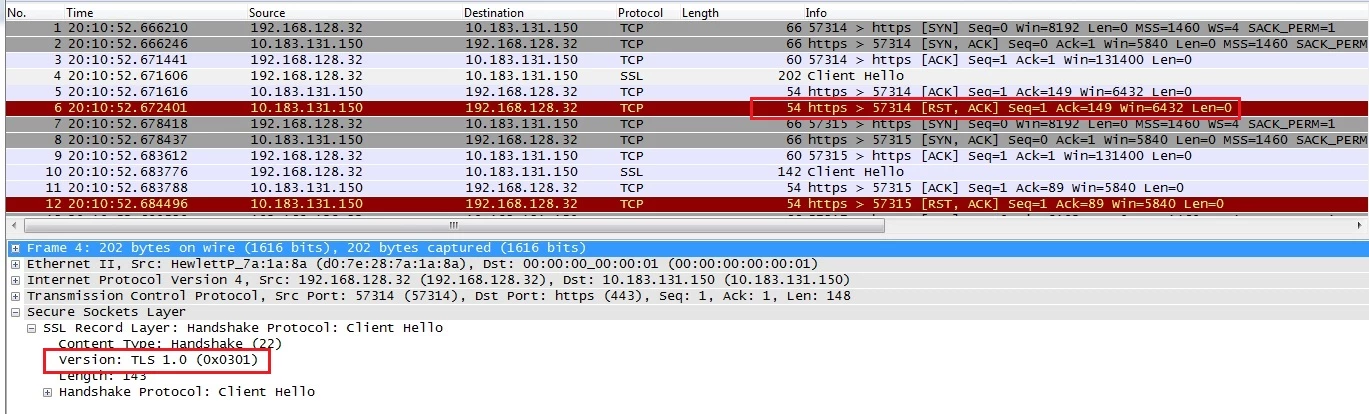

Sniffer trace in case of incorrect setting :




Packet 4 : The browser send handshake as TLS 1.0

Packet 6 : The FortiGate refuse the connection and close it with a reset packet.




Solution
Adjust the FortiGate setting according to SSL version used by the browser with command "set admin-https-ssl version" or "append admin-https-ssl version ".
