| Requirement:

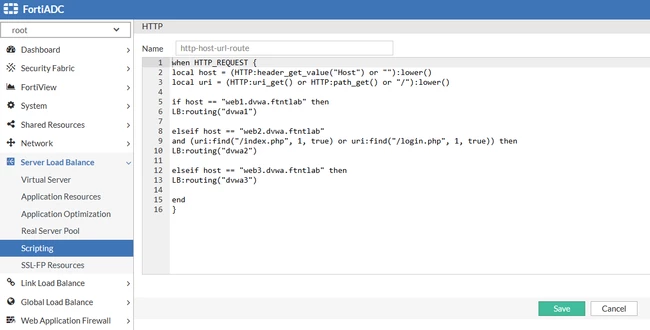

A virtual server serves multiple websites with content routing enabled. The script must extract the HTTP Host or URL from the client request and route traffic to the proper server pool. - Create Scripting: Server Load Balance -> Scripting -> Create New.
- Define name.
- Input a Lua script statement.
- Select Save.
when HTTP_REQUEST {
local host = (HTTP:header_get_value("Host") or ""):lower()
local uri = (HTTP:uri_get() or HTTP:path_get() or "/"):lower() if host == "web1.dvwa.ftntlab" then
LB:routing("dvwa1") elseif host == "web2.dvwa.ftntlab"
and (uri:find("/index.php", 1, true) or uri:find("/login.php", 1, true)) then
LB:routing("dvwa2") elseif host == "web3.dvwa.ftntlab" then
LB:routing("dvwa3") end
}

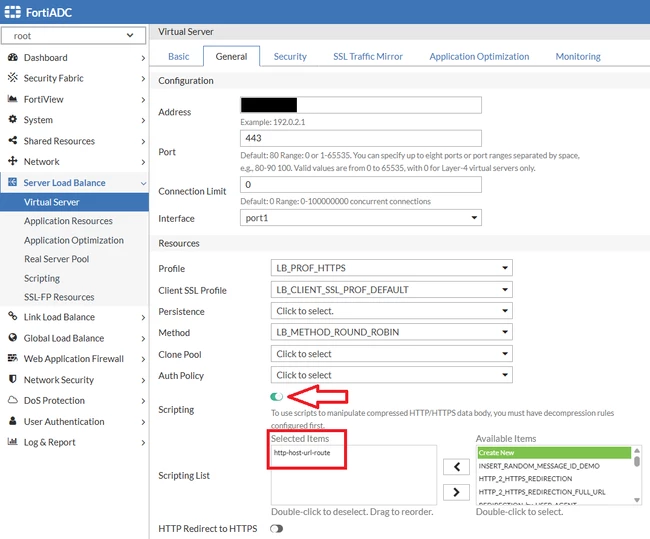

Assign a virtual server with the created script.
Server Load Balance -> Virtual Server -> Edit respective virtual server -> Enable Scripting -> Select created script.
Demonstration: - Simulate a request to FortiADC virtual server, e.g, https://web3.dvwa.ftntlab/login.php
- Expect script to gather HTTP requests information; HTTP Host and URL, then forward traffic to the correct content routing and server pool.

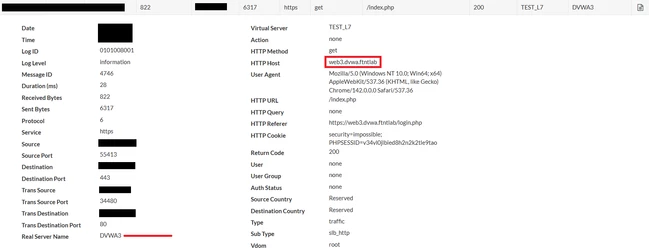

FortiADC virtual server traffic log:
Debugging commands for troubleshooting:
diagnose debug module httproxy scripting set
diagnose debug module httproxy scripting_minor set
diagnose debug enable
Disable debugging output:
diagnose debug disable
diagnose debug module httproxy all unset
Related documentation about Scripting:
HTTP Scripting HTTP Scripting examples |
