Technical Tip: Adding VLANs to an interface

Description

This article describes how to add VLANs to interfaces.

Scope

FortiADC.

Solution

• From Web UI:
  1. Navigate to Network -> Interface.
  2. Select Create New.

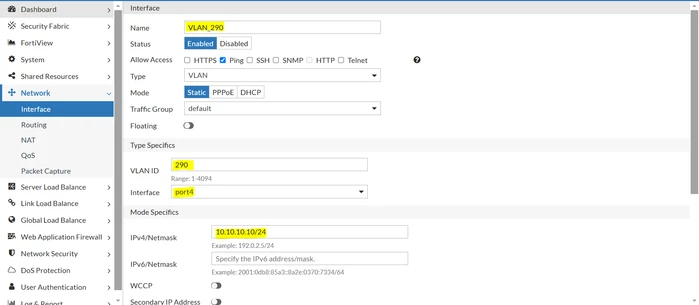

  3. Set the VLAN interface name, VLAN ID, member interface and IP address.

4. Select Save.

• From CLI:

config system interface

edit "VLAN_290"

set type vlan
set vdom root
set ip 10.10.10.10/24
set vlanid 290
set interface port4
next

end

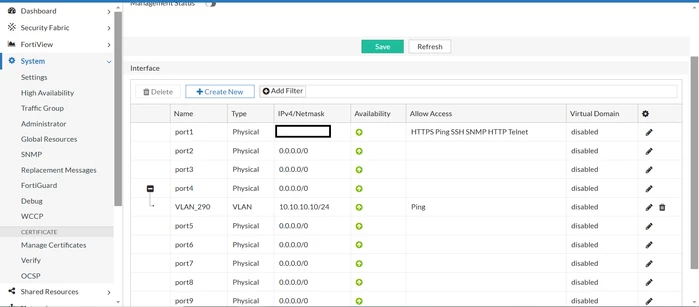

Afterwards, the VLAN interface should appear under the interface:

See the FortiADC Administration guide for more information.
