Hey all, hoping someone will be able to help with this one as I am stuck and spent ages looking around online for help and not getting anywhere.
So we have a small remote office with a single FortiGate 60F and a single 231F AP, its running with all its ports in a VLAN software switch and internal port 1 goes through a POE injector to the AP, simple as it gets.
The internal LAN is set as VLAN 0 and we run a Enterprise SSID with Radius etc which is all working fine (Bridge mode), now we wanted to add a Guest SSID so first of all created a Guest VLAN with VLAN ID 25 as below, its set to run a DHCP server and just use 1.1.1.1 and 8.8.8.8 for its DNS (Not using the system DNS)
New Guest SSID created (also bridge mode), VLAN 25 is specified in its config and a Firewall rule created to allow it out from Source 'Guest-VLAN' to Destination 'All'
Now when someone connects to this guest SSID we can see its dishing out an IP address and can see some traffic activity from users phone but users get the error "The Wi-Fi network “Guest” does not appear to be connected to the internet”.

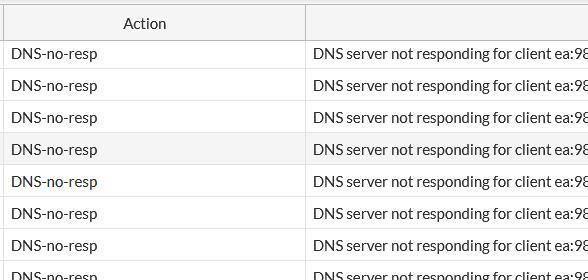

Looking at the logs we keep seeing the below about DNS but no end of searching brings back anything relevant, cant see anything obvious I am missing, asking a user to check the phone we can see all correct IP info is coming from DHCP and setting the DNS on phone as 1.1.1.1 and 8.8.8.8 but they cant resolve anything... Help!
Nominating a forum post submits a request to create a new Knowledge Article based on the forum post topic. Please ensure your nomination includes a solution within the reply.
Hello @InfraSec0 ,
Can you check DTLS settings in the Network-> DNS settings menu? If TLS is enabled on that menu. Can you try to disable that and enable DNS/53?
Thanks for the reply @ozkanaltas we are using custom internal DNS as below:
Created on 05-24-2024 08:58 AM Edited on 05-24-2024 09:19 AM
Hello @InfraSec0 ,
Do you apply any security policy for that traffic?
Also, can you run these commands and share the output with us? While running these commands you need to try to access the internet from the problematic client.
Also, can you check your client? Have they got the correct DNS settings from DHCP?
diagnose debug disable
diagnose debug flow trace stop
diagnose debug flow filter clear
diagnose debug reset
diagnose debug flow filter saddr <YOUR_CLIENT_IP_HERE>
diagnose debug flow trace start 100
diagnose debug enable
Thanks for the reply and my bad with delay in replying, had some priority things come up and now back to looking at this issue, totally deleted everything in relation to the Guest VLAN and re-created it and still have the problem that the users phones dont think they are on the internet but not seeing those weird DNS errors from original post now, the client phones do correctly get an IP from DHCP on the Guest VLAN network and also get correct DNS with is just 1.1.1.1 and 8.8.8.8, using diagnostics on the client you can see all the requests coming from client device and bandwidth being used but the device just times out and says no internet access.
Have run the commands you put and below is results, just renamed the the IP's to INTERNET IP and CLIENT IP in the log
id=65308 trace_id=1 func=print_pkt_detail line=5824 msg="vd-root:0 received a packet(proto=6, [CLIENT IP]:33388->35.168.100.19:443) tun_id=0.0.0.0 from Guest VLAN. flag [S], seq 2204723719, ack 0, win 65535"
id=65308 trace_id=1 func=init_ip_session_common line=6009 msg="allocate a new session-0001204e, tun_id=0.0.0.0"
id=65308 trace_id=1 func=vf_ip_route_input_common line=2611 msg="find a route: flag=04000000 gw-35.168.100.19 via wan1"
id=65308 trace_id=1 func=__iprope_tree_check line=539 msg="gnum-100004, use addr/intf hash, len=3"
id=65308 trace_id=1 func=get_new_addr line=1205 msg="find SNAT: IP-[INTERNET IP](from IPPOOL), port-33388"
id=65308 trace_id=1 func=fw_forward_handler line=979 msg="Allowed by Policy-4: SNAT"
id=65308 trace_id=1 func=__ip_session_run_tuple line=3406 msg="SNAT [CLIENT IP]->[INTERNET IP]:33388"
id=65308 trace_id=1 func=np6xlite_hif_nturbo_build_vtag line=1224 msg="vtag->magic d153beef, vtag->coretag 64, vtag->vid 0
vtag->sip[0] aa807f57, vtag->sip[1] 0, vtag->sip[2] 0, vtag->sip[3] 0
vtag->sport 27778, vtag->mtu 1500, vtag->flags 12, vtag->np6_flag 0x0, skb->npu_flag=0xc0880"
id=65308 trace_id=2 func=print_pkt_detail line=5824 msg="vd-root:0 received a packet(proto=6, [CLIENT IP]:58166->104.124.166.14:443) tun_id=0.0.0.0 from Guest VLAN. flag [F.], seq 272409644, ack 940611437, win 313"
id=65308 trace_id=3 func=print_pkt_detail line=5824 msg="vd-root:0 received a packet(proto=6, [CLIENT IP]:52640->2.23.161.60:443) tun_id=0.0.0.0 from Guest VLAN. flag [F.], seq 1556192722, ack 2751836392, win 313"
id=65308 trace_id=3 func=vf_ip_route_input_common line=2611 msg="find a route: flag=04000000 gw-2.23.161.60 via wan1"
id=65308 trace_id=3 func=fw_forward_dirty_handler line=394 msg="no session matched"
id=65308 trace_id=2 func=vf_ip_route_input_common line=2611 msg="find a route: flag=04000000 gw-104.124.166.14 via wan1"
id=65308 trace_id=2 func=fw_forward_dirty_handler line=394 msg="no session matched"
id=65308 trace_id=4 func=print_pkt_detail line=5824 msg="vd-root:0 received a packet(proto=6, [CLIENT IP]:38422->157.240.221.61:5222) tun_id=0.0.0.0 from Guest VLAN. flag [S], seq 1133477722, ack 0, win 65535"
id=65308 trace_id=4 func=init_ip_session_common line=6009 msg="allocate a new session-0001204f, tun_id=0.0.0.0"
id=65308 trace_id=4 func=vf_ip_route_input_common line=2611 msg="find a route: flag=04000000 gw-157.240.221.61 via wan1"
id=65308 trace_id=4 func=__iprope_tree_check line=539 msg="gnum-100004, use addr/intf hash, len=3"
id=65308 trace_id=4 func=get_new_addr line=1205 msg="find SNAT: IP-[INTERNET IP](from IPPOOL), port-38422"
id=65308 trace_id=4 func=fw_forward_handler line=979 msg="Allowed by Policy-4: SNAT"
id=65308 trace_id=4 func=__ip_session_run_tuple line=3406 msg="SNAT [CLIENT IP]->[INTERNET IP]:38422"
id=65308 trace_id=4 func=np6xlite_hif_nturbo_build_vtag line=1224 msg="vtag->magic d153beef, vtag->coretag 64, vtag->vid 0
vtag->sip[0] aa807f57, vtag->sip[1] 0, vtag->sip[2] 0, vtag->sip[3] 0
vtag->sport 5782, vtag->mtu 1500, vtag->flags 12, vtag->np6_flag 0x0, skb->npu_flag=0xc0880"
id=65308 trace_id=5 func=print_pkt_detail line=5824 msg="vd-root:0 received a packet(proto=6, [CLIENT IP]:38422->157.240.221.61:5222) tun_id=0.0.0.0 from Guest VLAN. flag [.], seq 1133477723, ack 1036827940, win 256"
id=65308 trace_id=5 func=resolve_ip_tuple_fast line=5912 msg="Find an existing session, id-0001204f, original direction"
id=65308 trace_id=5 func=npu_handle_session44 line=1206 msg="Trying to offloading session from Guest VLAN to wan1, skb.npu_flag=00000400 ses.state=00012204 ses.npu_state=0x00003894"
id=65308 trace_id=5 func=np6xlite_fos_set_nturbo_ips_fwd_session line=620 msg="push nturbo session oid 12"
id=65308 trace_id=5 func=ip_session_install_npu_session line=358 msg="npu session installation succeeded"
id=65308 trace_id=5 func=fw_forward_dirty_handler line=437 msg="state=00012204, state2=00000001, npu_state=00003c94"
id=65308 trace_id=5 func=__ip_session_run_tuple line=3406 msg="SNAT [CLIENT IP]->[INTERNET IP]:38422"
id=65308 trace_id=5 func=np6xlite_hif_nturbo_build_vtag line=1224 msg="vtag->magic d153beef, vtag->coretag 64, vtag->vid 0
vtag->sip[0] aa807f57, vtag->sip[1] 0, vtag->sip[2] 0, vtag->sip[3] 0
vtag->sport 5782, vtag->mtu 1500, vtag->flags 2, vtag->np6_flag 0x0, skb->npu_flag=0xc0c80"
id=65308 trace_id=6 func=print_pkt_detail line=5824 msg="vd-root:0 received a packet(proto=6, [CLIENT IP]:33388->35.168.100.19:443) tun_id=0.0.0.0 from Guest VLAN. flag [.], seq 2204723720, ack 3699385219, win 256"
id=65308 trace_id=6 func=resolve_ip_tuple_fast line=5912 msg="Find an existing session, id-0001204e, original direction"
id=65308 trace_id=6 func=npu_handle_session44 line=1206 msg="Trying to offloading session from Guest VLAN to wan1, skb.npu_flag=00000400 ses.state=00012204 ses.npu_state=0x00003894"
id=65308 trace_id=6 func=np6xlite_fos_set_nturbo_ips_fwd_session line=620 msg="push nturbo session oid 12"
id=65308 trace_id=6 func=ip_session_install_npu_session line=358 msg="npu session installation succeeded"
id=65308 trace_id=6 func=fw_forward_dirty_handler line=437 msg="state=00012204, state2=00000001, npu_state=00003c94"
id=65308 trace_id=6 func=__ip_session_run_tuple line=3406 msg="SNAT [CLIENT IP]->[INTERNET IP]:33388"
id=65308 trace_id=6 func=np6xlite_hif_nturbo_build_vtag line=1224 msg="vtag->magic d153beef, vtag->coretag 64, vtag->vid 0
vtag->sip[0] aa807f57, vtag->sip[1] 0, vtag->sip[2] 0, vtag->sip[3] 0
vtag->sport 27778, vtag->mtu 1500, vtag->flags 2, vtag->np6_flag 0x0, skb->npu_flag=0xc0c80"
id=65308 trace_id=8 func=print_pkt_detail line=5824 msg="vd-root:0 received a packet(proto=6, [CLIENT IP]:52640->2.23.161.60:443) tun_id=0.0.0.0 from Guest VLAN. flag [F.], seq 1556192722, ack 2751836392, win 313"
id=65308 trace_id=7 func=print_pkt_detail line=5824 msg="vd-root:0 received a packet(proto=6, [CLIENT IP]:58166->104.124.166.14:443) tun_id=0.0.0.0 from Guest VLAN. flag [F.], seq 272409644, ack 940611437, win 313"
id=65308 trace_id=7 func=vf_ip_route_input_common line=2611 msg="find a route: flag=04000000 gw-104.124.166.14 via wan1"
id=65308 trace_id=8 func=vf_ip_route_input_common line=2611 msg="find a route: flag=04000000 gw-2.23.161.60 via wan1"
id=65308 trace_id=7 func=fw_forward_dirty_handler line=394 msg="no session matched"
id=65308 trace_id=8 func=fw_forward_dirty_handler line=394 msg="no session matched"
id=65308 trace_id=9 func=print_pkt_detail line=5824 msg="vd-root:0 received a packet(proto=6, [CLIENT IP]:58436->162.159.61.3:443) tun_id=0.0.0.0 from Guest VLAN. flag [S], seq 1863094992, ack 0, win 65535"
id=65308 trace_id=9 func=init_ip_session_common line=6009 msg="allocate a new session-00012050, tun_id=0.0.0.0"
id=65308 trace_id=9 func=vf_ip_route_input_common line=2611 msg="find a route: flag=04000000 gw-162.159.61.3 via wan1"
id=65308 trace_id=9 func=__iprope_tree_check line=539 msg="gnum-100004, use addr/intf hash, len=3"
id=65308 trace_id=9 func=get_new_addr line=1205 msg="find SNAT: IP-[INTERNET IP](from IPPOOL), port-58436"
id=65308 trace_id=9 func=fw_forward_handler line=979 msg="Allowed by Policy-4: SNAT"
id=65308 trace_id=9 func=__ip_session_run_tuple line=3406 msg="SNAT [CLIENT IP]->[INTERNET IP]:58436"
id=65308 trace_id=9 func=np6xlite_hif_nturbo_build_vtag line=1224 msg="vtag->magic d153beef, vtag->coretag 64, vtag->vid 0
vtag->sip[0] aa807f57, vtag->sip[1] 0, vtag->sip[2] 0, vtag->sip[3] 0
vtag->sport 17636, vtag->mtu 1500, vtag->flags 12, vtag->np6_flag 0x0, skb->npu_flag=0xc0880"
id=65308 trace_id=10 func=print_pkt_detail line=5824 msg="vd-root:0 received a packet(proto=6, [CLIENT IP]:58436->162.159.61.3:443) tun_id=0.0.0.0 from Guest VLAN. flag [.], seq 1863094993, ack 1430519054, win 256"
id=65308 trace_id=10 func=resolve_ip_tuple_fast line=5912 msg="Find an existing session, id-00012050, original direction"
id=65308 trace_id=10 func=npu_handle_session44 line=1206 msg="Trying to offloading session from Guest VLAN to wan1, skb.npu_flag=00000400 ses.state=00012204 ses.npu_state=0x00003894"
id=65308 trace_id=10 func=np6xlite_fos_set_nturbo_ips_fwd_session line=620 msg="push nturbo session oid 12"
id=65308 trace_id=10 func=ip_session_install_npu_session line=358 msg="npu session installation succeeded"
id=65308 trace_id=10 func=fw_forward_dirty_handler line=437 msg="state=00012204, state2=00000001, npu_state=00003c94"
id=65308 trace_id=10 func=__ip_session_run_tuple line=3406 msg="SNAT [CLIENT IP]->[INTERNET IP]:58436"
id=65308 trace_id=10 func=np6xlite_hif_nturbo_build_vtag line=1224 msg="vtag->magic d153beef, vtag->coretag 64, vtag->vid 0
vtag->sip[0] aa807f57, vtag->sip[1] 0, vtag->sip[2] 0, vtag->sip[3] 0
vtag->sport 17636, vtag->mtu 1500, vtag->flags 2, vtag->np6_flag 0x0, skb->npu_flag=0xc0c80"
id=65308 trace_id=11 func=print_pkt_detail line=5824 msg="vd-root:0 received a packet(proto=6, [CLIENT IP]:52378->172.217.18.99:443) tun_id=0.0.0.0 from Guest VLAN. flag [S], seq 1314179865, ack 0, win 65535"
id=65308 trace_id=11 func=init_ip_session_common line=6009 msg="allocate a new session-00012051, tun_id=0.0.0.0"
id=65308 trace_id=11 func=vf_ip_route_input_common line=2611 msg="find a route: flag=04000000 gw-172.217.18.99 via wan1"
id=65308 trace_id=11 func=__iprope_tree_check line=539 msg="gnum-100004, use addr/intf hash, len=3"
id=65308 trace_id=11 func=get_new_addr line=1205 msg="find SNAT: IP-[INTERNET IP](from IPPOOL), port-52378"
id=65308 trace_id=11 func=fw_forward_handler line=979 msg="Allowed by Policy-4: SNAT"
id=65308 trace_id=11 func=__ip_session_run_tuple line=3406 msg="SNAT [CLIENT IP]->[INTERNET IP]:52378"
id=65308 trace_id=11 func=np6xlite_hif_nturbo_build_vtag line=1224 msg="vtag->magic d153beef, vtag->coretag 64, vtag->vid 0
vtag->sip[0] aa807f57, vtag->sip[1] 0, vtag->sip[2] 0, vtag->sip[3] 0
vtag->sport 39628, vtag->mtu 1500, vtag->flags 12, vtag->np6_flag 0x0, skb->npu_flag=0xc0880"
id=65308 trace_id=12 func=print_pkt_detail line=5824 msg="vd-root:0 received a packet(proto=6, [CLIENT IP]:60876->64.233.164.94:443) tun_id=0.0.0.0 from Guest VLAN. flag [S], seq 3977839294, ack 0, win 65535"
id=65308 trace_id=12 func=init_ip_session_common line=6009 msg="allocate a new session-00012052, tun_id=0.0.0.0"
id=65308 trace_id=12 func=vf_ip_route_input_common line=2611 msg="find a route: flag=04000000 gw-64.233.164.94 via wan1"
id=65308 trace_id=12 func=__iprope_tree_check line=539 msg="gnum-100004, use addr/intf hash, len=3"
id=65308 trace_id=12 func=get_new_addr line=1205 msg="find SNAT: IP-[INTERNET IP](from IPPOOL), port-60876"
id=65308 trace_id=12 func=fw_forward_handler line=979 msg="Allowed by Policy-4: SNAT"
id=65308 trace_id=12 func=__ip_session_run_tuple line=3406 msg="SNAT [CLIENT IP]->[INTERNET IP]:60876"
id=65308 trace_id=12 func=np6xlite_hif_nturbo_build_vtag line=1224 msg="vtag->magic d153beef, vtag->coretag 64, vtag->vid 0
vtag->sip[0] aa807f57, vtag->sip[1] 0, vtag->sip[2] 0, vtag->sip[3] 0
vtag->sport 52461, vtag->mtu 1500, vtag->flags 12, vtag->np6_flag 0x0, skb->npu_flag=0xc0880"
id=65308 trace_id=13 func=print_pkt_detail line=5824 msg="vd-root:0 received a packet(proto=6, [CLIENT IP]:58166->104.124.166.14:443) tun_id=0.0.0.0 from Guest VLAN. flag [F.], seq 272409644, ack 940611437, win 313"
id=65308 trace_id=14 func=print_pkt_detail line=5824 msg="vd-root:0 received a packet(proto=6, [CLIENT IP]:52640->2.23.161.60:443) tun_id=0.0.0.0 from Guest VLAN. flag [F.], seq 1556192722, ack 2751836392, win 313"
id=65308 trace_id=14 func=vf_ip_route_input_common line=2611 msg="find a route: flag=04000000 gw-2.23.161.60 via wan1"
id=65308 trace_id=13 func=vf_ip_route_input_common line=2611 msg="find a route: flag=04000000 gw-104.124.166.14 via wan1"
id=65308 trace_id=14 func=fw_forward_dirty_handler line=394 msg="no session matched"
id=65308 trace_id=13 func=fw_forward_dirty_handler line=394 msg="no session matched"
id=65308 trace_id=15 func=print_pkt_detail line=5824 msg="vd-root:0 received a packet(proto=6, [CLIENT IP]:52378->172.217.18.99:443) tun_id=0.0.0.0 from Guest VLAN. flag [.], seq 1314179866, ack 4090985559, win 256"
id=65308 trace_id=15 func=resolve_ip_tuple_fast line=5912 msg="Find an existing session, id-00012051, original direction"
id=65308 trace_id=15 func=npu_handle_session44 line=1206 msg="Trying to offloading session from Guest VLAN to wan1, skb.npu_flag=00000400 ses.state=00012204 ses.npu_state=0x00003894"
id=65308 trace_id=15 func=np6xlite_fos_set_nturbo_ips_fwd_session line=620 msg="push nturbo session oid 12"
id=65308 trace_id=15 func=ip_session_install_npu_session line=358 msg="npu session installation succeeded"
id=65308 trace_id=15 func=fw_forward_dirty_handler line=437 msg="state=00012204, state2=00000001, npu_state=00003c94"
id=65308 trace_id=15 func=__ip_session_run_tuple line=3406 msg="SNAT [CLIENT IP]->[INTERNET IP]:52378"
id=65308 trace_id=15 func=np6xlite_hif_nturbo_build_vtag line=1224 msg="vtag->magic d153beef, vtag->coretag 64, vtag->vid 0
vtag->sip[0] aa807f57, vtag->sip[1] 0, vtag->sip[2] 0, vtag->sip[3] 0
vtag->sport 39628, vtag->mtu 1500, vtag->flags 2, vtag->np6_flag 0x0, skb->npu_flag=0xc0c80"
id=65308 trace_id=16 func=print_pkt_detail line=5824 msg="vd-root:0 received a packet(proto=6, [CLIENT IP]:60876->64.233.164.94:443) tun_id=0.0.0.0 from Guest VLAN. flag [.], seq 3977839295, ack 1537535973, win 256"
id=65308 trace_id=16 func=resolve_ip_tuple_fast line=5912 msg="Find an existing session, id-00012052, original direction"
id=65308 trace_id=16 func=npu_handle_session44 line=1206 msg="Trying to offloading session from Guest VLAN to wan1, skb.npu_flag=00000400 ses.state=00012204 ses.npu_state=0x00003894"
id=65308 trace_id=16 func=np6xlite_fos_set_nturbo_ips_fwd_session line=620 msg="push nturbo session oid 12"
id=65308 trace_id=16 func=ip_session_install_npu_session line=358 msg="npu session installation succeeded"
id=65308 trace_id=16 func=fw_forward_dirty_handler line=437 msg="state=00012204, state2=00000001, npu_state=00003c94"
id=65308 trace_id=16 func=__ip_session_run_tuple line=3406 msg="SNAT [CLIENT IP]->[INTERNET IP]:60876"
id=65308 trace_id=16 func=np6xlite_hif_nturbo_build_vtag line=1224 msg="vtag->magic d153beef, vtag->coretag 64, vtag->vid 0
vtag->sip[0] aa807f57, vtag->sip[1] 0, vtag->sip[2] 0, vtag->sip[3] 0
vtag->sport 52461, vtag->mtu 1500, vtag->flags 2, vtag->np6_flag 0x0, skb->npu_flag=0xc0c80"
id=65308 trace_id=17 func=print_pkt_detail line=5824 msg="vd-root:0 received a packet(proto=6, [CLIENT IP]:58166->104.124.166.14:443) tun_id=0.0.0.0 from Guest VLAN. flag [F.], seq 272409644, ack 940611437, win 313"
id=65308 trace_id=18 func=print_pkt_detail line=5824 msg="vd-root:0 received a packet(proto=6, [CLIENT IP]:52640->2.23.161.60:443) tun_id=0.0.0.0 from Guest VLAN. flag [F.], seq 1556192722, ack 2751836392, win 313"
id=65308 trace_id=18 func=vf_ip_route_input_common line=2611 msg="find a route: flag=04000000 gw-2.23.161.60 via wan1"
id=65308 trace_id=17 func=vf_ip_route_input_common line=2611 msg="find a route: flag=04000000 gw-104.124.166.14 via wan1"
id=65308 trace_id=18 func=fw_forward_dirty_handler line=394 msg="no session matched"
id=65308 trace_id=17 func=fw_forward_dirty_handler line=394 msg="no session matched"
id=65308 trace_id=20 func=print_pkt_detail line=5824 msg="vd-root:0 received a packet(proto=6, [CLIENT IP]:52640->2.23.161.60:443) tun_id=0.0.0.0 from Guest VLAN. flag [F.], seq 1556192722, ack 2751836392, win 313"
id=65308 trace_id=19 func=print_pkt_detail line=5824 msg="vd-root:0 received a packet(proto=6, [CLIENT IP]:58166->104.124.166.14:443) tun_id=0.0.0.0 from Guest VLAN. flag [F.], seq 272409644, ack 940611437, win 313"
id=65308 trace_id=19 func=vf_ip_route_input_common line=2611 msg="find a route: flag=04000000 gw-104.124.166.14 via wan1"
id=65308 trace_id=20 func=vf_ip_route_input_common line=2611 msg="find a route: flag=04000000 gw-2.23.161.60 via wan1"
id=65308 trace_id=19 func=fw_forward_dirty_handler line=394 msg="no session matched"
id=65308 trace_id=20 func=fw_forward_dirty_handler line=394 msg="no session matched"
id=65308 trace_id=21 func=print_pkt_detail line=5824 msg="vd-root:0 received a packet(proto=17, [CLIENT IP]:6158->1.1.1.1:53) tun_id=0.0.0.0 from Guest VLAN. "
id=65308 trace_id=21 func=init_ip_session_common line=6009 msg="allocate a new session-00012061, tun_id=0.0.0.0"
id=65308 trace_id=21 func=vf_ip_route_input_common line=2611 msg="find a route: flag=04000000 gw-1.1.1.1 via wan1"
id=65308 trace_id=21 func=__iprope_tree_check line=539 msg="gnum-100004, use addr/intf hash, len=3"
id=65308 trace_id=21 func=get_new_addr line=1205 msg="find SNAT: IP-[INTERNET IP](from IPPOOL), port-6158"
id=65308 trace_id=21 func=fw_forward_handler line=979 msg="Allowed by Policy-4: SNAT"
id=65308 trace_id=21 func=ids_receive line=429 msg="send to ips"
id=65308 trace_id=21 func=__ip_session_run_tuple line=3406 msg="SNAT [CLIENT IP]->[INTERNET IP]:6158"
id=65308 trace_id=21 func=__ip_session_run_tuple line=3460 msg="run helper-dns-udp(dir=original)"
id=65308 trace_id=22 func=print_pkt_detail line=5824 msg="vd-root:0 received a packet(proto=6, [CLIENT IP]:50586->157.240.214.1:443) tun_id=0.0.0.0 from Guest VLAN. flag [S], seq 224744209, ack 0, win 65535"
id=65308 trace_id=22 func=init_ip_session_common line=6009 msg="allocate a new session-00012062, tun_id=0.0.0.0"
id=65308 trace_id=22 func=vf_ip_route_input_common line=2611 msg="find a route: flag=04000000 gw-157.240.214.1 via wan1"
id=65308 trace_id=22 func=__iprope_tree_check line=539 msg="gnum-100004, use addr/intf hash, len=3"
id=65308 trace_id=22 func=get_new_addr line=1205 msg="find SNAT: IP-[INTERNET IP](from IPPOOL), port-50586"
id=65308 trace_id=22 func=fw_forward_handler line=979 msg="Allowed by Policy-4: SNAT"
id=65308 trace_id=22 func=__ip_session_run_tuple line=3406 msg="SNAT [CLIENT IP]->[INTERNET IP]:50586"
id=65308 trace_id=22 func=np6xlite_hif_nturbo_build_vtag line=1224 msg="vtag->magic d153beef, vtag->coretag 64, vtag->vid 0
vtag->sip[0] aa807f57, vtag->sip[1] 0, vtag->sip[2] 0, vtag->sip[3] 0
vtag->sport 39621, vtag->mtu 1500, vtag->flags 12, vtag->np6_flag 0x0, skb->npu_flag=0xc0880"
id=65308 trace_id=23 func=print_pkt_detail line=5824 msg="vd-root:0 received a packet(proto=6, [CLIENT IP]:50586->157.240.214.1:443) tun_id=0.0.0.0 from Guest VLAN. flag [.], seq 224744210, ack 2500516145, win 256"
id=65308 trace_id=23 func=resolve_ip_tuple_fast line=5912 msg="Find an existing session, id-00012062, original direction"
id=65308 trace_id=23 func=npu_handle_session44 line=1206 msg="Trying to offloading session from Guest VLAN to wan1, skb.npu_flag=00000400 ses.state=00012204 ses.npu_state=0x00003894"
id=65308 trace_id=23 func=np6xlite_fos_set_nturbo_ips_fwd_session line=620 msg="push nturbo session oid 12"
id=65308 trace_id=23 func=ip_session_install_npu_session line=358 msg="npu session installation succeeded"
id=65308 trace_id=23 func=fw_forward_dirty_handler line=437 msg="state=00012204, state2=00000001, npu_state=00003c94"
id=65308 trace_id=23 func=__ip_session_run_tuple line=3406 msg="SNAT [CLIENT IP]->[INTERNET IP]:50586"
id=65308 trace_id=23 func=np6xlite_hif_nturbo_build_vtag line=1224 msg="vtag->magic d153beef, vtag->coretag 64, vtag->vid 0
vtag->sip[0] aa807f57, vtag->sip[1] 0, vtag->sip[2] 0, vtag->sip[3] 0
vtag->sport 39621, vtag->mtu 1500, vtag->flags 2, vtag->np6_flag 0x0, skb->npu_flag=0xc0c80"
id=65308 trace_id=24 func=print_pkt_detail line=5824 msg="vd-root:0 received a packet(proto=6, [CLIENT IP]:52640->2.23.161.60:443) tun_id=0.0.0.0 from Guest VLAN. flag [F.], seq 1556192722, ack 2751836392, win 313"
id=65308 trace_id=25 func=print_pkt_detail line=5824 msg="vd-root:0 received a packet(proto=6, [CLIENT IP]:58166->104.124.166.14:443) tun_id=0.0.0.0 from Guest VLAN. flag [F.], seq 272409644, ack 940611437, win 313"
id=65308 trace_id=25 func=vf_ip_route_input_common line=2611 msg="find a route: flag=04000000 gw-104.124.166.14 via wan1"
id=65308 trace_id=24 func=vf_ip_route_input_common line=2611 msg="find a route: flag=04000000 gw-2.23.161.60 via wan1"
id=65308 trace_id=24 func=fw_forward_dirty_handler line=394 msg="no session matched"
id=65308 trace_id=25 func=fw_forward_dirty_handler line=394 msg="no session matched"
id=65308 trace_id=28 func=print_pkt_detail line=5824 msg="vd-root:0 received a packet(proto=6, [CLIENT IP]:58436->162.159.61.3:443) tun_id=0.0.0.0 from Guest VLAN. flag [R.], seq 1863096940, ack 1430522323, win 286"
id=65308 trace_id=26 func=print_pkt_detail line=5824 msg="vd-root:0 received a packet(proto=6, [CLIENT IP]:60876->64.233.164.94:443) tun_id=0.0.0.0 from Guest VLAN. flag [R.], seq 3977840927, ack 1537542243, win 312"
id=65308 trace_id=27 func=print_pkt_detail line=5824 msg="vd-root:0 received a packet(proto=6, [CLIENT IP]:33388->35.168.100.19:443) tun_id=0.0.0.0 from Guest VLAN. flag [R.], seq 2204725583, ack 3699385712, win 265"
id=65308 trace_id=28 func=resolve_ip_tuple_fast line=5912 msg="Find an existing session, id-00012050, original direction"
id=65308 trace_id=26 func=resolve_ip_tuple_fast line=5912 msg="Find an existing session, id-00012052, original direction"
id=65308 trace_id=27 func=resolve_ip_tuple_fast line=5912 msg="Find an existing session, id-0001204e, original direction"
id=65308 trace_id=26 func=npu_handle_session44 line=1206 msg="Trying to offloading session from Guest VLAN to wan1, skb.npu_flag=00000000 ses.state=00012204 ses.npu_state=0x00003c94"
id=65308 trace_id=28 func=npu_handle_session44 line=1206 msg="Trying to offloading session from Guest VLAN to wan1, skb.npu_flag=00000000 ses.state=00012204 ses.npu_state=0x00003c94"
id=65308 trace_id=27 func=npu_handle_session44 line=1206 msg="Trying to offloading session from Guest VLAN to wan1, skb.npu_flag=00000000 ses.state=00012204 ses.npu_state=0x00003c94"
id=65308 trace_id=26 func=fw_forward_dirty_handler line=437 msg="state=00012204, state2=00000001, npu_state=00003c94"
id=65308 trace_id=28 func=fw_forward_dirty_handler line=437 msg="state=00012204, state2=00000001, npu_state=00003c94"
id=65308 trace_id=27 func=fw_forward_dirty_handler line=437 msg="state=00012204, state2=00000001, npu_state=00003c94"
id=65308 trace_id=27 func=__ip_session_run_tuple line=3406 msg="SNAT [CLIENT IP]->[INTERNET IP]:33388"
id=65308 trace_id=26 func=__ip_session_run_tuple line=3406 msg="SNAT [CLIENT IP]->[INTERNET IP]:60876"
id=65308 trace_id=28 func=__ip_session_run_tuple line=3406 msg="SNAT [CLIENT IP]->[INTERNET IP]:58436"
id=65308 trace_id=26 func=np6xlite_hif_nturbo_build_vtag line=1224 msg="vtag->magic d153beef, vtag->coretag 64, vtag->vid 0
vtag->sip[0] aa807f57, vtag->sip[1] 0, vtag->sip[2] 0, vtag->sip[3] 0
vtag->sport 52461, vtag->mtu 1500, vtag->flags 2, vtag->np6_flag 0x0, skb->npu_flag=0xc0880"
id=65308 trace_id=27 func=np6xlite_hif_nturbo_build_vtag line=1224 msg="vtag->magic d153beef, vtag->coretag 64, vtag->vid 0
vtag->sip[0] aa807f57, vtag->sip[1] 0, vtag->sip[2] 0, vtag->sip[3] 0
vtag->sport 27778, vtag->mtu 1500, vtag->flags 2, vtag->np6_flag 0x0, skb->npu_flag=0xc0880"
id=65308 trace_id=28 func=np6xlite_hif_nturbo_build_vtag line=1224 msg="vtag->magic d153beef, vtag->coretag 64, vtag->vid 0
vtag->sip[0] aa807f57, vtag->sip[1] 0, vtag->sip[2] 0, vtag->sip[3] 0
vtag->sport 17636, vtag->mtu 1500, vtag->flags 2, vtag->np6_flag 0x0, skb->npu_flag=0xc0880"
id=65308 trace_id=29 func=print_pkt_detail line=5824 msg="vd-root:0 received a packet(proto=6, [CLIENT IP]:52378->172.217.18.99:443) tun_id=0.0.0.0 from Guest VLAN. flag [R.], seq 1314181303, ack 4090991837, win 312"
id=65308 trace_id=29 func=resolve_ip_tuple_fast line=5912 msg="Find an existing session, id-00012051, original direction"
id=65308 trace_id=29 func=npu_handle_session44 line=1206 msg="Trying to offloading session from Guest VLAN to wan1, skb.npu_flag=00000000 ses.state=00012204 ses.npu_state=0x00003c94"
id=65308 trace_id=29 func=fw_forward_dirty_handler line=437 msg="state=00012204, state2=00000001, npu_state=00003c94"
id=65308 trace_id=29 func=__ip_session_run_tuple line=3406 msg="SNAT [CLIENT IP]->[INTERNET IP]:52378"
id=65308 trace_id=29 func=np6xlite_hif_nturbo_build_vtag line=1224 msg="vtag->magic d153beef, vtag->coretag 64, vtag->vid 0
vtag->sip[0] aa807f57, vtag->sip[1] 0, vtag->sip[2] 0, vtag->sip[3] 0
vtag->sport 39628, vtag->mtu 1500, vtag->flags 2, vtag->np6_flag 0x0, skb->npu_flag=0xc0880"
id=65308 trace_id=30 func=print_pkt_detail line=5824 msg="vd-root:0 received a packet(proto=6, [CLIENT IP]:50586->157.240.214.1:443) tun_id=0.0.0.0 from Guest VLAN. flag [R.], seq 224745987, ack 2500520416, win 300"
id=65308 trace_id=30 func=resolve_ip_tuple_fast line=5912 msg="Find an existing session, id-00012062, original direction"
id=65308 trace_id=30 func=npu_handle_session44 line=1206 msg="Trying to offloading session from Guest VLAN to wan1, skb.npu_flag=00000000 ses.state=00012204 ses.npu_state=0x00003c94"
id=65308 trace_id=30 func=fw_forward_dirty_handler line=437 msg="state=00012204, state2=00000001, npu_state=00003c94"
id=65308 trace_id=30 func=__ip_session_run_tuple line=3406 msg="SNAT [CLIENT IP]->[INTERNET IP]:50586"
id=65308 trace_id=30 func=np6xlite_hif_nturbo_build_vtag line=1224 msg="vtag->magic d153beef, vtag->coretag 64, vtag->vid 0
vtag->sip[0] aa807f57, vtag->sip[1] 0, vtag->sip[2] 0, vtag->sip[3] 0
vtag->sport 39621, vtag->mtu 1500, vtag->flags 2, vtag->np6_flag 0x0, skb->npu_flag=0xc0880"
id=65308 trace_id=31 func=print_pkt_detail line=5824 msg="vd-root:0 received a packet(proto=6, [CLIENT IP]:38422->157.240.221.61:5222) tun_id=0.0.0.0 from Guest VLAN. flag [R.], seq 1133478741, ack 1036828878, win 265"
id=65308 trace_id=31 func=resolve_ip_tuple_fast line=5912 msg="Find an existing session, id-0001204f, original direction"
id=65308 trace_id=31 func=npu_handle_session44 line=1206 msg="Trying to offloading session from Guest VLAN to wan1, skb.npu_flag=00000000 ses.state=00012204 ses.npu_state=0x00003c94"
id=65308 trace_id=31 func=fw_forward_dirty_handler line=437 msg="state=00012204, state2=00000001, npu_state=00003c94"
id=65308 trace_id=31 func=__ip_session_run_tuple line=3406 msg="SNAT [CLIENT IP]->[INTERNET IP]:38422"
id=65308 trace_id=31 func=np6xlite_hif_nturbo_build_vtag line=1224 msg="vtag->magic d153beef, vtag->coretag 64, vtag->vid 0
vtag->sip[0] aa807f57, vtag->sip[1] 0, vtag->sip[2] 0, vtag->sip[3] 0
vtag->sport 5782, vtag->mtu 1500, vtag->flags 2, vtag->np6_flag 0x0, skb->npu_flag=0xc0880"
id=65308 trace_id=33 func=print_pkt_detail line=5824 msg="vd-root:0 received a packet(proto=17, [CLIENT IP]:19016->1.1.1.1:53) tun_id=0.0.0.0 from Guest VLAN. "
id=65308 trace_id=32 func=print_pkt_detail line=5824 msg="vd-root:0 received a packet(proto=17, [CLIENT IP]:28383->1.1.1.1:53) tun_id=0.0.0.0 from Guest VLAN. "
id=65308 trace_id=33 func=init_ip_session_common line=6009 msg="allocate a new session-000124ac, tun_id=0.0.0.0"
id=65308 trace_id=32 func=init_ip_session_common line=6009 msg="allocate a new session-000124ad, tun_id=0.0.0.0"
id=65308 trace_id=32 func=vf_ip_route_input_common line=2611 msg="find a route: flag=04000000 gw-1.1.1.1 via wan1"
id=65308 trace_id=33 func=vf_ip_route_input_common line=2611 msg="find a route: flag=04000000 gw-1.1.1.1 via wan1"
id=65308 trace_id=32 func=__iprope_tree_check line=539 msg="gnum-100004, use addr/intf hash, len=3"
id=65308 trace_id=33 func=__iprope_tree_check line=539 msg="gnum-100004, use addr/intf hash, len=3"
id=65308 trace_id=33 func=get_new_addr line=1205 msg="find SNAT: IP-[INTERNET IP](from IPPOOL), port-19016"
id=65308 trace_id=32 func=get_new_addr line=1205 msg="find SNAT: IP-[INTERNET IP](from IPPOOL), port-28383"
id=65308 trace_id=33 func=fw_forward_handler line=979 msg="Allowed by Policy-4: SNAT"
id=65308 trace_id=32 func=fw_forward_handler line=979 msg="Allowed by Policy-4: SNAT"
id=65308 trace_id=32 func=ids_receive line=429 msg="send to ips"
id=65308 trace_id=33 func=ids_receive line=429 msg="send to ips"
id=65308 trace_id=34 func=print_pkt_detail line=5824 msg="vd-root:0 received a packet(proto=17, [CLIENT IP]:39337->1.1.1.1:53) tun_id=0.0.0.0 from Guest VLAN. "
id=65308 trace_id=34 func=init_ip_session_common line=6009 msg="allocate a new session-000124ae, tun_id=0.0.0.0"
id=65308 trace_id=34 func=vf_ip_route_input_common line=2611 msg="find a route: flag=04000000 gw-1.1.1.1 via wan1"
id=65308 trace_id=34 func=__iprope_tree_check line=539 msg="gnum-100004, use addr/intf hash, len=3"
id=65308 trace_id=34 func=get_new_addr line=1205 msg="find SNAT: IP-[INTERNET IP](from IPPOOL), port-39337"
id=65308 trace_id=34 func=fw_forward_handler line=979 msg="Allowed by Policy-4: SNAT"
id=65308 trace_id=34 func=ids_receive line=429 msg="send to ips"
id=65308 trace_id=35 func=print_pkt_detail line=5824 msg="vd-root:0 received a packet(proto=17, [CLIENT IP]:5921->1.1.1.1:53) tun_id=0.0.0.0 from Guest VLAN. "
id=65308 trace_id=35 func=init_ip_session_common line=6009 msg="allocate a new session-000124af, tun_id=0.0.0.0"
id=65308 trace_id=35 func=vf_ip_route_input_common line=2611 msg="find a route: flag=04000000 gw-1.1.1.1 via wan1"
id=65308 trace_id=35 func=__iprope_tree_check line=539 msg="gnum-100004, use addr/intf hash, len=3"
id=65308 trace_id=35 func=get_new_addr line=1205 msg="find SNAT: IP-[INTERNET IP](from IPPOOL), port-5921"
id=65308 trace_id=35 func=fw_forward_handler line=979 msg="Allowed by Policy-4: SNAT"
id=65308 trace_id=35 func=ids_receive line=429 msg="send to ips"
id=65308 trace_id=32 func=__ip_session_run_tuple line=3406 msg="SNAT [CLIENT IP]->[INTERNET IP]:28383"
id=65308 trace_id=33 func=__ip_session_run_tuple line=3406 msg="SNAT [CLIENT IP]->[INTERNET IP]:19016"
id=65308 trace_id=34 func=__ip_session_run_tuple line=3406 msg="SNAT [CLIENT IP]->[INTERNET IP]:39337"
id=65308 trace_id=33 func=__ip_session_run_tuple line=3460 msg="run helper-dns-udp(dir=original)"
id=65308 trace_id=32 func=__ip_session_run_tuple line=3460 msg="run helper-dns-udp(dir=original)"
id=65308 trace_id=34 func=__ip_session_run_tuple line=3460 msg="run helper-dns-udp(dir=original)"
id=65308 trace_id=35 func=__ip_session_run_tuple line=3406 msg="SNAT [CLIENT IP]->[INTERNET IP]:5921"
id=65308 trace_id=35 func=__ip_session_run_tuple line=3460 msg="run helper-dns-udp(dir=original)"
id=65308 trace_id=36 func=print_pkt_detail line=5824 msg="vd-root:0 received a packet(proto=17, [CLIENT IP]:47792->82.219.4.30:123) tun_id=0.0.0.0 from Guest VLAN. "
id=65308 trace_id=36 func=init_ip_session_common line=6009 msg="allocate a new session-000124b0, tun_id=0.0.0.0"
id=65308 trace_id=36 func=vf_ip_route_input_common line=2611 msg="find a route: flag=04000000 gw-82.219.4.30 via wan1"
id=65308 trace_id=36 func=__iprope_tree_check line=539 msg="gnum-100004, use addr/intf hash, len=3"
id=65308 trace_id=36 func=get_new_addr line=1205 msg="find SNAT: IP-[INTERNET IP](from IPPOOL), port-47792"
id=65308 trace_id=36 func=fw_forward_handler line=979 msg="Allowed by Policy-4: SNAT"
id=65308 trace_id=36 func=__ip_session_run_tuple line=3406 msg="SNAT [CLIENT IP]->[INTERNET IP]:47792"
id=65308 trace_id=37 func=print_pkt_detail line=5824 msg="vd-root:0 received a packet(proto=17, [CLIENT IP]:52562->81.128.218.110:123) tun_id=0.0.0.0 from Guest VLAN. "
id=65308 trace_id=37 func=init_ip_session_common line=6009 msg="allocate a new session-000124b1, tun_id=0.0.0.0"
id=65308 trace_id=37 func=vf_ip_route_input_common line=2611 msg="find a route: flag=04000000 gw-81.128.218.110 via wan1"
id=65308 trace_id=37 func=__iprope_tree_check line=539 msg="gnum-100004, use addr/intf hash, len=3"
id=65308 trace_id=37 func=get_new_addr line=1205 msg="find SNAT: IP-[INTERNET IP](from IPPOOL), port-52562"
id=65308 trace_id=37 func=fw_forward_handler line=979 msg="Allowed by Policy-4: SNAT"
id=65308 trace_id=37 func=__ip_session_run_tuple line=3406 msg="SNAT [CLIENT IP]->[INTERNET IP]:52562"
id=65308 trace_id=36 func=np6xlite_hif_nturbo_build_vtag line=1224 msg="vtag->magic d153beef, vtag->coretag 64, vtag->vid 0
vtag->sip[0] aa807f57, vtag->sip[1] 0, vtag->sip[2] 0, vtag->sip[3] 0
vtag->sport 45242, vtag->mtu 1500, vtag->flags 12, vtag->np6_flag 0x0, skb->npu_flag=0xc0880"
id=65308 trace_id=37 func=np6xlite_hif_nturbo_build_vtag line=1224 msg="vtag->magic d153beef, vtag->coretag 64, vtag->vid 0
vtag->sip[0] aa807f57, vtag->sip[1] 0, vtag->sip[2] 0, vtag->sip[3] 0
vtag->sport 21197, vtag->mtu 1500, vtag->flags 12, vtag->np6_flag 0x0, skb->npu_flag=0xc0880"
id=65308 trace_id=38 func=print_pkt_detail line=5824 msg="vd-root:0 received a packet(proto=17, [CLIENT IP]:53070->77.104.162.218:123) tun_id=0.0.0.0 from Guest VLAN. "
id=65308 trace_id=38 func=init_ip_session_common line=6009 msg="allocate a new session-000124b2, tun_id=0.0.0.0"
id=65308 trace_id=38 func=vf_ip_route_input_common line=2611 msg="find a route: flag=04000000 gw-77.104.162.218 via wan1"
id=65308 trace_id=38 func=__iprope_tree_check line=539 msg="gnum-100004, use addr/intf hash, len=3"
id=65308 trace_id=38 func=get_new_addr line=1205 msg="find SNAT: IP-[INTERNET IP](from IPPOOL), port-53070"
id=65308 trace_id=38 func=fw_forward_handler line=979 msg="Allowed by Policy-4: SNAT"
id=65308 trace_id=38 func=__ip_session_run_tuple line=3406 msg="SNAT [CLIENT IP]->[INTERNET IP]:53070"
id=65308 trace_id=38 func=np6xlite_hif_nturbo_build_vtag line=1224 msg="vtag->magic d153beef, vtag->coretag 64, vtag->vid 0
vtag->sip[0] aa807f57, vtag->sip[1] 0, vtag->sip[2] 0, vtag->sip[3] 0
vtag->sport 20175, vtag->mtu 1500, vtag->flags 12, vtag->np6_flag 0x0, skb->npu_flag=0xc0880"
id=65308 trace_id=39 func=print_pkt_detail line=5824 msg="vd-root:0 received a packet(proto=17, [CLIENT IP]:43628->178.62.250.107:123) tun_id=0.0.0.0 from Guest VLAN. "
id=65308 trace_id=39 func=init_ip_session_common line=6009 msg="allocate a new session-000124b3, tun_id=0.0.0.0"
id=65308 trace_id=39 func=vf_ip_route_input_common line=2611 msg="find a route: flag=04000000 gw-178.62.250.107 via wan1"
id=65308 trace_id=39 func=__iprope_tree_check line=539 msg="gnum-100004, use addr/intf hash, len=3"
id=65308 trace_id=39 func=get_new_addr line=1205 msg="find SNAT: IP-[INTERNET IP](from IPPOOL), port-43628"
id=65308 trace_id=39 func=fw_forward_handler line=979 msg="Allowed by Policy-4: SNAT"
id=65308 trace_id=39 func=__ip_session_run_tuple line=3406 msg="SNAT [CLIENT IP]->[INTERNET IP]:43628"
id=65308 trace_id=39 func=np6xlite_hif_nturbo_build_vtag line=1224 msg="vtag->magic d153beef, vtag->coretag 64, vtag->vid 0
vtag->sip[0] aa807f57, vtag->sip[1] 0, vtag->sip[2] 0, vtag->sip[3] 0
vtag->sport 27818, vtag->mtu 1500, vtag->flags 12, vtag->np6_flag 0x0, skb->npu_flag=0xc0880"
id=65308 trace_id=40 func=print_pkt_detail line=5824 msg="vd-root:0 received a packet(proto=17, [CLIENT IP]:51238->1.1.1.1:53) tun_id=0.0.0.0 from Guest VLAN. "
id=65308 trace_id=40 func=init_ip_session_common line=6009 msg="allocate a new session-000124fc, tun_id=0.0.0.0"
id=65308 trace_id=40 func=vf_ip_route_input_common line=2611 msg="find a route: flag=04000000 gw-1.1.1.1 via wan1"
id=65308 trace_id=40 func=__iprope_tree_check line=539 msg="gnum-100004, use addr/intf hash, len=3"
id=65308 trace_id=40 func=get_new_addr line=1205 msg="find SNAT: IP-[INTERNET IP](from IPPOOL), port-51238"
id=65308 trace_id=40 func=fw_forward_handler line=979 msg="Allowed by Policy-4: SNAT"
id=65308 trace_id=40 func=ids_receive line=429 msg="send to ips"
id=65308 trace_id=40 func=__ip_session_run_tuple line=3406 msg="SNAT [CLIENT IP]->[INTERNET IP]:51238"
id=65308 trace_id=40 func=__ip_session_run_tuple line=3460 msg="run helper-dns-udp(dir=original)"
id=65308 trace_id=41 func=print_pkt_detail line=5824 msg="vd-root:0 received a packet(proto=17, [CLIENT IP]:37083->8.8.8.8:53) tun_id=0.0.0.0 from Guest VLAN. "
id=65308 trace_id=41 func=init_ip_session_common line=6009 msg="allocate a new session-000124fd, tun_id=0.0.0.0"
id=65308 trace_id=41 func=vf_ip_route_input_common line=2611 msg="find a route: flag=04000000 gw-8.8.8.8 via wan1"
id=65308 trace_id=41 func=__iprope_tree_check line=539 msg="gnum-100004, use addr/intf hash, len=3"
id=65308 trace_id=41 func=get_new_addr line=1205 msg="find SNAT: IP-[INTERNET IP](from IPPOOL), port-37083"
id=65308 trace_id=41 func=fw_forward_handler line=979 msg="Allowed by Policy-4: SNAT"
id=65308 trace_id=41 func=ids_receive line=429 msg="send to ips"
id=65308 trace_id=41 func=__ip_session_run_tuple line=3406 msg="SNAT [CLIENT IP]->[INTERNET IP]:37083"
id=65308 trace_id=41 func=__ip_session_run_tuple line=3460 msg="run helper-dns-udp(dir=original)"
id=65308 trace_id=42 func=print_pkt_detail line=5824 msg="vd-root:0 received a packet(proto=6, [CLIENT IP]:38436->157.240.221.61:5222) tun_id=0.0.0.0 from Guest VLAN. flag [S], seq 889926368, ack 0, win 65535"
id=65308 trace_id=42 func=init_ip_session_common line=6009 msg="allocate a new session-000124ff, tun_id=0.0.0.0"
id=65308 trace_id=42 func=vf_ip_route_input_common line=2611 msg="find a route: flag=04000000 gw-157.240.221.61 via wan1"
id=65308 trace_id=42 func=__iprope_tree_check line=539 msg="gnum-100004, use addr/intf hash, len=3"
id=65308 trace_id=42 func=get_new_addr line=1205 msg="find SNAT: IP-[INTERNET IP](from IPPOOL), port-38436"
id=65308 trace_id=42 func=fw_forward_handler line=979 msg="Allowed by Policy-4: SNAT"
id=65308 trace_id=42 func=__ip_session_run_tuple line=3406 msg="SNAT [CLIENT IP]->[INTERNET IP]:38436"
id=65308 trace_id=42 func=np6xlite_hif_nturbo_build_vtag line=1224 msg="vtag->magic d153beef, vtag->coretag 64, vtag->vid 0
vtag->sip[0] aa807f57, vtag->sip[1] 0, vtag->sip[2] 0, vtag->sip[3] 0
vtag->sport 9366, vtag->mtu 1500, vtag->flags 12, vtag->np6_flag 0x0, skb->npu_flag=0xc0880"
id=65308 trace_id=43 func=print_pkt_detail line=5824 msg="vd-root:0 received a packet(proto=6, [CLIENT IP]:38436->157.240.221.61:5222) tun_id=0.0.0.0 from Guest VLAN. flag [.], seq 889926369, ack 202053444, win 256"
id=65308 trace_id=43 func=resolve_ip_tuple_fast line=5912 msg="Find an existing session, id-000124ff, original direction"
id=65308 trace_id=43 func=npu_handle_session44 line=1206 msg="Trying to offloading session from Guest VLAN to wan1, skb.npu_flag=00000400 ses.state=00012204 ses.npu_state=0x00003894"
id=65308 trace_id=43 func=np6xlite_fos_set_nturbo_ips_fwd_session line=620 msg="push nturbo session oid 12"
id=65308 trace_id=43 func=ip_session_install_npu_session line=358 msg="npu session installation succeeded"
id=65308 trace_id=43 func=fw_forward_dirty_handler line=437 msg="state=00012204, state2=00000001, npu_state=00003c94"
id=65308 trace_id=43 func=__ip_session_run_tuple line=3406 msg="SNAT [CLIENT IP]->[INTERNET IP]:38436"
id=65308 trace_id=43 func=np6xlite_hif_nturbo_build_vtag line=1224 msg="vtag->magic d153beef, vtag->coretag 64, vtag->vid 0
vtag->sip[0] aa807f57, vtag->sip[1] 0, vtag->sip[2] 0, vtag->sip[3] 0
vtag->sport 9366, vtag->mtu 1500, vtag->flags 2, vtag->np6_flag 0x0, skb->npu_flag=0xc0c80"
id=65308 trace_id=44 func=print_pkt_detail line=5824 msg="vd-root:0 received a packet(proto=6, [CLIENT IP]:58188->104.124.166.14:443) tun_id=0.0.0.0 from Guest VLAN. flag [S], seq 2570825466, ack 0, win 65535"
id=65308 trace_id=44 func=init_ip_session_common line=6009 msg="allocate a new session-00012500, tun_id=0.0.0.0"
id=65308 trace_id=44 func=vf_ip_route_input_common line=2611 msg="find a route: flag=04000000 gw-104.124.166.14 via wan1"
id=65308 trace_id=44 func=__iprope_tree_check line=539 msg="gnum-100004, use addr/intf hash, len=3"
id=65308 trace_id=44 func=get_new_addr line=1205 msg="find SNAT: IP-[INTERNET IP](from IPPOOL), port-58188"
id=65308 trace_id=44 func=fw_forward_handler line=979 msg="Allowed by Policy-4: SNAT"
id=65308 trace_id=44 func=__ip_session_run_tuple line=3406 msg="SNAT [CLIENT IP]->[INTERNET IP]:58188"
id=65308 trace_id=44 func=np6xlite_hif_nturbo_build_vtag line=1224 msg="vtag->magic d153beef, vtag->coretag 64, vtag->vid 0
vtag->sip[0] aa807f57, vtag->sip[1] 0, vtag->sip[2] 0, vtag->sip[3] 0
vtag->sport 19683, vtag->mtu 1500, vtag->flags 12, vtag->np6_flag 0x0, skb->npu_flag=0xc0880"
id=65308 trace_id=45 func=print_pkt_detail line=5824 msg="vd-root:0 received a packet(proto=17, [CLIENT IP]:51280->142.250.187.227:443) tun_id=0.0.0.0 from Guest VLAN. "
id=65308 trace_id=45 func=init_ip_session_common line=6009 msg="allocate a new session-00012501, tun_id=0.0.0.0"
id=65308 trace_id=45 func=vf_ip_route_input_common line=2611 msg="find a route: flag=04000000 gw-142.250.187.227 via wan1"
id=65308 trace_id=45 func=__iprope_tree_check line=539 msg="gnum-100004, use addr/intf hash, len=3"
id=65308 trace_id=45 func=get_new_addr line=1205 msg="find SNAT: IP-[INTERNET IP](from IPPOOL), port-51280"
id=65308 trace_id=45 func=fw_forward_handler line=979 msg="Allowed by Policy-4: SNAT"
id=65308 trace_id=45 func=__ip_session_run_tuple line=3406 msg="SNAT [CLIENT IP]->[INTERNET IP]:51280"
id=65308 trace_id=46 func=print_pkt_detail line=5824 msg="vd-root:0 received a packet(proto=17, [CLIENT IP]:51280->142.250.187.227:443) tun_id=0.0.0.0 from Guest VLAN. "
id=65308 trace_id=46 func=resolve_ip_tuple_fast line=5912 msg="Find an existing session, id-00012501, original direction"
id=65308 trace_id=46 func=npu_handle_session44 line=1206 msg="Trying to offloading session from Guest VLAN to wan1, skb.npu_flag=00000400 ses.state=00012204 ses.npu_state=0x00003094"
id=65308 trace_id=46 func=fw_forward_dirty_handler line=437 msg="state=00012204, state2=00000001, npu_state=00003094"
id=65308 trace_id=46 func=__ip_session_run_tuple line=3406 msg="SNAT [CLIENT IP]->[INTERNET IP]:51280"
id=65308 trace_id=47 func=print_pkt_detail line=5824 msg="vd-root:0 received a packet(proto=6, [CLIENT IP]:52662->2.23.161.60:443) tun_id=0.0.0.0 from Guest VLAN. flag [S], seq 271761959, ack 0, win 65535"
id=65308 trace_id=47 func=init_ip_session_common line=6009 msg="allocate a new session-00012502, tun_id=0.0.0.0"
id=65308 trace_id=47 func=vf_ip_route_input_common line=2611 msg="find a route: flag=04000000 gw-2.23.161.60 via wan1"
id=65308 trace_id=47 func=__iprope_tree_check line=539 msg="gnum-100004, use addr/intf hash, len=3"
id=65308 trace_id=47 func=get_new_addr line=1205 msg="find SNAT: IP-[INTERNET IP](from IPPOOL), port-52662"
id=65308 trace_id=47 func=fw_forward_handler line=979 msg="Allowed by Policy-4: SNAT"
id=65308 trace_id=47 func=__ip_session_run_tuple line=3406 msg="SNAT [CLIENT IP]->[INTERNET IP]:52662"
id=65308 trace_id=47 func=np6xlite_hif_nturbo_build_vtag line=1224 msg="vtag->magic d153beef, vtag->coretag 64, vtag->vid 0
vtag->sip[0] aa807f57, vtag->sip[1] 0, vtag->sip[2] 0, vtag->sip[3] 0
vtag->sport 46797, vtag->mtu 1500, vtag->flags 12, vtag->np6_flag 0x0, skb->npu_flag=0xc0880"
id=65308 trace_id=45 func=np6xlite_hif_nturbo_build_vtag line=1224 msg="vtag->magic d153beef, vtag->coretag 64, vtag->vid 0
vtag->sip[0] aa807f57, vtag->sip[1] 0, vtag->sip[2] 0, vtag->sip[3] 0
vtag->sport 20680, vtag->mtu 1500, vtag->flags 12, vtag->np6_flag 0x0, skb->npu_flag=0xc0880"
id=65308 trace_id=46 func=np6xlite_hif_nturbo_build_vtag line=1224 msg="vtag->magic d153beef, vtag->coretag 64, vtag->vid 0
vtag->sip[0] aa807f57, vtag->sip[1] 0, vtag->sip[2] 0, vtag->sip[3] 0
vtag->sport 20680, vtag->mtu 1500, vtag->flags 2, vtag->np6_flag 0x0, skb->npu_flag=0xc0c80"
id=65308 trace_id=48 func=print_pkt_detail line=5824 msg="vd-root:0 received a packet(proto=17, [CLIENT IP]:44516->216.58.201.100:443) tun_id=0.0.0.0 from Guest VLAN. "
id=65308 trace_id=48 func=init_ip_session_common line=6009 msg="allocate a new session-00012503, tun_id=0.0.0.0"
id=65308 trace_id=48 func=vf_ip_route_input_common line=2611 msg="find a route: flag=04000000 gw-216.58.201.100 via wan1"
id=65308 trace_id=48 func=__iprope_tree_check line=539 msg="gnum-100004, use addr/intf hash, len=3"
id=65308 trace_id=48 func=get_new_addr line=1205 msg="find SNAT: IP-[INTERNET IP](from IPPOOL), port-44516"
id=65308 trace_id=48 func=fw_forward_handler line=979 msg="Allowed by Policy-4: SNAT"
id=65308 trace_id=48 func=__ip_session_run_tuple line=3406 msg="SNAT [CLIENT IP]->[INTERNET IP]:44516"
id=65308 trace_id=48 func=np6xlite_hif_nturbo_build_vtag line=1224 msg="vtag->magic d153beef, vtag->coretag 64, vtag->vid 0
vtag->sip[0] aa807f57, vtag->sip[1] 0, vtag->sip[2] 0, vtag->sip[3] 0
vtag->sport 58541, vtag->mtu 1500, vtag->flags 12, vtag->np6_flag 0x0, skb->npu_flag=0xc0880"
id=65308 trace_id=49 func=print_pkt_detail line=5824 msg="vd-root:0 received a packet(proto=17, [CLIENT IP]:44516->216.58.201.100:443) tun_id=0.0.0.0 from Guest VLAN. "
id=65308 trace_id=49 func=resolve_ip_tuple_fast line=5912 msg="Find an existing session, id-00012503, original direction"
id=65308 trace_id=49 func=npu_handle_session44 line=1206 msg="Trying to offloading session from Guest VLAN to wan1, skb.npu_flag=00000400 ses.state=00012204 ses.npu_state=0x00003094"
id=65308 trace_id=49 func=np6xlite_fos_set_nturbo_ips_fwd_session line=620 msg="push nturbo session oid 12"
id=65308 trace_id=49 func=ip_session_install_npu_session line=358 msg="npu session installation succeeded"
id=65308 trace_id=49 func=fw_forward_dirty_handler line=437 msg="state=00012204, state2=00000001, npu_state=00003494"
id=65308 trace_id=49 func=__ip_session_run_tuple line=3406 msg="SNAT [CLIENT IP]->[INTERNET IP]:44516"
id=65308 trace_id=49 func=np6xlite_hif_nturbo_build_vtag line=1224 msg="vtag->magic d153beef, vtag->coretag 64, vtag->vid 0
vtag->sip[0] aa807f57, vtag->sip[1] 0, vtag->sip[2] 0, vtag->sip[3] 0
vtag->sport 58541, vtag->mtu 1500, vtag->flags 2, vtag->np6_flag 0x0, skb->npu_flag=0xc0c80"
id=65308 trace_id=50 func=print_pkt_detail line=5824 msg="vd-root:0 received a packet(proto=6, [CLIENT IP]:52662->2.23.161.60:443) tun_id=0.0.0.0 from Guest VLAN. flag [.], seq 271761960, ack 3920581129, win 256"
id=65308 trace_id=50 func=resolve_ip_tuple_fast line=5912 msg="Find an existing session, id-00012502, original direction"
id=65308 trace_id=50 func=npu_handle_session44 line=1206 msg="Trying to offloading session from Guest VLAN to wan1, skb.npu_flag=00000400 ses.state=00012204 ses.npu_state=0x00003894"
id=65308 trace_id=50 func=np6xlite_fos_set_nturbo_ips_fwd_session line=620 msg="push nturbo session oid 12"
id=65308 trace_id=50 func=ip_session_install_npu_session line=358 msg="npu session installation succeeded"
id=65308 trace_id=50 func=fw_forward_dirty_handler line=437 msg="state=00012204, state2=00000001, npu_state=00003c94"
id=65308 trace_id=50 func=__ip_session_run_tuple line=3406 msg="SNAT [CLIENT IP]->[INTERNET IP]:52662"
id=65308 trace_id=50 func=np6xlite_hif_nturbo_build_vtag line=1224 msg="vtag->magic d153beef, vtag->coretag 64, vtag->vid 0
vtag->sip[0] aa807f57, vtag->sip[1] 0, vtag->sip[2] 0, vtag->sip[3] 0
vtag->sport 46797, vtag->mtu 1500, vtag->flags 2, vtag->np6_flag 0x0, skb->npu_flag=0xc0c80"
id=65308 trace_id=51 func=print_pkt_detail line=5824 msg="vd-root:0 received a packet(proto=6, [CLIENT IP]:58188->104.124.166.14:443) tun_id=0.0.0.0 from Guest VLAN. flag [.], seq 2570825467, ack 427854044, win 256"
id=65308 trace_id=51 func=resolve_ip_tuple_fast line=5912 msg="Find an existing session, id-00012500, original direction"
id=65308 trace_id=51 func=npu_handle_session44 line=1206 msg="Trying to offloading session from Guest VLAN to wan1, skb.npu_flag=00000400 ses.state=00012204 ses.npu_state=0x00003894"
id=65308 trace_id=51 func=np6xlite_fos_set_nturbo_ips_fwd_session line=620 msg="push nturbo session oid 12"
id=65308 trace_id=51 func=ip_session_install_npu_session line=358 msg="npu session installation succeeded"
id=65308 trace_id=51 func=fw_forward_dirty_handler line=437 msg="state=00012204, state2=00000001, npu_state=00003c94"
id=65308 trace_id=51 func=__ip_session_run_tuple line=3406 msg="SNAT [CLIENT IP]->[INTERNET IP]:58188"
id=65308 trace_id=51 func=np6xlite_hif_nturbo_build_vtag line=1224 msg="vtag->magic d153beef, vtag->coretag 64, vtag->vid 0
vtag->sip[0] aa807f57, vtag->sip[1] 0, vtag->sip[2] 0, vtag->sip[3] 0
vtag->sport 19683, vtag->mtu 1500, vtag->flags 2, vtag->np6_flag 0x0, skb->npu_flag=0xc0c80"
id=65308 trace_id=52 func=print_pkt_detail line=5824 msg="vd-root:0 received a packet(proto=17, [CLIENT IP]:51280->142.250.187.227:443) tun_id=0.0.0.0 from Guest VLAN. "
id=65308 trace_id=52 func=resolve_ip_tuple_fast line=5912 msg="Find an existing session, id-00012501, original direction"
id=65308 trace_id=52 func=npu_handle_session44 line=1206 msg="Trying to offloading session from Guest VLAN to wan1, skb.npu_flag=00000400 ses.state=00012204 ses.npu_state=0x00003894"
id=65308 trace_id=52 func=np6xlite_fos_set_nturbo_ips_fwd_session line=620 msg="push nturbo session oid 12"
id=65308 trace_id=52 func=ip_session_install_npu_session line=358 msg="npu session installation succeeded"
id=65308 trace_id=52 func=fw_forward_dirty_handler line=437 msg="state=00012204, state2=00000001, npu_state=00003c94"
id=65308 trace_id=52 func=__ip_session_run_tuple line=3406 msg="SNAT [CLIENT IP]->[INTERNET IP]:51280"
id=65308 trace_id=52 func=np6xlite_hif_nturbo_build_vtag line=1224 msg="vtag->magic d153beef, vtag->coretag 64, vtag->vid 0
vtag->sip[0] aa807f57, vtag->sip[1] 0, vtag->sip[2] 0, vtag->sip[3] 0
vtag->sport 20680, vtag->mtu 1500, vtag->flags 2, vtag->np6_flag 0x0, skb->npu_flag=0xc0c80"
id=65308 trace_id=53 func=print_pkt_detail line=5824 msg="vd-root:0 received a packet(proto=17, [CLIENT IP]:41942->1.1.1.1:53) tun_id=0.0.0.0 from Guest VLAN. "
id=65308 trace_id=53 func=init_ip_session_common line=6009 msg="allocate a new session-00012504, tun_id=0.0.0.0"
id=65308 trace_id=53 func=vf_ip_route_input_common line=2611 msg="find a route: flag=04000000 gw-1.1.1.1 via wan1"
id=65308 trace_id=53 func=__iprope_tree_check line=539 msg="gnum-100004, use addr/intf hash, len=3"
id=65308 trace_id=53 func=get_new_addr line=1205 msg="find SNAT: IP-[INTERNET IP](from IPPOOL), port-41942"
id=65308 trace_id=53 func=fw_forward_handler line=979 msg="Allowed by Policy-4: SNAT"
id=65308 trace_id=53 func=ids_receive line=429 msg="send to ips"
id=65308 trace_id=53 func=__ip_session_run_tuple line=3406 msg="SNAT [CLIENT IP]->[INTERNET IP]:41942"
id=65308 trace_id=53 func=__ip_session_run_tuple line=3460 msg="run helper-dns-udp(dir=original)"
id=65308 trace_id=54 func=print_pkt_detail line=5824 msg="vd-root:0 received a packet(proto=17, [CLIENT IP]:58479->142.250.187.228:443) tun_id=0.0.0.0 from Guest VLAN. "
id=65308 trace_id=54 func=init_ip_session_common line=6009 msg="allocate a new session-00012505, tun_id=0.0.0.0"
id=65308 trace_id=54 func=vf_ip_route_input_common line=2611 msg="find a route: flag=04000000 gw-142.250.187.228 via wan1"
id=65308 trace_id=54 func=__iprope_tree_check line=539 msg="gnum-100004, use addr/intf hash, len=3"
id=65308 trace_id=54 func=get_new_addr line=1205 msg="find SNAT: IP-[INTERNET IP](from IPPOOL), port-58479"
id=65308 trace_id=54 func=fw_forward_handler line=979 msg="Allowed by Policy-4: SNAT"
id=65308 trace_id=54 func=__ip_session_run_tuple line=3406 msg="SNAT [CLIENT IP]->[INTERNET IP]:58479"
id=65308 trace_id=54 func=np6xlite_hif_nturbo_build_vtag line=1224 msg="vtag->magic d153beef, vtag->coretag 64, vtag->vid 0
vtag->sip[0] aa807f57, vtag->sip[1] 0, vtag->sip[2] 0, vtag->sip[3] 0
vtag->sport 28644, vtag->mtu 1500, vtag->flags 12, vtag->np6_flag 0x0, skb->npu_flag=0xc0880"
id=65308 trace_id=55 func=print_pkt_detail line=5824 msg="vd-root:0 received a packet(proto=17, [CLIENT IP]:60801->1.1.1.1:53) tun_id=0.0.0.0 from Guest VLAN. "
id=65308 trace_id=55 func=init_ip_session_common line=6009 msg="allocate a new session-00012506, tun_id=0.0.0.0"
id=65308 trace_id=55 func=vf_ip_route_input_common line=2611 msg="find a route: flag=04000000 gw-1.1.1.1 via wan1"
id=65308 trace_id=55 func=__iprope_tree_check line=539 msg="gnum-100004, use addr/intf hash, len=3"
id=65308 trace_id=55 func=get_new_addr line=1205 msg="find SNAT: IP-[INTERNET IP](from IPPOOL), port-60801"
id=65308 trace_id=55 func=fw_forward_handler line=979 msg="Allowed by Policy-4: SNAT"
id=65308 trace_id=55 func=ids_receive line=429 msg="send to ips"
id=65308 trace_id=55 func=__ip_session_run_tuple line=3406 msg="SNAT [CLIENT IP]->[INTERNET IP]:60801"
id=65308 trace_id=55 func=__ip_session_run_tuple line=3460 msg="run helper-dns-udp(dir=original)"
id=65308 trace_id=56 func=print_pkt_detail line=5824 msg="vd-root:0 received a packet(proto=6, [CLIENT IP]:48614->142.250.179.228:443) tun_id=0.0.0.0 from Guest VLAN. flag [S], seq 562258858, ack 0, win 65535"
id=65308 trace_id=56 func=init_ip_session_common line=6009 msg="allocate a new session-00012507, tun_id=0.0.0.0"
id=65308 trace_id=56 func=vf_ip_route_input_common line=2611 msg="find a route: flag=04000000 gw-142.250.179.228 via wan1"
id=65308 trace_id=56 func=__iprope_tree_check line=539 msg="gnum-100004, use addr/intf hash, len=3"
id=65308 trace_id=56 func=get_new_addr line=1205 msg="find SNAT: IP-[INTERNET IP](from IPPOOL), port-48614"
id=65308 trace_id=56 func=fw_forward_handler line=979 msg="Allowed by Policy-4: SNAT"
id=65308 trace_id=56 func=__ip_session_run_tuple line=3406 msg="SNAT [CLIENT IP]->[INTERNET IP]:48614"
id=65308 trace_id=56 func=np6xlite_hif_nturbo_build_vtag line=1224 msg="vtag->magic d153beef, vtag->coretag 64, vtag->vid 0
vtag->sip[0] aa807f57, vtag->sip[1] 0, vtag->sip[2] 0, vtag->sip[3] 0
vtag->sport 59069, vtag->mtu 1500, vtag->flags 12, vtag->np6_flag 0x0, skb->npu_flag=0xc0880"
id=65308 trace_id=57 func=print_pkt_detail line=5824 msg="vd-root:0 received a packet(proto=17, [CLIENT IP]:58479->142.250.187.228:443) tun_id=0.0.0.0 from Guest VLAN. "
id=65308 trace_id=57 func=resolve_ip_tuple_fast line=5912 msg="Find an existing session, id-00012505, original direction"
id=65308 trace_id=57 func=npu_handle_session44 line=1206 msg="Trying to offloading session from Guest VLAN to wan1, skb.npu_flag=00000400 ses.state=00012204 ses.npu_state=0x00003894"
id=65308 trace_id=57 func=np6xlite_fos_set_nturbo_ips_fwd_session line=620 msg="push nturbo session oid 12"
id=65308 trace_id=57 func=ip_session_install_npu_session line=358 msg="npu session installation succeeded"
id=65308 trace_id=57 func=fw_forward_dirty_handler line=437 msg="state=00012204, state2=00000001, npu_state=00003c94"
id=65308 trace_id=57 func=__ip_session_run_tuple line=3406 msg="SNAT [CLIENT IP]->[INTERNET IP]:58479"
id=65308 trace_id=57 func=np6xlite_hif_nturbo_build_vtag line=1224 msg="vtag->magic d153beef, vtag->coretag 64, vtag->vid 0
vtag->sip[0] aa807f57, vtag->sip[1] 0, vtag->sip[2] 0, vtag->sip[3] 0
vtag->sport 28644, vtag->mtu 1500, vtag->flags 2, vtag->np6_flag 0x0, skb->npu_flag=0xc0c80"
id=65308 trace_id=58 func=print_pkt_detail line=5824 msg="vd-root:0 received a packet(proto=6, [CLIENT IP]:48614->142.250.179.228:443) tun_id=0.0.0.0 from Guest VLAN. flag [.], seq 562258859, ack 1206198413, win 256"
id=65308 trace_id=58 func=resolve_ip_tuple_fast line=5912 msg="Find an existing session, id-00012507, original direction"
id=65308 trace_id=58 func=npu_handle_session44 line=1206 msg="Trying to offloading session from Guest VLAN to wan1, skb.npu_flag=00000400 ses.state=00012204 ses.npu_state=0x00003894"
id=65308 trace_id=58 func=np6xlite_fos_set_nturbo_ips_fwd_session line=620 msg="push nturbo session oid 12"
id=65308 trace_id=58 func=ip_session_install_npu_session line=358 msg="npu session installation succeeded"
id=65308 trace_id=58 func=fw_forward_dirty_handler line=437 msg="state=00012204, state2=00000001, npu_state=00003c94"
id=65308 trace_id=58 func=__ip_session_run_tuple line=3406 msg="SNAT [CLIENT IP]->[INTERNET IP]:48614"
id=65308 trace_id=58 func=np6xlite_hif_nturbo_build_vtag line=1224 msg="vtag->magic d153beef, vtag->coretag 64, vtag->vid 0
vtag->sip[0] aa807f57, vtag->sip[1] 0, vtag->sip[2] 0, vtag->sip[3] 0
vtag->sport 59069, vtag->mtu 1500, vtag->flags 2, vtag->np6_flag 0x0, skb->npu_flag=0xc0c80"
id=65308 trace_id=59 func=print_pkt_detail line=5824 msg="vd-root:0 received a packet(proto=6, [CLIENT IP]:33412->35.168.100.19:443) tun_id=0.0.0.0 from Guest VLAN. flag [S], seq 3867904581, ack 0, win 65535"
id=65308 trace_id=59 func=init_ip_session_common line=6009 msg="allocate a new session-00012508, tun_id=0.0.0.0"
id=65308 trace_id=59 func=vf_ip_route_input_common line=2611 msg="find a route: flag=04000000 gw-35.168.100.19 via wan1"
id=65308 trace_id=59 func=__iprope_tree_check line=539 msg="gnum-100004, use addr/intf hash, len=3"
id=65308 trace_id=59 func=get_new_addr line=1205 msg="find SNAT: IP-[INTERNET IP](from IPPOOL), port-33412"
id=65308 trace_id=59 func=fw_forward_handler line=979 msg="Allowed by Policy-4: SNAT"
id=65308 trace_id=59 func=__ip_session_run_tuple line=3406 msg="SNAT [CLIENT IP]->[INTERNET IP]:33412"
id=65308 trace_id=59 func=np6xlite_hif_nturbo_build_vtag line=1224 msg="vtag->magic d153beef, vtag->coretag 64, vtag->vid 0
vtag->sip[0] aa807f57, vtag->sip[1] 0, vtag->sip[2] 0, vtag->sip[3] 0
vtag->sport 33922, vtag->mtu 1500, vtag->flags 12, vtag->np6_flag 0x0, skb->npu_flag=0xc0880"
id=65308 trace_id=60 func=print_pkt_detail line=5824 msg="vd-root:0 received a packet(proto=6, [CLIENT IP]:58166->104.124.166.14:443) tun_id=0.0.0.0 from Guest VLAN. flag [F.], seq 272409644, ack 940611437, win 313"
id=65308 trace_id=61 func=print_pkt_detail line=5824 msg="vd-root:0 received a packet(proto=6, [CLIENT IP]:52640->2.23.161.60:443) tun_id=0.0.0.0 from Guest VLAN. flag [F.], seq 1556192722, ack 2751836392, win 313"
id=65308 trace_id=60 func=vf_ip_route_input_common line=2611 msg="find a route: flag=04000000 gw-104.124.166.14 via wan1"
id=65308 trace_id=60 func=fw_forward_dirty_handler line=394 msg="no session matched"
id=65308 trace_id=61 func=vf_ip_route_input_common line=2611 msg="find a route: flag=04000000 gw-2.23.161.60 via wan1"
id=65308 trace_id=61 func=fw_forward_dirty_handler line=394 msg="no session matched"
id=65308 trace_id=62 func=print_pkt_detail line=5824 msg="vd-root:0 received a packet(proto=6, [CLIENT IP]:33412->35.168.100.19:443) tun_id=0.0.0.0 from Guest VLAN. flag [.], seq 3867904582, ack 3712841598, win 256"
id=65308 trace_id=62 func=resolve_ip_tuple_fast line=5912 msg="Find an existing session, id-00012508, original direction"
id=65308 trace_id=62 func=npu_handle_session44 line=1206 msg="Trying to offloading session from Guest VLAN to wan1, skb.npu_flag=00000400 ses.state=00012204 ses.npu_state=0x00003894"
id=65308 trace_id=62 func=np6xlite_fos_set_nturbo_ips_fwd_session line=620 msg="push nturbo session oid 12"
id=65308 trace_id=62 func=ip_session_install_npu_session line=358 msg="npu session installation succeeded"
id=65308 trace_id=62 func=fw_forward_dirty_handler line=437 msg="state=00012204, state2=00000001, npu_state=00003c94"
id=65308 trace_id=62 func=__ip_session_run_tuple line=3406 msg="SNAT [CLIENT IP]->[INTERNET IP]:33412"
id=65308 trace_id=62 func=np6xlite_hif_nturbo_build_vtag line=1224 msg="vtag->magic d153beef, vtag->coretag 64, vtag->vid 0
vtag->sip[0] aa807f57, vtag->sip[1] 0, vtag->sip[2] 0, vtag->sip[3] 0
vtag->sport 33922, vtag->mtu 1500, vtag->flags 2, vtag->np6_flag 0x0, skb->npu_flag=0xc0c80"
id=65308 trace_id=63 func=print_pkt_detail line=5824 msg="vd-root:0 received a packet(proto=17, [CLIENT IP]:39136->172.217.18.99:443) tun_id=0.0.0.0 from Guest VLAN. "
id=65308 trace_id=63 func=init_ip_session_common line=6009 msg="allocate a new session-0001250a, tun_id=0.0.0.0"
id=65308 trace_id=63 func=vf_ip_route_input_common line=2611 msg="find a route: flag=04000000 gw-172.217.18.99 via wan1"
id=65308 trace_id=63 func=__iprope_tree_check line=539 msg="gnum-100004, use addr/intf hash, len=3"
id=65308 trace_id=63 func=get_new_addr line=1205 msg="find SNAT: IP-[INTERNET IP](from IPPOOL), port-39136"
id=65308 trace_id=63 func=fw_forward_handler line=979 msg="Allowed by Policy-4: SNAT"
id=65308 trace_id=63 func=__ip_session_run_tuple line=3406 msg="SNAT [CLIENT IP]->[INTERNET IP]:39136"
id=65308 trace_id=63 func=np6xlite_hif_nturbo_build_vtag line=1224 msg="vtag->magic d153beef, vtag->coretag 64, vtag->vid 0
vtag->sip[0] aa807f57, vtag->sip[1] 0, vtag->sip[2] 0, vtag->sip[3] 0
vtag->sport 57496, vtag->mtu 1500, vtag->flags 12, vtag->np6_flag 0x0, skb->npu_flag=0xc0880"
id=65308 trace_id=64 func=print_pkt_detail line=5824 msg="vd-root:0 received a packet(proto=17, [CLIENT IP]:39136->172.217.18.99:443) tun_id=0.0.0.0 from Guest VLAN. "
id=65308 trace_id=64 func=resolve_ip_tuple_fast line=5912 msg="Find an existing session, id-0001250a, original direction"
id=65308 trace_id=64 func=npu_handle_session44 line=1206 msg="Trying to offloading session from Guest VLAN to wan1, skb.npu_flag=00000400 ses.state=00012204 ses.npu_state=0x00003894"
id=65308 trace_id=64 func=np6xlite_fos_set_nturbo_ips_fwd_session line=620 msg="push nturbo session oid 12"
id=65308 trace_id=64 func=ip_session_install_npu_session line=358 msg="npu session installation succeeded"
id=65308 trace_id=64 func=fw_forward_dirty_handler line=437 msg="state=00012204, state2=00000001, npu_state=00003c94"
id=65308 trace_id=64 func=__ip_session_run_tuple line=3406 msg="SNAT [CLIENT IP]->[INTERNET IP]:39136"
id=65308 trace_id=64 func=np6xlite_hif_nturbo_build_vtag line=1224 msg="vtag->magic d153beef, vtag->coretag 64, vtag->vid 0
vtag->sip[0] aa807f57, vtag->sip[1] 0, vtag->sip[2] 0, vtag->sip[3] 0
vtag->sport 57496, vtag->mtu 1500, vtag->flags 2, vtag->np6_flag 0x0, skb->npu_flag=0xc0c80"
id=65308 trace_id=65 func=print_pkt_detail line=5824 msg="vd-root:0 received a packet(proto=6, [CLIENT IP]:33402->35.168.100.19:443) tun_id=0.0.0.0 from Guest VLAN. flag [S], seq 3039363098, ack 0, win 65535"
id=65308 trace_id=65 func=init_ip_session_common line=6009 msg="allocate a new session-0001250b, tun_id=0.0.0.0"
id=65308 trace_id=65 func=vf_ip_route_input_common line=2611 msg="find a route: flag=04000000 gw-35.168.100.19 via wan1"
id=65308 trace_id=65 func=__iprope_tree_check line=539 msg="gnum-100004, use addr/intf hash, len=3"
id=65308 trace_id=65 func=get_new_addr line=1205 msg="find SNAT: IP-[INTERNET IP](from IPPOOL), port-33402"
id=65308 trace_id=65 func=fw_forward_handler line=979 msg="Allowed by Policy-4: SNAT"
id=65308 trace_id=65 func=__ip_session_run_tuple line=3406 msg="SNAT [CLIENT IP]->[INTERNET IP]:33402"
id=65308 trace_id=65 func=np6xlite_hif_nturbo_build_vtag line=1224 msg="vtag->magic d153beef, vtag->coretag 64, vtag->vid 0
vtag->sip[0] aa807f57, vtag->sip[1] 0, vtag->sip[2] 0, vtag->sip[3] 0
vtag->sport 31362, vtag->mtu 1500, vtag->flags 12, vtag->np6_flag 0x0, skb->npu_flag=0xc0880"
id=65308 trace_id=66 func=print_pkt_detail line=5824 msg="vd-root:0 received a packet(proto=6, [CLIENT IP]:33402->35.168.100.19:443) tun_id=0.0.0.0 from Guest VLAN. flag [.], seq 3039363099, ack 2333690370, win 256"
id=65308 trace_id=66 func=resolve_ip_tuple_fast line=5912 msg="Find an existing session, id-0001250b, original direction"
id=65308 trace_id=66 func=npu_handle_session44 line=1206 msg="Trying to offloading session from Guest VLAN to wan1, skb.npu_flag=00000400 ses.state=00012204 ses.npu_state=0x00003894"
id=65308 trace_id=66 func=np6xlite_fos_set_nturbo_ips_fwd_session line=620 msg="push nturbo session oid 12"
id=65308 trace_id=66 func=ip_session_install_npu_session line=358 msg="npu session installation succeeded"
id=65308 trace_id=66 func=fw_forward_dirty_handler line=437 msg="state=00012204, state2=00000001, npu_state=00003c94"
id=65308 trace_id=66 func=__ip_session_run_tuple line=3406 msg="SNAT [CLIENT IP]->[INTERNET IP]:33402"
id=65308 trace_id=66 func=np6xlite_hif_nturbo_build_vtag line=1224 msg="vtag->magic d153beef, vtag->coretag 64, vtag->vid 0
vtag->sip[0] aa807f57, vtag->sip[1] 0, vtag->sip[2] 0, vtag->sip[3] 0
vtag->sport 31362, vtag->mtu 1500, vtag->flags 2, vtag->np6_flag 0x0, skb->npu_flag=0xc0c80"
id=65308 trace_id=67 func=print_pkt_detail line=5824 msg="vd-root:0 received a packet(proto=17, [CLIENT IP]:22298->1.1.1.1:53) tun_id=0.0.0.0 from Guest VLAN. "
id=65308 trace_id=67 func=init_ip_session_common line=6009 msg="allocate a new session-00012510, tun_id=0.0.0.0"
id=65308 trace_id=67 func=vf_ip_route_input_common line=2611 msg="find a route: flag=04000000 gw-1.1.1.1 via wan1"
id=65308 trace_id=67 func=__iprope_tree_check line=539 msg="gnum-100004, use addr/intf hash, len=3"
id=65308 trace_id=67 func=get_new_addr line=1205 msg="find SNAT: IP-[INTERNET IP](from IPPOOL), port-22298"
id=65308 trace_id=67 func=fw_forward_handler line=979 msg="Allowed by Policy-4: SNAT"
id=65308 trace_id=67 func=ids_receive line=429 msg="send to ips"
id=65308 trace_id=68 func=print_pkt_detail line=5824 msg="vd-root:0 received a packet(proto=17, [CLIENT IP]:36562->1.1.1.1:53) tun_id=0.0.0.0 from Guest VLAN. "
id=65308 trace_id=68 func=init_ip_session_common line=6009 msg="allocate a new session-00012511, tun_id=0.0.0.0"
id=65308 trace_id=68 func=vf_ip_route_input_common line=2611 msg="find a route: flag=04000000 gw-1.1.1.1 via wan1"
id=65308 trace_id=68 func=__iprope_tree_check line=539 msg="gnum-100004, use addr/intf hash, len=3"
id=65308 trace_id=68 func=get_new_addr line=1205 msg="find SNAT: IP-[INTERNET IP](from IPPOOL), port-36562"
id=65308 trace_id=68 func=fw_forward_handler line=979 msg="Allowed by Policy-4: SNAT"
id=65308 trace_id=68 func=ids_receive line=429 msg="send to ips"
id=65308 trace_id=67 func=__ip_session_run_tuple line=3406 msg="SNAT [CLIENT IP]->[INTERNET IP]:22298"
id=65308 trace_id=68 func=__ip_session_run_tuple line=3406 msg="SNAT [CLIENT IP]->[INTERNET IP]:36562"
id=65308 trace_id=67 func=__ip_session_run_tuple line=3460 msg="run helper-dns-udp(dir=original)"
id=65308 trace_id=68 func=__ip_session_run_tuple line=3460 msg="run helper-dns-udp(dir=original)"
id=65308 trace_id=69 func=print_pkt_detail line=5824 msg="vd-root:0 received a packet(proto=6, [CLIENT IP]:52662->2.23.161.60:443) tun_id=0.0.0.0 from Guest VLAN. flag [F.], seq 271762851, ack 3920581744, win 265"
id=65308 trace_id=69 func=resolve_ip_tuple_fast line=5912 msg="Find an existing session, id-00012502, original direction"
id=65308 trace_id=69 func=npu_handle_session44 line=1206 msg="Trying to offloading session from Guest VLAN to wan1, skb.npu_flag=00000000 ses.state=00012204 ses.npu_state=0x00003c94"
id=65308 trace_id=69 func=fw_forward_dirty_handler line=437 msg="state=00012204, state2=00000001, npu_state=00003c94"
id=65308 trace_id=69 func=__ip_session_run_tuple line=3406 msg="SNAT [CLIENT IP]->[INTERNET IP]:52662"
id=65308 trace_id=69 func=np6xlite_hif_nturbo_build_vtag line=1224 msg="vtag->magic d153beef, vtag->coretag 64, vtag->vid 0
vtag->sip[0] aa807f57, vtag->sip[1] 0, vtag->sip[2] 0, vtag->sip[3] 0
vtag->sport 46797, vtag->mtu 1500, vtag->flags 2, vtag->np6_flag 0x0, skb->npu_flag=0xc0880"
id=65308 trace_id=70 func=print_pkt_detail line=5824 msg="vd-root:0 received a packet(proto=6, [CLIENT IP]:58188->104.124.166.14:443) tun_id=0.0.0.0 from Guest VLAN. flag [F.], seq 2570826414, ack 427854659, win 265"
id=65308 trace_id=70 func=resolve_ip_tuple_fast line=5912 msg="Find an existing session, id-00012500, original direction"
id=65308 trace_id=70 func=npu_handle_session44 line=1206 msg="Trying to offloading session from Guest VLAN to wan1, skb.npu_flag=00000000 ses.state=00012204 ses.npu_state=0x00003c94"
id=65308 trace_id=70 func=fw_forward_dirty_handler line=437 msg="state=00012204, state2=00000001, npu_state=00003c94"
id=65308 trace_id=70 func=__ip_session_run_tuple line=3406 msg="SNAT [CLIENT IP]->[INTERNET IP]:58188"
id=65308 trace_id=70 func=np6xlite_hif_nturbo_build_vtag line=1224 msg="vtag->magic d153beef, vtag->coretag 64, vtag->vid 0
vtag->sip[0] aa807f57, vtag->sip[1] 0, vtag->sip[2] 0, vtag->sip[3] 0
vtag->sport 19683, vtag->mtu 1500, vtag->flags 2, vtag->np6_flag 0x0, skb->npu_flag=0xc0880"
id=65308 trace_id=71 func=print_pkt_detail line=5824 msg="vd-root:0 received a packet(proto=6, [CLIENT IP]:58572->8.8.8.8:443) tun_id=0.0.0.0 from Guest VLAN. flag [S], seq 1449000553, ack 0, win 65535"
id=65308 trace_id=71 func=init_ip_session_common line=6009 msg="allocate a new session-00012512, tun_id=0.0.0.0"
id=65308 trace_id=71 func=vf_ip_route_input_common line=2611 msg="find a route: flag=04000000 gw-8.8.8.8 via wan1"
id=65308 trace_id=71 func=__iprope_tree_check line=539 msg="gnum-100004, use addr/intf hash, len=3"
id=65308 trace_id=71 func=get_new_addr line=1205 msg="find SNAT: IP-[INTERNET IP](from IPPOOL), port-58572"
id=65308 trace_id=71 func=fw_forward_handler line=979 msg="Allowed by Policy-4: SNAT"
id=65308 trace_id=71 func=__ip_session_run_tuple line=3406 msg="SNAT [CLIENT IP]->[INTERNET IP]:58572"
id=65308 trace_id=71 func=np6xlite_hif_nturbo_build_vtag line=1224 msg="vtag->magic d153beef, vtag->coretag 64, vtag->vid 0
vtag->sip[0] aa807f57, vtag->sip[1] 0, vtag->sip[2] 0, vtag->sip[3] 0
vtag->sport 52452, vtag->mtu 1500, vtag->flags 12, vtag->np6_flag 0x0, skb->npu_flag=0xc0880"
id=65308 trace_id=72 func=print_pkt_detail line=5824 msg="vd-root:0 received a packet(proto=6, [CLIENT IP]:58460->162.159.61.3:443) tun_id=0.0.0.0 from Guest VLAN. flag [S], seq 3408249609, ack 0, win 65535"
id=65308 trace_id=72 func=init_ip_session_common line=6009 msg="allocate a new session-00012513, tun_id=0.0.0.0"
id=65308 trace_id=72 func=vf_ip_route_input_common line=2611 msg="find a route: flag=04000000 gw-162.159.61.3 via wan1"
id=65308 trace_id=72 func=__iprope_tree_check line=539 msg="gnum-100004, use addr/intf hash, len=3"
id=65308 trace_id=72 func=get_new_addr line=1205 msg="find SNAT: IP-[INTERNET IP](from IPPOOL), port-58460"
id=65308 trace_id=72 func=fw_forward_handler line=979 msg="Allowed by Policy-4: SNAT"
id=65308 trace_id=72 func=__ip_session_run_tuple line=3406 msg="SNAT [CLIENT IP]->[INTERNET IP]:58460"
id=65308 trace_id=72 func=np6xlite_hif_nturbo_build_vtag line=1224 msg="vtag->magic d153beef, vtag->coretag 64, vtag->vid 0
vtag->sip[0] aa807f57, vtag->sip[1] 0, vtag->sip[2] 0, vtag->sip[3] 0
vtag->sport 23780, vtag->mtu 1500, vtag->flags 12, vtag->np6_flag 0x0, skb->npu_flag=0xc0880"
id=65308 trace_id=73 func=print_pkt_detail line=5824 msg="vd-root:0 received a packet(proto=6, [CLIENT IP]:58572->8.8.8.8:443) tun_id=0.0.0.0 from Guest VLAN. flag [.], seq 1449000554, ack 1812521141, win 256"
id=65308 trace_id=73 func=resolve_ip_tuple_fast line=5912 msg="Find an existing session, id-00012512, original direction"
id=65308 trace_id=73 func=npu_handle_session44 line=1206 msg="Trying to offloading session from Guest VLAN to wan1, skb.npu_flag=00000400 ses.state=00012204 ses.npu_state=0x00003894"
id=65308 trace_id=73 func=np6xlite_fos_set_nturbo_ips_fwd_session line=620 msg="push nturbo session oid 12"
id=65308 trace_id=73 func=ip_session_install_npu_session line=358 msg="npu session installation succeeded"
id=65308 trace_id=73 func=fw_forward_dirty_handler line=437 msg="state=00012204, state2=00000001, npu_state=00003c94"
id=65308 trace_id=73 func=__ip_session_run_tuple line=3406 msg="SNAT [CLIENT IP]->[INTERNET IP]:58572"
id=65308 trace_id=73 func=np6xlite_hif_nturbo_build_vtag line=1224 msg="vtag->magic d153beef, vtag->coretag 64, vtag->vid 0
vtag->sip[0] aa807f57, vtag->sip[1] 0, vtag->sip[2] 0, vtag->sip[3] 0
vtag->sport 52452, vtag->mtu 1500, vtag->flags 2, vtag->np6_flag 0x0, skb->npu_flag=0xc0c80"
id=65308 trace_id=74 func=print_pkt_detail line=5824 msg="vd-root:0 received a packet(proto=6, [CLIENT IP]:58460->162.159.61.3:443) tun_id=0.0.0.0 from Guest VLAN. flag [.], seq 3408249610, ack 1122818555, win 256"
id=65308 trace_id=74 func=resolve_ip_tuple_fast line=5912 msg="Find an existing session, id-00012513, original direction"
id=65308 trace_id=74 func=npu_handle_session44 line=1206 msg="Trying to offloading session from Guest VLAN to wan1, skb.npu_flag=00000400 ses.state=00012204 ses.npu_state=0x00003894"
id=65308 trace_id=74 func=np6xlite_fos_set_nturbo_ips_fwd_session line=620 msg="push nturbo session oid 12"
id=65308 trace_id=74 func=ip_session_install_npu_session line=358 msg="npu session installation succeeded"
id=65308 trace_id=74 func=fw_forward_dirty_handler line=437 msg="state=00012204, state2=00000001, npu_state=00003c94"
id=65308 trace_id=74 func=__ip_session_run_tuple line=3406 msg="SNAT [CLIENT IP]->[INTERNET IP]:58460"
id=65308 trace_id=74 func=np6xlite_hif_nturbo_build_vtag line=1224 msg="vtag->magic d153beef, vtag->coretag 64, vtag->vid 0
vtag->sip[0] aa807f57, vtag->sip[1] 0, vtag->sip[2] 0, vtag->sip[3] 0
vtag->sport 23780, vtag->mtu 1500, vtag->flags 2, vtag->np6_flag 0x0, skb->npu_flag=0xc0c80"
id=65308 trace_id=76 func=print_pkt_detail line=5824 msg="vd-root:0 received a packet(proto=6, [CLIENT IP]:58166->104.124.166.14:443) tun_id=0.0.0.0 from Guest VLAN. flag [F.], seq 272409644, ack 940611437, win 313"
id=65308 trace_id=75 func=print_pkt_detail line=5824 msg="vd-root:0 received a packet(proto=6, [CLIENT IP]:52640->2.23.161.60:443) tun_id=0.0.0.0 from Guest VLAN. flag [F.], seq 1556192722, ack 2751836392, win 313"
id=65308 trace_id=76 func=vf_ip_route_input_common line=2611 msg="find a route: flag=04000000 gw-104.124.166.14 via wan1"
id=65308 trace_id=75 func=vf_ip_route_input_common line=2611 msg="find a route: flag=04000000 gw-2.23.161.60 via wan1"
id=65308 trace_id=76 func=fw_forward_dirty_handler line=394 msg="no session matched"
id=65308 trace_id=75 func=fw_forward_dirty_handler line=394 msg="no session matched"
id=65308 trace_id=77 func=print_pkt_detail line=5824 msg="vd-root:0 received a packet(proto=17, [CLIENT IP]:58498->1.1.1.1:53) tun_id=0.0.0.0 from Guest VLAN. "
id=65308 trace_id=77 func=init_ip_session_common line=6009 msg="allocate a new session-00012519, tun_id=0.0.0.0"
id=65308 trace_id=77 func=vf_ip_route_input_common line=2611 msg="find a route: flag=04000000 gw-1.1.1.1 via wan1"
id=65308 trace_id=77 func=__iprope_tree_check line=539 msg="gnum-100004, use addr/intf hash, len=3"
id=65308 trace_id=77 func=get_new_addr line=1205 msg="find SNAT: IP-[INTERNET IP](from IPPOOL), port-58498"
id=65308 trace_id=77 func=fw_forward_handler line=979 msg="Allowed by Policy-4: SNAT"
id=65308 trace_id=77 func=ids_receive line=429 msg="send to ips"
id=65308 trace_id=77 func=__ip_session_run_tuple line=3406 msg="SNAT [CLIENT IP]->[INTERNET IP]:58498"
id=65308 trace_id=77 func=__ip_session_run_tuple line=3460 msg="run helper-dns-udp(dir=original)"
id=65308 trace_id=78 func=print_pkt_detail line=5824 msg="vd-root:0 received a packet(proto=6, [CLIENT IP]:48420->157.240.221.18:443) tun_id=0.0.0.0 from Guest VLAN. flag [S], seq 1015699431, ack 0, win 65535"
id=65308 trace_id=78 func=init_ip_session_common line=6009 msg="allocate a new session-0001251a, tun_id=0.0.0.0"
id=65308 trace_id=78 func=vf_ip_route_input_common line=2611 msg="find a route: flag=04000000 gw-157.240.221.18 via wan1"
id=65308 trace_id=78 func=__iprope_tree_check line=539 msg="gnum-100004, use addr/intf hash, len=3"
id=65308 trace_id=78 func=get_new_addr line=1205 msg="find SNAT: IP-[INTERNET IP](from IPPOOL), port-48420"
id=65308 trace_id=78 func=fw_forward_handler line=979 msg="Allowed by Policy-4: SNAT"
id=65308 trace_id=78 func=__ip_session_run_tuple line=3406 msg="SNAT [CLIENT IP]->[INTERNET IP]:48420"
id=65308 trace_id=78 func=np6xlite_hif_nturbo_build_vtag line=1224 msg="vtag->magic d153beef, vtag->coretag 64, vtag->vid 0
vtag->sip[0] aa807f57, vtag->sip[1] 0, vtag->sip[2] 0, vtag->sip[3] 0
vtag->sport 9405, vtag->mtu 1500, vtag->flags 12, vtag->np6_flag 0x0, skb->npu_flag=0xc0880"
id=65308 trace_id=79 func=print_pkt_detail line=5824 msg="vd-root:0 received a packet(proto=6, [CLIENT IP]:48420->157.240.221.18:443) tun_id=0.0.0.0 from Guest VLAN. flag [.], seq 1015699432, ack 2841589283, win 256"
id=65308 trace_id=79 func=resolve_ip_tuple_fast line=5912 msg="Find an existing session, id-0001251a, original direction"
id=65308 trace_id=79 func=npu_handle_session44 line=1206 msg="Trying to offloading session from Guest VLAN to wan1, skb.npu_flag=00000400 ses.state=00012204 ses.npu_state=0x00003894"
id=65308 trace_id=79 func=np6xlite_fos_set_nturbo_ips_fwd_session line=620 msg="push nturbo session oid 12"
id=65308 trace_id=79 func=ip_session_install_npu_session line=358 msg="npu session installation succeeded"
id=65308 trace_id=79 func=fw_forward_dirty_handler line=437 msg="state=00012204, state2=00000001, npu_state=00003c94"
id=65308 trace_id=79 func=__ip_session_run_tuple line=3406 msg="SNAT [CLIENT IP]->[INTERNET IP]:48420"
id=65308 trace_id=79 func=np6xlite_hif_nturbo_build_vtag line=1224 msg="vtag->magic d153beef, vtag->coretag 64, vtag->vid 0
vtag->sip[0] aa807f57, vtag->sip[1] 0, vtag->sip[2] 0, vtag->sip[3] 0
vtag->sport 9405, vtag->mtu 1500, vtag->flags 2, vtag->np6_flag 0x0, skb->npu_flag=0xc0c80"
id=65308 trace_id=80 func=print_pkt_detail line=5824 msg="vd-root:0 received a packet(proto=6, [CLIENT IP]:48420->157.240.221.18:443) tun_id=0.0.0.0 from Guest VLAN. flag [F.], seq 1015701070, ack 2841590618, win 272"
id=65308 trace_id=80 func=resolve_ip_tuple_fast line=5912 msg="Find an existing session, id-0001251a, original direction"
id=65308 trace_id=80 func=npu_handle_session44 line=1206 msg="Trying to offloading session from Guest VLAN to wan1, skb.npu_flag=00000000 ses.state=00012204 ses.npu_state=0x00003c94"
id=65308 trace_id=80 func=fw_forward_dirty_handler line=437 msg="state=00012204, state2=00000001, npu_state=00003c94"
id=65308 trace_id=80 func=__ip_session_run_tuple line=3406 msg="SNAT [CLIENT IP]->[INTERNET IP]:48420"
id=65308 trace_id=80 func=np6xlite_hif_nturbo_build_vtag line=1224 msg="vtag->magic d153beef, vtag->coretag 64, vtag->vid 0
vtag->sip[0] aa807f57, vtag->sip[1] 0, vtag->sip[2] 0, vtag->sip[3] 0
vtag->sport 9405, vtag->mtu 1500, vtag->flags 2, vtag->np6_flag 0x0, skb->npu_flag=0xc0880"
id=65308 trace_id=81 func=print_pkt_detail line=5824 msg="vd-root:0 received a packet(proto=17, [CLIENT IP]:35218->216.58.212.227:443) tun_id=0.0.0.0 from Guest VLAN. "
id=65308 trace_id=81 func=init_ip_session_common line=6009 msg="allocate a new session-0001251d, tun_id=0.0.0.0"
id=65308 trace_id=81 func=vf_ip_route_input_common line=2611 msg="find a route: flag=04000000 gw-216.58.212.227 via wan1"
id=65308 trace_id=81 func=__iprope_tree_check line=539 msg="gnum-100004, use addr/intf hash, len=3"
id=65308 trace_id=81 func=get_new_addr line=1205 msg="find SNAT: IP-[INTERNET IP](from IPPOOL), port-35218"
id=65308 trace_id=81 func=fw_forward_handler line=979 msg="Allowed by Policy-4: SNAT"
id=65308 trace_id=81 func=__ip_session_run_tuple line=3406 msg="SNAT [CLIENT IP]->[INTERNET IP]:35218"
id=65308 trace_id=81 func=np6xlite_hif_nturbo_build_vtag line=1224 msg="vtag->magic d153beef, vtag->coretag 64, vtag->vid 0
vtag->sip[0] aa807f57, vtag->sip[1] 0, vtag->sip[2] 0, vtag->sip[3] 0
vtag->sport 37513, vtag->mtu 1500, vtag->flags 12, vtag->np6_flag 0x0, skb->npu_flag=0xc0880"
id=65308 trace_id=82 func=print_pkt_detail line=5824 msg="vd-root:0 received a packet(proto=6, [CLIENT IP]:42428->216.58.212.227:443) tun_id=0.0.0.0 from Guest VLAN. flag [S], seq 4274263843, ack 0, win 65535"
id=65308 trace_id=82 func=init_ip_session_common line=6009 msg="allocate a new session-0001251e, tun_id=0.0.0.0"
id=65308 trace_id=82 func=vf_ip_route_input_common line=2611 msg="find a route: flag=04000000 gw-216.58.212.227 via wan1"
id=65308 trace_id=82 func=__iprope_tree_check line=539 msg="gnum-100004, use addr/intf hash, len=3"
id=65308 trace_id=82 func=get_new_addr line=1205 msg="find SNAT: IP-[INTERNET IP](from IPPOOL), port-42428"
id=65308 trace_id=82 func=fw_forward_handler line=979 msg="Allowed by Policy-4: SNAT"
id=65308 trace_id=82 func=__ip_session_run_tuple line=3406 msg="SNAT [CLIENT IP]->[INTERNET IP]:42428"
id=65308 trace_id=82 func=np6xlite_hif_nturbo_build_vtag line=1224 msg="vtag->magic d153beef, vtag->coretag 64, vtag->vid 0
vtag->sip[0] aa807f57, vtag->sip[1] 0, vtag->sip[2] 0, vtag->sip[3] 0
vtag->sport 48293, vtag->mtu 1500, vtag->flags 12, vtag->np6_flag 0x0, skb->npu_flag=0xc0880"
id=65308 trace_id=83 func=print_pkt_detail line=5824 msg="vd-root:0 received a packet(proto=17, [CLIENT IP]:35218->216.58.212.227:443) tun_id=0.0.0.0 from Guest VLAN. "
id=65308 trace_id=83 func=resolve_ip_tuple_fast line=5912 msg="Find an existing session, id-0001251d, original direction"
id=65308 trace_id=83 func=npu_handle_session44 line=1206 msg="Trying to offloading session from Guest VLAN to wan1, skb.npu_flag=00000400 ses.state=00012204 ses.npu_state=0x00003894"
id=65308 trace_id=83 func=np6xlite_fos_set_nturbo_ips_fwd_session line=620 msg="push nturbo session oid 12"
id=65308 trace_id=83 func=ip_session_install_npu_session line=358 msg="npu session installation succeeded"
id=65308 trace_id=83 func=fw_forward_dirty_handler line=437 msg="state=00012204, state2=00000001, npu_state=00003c94"
id=65308 trace_id=83 func=__ip_session_run_tuple line=3406 msg="SNAT [CLIENT IP]->[INTERNET IP]:35218"
id=65308 trace_id=83 func=np6xlite_hif_nturbo_build_vtag line=1224 msg="vtag->magic d153beef, vtag->coretag 64, vtag->vid 0
vtag->sip[0] aa807f57, vtag->sip[1] 0, vtag->sip[2] 0, vtag->sip[3] 0
vtag->sport 37513, vtag->mtu 1500, vtag->flags 2, vtag->np6_flag 0x0, skb->npu_flag=0xc0c80"
id=65308 trace_id=84 func=print_pkt_detail line=5824 msg="vd-root:0 received a packet(proto=6, [CLIENT IP]:42428->216.58.212.227:443) tun_id=0.0.0.0 from Guest VLAN. flag [.], seq 4274263844, ack 708633350, win 256"
id=65308 trace_id=84 func=resolve_ip_tuple_fast line=5912 msg="Find an existing session, id-0001251e, original direction"
id=65308 trace_id=84 func=npu_handle_session44 line=1206 msg="Trying to offloading session from Guest VLAN to wan1, skb.npu_flag=00000400 ses.state=00012204 ses.npu_state=0x00003894"
id=65308 trace_id=84 func=np6xlite_fos_set_nturbo_ips_fwd_session line=620 msg="push nturbo session oid 12"
id=65308 trace_id=84 func=ip_session_install_npu_session line=358 msg="npu session installation succeeded"
id=65308 trace_id=84 func=fw_forward_dirty_handler line=437 msg="state=00012204, state2=00000001, npu_state=00003c94"
id=65308 trace_id=84 func=__ip_session_run_tuple line=3406 msg="SNAT [CLIENT IP]->[INTERNET IP]:42428"
id=65308 trace_id=84 func=np6xlite_hif_nturbo_build_vtag line=1224 msg="vtag->magic d153beef, vtag->coretag 64, vtag->vid 0
vtag->sip[0] aa807f57, vtag->sip[1] 0, vtag->sip[2] 0, vtag->sip[3] 0
vtag->sport 48293, vtag->mtu 1500, vtag->flags 2, vtag->np6_flag 0x0, skb->npu_flag=0xc0c80"
id=65308 trace_id=85 func=print_pkt_detail line=5824 msg="vd-root:0 received a packet(proto=17, [CLIENT IP]:47376->1.1.1.1:53) tun_id=0.0.0.0 from Guest VLAN. "
id=65308 trace_id=85 func=init_ip_session_common line=6009 msg="allocate a new session-00012524, tun_id=0.0.0.0"
id=65308 trace_id=85 func=vf_ip_route_input_common line=2611 msg="find a route: flag=04000000 gw-1.1.1.1 via wan1"
id=65308 trace_id=85 func=__iprope_tree_check line=539 msg="gnum-100004, use addr/intf hash, len=3"
id=65308 trace_id=85 func=get_new_addr line=1205 msg="find SNAT: IP-[INTERNET IP](from IPPOOL), port-47376"
id=65308 trace_id=85 func=fw_forward_handler line=979 msg="Allowed by Policy-4: SNAT"
id=65308 trace_id=85 func=ids_receive line=429 msg="send to ips"
id=65308 trace_id=86 func=print_pkt_detail line=5824 msg="vd-root:0 received a packet(proto=17, [CLIENT IP]:58917->8.8.8.8:53) tun_id=0.0.0.0 from Guest VLAN. "
id=65308 trace_id=86 func=init_ip_session_common line=6009 msg="allocate a new session-00012525, tun_id=0.0.0.0"
id=65308 trace_id=86 func=vf_ip_route_input_common line=2611 msg="find a route: flag=04000000 gw-8.8.8.8 via wan1"
id=65308 trace_id=86 func=__iprope_tree_check line=539 msg="gnum-100004, use addr/intf hash, len=3"
id=65308 trace_id=86 func=get_new_addr line=1205 msg="find SNAT: IP-[INTERNET IP](from IPPOOL), port-58917"
id=65308 trace_id=86 func=fw_forward_handler line=979 msg="Allowed by Policy-4: SNAT"
id=65308 trace_id=86 func=ids_receive line=429 msg="send to ips"
id=65308 trace_id=85 func=__ip_session_run_tuple line=3406 msg="SNAT [CLIENT IP]->[INTERNET IP]:47376"
id=65308 trace_id=85 func=__ip_session_run_tuple line=3460 msg="run helper-dns-udp(dir=original)"
id=65308 trace_id=86 func=__ip_session_run_tuple line=3406 msg="SNAT [CLIENT IP]->[INTERNET IP]:58917"
id=65308 trace_id=86 func=__ip_session_run_tuple line=3460 msg="run helper-dns-udp(dir=original)"
id=65308 trace_id=87 func=print_pkt_detail line=5824 msg="vd-root:0 received a packet(proto=6, [CLIENT IP]:50520->163.70.147.60:443) tun_id=0.0.0.0 from Guest VLAN. flag [R.], seq 2343962540, ack 965634252, win 333"
id=65308 trace_id=88 func=print_pkt_detail line=5824 msg="vd-root:0 received a packet(proto=6, [CLIENT IP]:41214->157.240.221.60:443) tun_id=0.0.0.0 from Guest VLAN. flag [R.], seq 3849202205, ack 100443461, win 1106"
id=65308 trace_id=89 func=print_pkt_detail line=5824 msg="vd-root:0 received a packet(proto=6, [CLIENT IP]:33412->35.168.100.19:443) tun_id=0.0.0.0 from Guest VLAN. flag [R.], seq 3867909314, ack 3712843594, win 286"
id=65308 trace_id=89 func=resolve_ip_tuple_fast line=5912 msg="Find an existing session, id-00012508, original direction"
id=65308 trace_id=88 func=vf_ip_route_input_common line=2611 msg="find a route: flag=04000000 gw-157.240.221.60 via wan1"
id=65308 trace_id=87 func=vf_ip_route_input_common line=2611 msg="find a route: flag=04000000 gw-163.70.147.60 via wan1"
id=65308 trace_id=87 func=fw_forward_dirty_handler line=394 msg="no session matched"
id=65308 trace_id=88 func=fw_forward_dirty_handler line=394 msg="no session matched"
id=65308 trace_id=89 func=npu_handle_session44 line=1206 msg="Trying to offloading session from Guest VLAN to wan1, skb.npu_flag=00000000 ses.state=00012204 ses.npu_state=0x00003c94"
id=65308 trace_id=89 func=fw_forward_dirty_handler line=437 msg="state=00012204, state2=00000001, npu_state=00003c94"
id=65308 trace_id=89 func=__ip_session_run_tuple line=3406 msg="SNAT [CLIENT IP]->[INTERNET IP]:33412"
id=65308 trace_id=89 func=np6xlite_hif_nturbo_build_vtag line=1224 msg="vtag->magic d153beef, vtag->coretag 64, vtag->vid 0
vtag->sip[0] aa807f57, vtag->sip[1] 0, vtag->sip[2] 0, vtag->sip[3] 0
vtag->sport 33922, vtag->mtu 1500, vtag->flags 2, vtag->np6_flag 0x0, skb->npu_flag=0xc0880"
id=65308 trace_id=90 func=print_pkt_detail line=5824 msg="vd-root:0 received a packet(proto=6, [CLIENT IP]:33402->35.168.100.19:443) tun_id=0.0.0.0 from Guest VLAN. flag [R.], seq 3039363857, ack 2333690595, win 261"
id=65308 trace_id=90 func=resolve_ip_tuple_fast line=5912 msg="Find an existing session, id-0001250b, original direction"
id=65308 trace_id=90 func=npu_handle_session44 line=1206 msg="Trying to offloading session from Guest VLAN to wan1, skb.npu_flag=00000000 ses.state=00012204 ses.npu_state=0x00003c94"
id=65308 trace_id=90 func=fw_forward_dirty_handler line=437 msg="state=00012204, state2=00000001, npu_state=00003c94"
id=65308 trace_id=90 func=__ip_session_run_tuple line=3406 msg="SNAT [CLIENT IP]->[INTERNET IP]:33402"
id=65308 trace_id=91 func=print_pkt_detail line=5824 msg="vd-root:0 received a packet(proto=6, [CLIENT IP]:58572->8.8.8.8:443) tun_id=0.0.0.0 from Guest VLAN. flag [R.], seq 1449002727, ack 1812525289, win 305"
id=65308 trace_id=90 func=np6xlite_hif_nturbo_build_vtag line=1224 msg="vtag->magic d153beef, vtag->coretag 64, vtag->vid 0
vtag->sip[0] aa807f57, vtag->sip[1] 0, vtag->sip[2] 0, vtag->sip[3] 0
vtag->sport 31362, vtag->mtu 1500, vtag->flags 2, vtag->np6_flag 0x0, skb->npu_flag=0xc0880"
id=65308 trace_id=91 func=resolve_ip_tuple_fast line=5912 msg="Find an existing session, id-00012512, original direction"
id=65308 trace_id=91 func=npu_handle_session44 line=1206 msg="Trying to offloading session from Guest VLAN to wan1, skb.npu_flag=00000000 ses.state=00012204 ses.npu_state=0x00003c94"
id=65308 trace_id=91 func=fw_forward_dirty_handler line=437 msg="state=00012204, state2=00000001, npu_state=00003c94"
id=65308 trace_id=92 func=print_pkt_detail line=5824 msg="vd-root:0 received a packet(proto=6, [CLIENT IP]:42428->216.58.212.227:443) tun_id=0.0.0.0 from Guest VLAN. flag [R.], seq 4274264490, ack 708638814, win 312"
id=65308 trace_id=91 func=__ip_session_run_tuple line=3406 msg="SNAT [CLIENT IP]->[INTERNET IP]:58572"
id=65308 trace_id=92 func=resolve_ip_tuple_fast line=5912 msg="Find an existing session, id-0001251e, original direction"
id=65308 trace_id=92 func=npu_handle_session44 line=1206 msg="Trying to offloading session from Guest VLAN to wan1, skb.npu_flag=00000000 ses.state=00012204 ses.npu_state=0x00003c94"
id=65308 trace_id=91 func=np6xlite_hif_nturbo_build_vtag line=1224 msg="vtag->magic d153beef, vtag->coretag 64, vtag->vid 0
vtag->sip[0] aa807f57, vtag->sip[1] 0, vtag->sip[2] 0, vtag->sip[3] 0
vtag->sport 52452, vtag->mtu 1500, vtag->flags 2, vtag->np6_flag 0x0, skb->npu_flag=0xc0880"
id=65308 trace_id=92 func=fw_forward_dirty_handler line=437 msg="state=00012204, state2=00000001, npu_state=00003c94"
id=65308 trace_id=92 func=__ip_session_run_tuple line=3406 msg="SNAT [CLIENT IP]->[INTERNET IP]:42428"
id=65308 trace_id=93 func=print_pkt_detail line=5824 msg="vd-root:0 received a packet(proto=6, [CLIENT IP]:58460->162.159.61.3:443) tun_id=0.0.0.0 from Guest VLAN. flag [R.], seq 3408251161, ack 1122820596, win 277"
id=65308 trace_id=93 func=resolve_ip_tuple_fast line=5912 msg="Find an existing session, id-00012513, original direction"
id=65308 trace_id=92 func=np6xlite_hif_nturbo_build_vtag line=1224 msg="vtag->magic d153beef, vtag->coretag 64, vtag->vid 0
vtag->sip[0] aa807f57, vtag->sip[1] 0, vtag->sip[2] 0, vtag->sip[3] 0
vtag->sport 48293, vtag->mtu 1500, vtag->flags 2, vtag->np6_flag 0x0, skb->npu_flag=0xc0880"
id=65308 trace_id=93 func=npu_handle_session44 line=1206 msg="Trying to offloading session from Guest VLAN to wan1, skb.npu_flag=00000000 ses.state=00012204 ses.npu_state=0x00003c94"
id=65308 trace_id=93 func=fw_forward_dirty_handler line=437 msg="state=00012204, state2=00000001, npu_state=00003c94"
id=65308 trace_id=94 func=print_pkt_detail line=5824 msg="vd-root:0 received a packet(proto=6, [CLIENT IP]:38436->157.240.221.61:5222) tun_id=0.0.0.0 from Guest VLAN. flag [R.], seq 889928347, ack 202054890, win 265"
id=65308 trace_id=94 func=resolve_ip_tuple_fast line=5912 msg="Find an existing session, id-000124ff, original direction"
id=65308 trace_id=93 func=__ip_session_run_tuple line=3406 msg="SNAT [CLIENT IP]->[INTERNET IP]:58460"
id=65308 trace_id=94 func=npu_handle_session44 line=1206 msg="Trying to offloading session from Guest VLAN to wan1, skb.npu_flag=00000000 ses.state=00012204 ses.npu_state=0x00003c94"
id=65308 trace_id=93 func=np6xlite_hif_nturbo_build_vtag line=1224 msg="vtag->magic d153beef, vtag->coretag 64, vtag->vid 0
vtag->sip[0] aa807f57, vtag->sip[1] 0, vtag->sip[2] 0, vtag->sip[3] 0
vtag->sport 23780, vtag->mtu 1500, vtag->flags 2, vtag->np6_flag 0x0, skb->npu_flag=0xc0880"
id=65308 trace_id=94 func=fw_forward_dirty_handler line=437 msg="state=00012204, state2=00000001, npu_state=00003c94"
id=65308 trace_id=94 func=__ip_session_run_tuple line=3406 msg="SNAT [CLIENT IP]->[INTERNET IP]:38436"
id=65308 trace_id=94 func=np6xlite_hif_nturbo_build_vtag line=1224 msg="vtag->magic d153beef, vtag->coretag 64, vtag->vid 0
vtag->sip[0] aa807f57, vtag->sip[1] 0, vtag->sip[2] 0, vtag->sip[3] 0
vtag->sport 9366, vtag->mtu 1500, vtag->flags 2, vtag->np6_flag 0x0, skb->npu_flag=0xc0880"
Can you post the firewall-rule?
Does it contain DNS as service?
From the Wifi-Client; can you ping the Interface-IP Address of VLAN 25 (Ping must be enabled on the Interface as administrative access)?
Can you ping 1.1.1.1?
Select Forum Responses to become Knowledge Articles!
Select the “Nominate to Knowledge Base” button to recommend a forum post to become a knowledge article.
User | Count |
---|---|
1696 | |
1091 | |
752 | |
446 | |
228 |
The Fortinet Security Fabric brings together the concepts of convergence and consolidation to provide comprehensive cybersecurity protection for all users, devices, and applications and across all network edges.
Copyright 2024 Fortinet, Inc. All Rights Reserved.
