Firewall does not send syslog

Hi
my FG 60F v.7.0.14 is not sending any syslog at all to the configured server. This is a brand new unit which has inherited the configuration file of a 60D v.6.0.14 and was then updated following the suggested upgrade path. I already tried killing syslogd and restarting the firewall to no avail.



sg-fw # config log syslogd setting
sg-fw (setting) # show
config log syslogd setting
set status enable
set server "172.17.100.16"
set interface-select-method specify
set interface "management"
end

sg-fw # get log syslogd setting
status : enable
server : 172.17.100.16
mode : udp
port : 514
facility : local7
source-ip :
format : default
priority : default
max-log-rate : 0
interface-select-method: specify
interface : management

Destination is reachable:

sg-fw # exec ping-options source 192.168.101.254
sg-fw # exec ping 172.17.100.16
PING 172.17.100.16 (172.17.100.16): 56 data bytes
64 bytes from 172.17.100.16: icmp_seq=0 ttl=63 time=3.0 ms
64 bytes from 172.17.100.16: icmp_seq=1 ttl=63 time=2.7 ms
64 bytes from 172.17.100.16: icmp_seq=2 ttl=63 time=2.6 ms
64 bytes from 172.17.100.16: icmp_seq=3 ttl=63 time=2.6 ms
^C
--- 172.17.100.16 ping statistics ---
4 packets transmitted, 4 packets received, 0% packet loss
round-trip min/avg/max = 2.6/2.7/3.0 ms
sg-fw # get router info routing-table all | grep 172.17
S 172.17.100.0/24 [10/0] via mgmt tunnel <redacted>, [1/0]


Other devices in the same management subnet (192.168.101.0/24 which corresponds to the "management" interface you can see in syslogd settings) are sending their syslog through the firewall without issue:

sg-fw # diag sniffer packet any 'udp port 514'
interfaces=[any]
filters=[udp port 514]
0.672813 192.168.101.250.6336 -> 172.17.100.16.514: udp 138
0.672868 192.168.101.250.6336 -> 172.17.100.16.514: udp 138
0.775093 192.168.101.250.6336 -> 172.17.100.16.514: udp 150
0.775112 192.168.101.250.6336 -> 172.17.100.16.514: udp 150
1.787286 192.168.101.250.6336 -> 172.17.100.16.514: udp 145
1.787310 192.168.101.250.6336 -> 172.17.100.16.514: udp 145

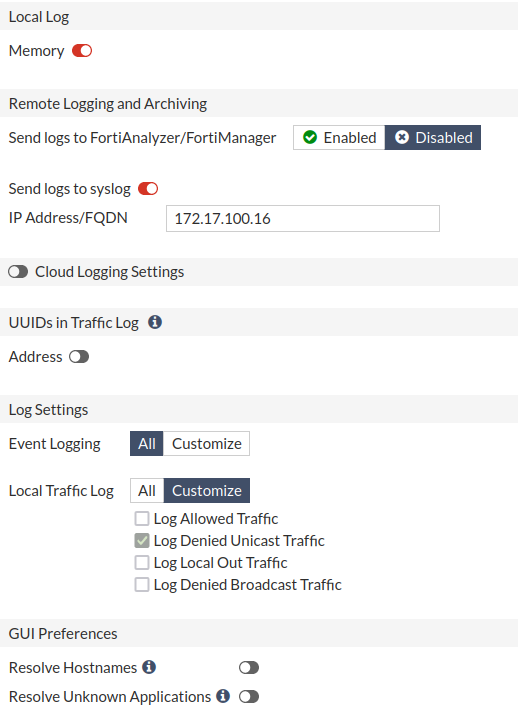

This is the relevant settings page:




Please advise on any possible further troubleshooting step.

1 Solution
excelerator
New Contributor II

I resolved the issue by unsetting every attribute (interface, interface-select-method) and disabling "config log syslogd setting". Then i re-configured it using source-ip instead of the interface and enabled it and it started working again. interface-select-method: auto.



What an ugly bug...

View solution in original post

7 REPLIES 7
hbac
Staff
Staff

Hi @excelerator,



Have you ran packet sniffer on the problematic FortiGate? Do you see any traffic?



Regards,

excelerator
New Contributor II

As you can see in the first post "diag sniffer" shows syslog traffic flowing through the firewall but not originating from it.

hbac

@excelerator,



I mean do you see syslog traffic originating from the FortiGate itself? What should be the source IP? You can try to set source-ip under syslog settings.



Regards,

excelerator
New Contributor II

As clearly stated in the configuration snippets i am already specifying the source interface for syslog traffic. I also tried specifying the source IP (192.168.101.254) instead of the interface to no avail.



Regarding wether i see any syslog originating from the unit itself i think if it was there it should have been visible in the

# diag sniffer packet any 'udp port 514'

i have shown in my first post but correct me if i'm wrong. I can assure you though it is not seen passing through the very next hop towards the syslog server.

jiahoong112
Staff
Staff

please ensure ha-direct is Disabled: https://community.fortinet.com/t5/FortiGate/Technical-Tip-Sending-messages-logs-SNMP-RADIUS-directly...



Or if you actually intend on using ha-direct, then enable it. https://docs.fortinet.com/document/fortigate/6.4.1/administration-guide/375961/routing-data-over-the...

**If you come across a resolution, kindly show your appreciation by liking and accepting it, ensuring its accessibility for others**
excelerator

I checked ha-direct: since this is a standalone unit this setting is not even available:



sg-fw # get sys ha
group-id : 0
group-name :
mode : standalone
sync-packet-balance : disable
password : *
hbdev :
route-ttl : 10
route-wait : 0
route-hold : 10
multicast-ttl : 600
sync-config : enable
encryption : disable
authentication : disable
hb-interval : 2
hb-interval-in-milliseconds: 100ms
hb-lost-threshold : 6
hello-holddown : 20
gratuitous-arps : enable
arps : 5
arps-interval : 8
session-pickup : disable
link-failed-signal : disable
uninterruptible-upgrade: enable
uninterruptible-primary-wait: 30
ha-eth-type : 8890
hc-eth-type : 8891
l2ep-eth-type : 8893
ha-uptime-diff-margin: 300
standalone-config-sync: disable
vcluster-id : 1
override : disable
priority : 128
monitor :
pingserver-monitor-interface:
vdom : "root"
failover-hold-time : 0



excelerator
New Contributor II

I resolved the issue by unsetting every attribute (interface, interface-select-method) and disabling "config log syslogd setting". Then i re-configured it using source-ip instead of the interface and enabled it and it started working again. interface-select-method: auto.



What an ugly bug...
