issue in arp responce

hello guys

i have a problem in my network , i cant ping ping from outside (port3) to inside (port1) and vice versa although I have configured all the settings correctly I think. ip addresses and policies and static routing





and that is the static routing and policeis configuration

Router(config)#do show run | in route

ip route 0.0.0.0 0.0.0.0 Ethernet0/3

ip route 192.168.0.0 255.255.0.0 10.10.10.4

Switch#show run | in route

ip route 0.0.0.0 0.0.0.0 Ethernet1/2

FortiGate-VM64-KVM # show system interface

config system interface

edit "port1"

set vdom "root"

set ip 192.168.80.1 255.255.255.0

set allowaccess ping https ssh http fgfm

set type physical

set device-identification enable

set lldp-transmission enable

set role lan

set snmp-index 1

next

edit "port2"

set vdom "root"

set ip 192.168.100.201 255.255.255.0

set allowaccess ping https ssh http telnet

set type physical

set snmp-index 2

next

edit "port3"

set vdom "root"

set ip 10.10.10.4 255.255.255.0

set allowaccess ping https ssh snmp fgfm radius-acct ftm speed-test

set type physical

set device-identification enable

set lldp-transmission enable

set role lan

set snmp-index 3

FortiGate-VM64-KVM # show router static

config router static

edit 1

set dst 192.168.0.0 255.255.0.0

set device "port1"

next

edit 2

set distance 11

set device "port3"

next

end

FortiGate-VM64-KVM # show firewall policy

config firewall policy

edit 2

set name "out to in"

set uuid 98a05fec-6245-51ef-b0fd-522e0706dc57

set srcintf "port3"

set dstintf "port1"

set action accept

set srcaddr "all"

set dstaddr "all"

set schedule "always"

set service "ALL"

next

edit 1

set name "in to out"

set uuid 8441b62c-6245-51ef-05ea-f3bae959514f

set srcintf "port1"

set dstintf "port3"

set action accept

set srcaddr "all"

set dstaddr "all"

set schedule "always"

set service "ALL"

next

end

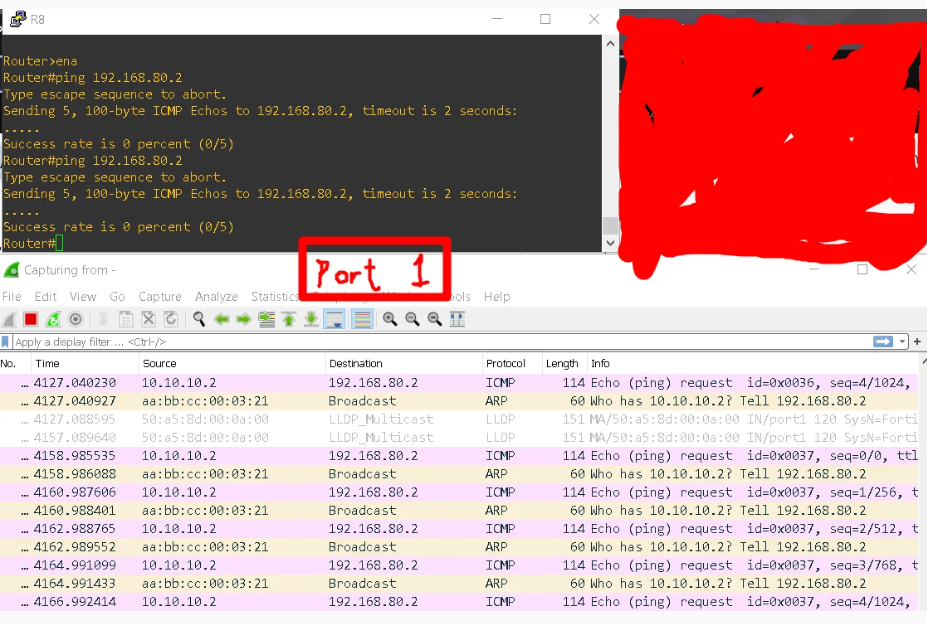

i tried to ping from core switch to router and i caprute the packets by wireshark in port1 and port3 , the core switch send arp request , but the firewall dosent forward the arp request and it dosent send arp responce also , but when i try to ping from router to core switch , the router send ICMP and the firewall forward it but the core switch send arp request again and the firewall dosent respone for the arp requset also . someone tell to use proxy arp and i try but it dosent work then i remove the prxoy arp , i dont know if i write the configuration corecctly , but i dont think so it will work even i write it coreectly

ping from Router to Core switch




1 REPLY 1
AEK
SuperUser
SuperUser

Hello Abdo

On your FGT, static routes, if I'm not wrong I think you should try completely remove the firs entry.

config router static
delete 1
end
