Hi,
In case anyone needs to assign static IP addresses to users connecting a IPsec DialUP with IKEv1 and RADIUS/NPS Windows Server, here's my working configuration.
Environment
FGT 7.4.8
Windows Server 2016 Standard with NPS/AD configured
FortiClient 7.4.3 ( EMS managed - should not be important/relevant and the free VPN-only should work )
IPsec configuration:
config vpn ipsec phase1-interface
edit "RA-IPsec"
set type dynamic
set interface "wan1"
set mode aggressive
set peertype any
set net-device enable
set mode-cfg enable
set proposal aes128-sha1 aes256-sha1
set dpd disable
set dhgrp 14
set xauthtype auto
set reauth enable
set assign-ip-from usrgrp
set ipv4-start-ip 10.0.2.10
set ipv4-end-ip 10.0.2.20
set dns-mode auto
set ipv4-split-include "IP Intern"
set save-password enable
set psksecret <>
next
end
config vpn ipsec phase2-interface
edit "RA-IPsec"
set phase1name "RA-IPsec"
set proposal aes128-sha1 aes256-sha1
set keepalive enable
next
end
RADIUS/NPS Server configured on FGT:
config user radius
edit "LAB-NPS"
set server "192.168.200.201"
set secret <>
set nas-ip 192.168.200.1
set auth-type pap
next
end
config user group
edit "IPsec-NPS"
set member "LAB-NPS"
next
end
Firewall rule:
config firewall policy
edit <>
set srcintf "RA-IPsec"
set dstintf "LAN"
set action accept
set srcaddr "DialUP_range"
set dstaddr "IP Intern"
set schedule "always"
set service "ALL_ICMP"
set logtraffic all
set groups "IPsec-NPS"
next
end
config firewall address
edit "DialUP_range"
set type iprange
set start-ip 10.0.2.10
set end-ip 10.0.2.20
next
end
NPS Configuration on Windows Server:
In Network Policy Server:
RADIUS Clients > New : Add the FortiGate IP/Secret ( Secret should match on both the FGT and NPS )

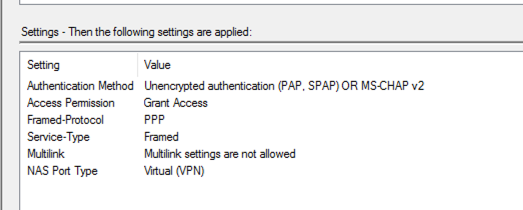

Network Policies > New > Name it > Next > Conditions : Add > User Groups ( I used the generic Domain Users group, feel free to add/create any group necessary ) > Next > Access Granted > EAP Types : MS-CHAP-v2 + PAP ( I used/enabled both MS-CHAP-v2 and PAP for testing purposes, although on the FGT under RADIUS I tested with both, but for my test I only left PAP ) > Next > Contraints : NAS Port Type > Virtual(VPN) ( for my test, it can be left blank/unselected ) > Next > IP Settings : Server settings determine IP address assignment , the rest as they are
Now, in ADUC ( Active Directory Users and Computers ) , you would need to find the users, edit it ( make sure in View > Advanced Features is enabled ) > Dial-in > Assign Static IP-address and configure it ( as per below )
That's it!
Debug logs to confirm/test the functionality:
ike V=root:0:RA-IPsec_0:260: received XAUTH_USER_NAME 'fortiems' length 8
ike V=root:0:RA-IPsec_0: XAUTH user "fortiems"
ike V=root:0:RA-IPsec: auth candidate group 'SSL_VPN-GROUP' 1
ike V=root:0:RA-IPsec: auth candidate group 'IPsec-NPS' 7
ike V=root:0:RA-IPsec_0: XAUTH 74462018805813 pending
[760] fnbamd_saml_auth_cache_lookup-Authneticating 'fortiems'.
[508] create_auth_session-Session created for req id
[357] auth_local-started for fortiems
[429] auth_local-No conclusion, FNBAM_UNKNOWN
[863] __fnbamd_cfg_get_radius_list_by_group-Group 'SSL_VPN-GROUP'
[863] __fnbamd_cfg_get_radius_list_by_group-Group 'IPsec-NPS'
[456] fnbamd_rad_get-vfid=0, name='LAB-NPS'
[810] __rad_auth_ctx_insert-Loaded RADIUS server 'LAB-NPS'
[868] __fnbamd_cfg_get_radius_list_by_group-Loaded RADIUS server 'LAB-NPS' for usergroup 'IPsec-NPS' (7)
[823] __rad_auth_ctx_insert_all_usergroup-
[923] fnbamd_cfg_get_radius_list-Total rad servers to try: 1
[1030] fnbamd_cfg_radius_clear_reachability-Clearing RAD server reachability LAB-NPS:192.168.200.201
[941] fnbamd_rad_get_auth_server-
[1175] fnbamd_rad_auth_ctx_init-User ha_relay? 0.
[301] fnbamd_radius_get_next_auth_prot-Next auth prot PAP
[1110] __auth_ctx_svr_push-Added addr 192.168.200.201:1812 from rad 'LAB-NPS'
[933] __fnbamd_rad_get_next_addr-Next available address of rad 'LAB-NPS': 192.168.200.201:1812.
[1128] __auth_ctx_start-Connection starts LAB-NPS:192.168.200.201, addr 192.168.200.201:1812 proto: UDP
[281] __rad_udp_open-Opened radius socket 10, sa_family 2
[948] __rad_conn_start-Socket 10 is created for rad 'LAB-NPS'.
[810] __rad_add_job_timer-
[439] fnbamd_cfg_get_pop3_list-
[417] __fnbamd_cfg_get_pop3_list_by_group-
[422] __fnbamd_cfg_get_pop3_list_by_group-Group 'SSL_VPN-GROUP'
[422] __fnbamd_cfg_get_pop3_list_by_group-Group 'IPsec-NPS'
[449] fnbamd_cfg_get_pop3_list-Total pop3 servers to try: 0
[434] start_remote_auth-Total 1 server(s) to try
[612] fnbamd_rad_make_access_request-
[334] __create_access_request-Compose RADIUS request
[595] __create_access_request-Created RADIUS Access-Request. Len: 165.
[1175] fnbamd_socket_update_interface-vfid is 0, intf mode is 0, intf name is , server address is 192.168.200.201:1812, source address is null, protocol number is 17, oif id is 0
[354] __rad_udp_send-oif=0, intf_sel.mode=0, intf_sel.name=
[871] __rad_rxtx-Sent radius req to server 'LAB-NPS': fd=10, IP=192.168.200.201(192.168.200.201:1812) code=1 id=160 len=165
[1133] __rad_chk_resp_authenticator-The Message Authenticator validation is mandatory now
[1156] __rad_chk_resp_authenticator-ret=0
[1231] fnbamd_rad_validate_pkt-RADIUS resp code 2
[1301] fnbamd_rad_process-Result from radius svr 'LAB-NPS' is 0,
[1503] fnbamd_rad_process-Challenged: 0, FTK_Challenge: 0, CHG_PWD: 0, Invaid_Digest: 0, No_Message_Authenticator_Attr: 0, State_Len: 0
[631] fnbam_user_auth_group_match-req id: , server: LAB-NPS, local auth: 0, dn match: 0
[585] __group_match-Check if LAB-NPS is a group member
[585] __group_match-Check if LAB-NPS is a group member
[591] __group_match-Group 'IPsec-NPS' passed group matching
[594] __group_match-Add matched group 'IPsec-NPS'(7)
[206] find_matched_usr_grps-Passed group matching
[909] update_auth_token_session-config does not require 2fa
ike V=root:0:RA-IPsec_0:260: XAUTH 74462018805813 result FNBAM_SUCCESS
[516] fnbamd_rad_auth_ctx_free-Freeing 'LAB-NPS' ctx
[364] fnbamd_rad_free-Freeing LAB-NPS, ref:2
ike V=root:0:RA-IPsec_0: user 'fortiems' authenticated group 'IPsec-NPS' 7
ike V=root:0:RA-IPsec_0: use framed-IP 10.0.2.99 to replace local 10.0.2.10.
ike V=root:0:RA-IPsec_0: assigned IP 10.0.2.99
L.E. AD Users that dont have static IP assignment in ADUC will get an IP addres from the pool configured in phase1.
L.E.2 My test user which gets assigned 10.0.2.99 ( since the IP is not part of the IP range in the firewall rule ) will not have access to any resources, will need to create another rule with source that specific IP.
