Troubleshooting Tip: Users cannot connect to a Dial-up IPsec VPN with 'IPv4 pool is not configured' message in IKE debug

[hbac]

Description	This article describes an issue when VPN users cannot connect to an IPsec VPN from FortiClient.
Scope	FortiGate.

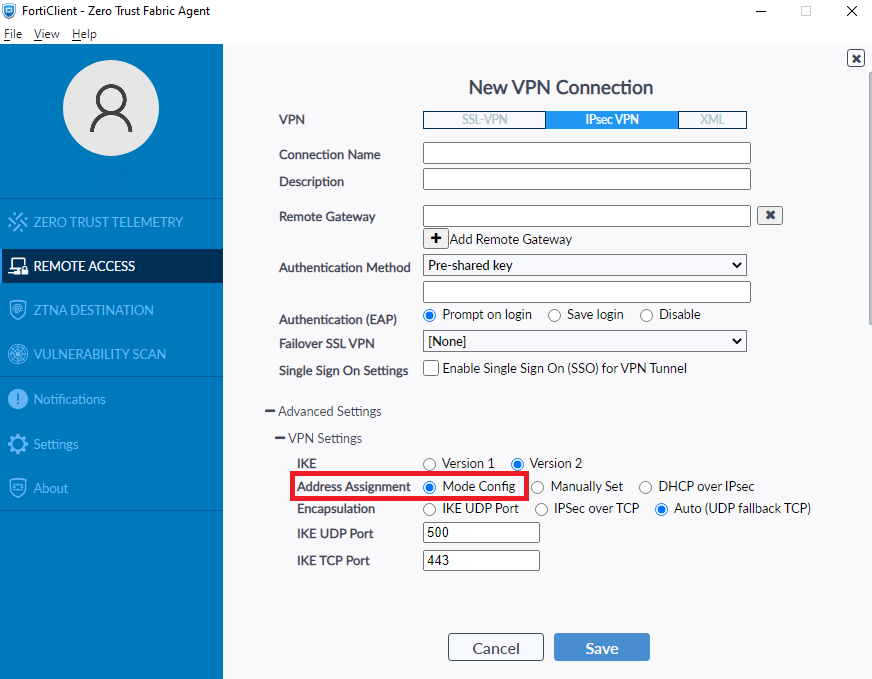

Solution	IKE debugs on FortiGate show the following messages (outputs truncated):  diagnose debug reset diagnose debug application ike -1 diagnose debug enable ike V=root:0:Dialup:0: responder: aggressive mode get 2nd response... ike V=root:0:Dialup:0: PSK authentication succeeded           <----- Pre-shared key is correct.  ike V=root:0:Dialup:0: authentication OK ike V=root:0:Dialup: IPv4 pool is not configured              <----- No 'Client Address Range' configured.  ike V=root:0:Dialup: IPv6 pool is not configured ike V=root:0:Dialup_0:0: received XAUTH_USER_NAME 'guest' length 5 ike V=root:0:Dialup_0:0: received XAUTH_USER_PASSWORD length 6 ike V=root:0:Dialup_0: XAUTH user "guest" ike V=root:0:Dialup: auth group Guest-group ike V=root:0:Dialup_0: XAUTH 8882150748161 pending ike V=root:0:Dialup_0:0: XAUTH 8882150748161 result FNBAM_SUCCESS ike V=root:0:Dialup_0: XAUTH succeeded for user "guest" group "Guest-group" 2FA=no ike V=root:0: comes 192.168.x.x:500->192.168.x.x:500,ifindex=5,vrf=0,len=156.... ike V=root:0:Dialup_0:0: mode-cfg type 1 request 0:'' ike V=root:0:Dialup_0:0: mode-cfg not enabled, ignoring Configuration Method Request  Once the debug is complete, use the following command to stop the debug: diagnose debug disable diagnose debug reset The IKE debug outputs indicate that 'Mode Config' is not enabled and 'Client Address Range' is not configured.  To resolve the issue, enable 'Mode Config' and configure 'Client Address Range' under VPN -> IPsec Tunnel -> Edit the IPsec tunnel.  To do it in the CLI:  config vpn ipsec phase1-interface     edit "Dialup"         set mode-cfg enable         set ipv4-start-ip 192.168.13.1         set ipv4-end-ip 192.168.13.10     next end Note: When running the debug commands, the output can be filtered with the client public IP: diagnose debug reset diagnose vpn ike log-filter dst-addr4 <CLIENT_PUBLIC_IP> diagnose debug application ike -1 diagnose debug enable Once debugging is complete, use the following command to stop the processes: diagnose debug disable diagnose debug reset To check the IKE statistics: get vpn ike stats Sniffer the traffic: diagnose sniffer packet any "udp port 500 or udp port 4500" 4 Related articles:  Technical Tip: How to enable IKE debugging with various debug levels using a bitmask to isolate spec...
