Description
This article describes how to upgrade FortiManager/FortiAnalyzer firmware and choose the right firmware image.
Scope
FortiManager and FortiAnalyzer, all versions.
Solution
Before Upgrading:
First, check the upgrade path to follow for FortiManager or FortiAnalyzer.
Also check the recommended FortiOS, FortiManager and FortiAnalyzer versions and if possible, based on the compatibility matrix, use the recommended one.
It is important to read the release notes and upgrade guides which are also available from the Fortinet Customer Service & Support site (Support) in the same section as the firmware image download.
Once downloaded, review the special notices, upgrade information, product integration, and support, and resolve issues, known issues, and limitations. Also, always review the compatibility matrix tool and product life cycle (software part).
Release notes can be also found at the below location:
Release notes FortiManager
Note: Although this activity itself does not delete any logs from the device, it is recommended to keep a regular backup of the logs/configuration before proceeding with any such activities.
For other upgrade paths, see FortiManager Firmware Upgrade Paths and Supported Models.
To upgrade the firmware:
In System Settings -> Advanced -> Advanced Settings, enable Offline Mode.
Offline mode stops automatic firmware updates during the upgrade.
- Go to System Settings -> Dashboard.
- In the System Information widget, go to the Firmware Version field, and select the Upgrade Firmware icon.

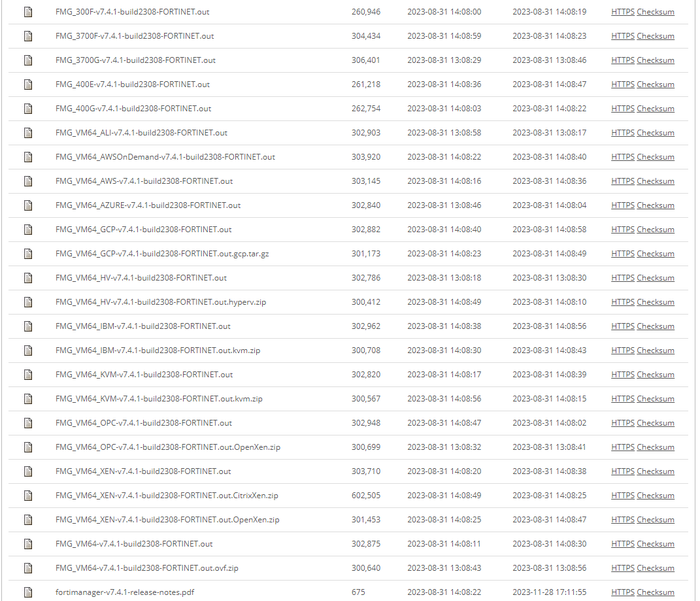

- Connect to Fortinet Firmware Images And Software Releases and select the proper version of the file for the VM (KVM for KVM or Nutanix, VM without any other letter for ESXi, HV for Microsoft HyperV, AWS for Amazon, Xen for Citrix...) or select the proper hardware.
- Firmware images ending .out are for upload directly to the FortiManager/FortiAnalyzer GUI.
- Complete packages for first-time deployment are also available such as .ovf.zip and .hyperv.zip.
- For more information on First-time deployment, see the Private Cloud documentation (links for FortiManager and FortiAnalyzer here).
- Select the HTTPS hyperlink to download.
- In the Firmware Upload dialog box, select Browse to locate the firmware package (.out file) downloaded from the Customer Service & Support portal, and select Open.
- Select OK.
The firmware image is uploaded. When the upgrade completes, a message confirms a successful upgrade.
It is recommended to view the console log output during the upgrade. See Checking FortiManager log output. When the login window displays, log into FortiManager.
When the upgrade completes, it can be necessary to refresh the web browser to see the login window.
In System Settings -> Advanced -> Advanced Settings, disable Offline Mode.
Review the System Settings -> Event Log for any additional errors. See Checking FortiManager events.
Optionally, it is possible to upgrade firmware stored on an FTP or TFTP server using the following CLI command:
execute restore image {ftp | tftp} <file path to server> <IP of server> <username on server> <password>
Note:
When upgrading firmware, all ADOMs (and Policy Package Versions, if ADOMs are disabled) remain at the same version after the upgrade. For information about upgrading ADOMs, see the FortiManager Administration Guide.
Upgrading the device firmware can trigger an SQL database rebuild. New logs are not available until the rebuild is complete. The time required to rebuild the database depends on the size of the database. It is possible to use the below command to display the SQL log database rebuild status.
diagnose sql status rebuild-db
The following features are not available until the SQL database rebuild is complete: FortiView, Log View, Event Management, and Reports.
Example:
The output is taken from the serial console.
FAZ # execute restore image ftp /FAZ_VM64_KVM-v7.0.8-build0452-FORTINET.out 10.44.1.2 test1 test1
Start getting file from FTP Server...
Transferred 331.974M of 331.974M in 0:00:01s (180.323M/s)
Upgrade image from v7.0.3-build0254-220202(GA) to v7.0.8-build0452-230606
This operation will replace the current firmware version and reboot the system!
Do you want to continue? (y/n)y
FAZ # The system is going down NOW !!
FAZ # database server is shutting down.... OK
Upgrade image from v7.0.3-build0254-220202(GA) to v7.0.8-build0452-230606
Done
Please stand by while rebooting the system.
[3656122.286573] reboot: Restarting system
Initialize file systems...
Old version: v7.0.3-build0254 branchpt0254 220202 (GA)
New version: v7.0.8-build0452 branchpt0452 230606 (GA)
Upgrade database ... adom[18] dev[1] global[1]
Upgrading: Upgrade rtm db
Total 19 databases...
...upgrading progress is 1%, estimated remain time is 0s. (1/54 step1/2)
Upgrading: Upgrade user nsx
start to upgrade user nsx...
Upgrading: Update FortiAI platform name
Database upgrade finished, using 0m5s
Upgrading report config from version:7, patch:3, branch point:254
Exporting existing config... (step 1/4)
Exporting existing config took 1.121 seconds.
Initializing default config... (step 2/4)
Initializing default config took 9.481 seconds.
Upgrading existing config... (step 3/4)
Upgrading V7.0.3->V7.0.4...
Upgrading V7.0.4->V7.0.5...
Upgrading V7.0.5->V7.0.6...
Upgrading V7.0.6->V7.0.7...
Upgrading V7.0.7->V7.0.8...
Upgrading existing config took 1.929 seconds.
Importing upgraded config... (step 4/4)
Importing upgraded config took 4.965 seconds.
Upgrading report config completed, took 18.527 seconds.
FAZ: admin
Password:
FAZ # get system status
Platform Type : FAZVM64-KVM
Platform Full Name : FortiAnalyzer-VM64-KVM
Version : v7.0.8-build0452 230606 (GA)
Additionally, consider using the GUI (FortiManager is used in this example):
In the upper-right corner, select the currently logged in user and select Upgrade Firmware:
Drag and drop the file in the grey area and select OK.
Note:
Although this activity does not delete any logs from the device running as a Fortianalyzer, keeping a regular backup of the logs/reports/configuration is always recommended before proceeding with any such activities.
