Technical Tip: Enabling and Configuring Central SNAT on the FortiGate

[acvaldez]

Description	This article describes how to enable Central SNAT on FortiGate and configure basic Central SNAT rules.
Scope	FortiGate.

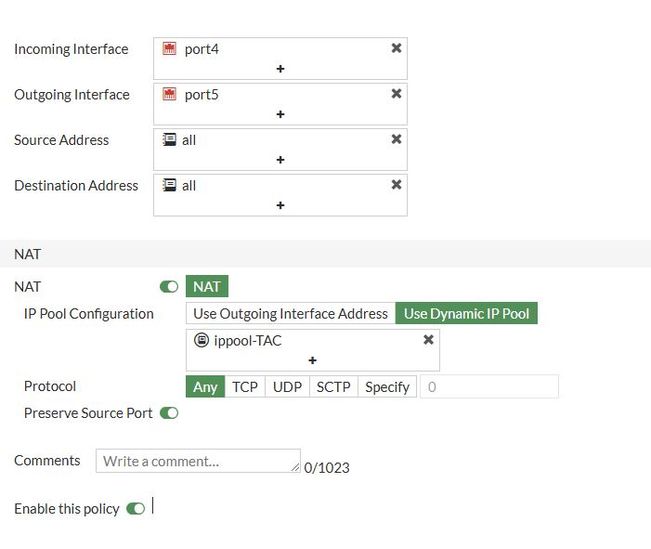

Solution	For context, Central SNAT is a feature that allows outgoing Source NAT configurations to be decoupled from the Firewall Policy configs. This can be useful since it allows administrators to define multiple Source NAT rules without needing to create additional separate Firewall Policies. For example, there could be one outgoing Internet Firewall Policy and multiple Source NAT rules that apply different addresses to different Sources/Destinations. Notably, Central SNAT is disabled on the FortiGate when running in the default NGFW profile-based mode (though it can be toggled on), whereas in NGFW policy-mode it is enabled by default and cannot be disabled. Central SNAT can be enabled via the FortiGate Web GUI or the CLI, though note that the procedure changes somewhat depending on whether or not multi-VDOM mode is enabled: When VDOMs are not being used: Web GUI Method: System -> Settings -> View Settings, then toggle on Central SNAT and select Apply. CLI Method: Run the following CLI commands: config system settings     set central-snat enable end If the FortiOS is in v7.4.x, try the below commands : config system settings     set central-nat enable end When VDOMs are being used:  Web GUI Method: In the Global VDOM, navigate to System -> VDOM, Edit/Create the VDOM, and then toggle on Central SNAT. Select OK to confirm the change. CLI Method: Run the following commands within the traffic VDOM itself: config vdom     edit <vdom name>         config system settings         set central-snat enable end Note: It is not possible to enable Central SNAT on an NGFW profile-mode FortiGate/VDOM that has Virtual IPs applied to Firewall Policies. This is because Central SNAT does not require Virtual IPs to be placed within Firewall Policies, and instead, it implicitly performs the Destination NAT as long as the VIP exists. With that in mind, make sure to remove any Virtual IPs from existing Firewall Policies before proceeding, otherwise, the following errors will be observed and Central SNAT will not be enabled successfully: When enabling from the CLI, an error message like the following will be observed: FortiGate # config system settings FortiGate (settings) # set central-nat enable Cannot enable central-nat with firewall policy using vip (id=<First Firewall Policy ID containing a VIP>). Command fail. Return code -651 When enabling from the Web GUI, the behavior differs depending on whether or not VDOMs are enabled. When VDOMs are not enabled, an error message stating 'Administration settings failed to save: Input value is invalid' will be triggered after attempting to enable Central SNAT: When VDOMs are being used, the FortiGate will appear to indicate that the change was accepted, stating 'Your settings have been saved'. However, checking the VDOM's configuration will show that Central SNAT was not enabled after all. The GUI errors share the same root cause as the CLI error message, so take care to remove VIPs from existing Firewall Policies before enabling Central SNAT. Sample Central SNAT Configuration. From the CLI: Navigate to config firewall central-snat-map to add new Central SNAT rules. config firewall central-snat-map     edit 1         set srcintf "port4"         set dstintf "port5"         set orig-addr "all"         set dst-addr "all"     next end From the GUI: Navigate to Policy & Objects -> Central SNAT and select the Create New button to create new rules. Just like with SNAT in Firewall Policies, Central SNAT rules can Source NAT traffic to either the IP Address of the Outgoing Interface or using an IP Pool. Refer to the following KB article for more information regarding IP Pools: Technical Tip: How to configure SNAT with IP pool. Notes regarding NGFW Policy-based Mode. As noted above, the NGFW policy-based mode has Central SNAT enabled by default. This mode also splits Firewall Policies into two sub-types: Security Policies (config firewall security-policy, where security-inspection profiles are defined) and SSL Inspection & Authentication Policies (config firewall policy). Crucially, an SSL Inspection & Authentication Policy must be present that allows a given set of traffic to flow, otherwise, the Security Policies and Central SNAT Policies will not take effect and traffic will not be allowed through the FortiGate. By default an any/any interface rule will exist to satisfy this requirement, but if it is not present then an appropriate policy must be created:  config firewall policy     edit 2         set name "Test"         set srcintf "port4"         set dstintf "port5"         set srcaddr "all"         set dstaddr "all"         set service "ALL" end As of FortiOS v7.6.1, it is possible to specify an SD-WAN zone as an interface in the Central SNAT map.
