Description



This article describes how to configure Fortinet Single Sign On Collector Agent (FSSO-CA) in DC Agent mode.



Scope



FSSO, FSSO CA, DC Agent.



Solution



After downloading, validating, and installing FSSO-CA is possible to configure it in DC Agent mode.



  • Port Requirements:



Inbound.
UDP/8002 – DC_Agent keepalive and push logon info to Collector Agent.
TCP/8001 – FortiGate to FSSO Collector Agent connection (SSL).
TCP/8000 – FortiGate to FSSO Collector Agent connection.
TCP/8000 – NTLM.

Outbound.
TCP/135, TCP/139, UDP/137 – Workstation check, polling mode (fallback method).
TCP/445 – Workstation check (remote registry).
TCP/389 – Group lookup using LDAP.
TCP/636 – Group lookup using LDAPS.
UDP/53 – DNS for resolving hostnames of the logon events.


FSSO-CA server
configuration:



  1. Open FSSO-CA:

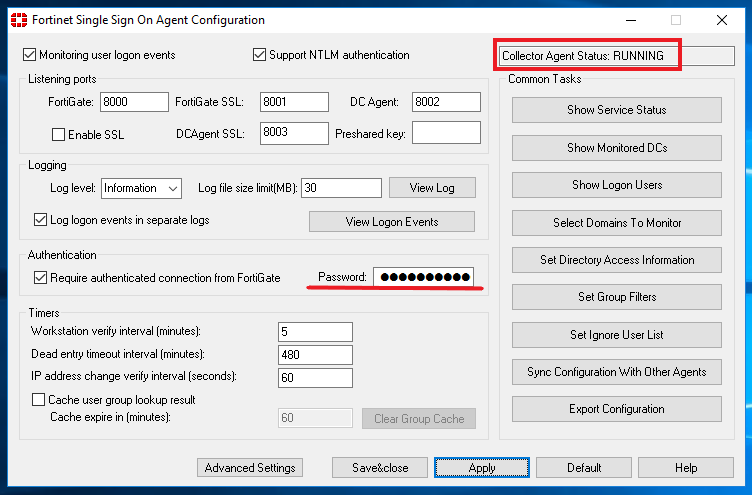

  1. Validate Collector Agent status is in RUNNING and set up one password (take note, it will be used for FortiGate connection) and select apply to save password.

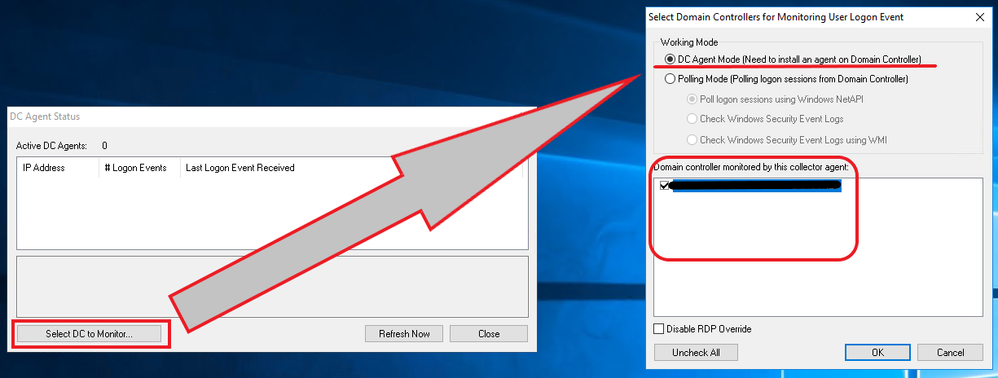

  1. Select 'show monitored DCs', then 'Select DC to Monitor'.





  1. Then select 'DC Agent mode' and select all DC servers listed down:

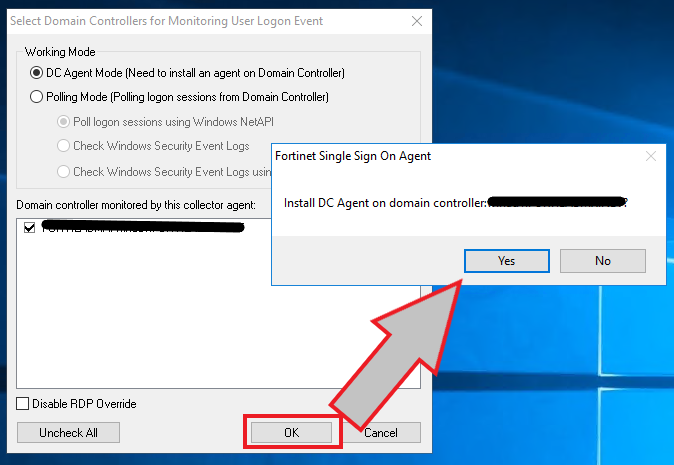

  1. Then select OK and DC Agent installation advice will be displayed for each DC server.

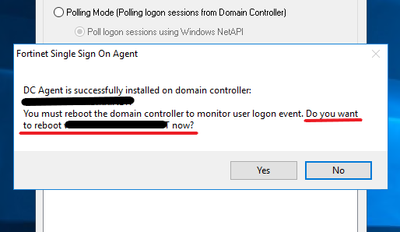

  1. To finish the DC Agent installation a reboot for each server is required, it is possible to wait between each reboot.





  1. Optional. Install GUI for DC Agent:
    Technical Tip: DC Agent Graphical Interface (dc_agent GUI)

Note: Collector agent installation needs to run with an account that is a member of the local administrators or domain administrators. The permissions are required for creating local registries, libraries, local folders, logs, etc.


It is a temporary requirement, however, it is needed for the installation to be completed properly.

To restrict a Fortinet Single Sign On Agent Service account follow the link at the bottom.



Important points to keep in mind:


FortiGate Configuration.

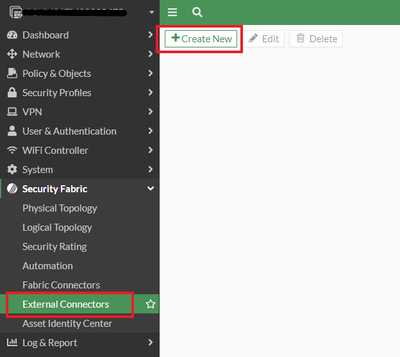

  1. Configure Security Fabric -> External Connector -> Create New.

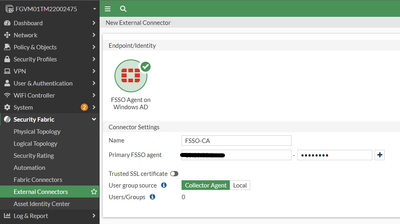

  1. In Endpoint Identity -> FSSO Agent on Windows AD.





  1. Configure Name, IP/FQDN, and same password as point 2.


If there are two or more FSSO-CA servers installed, it is possible to add a new entry with '+', only one FSSO Connector is allowed with many FSSO-CA servers, and two or more FSSO Connector for the same domain will cause user group inconsistency.


For user group sources, use 'Collector Agent' for Standard, or 'Local' for Advanced:
Technical Tip: FSSO Windows Directory Access Methods - Standard versus Advanced Mode

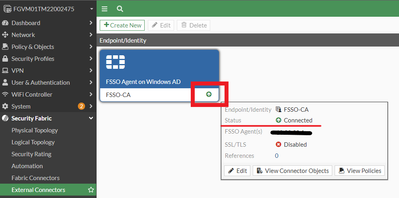

  1. FSSO connector must show connected in green color and if hovering over the connector for a few seconds a status will be displayed.

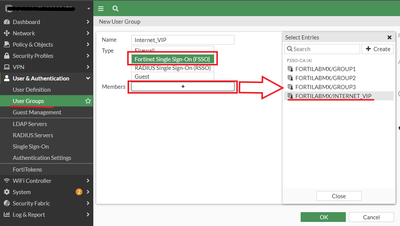

  1. Based on the previous configuration of point 3. FSSO Connector -> User group source, create a user group to use it in Firewall Policy.
    For Collector Agent (imported from FSSO-CA):






For Local (imported from LDAP): 






Important Note:

Avoid using crossed configurations.



  1. Configure firewall policies with a user group in the source.
