Description

This article describes the solution when the virtual-patch option is not visible in the local-in policy.

Scope

FortiGate v7.2.4 and above, v7.4.2.

Solution

Referring to the administration guide, virtual patching is the method of mitigating vulnerability exploits using FortiGate's IPS signature to block known vulnerabilities.

Reference: Optimize virtual patching on the local-in interface 7.4.2.

To configure the virtual patching on the FortiGate, the following requirements must be met:

FortiGate must have a valid Firmware (FMWR) license to install the FMWP database. Verify if the firewall has this license with the following command:

diagnose autoupdate versions | grep FMWRP
FMWP Definitions
---------
Version: 23.00084 signed
Contract Expiry Date: Wed Jan 1 2031
Last Updated using manual update on Wed Sep 6 15:19:11 2023
Last Update Attempt: Wed Sep 6 15:40:08 2023
Result: No Updates

The extended IPS must be enabled for more vulnerabilities to be covered:

config ips global

set database extended

end

Once virtual-patch is enabled, the WAD process will periodically query vulnerability items from the FortiGuard API server and forward it to IPS.

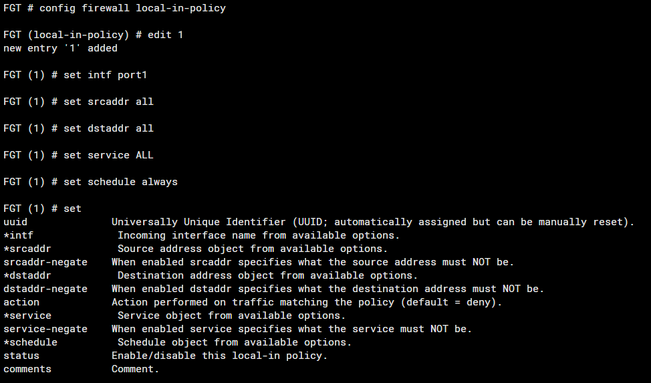

When configuring the local-in-policy, the command for virtual-patch is not visible by default:

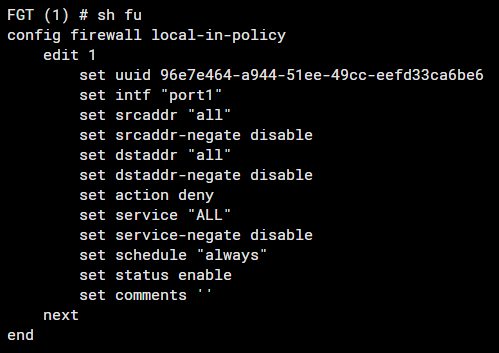

The reason behind this is that the default action for local-in-policy is configured with the action 'deny':

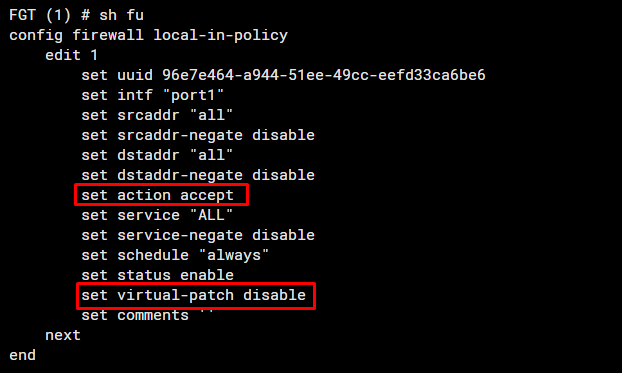

Virtual patching will be visible only if the action for the local-in policy is configured to accept:

If the option is still not visible even after the action is set to 'accept', go through the local-in policy configuration and type 'next' to save the policy while still in the config firewall local-in-policy setting. After, enter edit <id> and replace <id> with the index number of the newly created local-in policy.

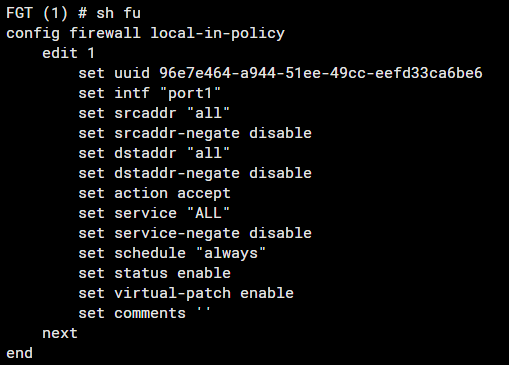

The default option for virtual-patch is disabled, to enable virtual patch, enable the feature with the following command:

config firewall local-in-policy

edit <policy_id>

set virtual-patch enable

end
The data with an asterisk '*' are mandatory when creating a Local_In-Policy:

config firewall local-in-policy
edit 1

set
uuid Universally Unique Identifier (UUID: automatically assigned but can be manually reset).
*intf Incoming interface name from available options.
*srcaddr Source address object from available options.
srcaddr-negate When enabled srcaddr specifies what the source address must NOT be.
*dstaddr Destination address object from available options.
dstaddr-negate When enabled dstaddr specifies what the destination address must NOT be.
action Action performed on traffic matching the policy (default = deny).
*service Service object from available options.
service-negate When enabled service specifies what the service must NOT be.
*schedule Schedule object from available options.
status Enable/disable this local-in policy.
comments Comment.

Before creating a Local_In Source Address and Local_In Destination Address:

config firewall address

(address) # edit "Local_In Source"

(Local_In Source) # show
config firewall address
edit "Local_In Source"
set subnet 192.168.0.1 255.255.255.255
next
end

config firewall address

(address) # edit "Local_in Destination"

(Local_in Destination) # show
config firewall address
edit "Local_in Destination"
set subnet 172.16.0.1 255.255.255.255
next
end
Create Local_In Policy with virtual-patch enabled:

config firewall local-in-policy

(local-in-policy) # edit 1

(1) # sh full-configuration
config firewall local-in-policy
edit 1
set uuid e189bfb2-c1ac-51ee-cdb3-d01f576aa343
set intf "port7"
set srcaddr "Local_In Source"
set srcaddr-negate disable
set dstaddr "Local_in Destination"
set dstaddr-negate disable
set action accept  <---
set service "ALL"
set service-negate disable
set schedule "always"
set status enable
set virtual-patch enable  <---
set comments ''
next
end
Multiple interfaces can be configured in Local_In Policy when enabling virtual-patch:

config firewall local-in-policy

(local-in-policy) # sh full-configuration
config firewall local-in-policy
edit 1
set uuid e189bfb2-c1ac-51ee-cdb3-d01f576aa343
set intf "port7"
set srcaddr "Local_In Source"
set srcaddr-negate disable
set dstaddr "Local_in Destination"
set dstaddr-negate disable
set action accept
set service "ALL"
set service-negate disable
set schedule "always"
set status enable
set virtual-patch enable
set comments ''
next
edit 2
set uuid fc8cfd1a-c1b1-51ee-f5f5-35e90f2397fb
set intf "port8" "port9"
set srcaddr "all"
set srcaddr-negate disable
set dstaddr "all"
set dstaddr-negate disable
set action accept
set service "ALL"
set service-negate disable
set schedule "always"
set status enable
set virtual-patch enable
set comments ''
next
end

Note:

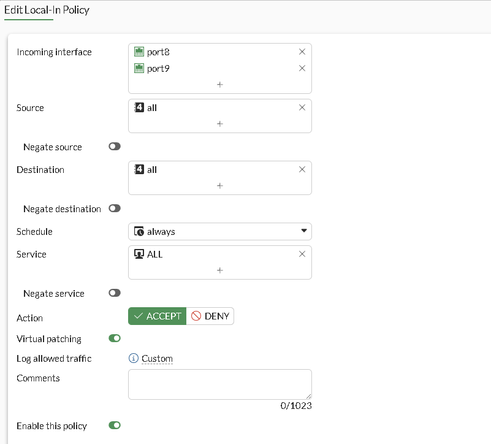

Starting from v7.6.0, the Local-in-Policy can now be also configured in the GUI. Refer to this article: Technical Tip: Creating a Local-In policy (IPv4 and IPv6) on GUI

To enable Virtual patch, it is only available in CLI. After it is enabled that option is available on the GUI.

Note:

Enabling the virtual-patch feature may cause connections to fail for SSL VPN and ZTNA configurations that terminate on the FortiGate and use a client certificate. Do not enable virtual-patch if either of these configurations is in use.
