Technical Tip: Creating a Local-In policy (IPv4 and IPv6) on GUI

[sprashant]

Description	This article describes how, starting from v7.6.x, a Local-In policy can be created via the GUI.
Scope	FortiGate v7.6.x.

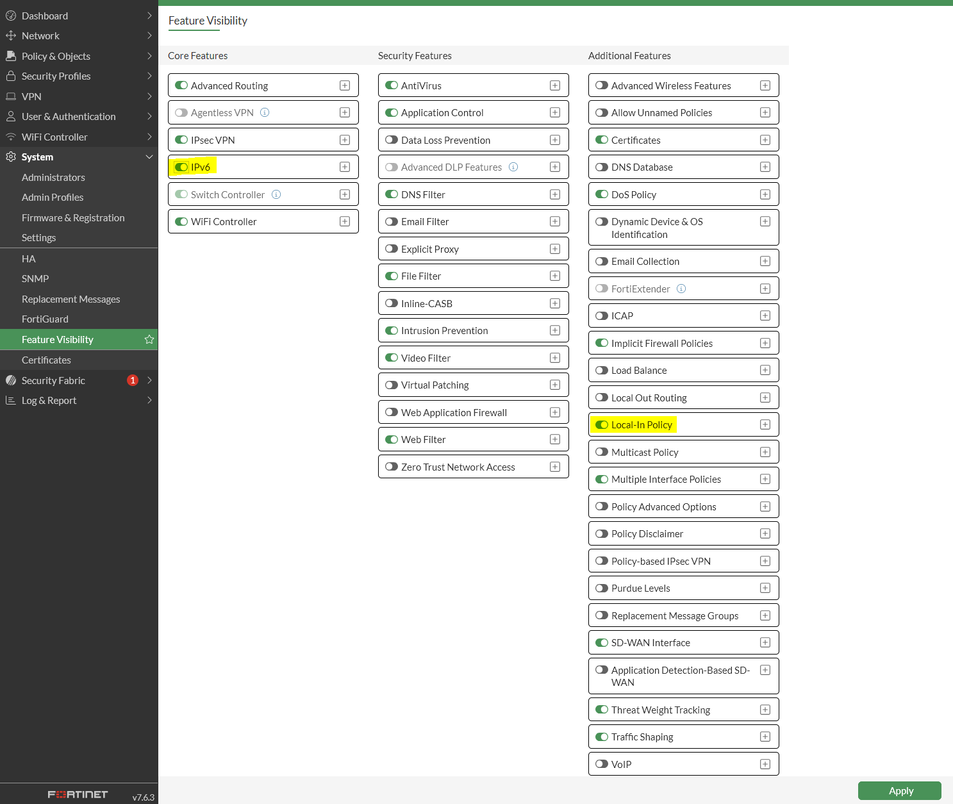

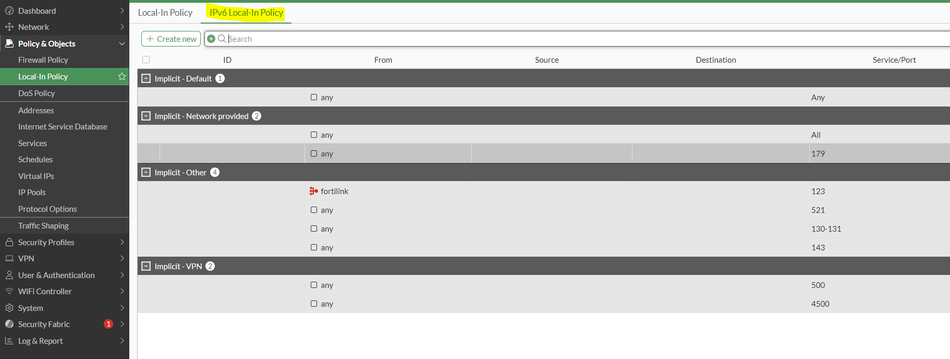

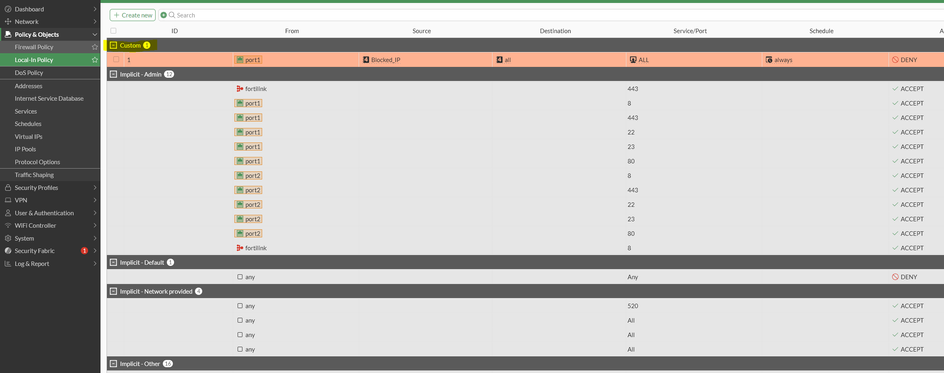

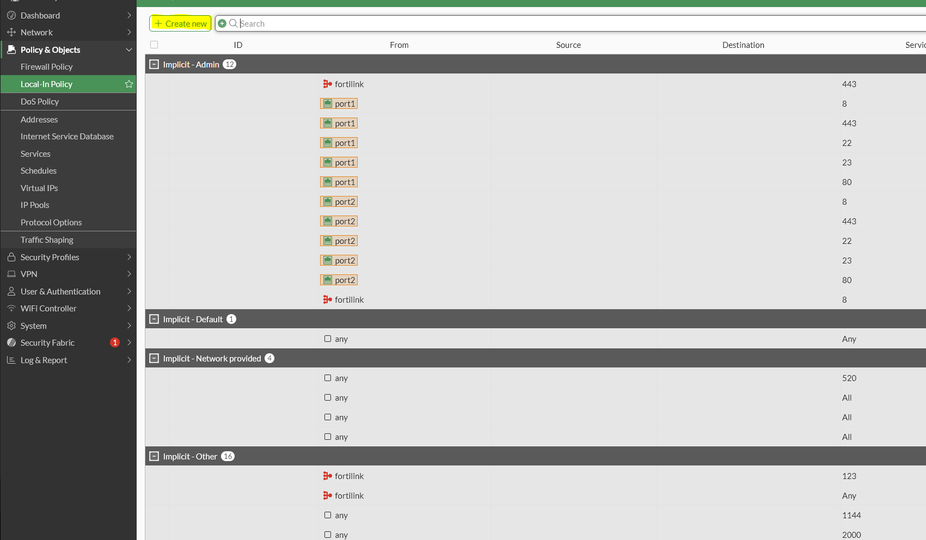

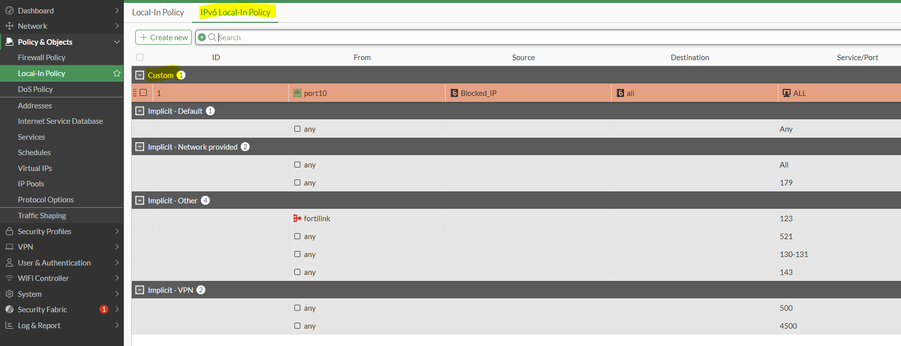

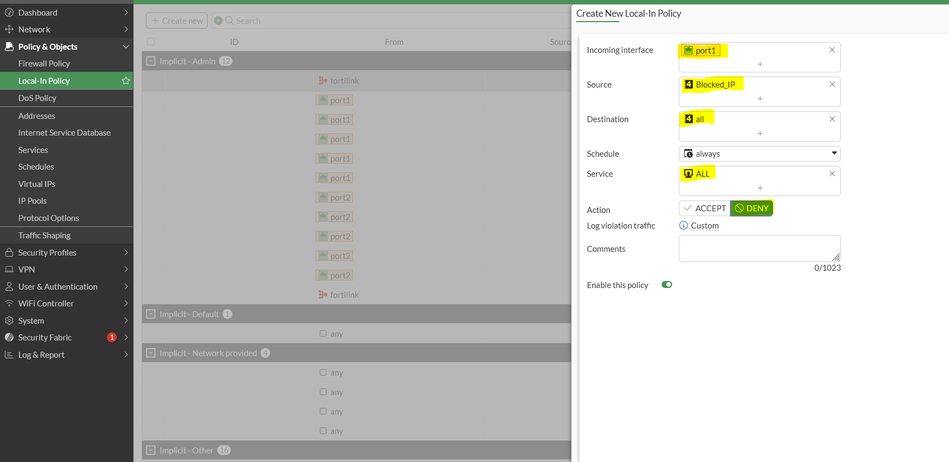

Solution	Starting from FortiOS v7.6.0, Local-In policies can be created on the GUI. In previous firmware versions, this option was only available via the CLI. See Local-in policy. Enable the Local-In policy by going to System -> Feature Visibility, searching for Local-In Policy, and enabling it. Local-In Policy can also be enabled in CLI: configure system settings     set gui-local-in-policy enable end Once enabled, go to Policy & Objects -> Local-In Policy and select 'Create new'. The option remains the same as the CLI; it is just necessary to select the details on the GUI. config firewall {local-in policy | local-in-policy6}     edit <policy number>         set int <interface>         set srcaddr <source address>         set dstaddr <destination address>         set action {accept | deny}         set service <service name>         set schedule <schedule name>         set virtual-patch {enable| disable}         set comments <string>      next end In the GUI: Select the relevant interface or zone, which is usually the outbound (internet-facing) interface/zone, and then create the addresses that shall be allowed/blocked accordingly. Once done, select parameters such as destination, service, and action as per the requirement. Select 'OK' to apply the policy. Once done, the new policy is visible under Custom as shown below: For IPv6, enable IPv6 as well other than enabling the Local-In policy under System -> Feature Visibility: Once enabled, select IPv6 under Local-In Policy: Similar steps can be repeated to create the IPv6 Local-In policy, and IPv6 is visible under 'Custom' as well: To remove an existing local-in-policies, refer to the article: Technical Tip: How to remove existing local in policies from FortiGate GUI. The Negate option can also be used for source and destination addresses in both local-in policies and firewall policies by enabling Policy Advanced Options under System -> Feature Visibility. (For more details, see Technical Tip: Firewall Policy 'Negate' option.) Notes: As best practices, consider the following recommendations:  Do not allow administrative services from 'ANY'. Use specific IP objects, not wide ranges. Always place a deny-all at the bottom.
