Technical Tip: How to view logs on FortiGate Cloud

FortiGate

FortiGate Next Generation Firewall utilizes purpose-built security processors and threat intelligence security services from FortiGuard labs to deliver top-rated protection and high performance, including encrypted traffic.

Article Id 232423

Description

This article describes how to view logs sent from the local FortiGate to the FortiGate Cloud.

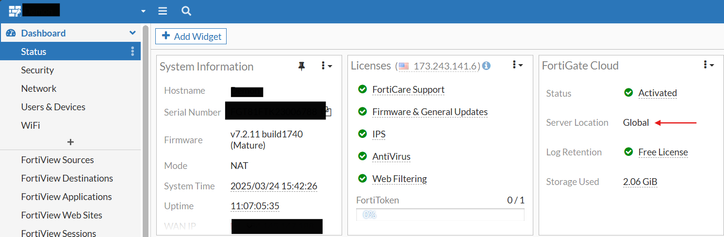

In this example, the local FortiGate has the following configuration under Log & Report -> Log Settings.

Scope

FortiGate Cloud, FortiGate.

Solution

Visit login.forticloud.com in browser and login to FortiGate Cloud.

If the FortiGate is attached to the same FortiCloud and FortiGate Cloud account, the portal is also accessible: Login to support.fortinet.com and navigate to Services -> FortiGate Cloud.

Accessing FortiGate Cloud from FortiCloud SSO.PNG

Right-click on the listed FortiGate(s) and select 'Analysis'.

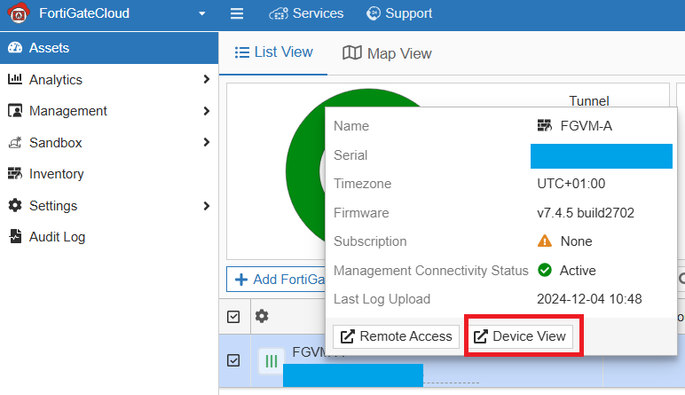

If using the new FortiGate Cloud Layout, hover over the device until a pop-up appears and select 'Device View'.

New Portal 1.png

Select the desired event type under Logview and select the Logs tab.

New Portal 2.PNG

Result:

The Logs are now visible.
