Description

This article explains how to configure exceptions in FortiGate's DoS policies for specific traffic types to prevent legitimate traffic from being flagged as anomalies. This is particularly useful when managing high-volume traffic, such as DNS queries, which can inadvertently trigger anomalies like udp_dst_session, ip_dst_session, or udp_flood.

By creating exceptions, administrators can ensure uninterrupted service for legitimate traffic while maintaining security for other network activities.

Scope

FortiGate.

Solution

Similar to Firewall policies, DoS policy rules are processed in a top-down manner.

Therefore, if a policy for a specific IP and service to which the DoS policy is not applied is created at the top, an exception is processed.

Example # 1:

There are two DoS policies.

2. The policyid 2 was set to block all packets when a DoS attack occurs on the source IP 10.0.1.0/24.

3. Policy3 was created to enable communication only for HTTP and DNS services of 10.0.1.10 IP.

The action was arbitrarily selected as 'Disabled'.

4. Result in 10.0.1.10 PC.

The HTTPS site (https://google.com) failed to access, and the HTTP site (http://httpbin.org) succeeded.

Example # 2:

A common scenario involves DNS servers, where high query volumes from client devices often exceed default DoS thresholds, causing false positives. Following example demonstrates how to set up DoS policy exceptions, using DNS traffic specifically.

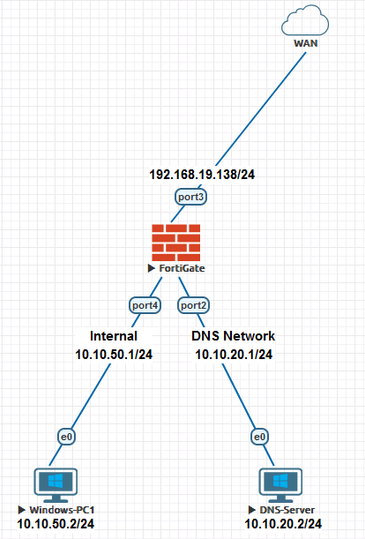

Topology Overview:

WAN Connection: The FortiGate's port3 interface (192.168.19.138/24) connects to the WAN for internet access.
Internal Network: Port4 on the FortiGate (10.10.50.1/24) connects to an internal network housing a Windows PC (10.10.50.2/24).
DNS Network: Port2 on the FortiGate (10.10.20.1/24) connects to a DNS network with a DNS server (10.10.20.2/24).

To prevent legitimate DNS traffic from being blocked by the IPv4 DoS policy while maintaining anomaly detection for other types of traffic, a dedicated DoS policy can be created to whitelist DNS traffic directed to the DNS server. Placing this policy above the general blocking policy ensures that DNS queries are exempt from threshold limits without affecting the monitoring and protection of other network traffic.

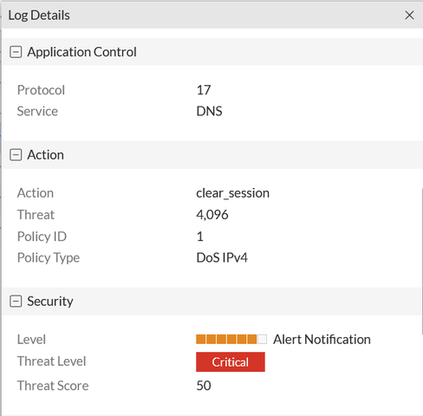

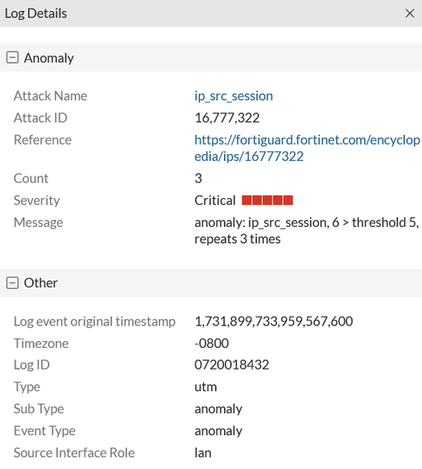

Since the policy is configured to apply to all traffic, as shown in the Anomaly Logs, legitimate DNS traffic between the internal network and the DNS server is also blocked once the threshold is reached. Adjusting the threshold or disabling the specific anomaly type would impact all network traffic across the segments, which is not ideal.

Here’s how the firewall DoS policies can be configured and utilized effectively together:

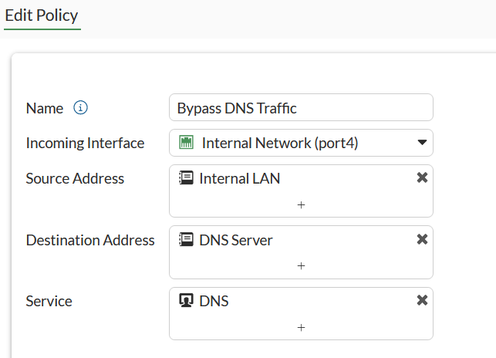

Bypass IPv4 DoS Policy in GUI:

Bypass IPv4 DoS Policy in CLI:

config firewall DoS-policy

edit 2

set name "Bypass DNS Traffic"

set interface "port4"

set srcaddr "Internal LAN"

set dstaddr "DNS Server"

set service "DNS"

config anomaly

edit "tcp_syn_flood"

set threshold 2000

set threshold 1000

set threshold 5000

set status enable

set log enable

set threshold 2000

set status enable

set log enable

set threshold 5000

set status enable

set log enable

set threshold 5000

set threshold 250

set threshold 300

set threshold 1000

set status enable

set log enable

set threshold 5000

set status enable

set log enable

set threshold 5000

set threshold 2000

set threshold 1000

set threshold 5000

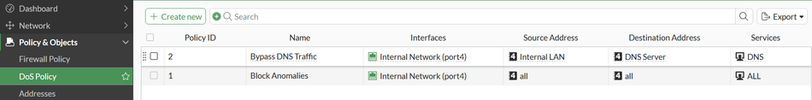

Save and ensure this policy is placed above the general DoS policy for the interesting traffic.

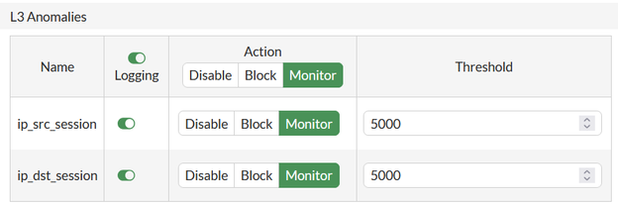

The action is set to Monitor, allowing the traffic to pass while still generating logs for visibility. This approach can be applied to whitelist specific types of traffic or bypass any type of anomaly detection.
