Troubleshooting Tip: EAP-TLS, WPA2-Enterprise, 802.1X authentication is failing with FQDN RADIUS server

[jiahoong112]

Description	This article describes the case where EAP-TLS, WPA2-Enterprise, and 802.1X authentication fail when the RADIUS server is configured in the form of an FQDN. When FortiAuthenticator Cloud is used, only the FQDN of the FortiAuthenticator Cloud instance can be used.
Scope	FortiOS v7.4.7, v7.4.8, v7.6.3, v7.6.4.

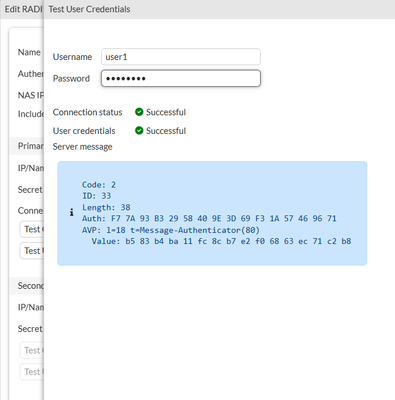

Solution	In this case, a WPA2-Enterprise (uses 802.1X authentication) SSID with EAP-TLS certificate authentication method is used. RADIUS Server configuration. RADIUS connectivity to FortiAuthenticator Cloud uses RADIUS over TLS on TCP port 2083. The connection to the radius server is successful, and the username/password can be authenticated against it successfully. SSID configuration: Ensure the Security mode used is WPA2-Enterprise and the Authentication is RADIUS Server. Attempt to connect to the WiFi SSID is unsuccessful: Running the WPAD 7 debug in the FortiGate CLI results in the following: diagnose debug application wpad 7 diagnose debug enable <truncated> 65080.972 HOSTAPD: <0>192.168.1.112:5246<1-0>  STA c8:8a:9a:5f:18:c4 IEEE 802.1X: STA identity <redact> Encapsulating EAP message into a RADIUS packet 65080.973 RADIUS: Authentication server :2083 65080.973 DNS req ipv6 0x201f '<redact>.fortitrustid.forticloud.com'65080.973 DNS maintainer started.65080.973 RADIUS: tcps_open() failed 65080.974 HOSTAPD: <0><redacted-ip>:5246<1-0>  RADIUS No authentication server configured 65081.217 got IPv6 DNS reply, req-id=0x201f65081.217 DNS req 0x1f is removed. Current total: 265081.217 DNS maintainer stopped.Resolved <redact>.fortitrustid.forticloud.com to :: [i=0] IEEE 802.1X: c8:8a:9a:5f:18:c4 - (EAP) retransWhile --> 0 <truncated> To disable the debug: diagnose debug disable During the 802.1X authentication, FortiGate can be seen trying to perform IPv6 DNS resolution against the FQDN of the RADIUS server instead of IPv4. This will fail because there is no IPv6 IP for the FQDN, and IPv4 DNS resolution is supposed to be used in this case. This is a known issue that is currently being investigated. Workaround: Create a DNS database entry on the FortiGate. config system dns-database      edit fortitrust           set domain forticloud.com           config dns-entry                edit 1                       set hostname fortitrust.forticloud.com                       set ip <IP address>                next          end       next end                    This will allow the FortiGate to use the existing IPv4 address on the DNS database; the issue here is that when the FQDN resolves to a dynamic IP address.
