Troubleshooting Tip: Dialup IPsec VPN user-info not displaying in 'Assets & Identities'

Francesko · ‎03-27-2025

Description

This article explains how to troubleshoot and display dialup IPsec VPN user identities in the 'Firewall Users' widget within the 'Assets & Identities' dashboard.

Scope

FortiGate.

Solution

When a client authenticates to a dialup IPsec tunnel, it may be necessary and useful to display their session information in the 'Firewall Users' widget.

To display this information, the user group must be configured in the firewall policy rather than the IPsec VPN phase1 interface.

The same applies to both IPsec IKEv1/IKEv2 connections and is relevant for local and remote user groups.

Additionally, the identity can be displayed for Entra ID SAML-authenticated users and clients who are using the auto-connect to IPsec VPN feature with Entra ID logon session information through the msgraph API.

If the user group is configured in both IPsec VPN phase 1 and the firewall policy, traffic will stop flowing through the IPsec VPN tunnel.

Starting with v7.4 and later, this widget is located in the 'Assets & Identities' dashboard. In the v7.2 branch, it can be found under 'Users & Devices'.

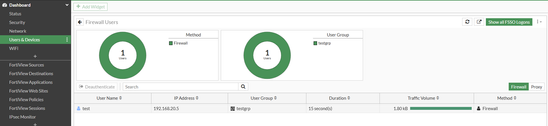

Firewall Users.png

Configuration of a user and user-group:

config user local
edit "test"
set type password
set passwd fortinet
next
end

config user group

edit "testgrp"

set member "test"

IPsec VPN IKEv2 configuration:

config vpn ipsec phase1-interface

edit "TestIKEv2"

set type dynamic

set interface "wan1"

set ike-version 2

set peertype any

set net-device disable

set mode-cfg enable

set proposal aes128-sha1 aes256-sha256

set dpd on-idle

set dhgrp 5

set eap enable

set eap-identity send-request

set ipv4-start-ip 192.168.30.5

set ipv4-end-ip 192.168.30.20

set dns-mode auto

set client-auto-negotiate enable

set client-keep-alive enable

set psksecret fortinet

set dpd-retryinterval 60

config vpn ipsec phase2-interface

edit "TestIKEv2P2"

set phase1name "TestIKEv2"

set proposal aes128-sha1 aes256-sha256

set dhgrp 5

config firewall policy

edit 101

set name "TestIKEv2"

set srcintf "TestIKEv2"

set dstintf "LAN"

set action accept

set srcaddr "all"

set dstaddr "LAN address"

set schedule "always"

set service "ALL"

set logtraffic all

set groups "testgrp"

IPsec VPN IKEv1 configuration:

config vpn ipsec phase1-interface

edit "TestIKEv1"

set type dynamic

set interface "wan1"

set mode aggressive

set peertype any

set net-device disable

set mode-cfg enable

set proposal aes128-sha256 aes256-sha256

set xauthtype auto

set ipv4-start-ip 192.168.20.5

set ipv4-end-ip 192.168.20.20

set dns-mode auto

set client-keep-alive enable

set psksecret fortinet

config vpn ipsec phase2-interface

edit "TestIKEv1P2"

set phase1name "TestIKEv1"

set proposal aes128-sha256 aes256-sha256

config firewall policy

edit 100

set name "TestIkev1"

set srcintf "TestIKEv1"

set dstintf "LAN"

set action accept

set srcaddr "all"

set dstaddr "LAN address"

set schedule "always"

set service "ALL"

set logtraffic all

set groups "testgrp"
