Article Id 279796
Description

This article outlines the SSH Server host key algorithms offered by FortiGate after upgrading to v7.0.13, v7.2.6 or newer.

Scope

FortiGate v7.0.13 and v7.2.6.

Solution

On FortiGate running firmware v7.0.12 or firmware v7.2.5, when attempting to perform SSH from an SSH tool to FortiGate firmware v7.0.12 or v7.2.5, FortiGate offers keys ssh-rsa and ssh-ed25519 as the server host keys algorithms.








ssh-rsa will no longer be offered as the server key host algorithm after upgrading to FortiOS v7.0.13 or FortiOS 7.2.6 and only offer the ssh-ed25519 algorithm.

The same key host algorithm offering  can be verified in the SSH debugs:



     diagnose debug console timestamp enable
     diagnose debug application sshd -1
     diagnose debug enable



2023-10-18 10:52:20 SSH: Proposal: 0, Ciphers: 'diffie-hellman-group-exchange-sha256,curve25519-sha256@libssh.org,ecdh-sha2-nistp256,ecdh-sha2-nistp384,ecdh-sha2-nistp521'
2023-10-18 10:52:20 SSH: Proposal: 2, Ciphers: 'chacha20-poly1305@openssh.com,aes256-ctr,aes256-gcm@openssh.com'
2023-10-18 10:52:20 SSH: Proposal: 3, Ciphers: 'chacha20-poly1305@openssh.com,aes256-ctr,aes256-gcm@openssh.com'
2023-10-18 10:52:20 SSH: Proposal: 4, Ciphers: 'hmac-sha2-256,hmac-sha2-256-etm@openssh.com,hmac-sha2-512,hmac-sha2-512-etm@openssh.com'
2023-10-18 10:52:20 SSH: Proposal: 5, Ciphers: 'hmac-sha2-256,hmac-sha2-256-etm@openssh.com,hmac-sha2-512,hmac-sha2-512-etm@openssh.com'
2023-10-18 10:52:20 SSH: list_hostkey_types: ssh-rsa,ssh-ed25519
2023-10-18 10:52:20 SSH: SSH2_MSG_KEXINIT sent
2023-10-18 10:52:20 SSH: SSH2_MSG_KEXINIT received
2023-10-18 10:52:20 SSH: kex_parse_kexinit: diffie-hellman-group-exchange-sha256,curve25519-sha256@libssh.org,ecdh-sha2-nistp256,ecdh-sha2-nistp384,ecdh-sha2-nistp521
2023-10-18 10:52:20 SSH: kex_parse_kexinit: ssh-rsa,ssh-ed25519
2023-10-18 10:52:20 SSH: kex_parse_kexinit: chacha20-poly1305@openssh.com,aes256-ctr,aes256-gcm@openssh.com
2023-10-18 10:52:20 SSH: kex_parse_kexinit: chacha20-poly1305@openssh.com,aes256-ctr,aes256-gcm@openssh.com
2023-10-18 10:52:20 SSH: kex_parse_kexinit: hmac-sha2-256,hmac-sha2-256-etm@openssh.com,hmac-sha2-512,hmac-sha2-512-etm@openssh.com
2023-10-18 10:52:20 SSH: kex_parse_kexinit: hmac-sha2-256,hmac-sha2-256-etm@openssh.com,hmac-sha2-512,hmac-sha2-512-etm@openssh.com



FortiGate v7.0.13 and v7.2.6 offer only the ssh-ed25519 host key algorithm.

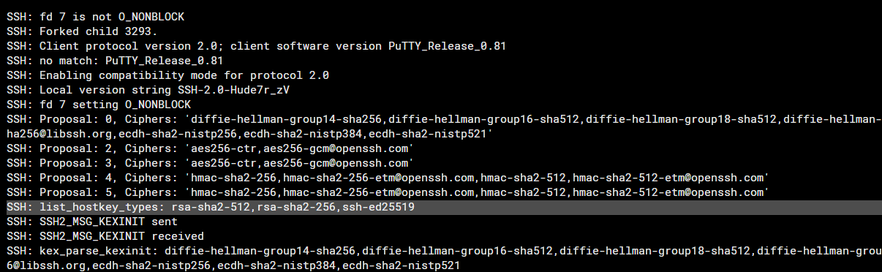

In the SSH debugs, the key host algorithm offering can be checked:



2023-10-18 10:07:52 SSH: Proposal: 0, Ciphers: 'diffie-hellman-group-exchange-sha256,curve25519-sha256@libssh.org,ecdh-sha2-nistp256,ecdh-sha2-nistp384,ecdh-sha2-nistp
521'
2023-10-18 10:07:52 SSH: Proposal: 2, Ciphers: 'chacha20-poly1305@openssh.com,aes256-ctr,aes256-gcm@openssh.com'
2023-10-18 10:07:52 SSH: Proposal: 3, Ciphers: 'chacha20-poly1305@openssh.com,aes256-ctr,aes256-gcm@openssh.com'
2023-10-18 10:07:52 SSH: Proposal: 4, Ciphers: 'hmac-sha2-256,hmac-sha2-256-etm@openssh.com,hmac-sha2-512,hmac-sha2-512-etm@openssh.com'
2023-10-18 10:07:52 SSH: Proposal: 5, Ciphers: 'hmac-sha2-256,hmac-sha2-256-etm@openssh.com,hmac-sha2-512,hmac-sha2-512-etm@openssh.com'
2023-10-18 10:07:52 SSH: list_hostkey_types: ssh-ed25519
2023-10-18 10:07:52 SSH: SSH2_MSG_KEXINIT sent
2023-10-18 10:07:52 SSH: SSH2_MSG_KEXINIT received
2023-10-18 10:07:52 SSH: kex_parse_kexinit: diffie-hellman-group-exchange-sha256,curve25519-sha256@libssh.org,ecdh-sha2-nistp256,ecdh-sha2-nistp384,ecdh-sha2-nistp521
2023-10-18 10:07:52 SSH: kex_parse_kexinit: ssh-ed25519
2023-10-18 10:07:52 SSH: kex_parse_kexinit: chacha20-poly1305@openssh.com,aes256-ctr,aes256-gcm@openssh.com
2023-10-18 10:07:52 SSH: kex_parse_kexinit: chacha20-poly1305@openssh.com,aes256-ctr,aes256-gcm@openssh.com
2023-10-18 10:07:52 SSH: kex_parse_kexinit: hmac-sha2-256,hmac-sha2-256-etm@openssh.com,hmac-sha2-512,hmac-sha2-512-etm@openssh.com
2023-10-18 10:07:52 SSH: kex_parse_kexinit: hmac-sha2-256,hmac-sha2-256-etm@openssh.com,hmac-sha2-512,hmac-sha2-512-etm@openssh.com



Note:

rsa-sha2-256 and rsa-sha2-512 were added to v7.2.8, and v7.0.14.



Related article:

How SSH Server host key algorithms can be changed
