Description
This article describes how to check and monitor bandwidth utilization from a graphical point of view. This will permit us to keep track of the bandwidth utilization for the interface.
Scope
FortiGate.
Solution
Add an interface widget that makes it possible to check/monitor bandwidth utilization.
From GUI:
- Login to the FortiGate.
- Go to Dashboard -> Main/status.
- Check for the setting icon at the bottom, select the icon, and select 'Add Widget'.
- Go to 'Monitor', select 'Interface bandwidth' and select the interface.

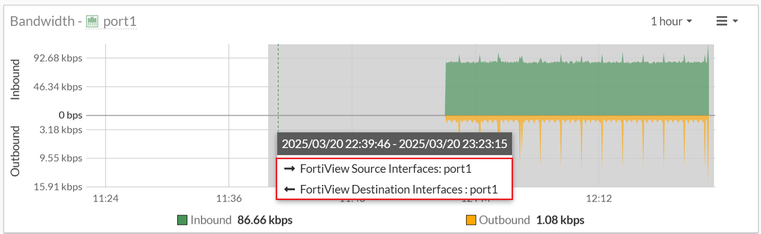

The bandwidth tracking will be displayed:
Note:
In v7.0, v7.2, and v7.4, the 'Add Widget' icon is on top.
Then go to Network -> Interface Bandwidth.
In v7.4 and v7.6, the 'Edit Dashboard Widget' icon option gives access to selecting the FortiGate, Interface, and period.
Once the monitor is configured, it can be checked from the Dashboard under Status.
Note:
Inbound traffic refers to data coming into the interface (from the Internet to the interface), while outbound traffic refers to data leaving the interface (from the internal network to the Internet).
To check which source or destination over this specific interface is using the top bandwidth can be checked by follow this method:

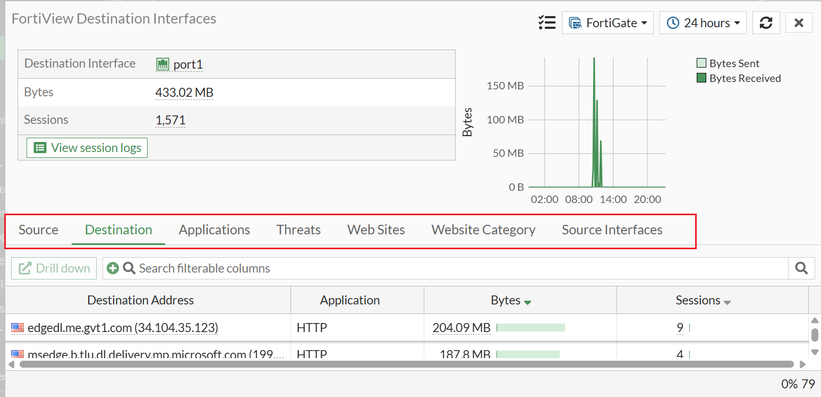

FortiView Source Interfaces and FortiView Destination Interfaces dashboards can also be added to monitor usage of interfaces.
In case it is desired to see how many interfaces are being monitored, do that from the CLI with the following command:
config global
(global) # show full-configuration | grep -c "monitor-bandwidth enable"
Related article:
Technical Tip: Monitor bandwidth usage per source
