Technical Tip: How to capture ARP traffic using Packet Capture on FortiOS GUI and CLI

[gagandeeps]

Description	The article describes capturing the ARP traffic using FortiGate GUI and CLI on all versions.
Scope	FortiGate OS version 7.2.x, 7.4.x, and 7.6.x.

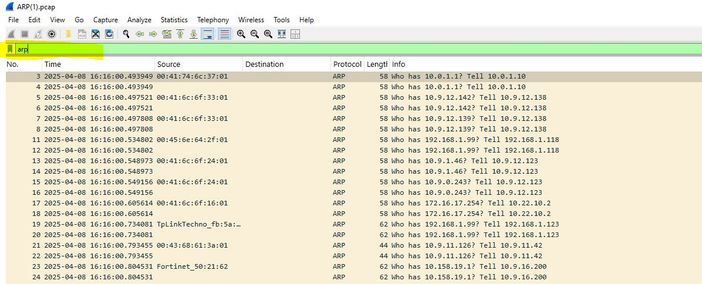

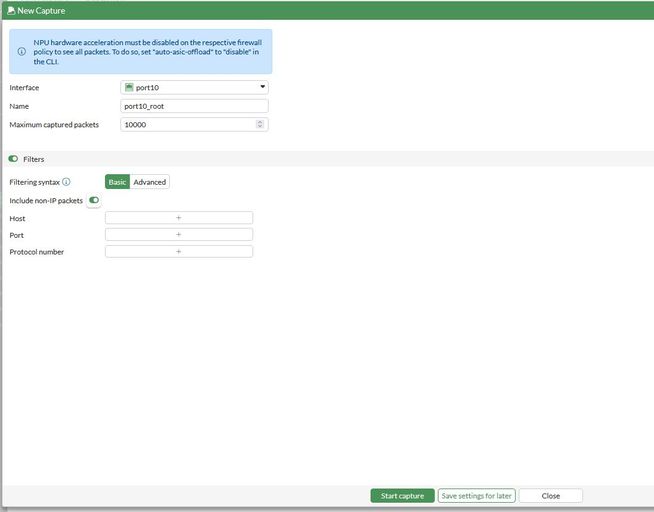

Solution	Option 1: Capturing 'ARP' traffic using the GUI: Access the Packet Capture Section: Go to Network -> Packet Capture or diagnostics in the FortiGate GUI. Add a Packet Capture Filter: Select 'Add' to create a new packet capture filter. Configure the Filter: Interface: Select the interface from the drop-down to capture traffic. Max Packets to Save: Enter the number of packets to be captured. Enable Filters: Check this option to specify filter fields. Enable the 'Include non-IP packets' radio button. Start capture and download the PCAP file. Filter out ARP packets using the screenshots given below. Option 2: Capturing 'ARP' traffic using the CLI in two different ways: With the ARP keyword: diagnose sniffer packet portx 'arp' 4 0 l  <----- Where x is the port on which 'ARP' traffic needs to be captured. diagnose sniffer packet any 'arp' 4 0 l   <---- To check ARP traffic for any interface. With the Ethernet protocol option: diagnose sniffer packet portx 'ether proto 0x0806' 4 0 l  <----- Where x is the port on which 'ARP' traffic needs to be captured. diagnose sniffer packet any 'ether proto 0x0806' 4 0 l   <---- To check ARP traffic for any interface.
