Description
This article describes FortiGate’s DNS query behavior when multiple DNS protocols are enabled.
Scope
FortiGate v7.0, v7.2, v7.4.
Solution

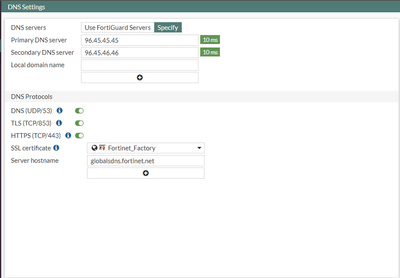

Multiple DNS protocols are enabled under Network -> DNS.
Fortigate DNS query behavior is influenced by the following configuration:
config system dns
set server-select-method { least-rtt | failover }
end
set server-select-method least-rtt (default setting)
If 'server-select-method' is set to 'least-rtt', FortiGate will actively use the enabled protocols, but it will prefer the one with the least rrt value. It will occasionally send queries on other protocols to monitor them and evaluate the rtt for the server and protocols.
It is recommended to use a DNS protocol supported by all DNS servers.
set server-select-method failover
If 'set server-select-method' is set to 'failover', FortiGate will build a list of available DNS servers and protocols. FortiGate queries the servers from the top of the list and then moves on to the next server in order to detect a DNS query failure with that particular server.
The DNS server list can be found by running the following command:
diagnose test application dnsproxy 3
When all DNS protocols are enabled, the list is built in this order
fortigate (global) # diagnose test application dnsproxy 3
DNS servers:
96.45.45.45:53 vrf=0 tz=0 encrypt=none req=0 to=0 res=0 rt=0 ready=1 timer=0 probe=0 failure=0 last_failed=0
96.45.45.45:853 vrf=0 tz=0 encrypt=dot req=37 to=0 res=37 rt=7 ready=1 timer=0 probe=0 failure=0 last_failed=0
96.45.45.45:443 vrf=0 tz=0 encrypt=doh req=1 to=4 res=0 rt=1454 ready=1 timer=0 probe=0 failure=3 last_failed=79736
96.45.46.46:53 vrf=0 tz=0 encrypt=none req=0 to=0 res=0 rt=0 ready=1 timer=0 probe=0 failure=0 last_failed=0
96.45.46.46:853 vrf=0 tz=0 encrypt=dot req=80 to=0 res=80 rt=1 ready=1 timer=0 probe=0 failure=0 last_failed=0
96.45.46.46:443 vrf=0 tz=0 encrypt=doh req=1 to=3 res=0 rt=1360 ready=1 timer=0 probe=0 failure=3 last_failed=79612
FortiGate will query '96.45.45.45:53' as it is the first server in the list, when this server fails it moves on to the next server in line '96.45.45.45:853', then into '96.45.45.45:443'.
In this configuration, clear-text DNS is utilized first as the first server in the list.
As long as '96.45.45.45:53' continues to respond to queries, other servers and protocols will not be used.
