Description

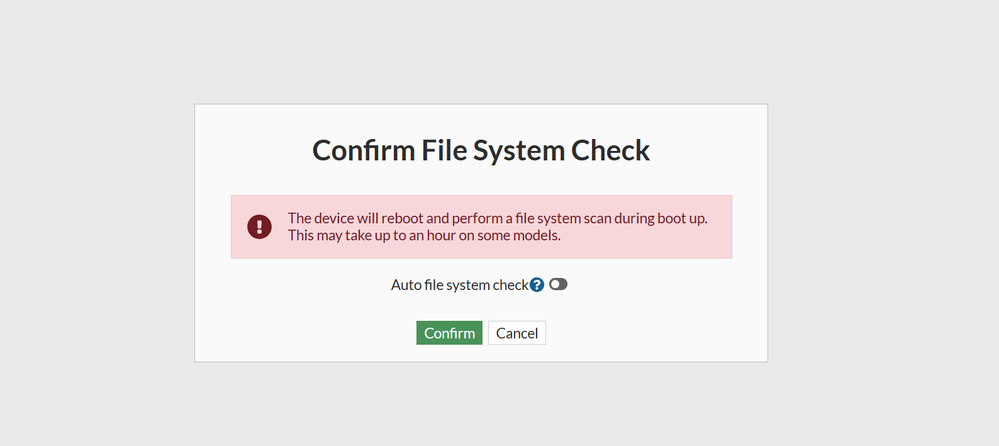

From the GUI.
![](/legacyfs/online/images/kb_8145_1.png)
Welcome !
WARNING: File System Check Recommended! Unsafe reboot may have caused inconsistency in disk drive.
It is strongly recommended that you check file system consistency before proceeding.
Please run 'execute disk scan 1'
Note: The device will reboot and scan during startup. This may take up to an hour.
Scope
FortiGate.
Solution
The file system checks dialogue offers the option to restart the unit and perform a file system check or, if desired, to be reminded later to act as a maintenance window.
File System check is a feature that checks if the unit was not shut down properly.
It will do a disk scan when the system boots up to avoid any potential file system errors.
In fact, if the unit was shutdown without using the proper command (execute shutdown), during the booting sequence, the FortiGate will check internal files for this log event and, if it cannot find it, the message will be shown.
This behavior is designed to secure the disk and file system integrity.
In case of a power loss, data might not be fully committed to a disk write but has been written in parts.
The state of data is then not consistent and this could cause issues.
It is not possible to disable the message but it is possible to automatically run the file system check with the option from GUI, System (Global VDOM) -> Settings -> Auto file system check. Set it to enable.
Automatic file system check can also be enabled from CLI using the below command:
config system global
set autorun-log-fsck enable
end
As the description says:
In the event of a power interruption, automatically check the file system for any errors during boot-up.
This will increase the boot time but is recommended to avoid leaving errors undetected.
The message should no longer be seen once the following two actions have been completed:
- Check the file system.
- Reboot of the unit.
Example of the process from the console:
Following an electricity outage, users will receive the message 'File System Check Recommended!'.
FG6H1E-3 login: admin
Password:
Welcome!
WARNING: File System Check Recommended! An unsafe reboot may have caused an inconsistency in the disk drive.
It is strongly recommended that you check the file system consistency before proceeding.
Please run 'execute disk scan 1'
Note: The device will reboot and scan the disk during startup. This may take up to an hour.
FG6H1E-3 # execute disk scan 1
scan requested for: device=/dev/sda1 1/SSD1 status=enable media-status=enable
This action requires the unit to reboot.
Do you want to continue? (y/n)y
Performing scan on the requested disk(s) and rebooting, please wait...
FG6H1E-3 # Scanning the disk...
- unmounting /data2 : ok
- unmounting /var/log : ok
- unmounting /var/storage/SSD2-WANOPTXX805C06B2 : ok
Scanning /dev/sda1. Please wait ...
Scanning /dev/sda1... (100%)
done.
Finished scanning 1 device in 18.21 seconds.
The system is going down NOW !!
Please stand by while rebooting the system.
Restarting system.
FortiGate-601E (21:11-08.13.2019)
Ver:05000006
Serial number:FG6H1ETB20XXXXXX
RAM activation
CPU(00:000906ea bfebfbff): MP initialization
CPU(01:000906ea bfebfbff): MP initialization
CPU(02:000906ea bfebfbff): MP initialization
CPU(03:000906ea bfebfbff): MP initialization
CPU(04:000906ea bfebfbff): MP initialization
CPU(05:000906ea bfebfbff): MP initialization
CPU(06:000906ea bfebfbff): MP initialization
CPU(07:000906ea bfebfbff): MP initialization
CPU(08:000906ea bfebfbff): MP initialization
CPU(09:000906ea bfebfbff): MP initialization
CPU(0a:000906ea bfebfbff): MP initialization
CPU(0b:000906ea bfebfbff): MP initialization
Total RAM: 16368MB
Enabling cache...Done.
Scanning PCI bus...Done.
Allocating PCI resources...Done.
Enabling PCI resources...Done.
Zeroing IRQ settings...Done.
Verifying PIRQ tables...Done.
Boot up, boot device capacity: 15272MB.
Press any key to display configuration menu...
.............................
Reading boot image 3014579 bytes.
Initializing firewall...
System is starting...
FG6H1E-3 login: admin
Password:
Welcome!
FG6H1E-3 #
The message does not appear once the check is done and the unit is rebooted.
If an HA cluster is operated, operate on the slave unit, then force a failover and operate again on the slave unit.
The above commands are available only for devices with Hard disks:
UKLHNUTM1 # get hardware status
Model name: FortiGate-201F
ASIC version: CP9
ASIC SRAM: 64M
CPU: Intel(R) Xeon(R) CPU D-1627 @ 2.90GHz
Number of CPUs: 8
RAM: 7979 MB
Compact Flash: 28738 MB /dev/sda
Hard disk: 457862 MB /dev/sdb <-------
USB Flash: not available
Network Card chipset: Intel(R) Gigabit Ethernet Linux Driver (rev.0003)
Network Card chipset: FortiASIC NP6XLITE Adapter (rev.)
After checking the disk list for all the partitions:
UKLHNUTM1 # exec disk list
Disk SSD ref: 16 447.1GiB type: SSD [ATA INTEL SSDSC2KB48] dev: /dev/sdb
partition ref: 17 440.1GiB, 439.0GiB free mounted: Y label: LOGUSEDXF21F7069 dev: /dev/sdb1 start: 2048
UKLHNUTM1 # exec disk scan 17 <- this is for partition 17.
scan requested for: device=/dev/sdb1 17/SSD status=enable media-status=enable
This action requires the unit to reboot.
Do you want to continue? (y/n)
- Mark as Read
- Mark as New
- Bookmark
- Permalink
- Report Inappropriate Content
The number referenced by 'execute disk scan' is specific to the platform, example below for FGT101F for which it is 259:
FortiGate-101F (global) # execute disk list
Disk Internal ref: 258 447.1GiB type: SSD [ATA Micron_5200_MTFD] dev: /dev/sda
partition ref: 259 440.1GiB, 439.0GiB free mounted: Y label: LOGUSEDX0661E0CF dev: /dev/sda1 start: 2048 .
