Troubleshooting Tip: How to troubleshoot a 'Port1 not enabled' issue when FortiSwitch is offline on FortiSwitch Manager

[pprince]

Description	This article describes how to troubleshoot the 'Port1 not enabled' issue when FortiSwitch is offline on FortiSwitch Manager. Below is an example of the error:  FSWMVMTM24000XXX # execute switch-controller get-conn-status Managed-devices in current vdom root: FortiLink interface : port1 SWITCH-ID VERSION STATUS FLAG ADDRESS JOIN-TIME NAME S424ENTF2300XXXX N/A Authorized/Down 3 N/A - Flags: C=config sync, U=upgrading, S=staging, D=delayed reboot pending, E=config sync error, 3=L3 Managed-Switches: 1 (UP: 0 DOWN: 1 MAX: 10000) FSWMVMTM24000XXX # execute switch-controller diagnose-connection S424ENTF230XXXX Fortilink interface ... OK port1 enabled NTP server ... FAIL port1 not enabled NTP server sync ... OK synchronized: yes, ntpsync: enabled, server-mode: disabled ipv4 server(ntp2.fortiguard.com) 208.91.112.62 -- reachable(0xff) S:3 T:119 selected server-version=4, stratum=2 reference time is eadb398f.878b502f -- UTC Sun Nov 10 13:54:23 2024 clock offset is 0.333997 sec, root delay is 0.207062 sec root dispersion is 0.014023 sec, peer dispersion is 1418 msec ipv4 server(ntp1.fortiguard.com) 208.91.112.63 -- reachable(0xff) S:3 T:127 server-version=4, stratum=2 reference time is eadb398f.878b502f -- UTC Sun Nov 10 13:54:23 2024 clock offset is 0.336433 sec, root delay is 0.207062 sec root dispersion is 0.014038 sec, peer dispersion is 1168 msec ipv4 server(ntp2.fortiguard.com) 208.91.112.60 -- reachable(0xff) S:3 T:143 server-version=4, stratum=2 reference time is eadb398f.878b502f -- UTC Sun Nov 10 13:54:23 2024 clock offset is 0.337116 sec, root delay is 0.207062 sec root dispersion is 0.014053 sec, peer dispersion is 1311 msec ipv4 server(ntp1.fortiguard.com) 208.91.112.61 -- reachable(0xff) S:3 T:107 server-version=4, stratum=2 reference time is eadb398f.878b502f -- UTC Sun Nov 10 13:54:23 2024 clock offset is 0.336218 sec, root delay is 0.207062 sec root dispersion is 0.014023 sec, peer dispersion is 828 msec HA mode ... disabled No CAPWAP IP address retrieved for FortiSwitch S424ENTF23004620 CAPWAP Remote Address : N/A Status ... Idle
Scope	All versions of  FortiSwitch and FortiSwitch Manager.

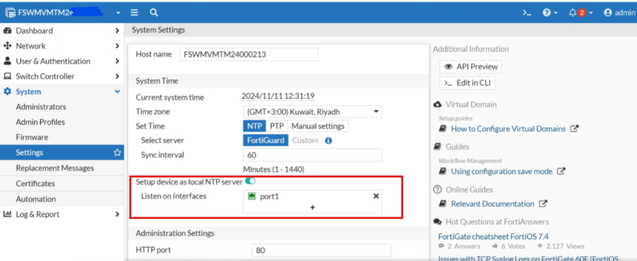

Solution	Refer to the documentation (fortiswitch-manager/7.2.4/administration-guide) to configure FortiSwitch over a layer-3 network to manage FortiSwitch on FortiSwitch Manager. Login to the FortiSwitch Manager CLI and configure the following settings: config system ntp     set interface "port1" end Use the GUI to configure the same or verify the setting that Port1 is added as the listening interface for NTP: Go to Systems -> Settings -> Listen on Interface -> add Port1.   Note: The FortiSwitch Manager VM uses port1 to communicate by default and must be configured with an IP address and administrative access.
