Technical Tip: How to check for missed spam emails in FortiMail

[shin311]

Description	This article describes a procedure to investigate cases where spam emails are not correctly detected and filtered by FortiMail. It explains how to analyze session information and cross-search logs to determine the reason why spam classification did not occur as expected.
Scope	This procedure applies to administrators and support engineers who manage FortiMail instances and need to investigate missed spam detection incidents. The steps apply to FortiMail environments using FortiGuard AntiSpam services.

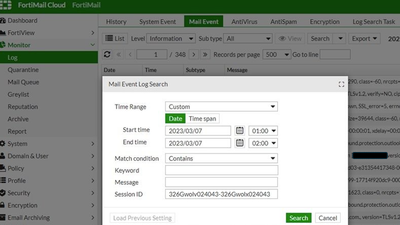

Solution	Extract session information from the sample. The ESMTP ID will appear as 326Gwolv024043-326Gwolx024043. It is recommended to search using only the first part, 326Gwolv024043, as it yields better results. Log in to the user's FortiMail instance and search using the session ID. Select the session ID and review the cross-search log. Check the reason recorded in the cross-search log. For example: STARTTLS=server, relay=****.**.****.jp [***.***.***.***], version=TLSv1.2, verify=NO, cipher=ECDHE-RSA-AES256-GCM-SHA384, bits=256/256 from=<*******=************=2jr0ird=424=****.****=********.*****@****. FortiGuard-AntiSpam identified spam IP: **.**.**.**, score: 3 to=****.********@********.*****, mailer=bulk, stat=sent In this case, 'FortiGuard-AntiSpam identified spam IP: **.**.**.**, score: 3' indicates that the email is judged as spam based on the IP address. The score threshold can be configured via CLI commands: config system fortiguard antispam     set threshold-ip-connect <1,2,3> end
