Description
This article describes how to set up and maintain an IKEv2 Site-to-Site IPsec VPN between a FortiGate and StrongSwan on Ubuntu Linux.
Scope
FortiGate.
Solution
Once the configuration is complete, the VPN tunnel may not establish as expected due to various underlying issues. Effective troubleshooting is essential to identify the root cause and ensure stable VPN connectivity.
Topology:
- FortiGate WAN IP: 172.16.24.16.
- Linux WAN IP: 172.16.24.133.
Troubleshooting on FortiGate:
Verify whether the StrongSwan VPN peer IP (e.g., 172.16.24.133) is reachable by sending ICMP echo requests (ping). This helps confirm basic network connectivity between the VPN endpoints before further IPsec negotiation is attempted.
Verify that routes are present on the FortiGate.
- Verify if phase1 is up or not:
erbium-kvm56 # diagnose vpn ike gateway list
vd: root/0
name: FGT_to-strong
version: 2
interface: port3 5
addr: 172.16.24.16:500 -> 172.16.24.133:500
tun_id: 172.16.24.133/::172.16.24.133
remote_location: 0.0.0.0
network-id: 0
transport: UDP
created: 4s ago
pending-queue: 0
PPK: no
IKE SA: created 1/1
IPsec SA: created 1/1
id/spi: 36 b5d29ca1204e948b/0000000000000000
direction: initiator
status: connecting, state 3, started 4s ago --> phase1 itself is down.
- Since phase1 itself is down, even phase2 will show as down:
erbium-kvm56 # diagnose vpn tunnel list
list all ipsec tunnel in vd 0
------------------------------------------------------
name=FGT_to-strong ver=2 serial=3 172.16.24.16:0->172.16.24.133:0 nexthop=0.0.0.0 tun_id=172.16.24.133 tun_id6=::172.16.24.133 status=down dst_mtu=0 weight=1
bound_if=5 real_if=5 lgwy=static/1 tun=intf mode=auto/1 encap=none/552 options[0228]=npu frag-rfc run_state=0 role=primary accept_traffic=1 overlay_id=0
proxyid_num=1 child_num=0 refcnt=3 ilast=42950434 olast=42950434 ad=/0
stat: rxp=0 txp=0 rxb=0 txb=0
dpd: mode=on-demand on=0 status=fail idle=20000ms retry=3 count=0 seqno=0
natt: mode=none draft=0 interval=0 remote_port=0
fec: egress=0 ingress=0
proxyid=FGT_to-strong proto=0 sa=0 ref=2 serial=1 auto-negotiate
src: 0:10.2.0.0-10.2.255.255:0
dst: 0:10.1.0.0-10.1.255.255:0
- Debug flow can be run on the FortiGate:
erbium-kvm56 # diagnose debug application ike -1
erbium-kvm56 # diagnose debug enable
erbium-kvm56 # ike 0:FGT_to-strong:39: out ED9CB672C5B34F4C00000000000000002120220800000000000001B8220000300000002C010100040300000C0100000C800E01000300000802000005030000080300000C000000080400000E28000108000E00006BD47390E87744C4C2895EB5BA904FD0239BA3BBF39CD9362C6E72F50E3EFE1933B6CBD206FD4EB9204AAA197B166F7F4DD02EAFBA0D268435A89397F4D3548B2EA6D5B04193ABF49468FC7A34222FC743D649F3B2ACBEDB91B3FD8AB47AE80D98083393146CC57D88456401876D7ACDE211ACE8C77A042781AA333B60450F7F52B0F6338E5E7BF2B4CBB32A9CFD9CE337E1ADFBF8BA030F8C3DE743B6EA31D1D31AF5109F3A04D638B8FE981EE291C0E82D6EB9F76A7C487D820B83C578C932F9F098B4E73284FEF211F0D54A34B569C1C87BC42ACD45ED82B53681B85D6936DAF382E35F73C370222AFFAABEF02E4FB02A3E0C8FD91884B97CC25324D80F4929000024E7B0F679BF8BC3E3D183078DC91CC34F26B637DF4BE6DF742A6DBF3A8C8CEA0D2900001C00004004C8AB8AC58F97DACE9E041A349EDAC96ACBA3105C2900001C00004005C5C7DBB2350EF623E76CC3637EBACE7F6DC9D3F1000000080000402E
ike V=root:0:FGT_to-strong:39: sent IKE msg (RETRANSMIT_SA_INIT): 172.16.24.16:500->172.16.24.133:500, len=440, vrf=0, id=ed9cb672c5b34f4c/0000000000000000, oif=5
ike V=root:0:FGT_to-strong:FGT_to-strong: IPsec SA connect 5 172.16.24.16->172.16.24.133:0
ike V=root:0:FGT_to-strong:FGT_to-strong: using existing connection
ike V=root:0:FGT_to-strong:FGT_to-strong: config found
ike V=root:0:FGT_to-strong: request is on the queue
ike V=root:0:FGT_to-strong:FGT_to-strong: IPsec SA connect 5 172.16.24.16->172.16.24.133:0
ike V=root:0:FGT_to-strong:FGT_to-strong: using existing connection
ike V=root:0:FGT_to-strong:FGT_to-strong: config found
ike V=root:0:FGT_to-strong: request is on the queue
ike :shrank heap by 159744 bytes
ike V=root:0:FGT_to-strong:FGT_to-strong: IPsec SA connect 5 172.16.24.16->172.16.24.133:0
ike V=root:0:FGT_to-strong:FGT_to-strong: using existing connection
ike V=root:0:FGT_to-strong:FGT_to-strong: config found
ike V=root:0:FGT_to-strong: request is on the queue
Here, the SA_INIT packet is being sent out.
To stop debugging:
diagnose debug disable
- Take a packet capture on FortiGate:
2025-05-11 12:48:11.317402 port3 out 172.16.24.16.500 -> 172.16.24.133.500: udp 440
2025-05-11 12:48:11.322456 port3 out 172.16.24.16.500 -> 172.16.24.133.500: udp 440
Here it can be seen that FortiGate is sending a UDP 500 packet out but does not get any response.
Note:
Verify if the UDP in and out packet is allowed on the Linux machine and no blockage from the ISP side. Post allowing proper protocol, the tunnel will show up.
On a Linux machine:
- Check if the StrongSwan service is running:
fortinet@tau-kvm168:~$ systemctl status strongswan-starter.service
strongswan-starter.service - strongSwan IPsec IKEv1/IKEv2 daemon using ipsec.>
Loaded: loaded (/usr/lib/systemd/system/strongswan-starter.service; enable>
Active: active (running) since Sun 2025-05-11 09:19:07 CEST; 7min ago
Main PID: 2889 (starter)
Tasks: 18 (limit: 2270)
Memory: 5.1M (peak: 7.3M)
CPU: 87ms
CGroup: /system.slice/strongswan-starter.service
\u251c\u25002889 /usr/lib/ipsec/starter --daemon charon --nofork
\u2514\u25002896 /usr/lib/ipsec/charon
- Check the IPsec Status:
root@tau-kvm168:/home/fortinet# ipsec status
Security Associations (1 up, 0 connecting):
strongswan-to-fortigate[2]: ESTABLISHED 8 minutes ago, 172.16.24.133[172.16.24.133]...172.16.24.16[172.16.24.16]
strongswan-to-fortigate{2}: INSTALLED, TUNNEL, reqid 1, ESP in UDP SPIs: ca4cffbb_i d2456641_o
strongswan-to-fortigate{2}: 10.1.0.0/16 === 10.2.0.0/16
- Packet Captures on Linux:
sudo tcpdump -nnvvv -i enp4s0 host 172.16.24.16 and port 500 or 4500 -w ikev2-capture.pcap

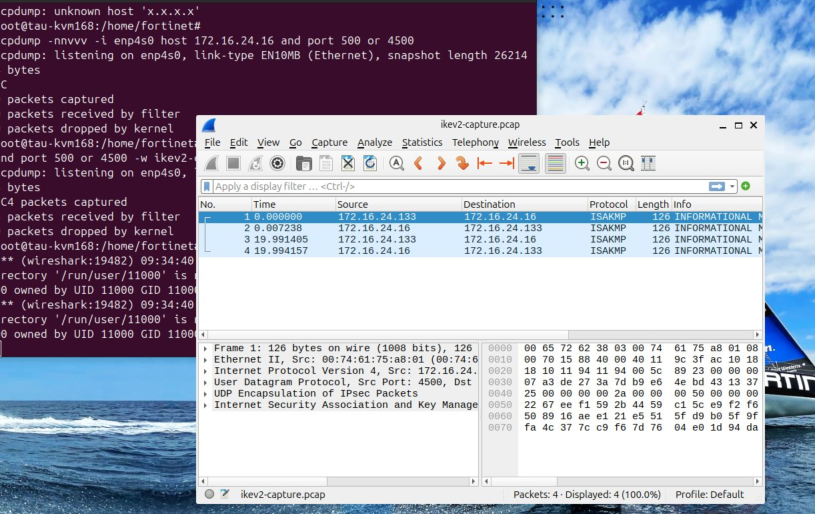

Run Wireshark ikev2-capture.pcap in the terminal:
- Check the loaded IPSEC config:
sudo ipsec statusall
- Manually bring up the tunnel:
sudo ipsec up <connection-name>
To view a list of connections:
swanctl --list-connections
For the configuration, the KB article below can be followed: Technical Tip: FortiGate Site-to-Site VPN with Strongswan on Ubuntu.
