Description
This article describes how to troubleshoot FQDN traffic hitting incorrect policies.
Scope
FortiGate.
Solution
Traffic intended for specific allowed URLs/FQDNs is not hitting the top-priority policy and is instead being matched with another policy.

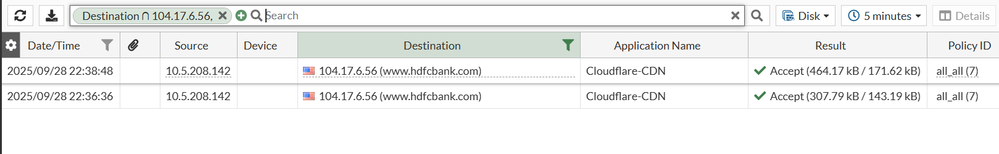

Even though a dedicated FQDN policy is on top, the traffic matches the all policy. It is because the wildcard FQDN is not resolved to the IP address:
erbium-kvm56 # diagnose firewall fqdn list-all | grep -A3 "hdfcbank"
fqdn_u 0x56454cc7ea3b *hdfcbank.com: type:(1) ID(929) count(0) generation(1) data_len:0 flag: 1
Total ip fqdn range blocks: 0.
Total ip fqdn addresses: 0.
The PC is configured to use 8.8.8.8 as its DNS server, and with Chrome's 'Use Secure DNS' enabled by default, DNS traffic to 8.8.8.8 is encrypted via DoH, resulting in encrypted DNS traffic on the FortiGate.
On the FortiGate ('FGT'), a wildcard FQDN address object (e.g., .example.com) is used in the firewall policy. For proper functionality, the FortiGate must receive the DNS response (A/AAAA records) to resolve the FQDN to IP addresses and store them in the DNS database. If the client browser has 'Use Secure DNS' enabled (e.g., DNS over HTTPS (DoH) or DNS over TLS (DoT)), DNS queries will be encrypted when passing through the FortiGate, as a result, the FortiGate will not see the DNS response and it does not map the domain resolution, and the wildcard FQDN object may not function as intended. Therefore, the 'Use Secure DNS' option should be disabled on client browsers when policies depend on wildcard FQDN objects.
Solution that can be implemented in this scenario.
- The article below can be referred to for disabling Use Secure DNS on the browser.
Disable DNS over HTTPS on enterprise browsers - For enforcing settings on client PCs, a GPO can be pushed for Active Directory–joined devices, Intune/Endpoint Manager can be used for cloud-managed PCs, and registry edits or script pushes can be applied on non-domain devices.
- Private DNS can be set up as the queries are received via plain DNS (UDP/53). DOH can be disabled on the private DNS server. To allow the FortiGate to inspect DNS responses, private DNS queries should be routed through the FortiGate.
- FortiGate can also be configured as a recursive DNS server to handle and resolve the queries directly.
Once the FortiGate was configured as a recursive DNS server and the FortiGate gateway IP was set as the DNS server on clients, the wildcard FQDN policy began functioning correctly.
erbium-kvm56 # diagnose firewall fqdn list-all | grep -A5 "hdfcbank"
fqdn_u 0x56454cc7fa1c *hdfcbank.com: type:(1) ID(929) count(2) generation(2) data_len:26 flag: 1
ip list: (1 ip in total)
ip: 104.17.6.56
ip list: (1 ip in total)
ip: 104.16.36.67
Total ip fqdn range blocks: 2.
Note:
To enable FortiGate to handle DNS-over-HTTPS (DoH) traffic, Deep Packet Inspection (DPI) can be used to decrypt the DNS queries. Even with DPI enabled, the DPI certificate must be installed on all client machines to allow proper inspection and resolution of the DNS traffic.
