Technical Tip: How to restore a configuration backup on a FortiGate HA cluster

[aahmadbasri]

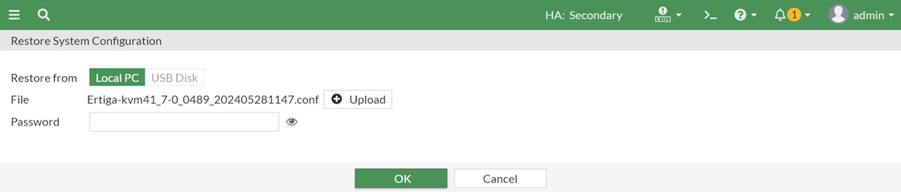

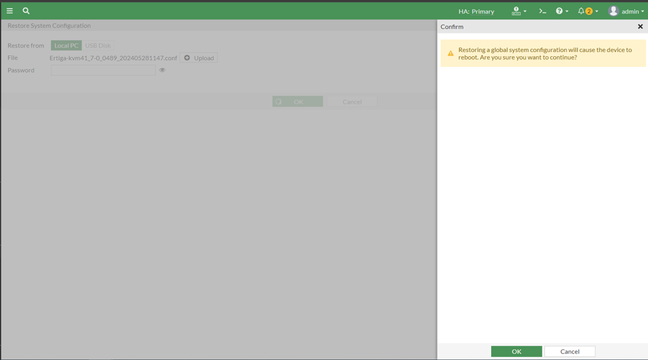

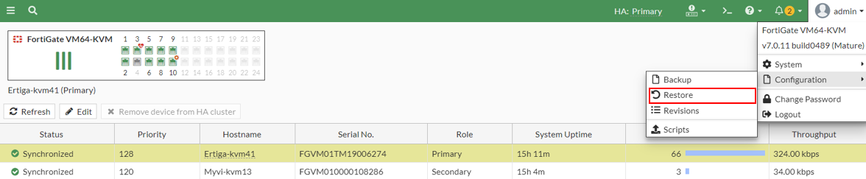

Description	This article describes how to restore a configuration backup on a FortiGate HA cluster, as well as the expected behaviors when doing so.
Scope	FortiGate, HA.
