Technical Tip: How to configure IPv6 with statefull DHCPv6 server

[sbabu]

Description	This article describes how to configure IPv6 with a stateful DHCPv6 server.
Scope	FortiGate.

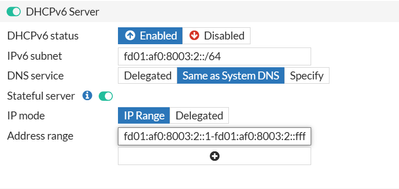

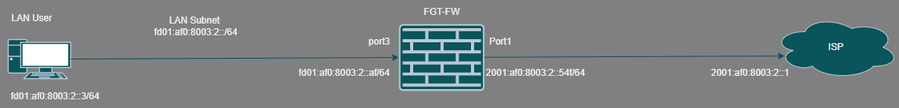

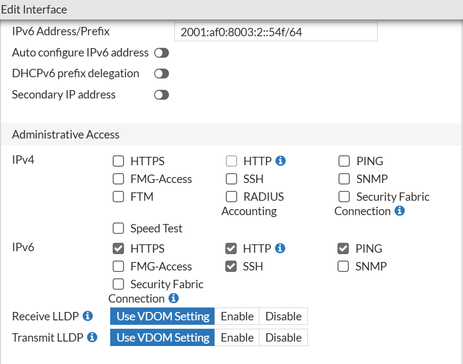

Solution	Topology: Enable IPv6 in GUI: Go to System -> Feature Visibility -> Core Features, enable IPv6, and select 'Apply'. Define the IPv6 address on Port 1 as shown below: FGT-A(port1) # show     config system interface         edit "port1"             set vdom "root"             set ip 10.109.21.79 255.255.240.0             set allowaccess ping https ssh http telnet fgfm             set type physical             set alias "WAN"             set snmp-index 1                 config ipv6                     set ip6-address 2001:af0:8003:2::54f/64                     set ip6-allowaccess ping https ssh                 end             next         end Define a default route towards ISP.: FGT-A(1) # show     config router static6         edit 1             set gateway 2001:af0:8003:2::1             set device "port1"         next     end Once the Route is defined, try to ping the gateway and see if the gateway is reachable from the port1 interface: FGT-A# exec ping6 2001:af0:8003:2::1 PING 2001:af0:8003:2::1(2001:af0:8003:2::1) 56 data bytes 64 bytes from 2001:af0:8003:2::1: icmp_seq=1 ttl=255 time=1.05 ms 64 bytes from 2001:af0:8003:2::1: icmp_seq=2 ttl=255 time=0.480 ms 64 bytes from 2001:af0:8003:2::1: icmp_seq=3 ttl=255 time=0.430 ms Once the gateway is reachable, define the IPv6 DNS server: FGT-A (dns) # show     config system DNS         set primary 1.1.1.1         set secondary 8.8.8.8         set ip6-primary 2001:4860:4860::8888         set ip6-secondary 2606:4700:4700::1111     end Configure LAN IPv6 subnet on port3 and enable DHCPv6 stateful server: config system interface     edit "port3"         set vdom "root"         set ip 10.132.5.79 255.255.240.0         set allowaccess ping https ssh http telnet fgfm         set type physical         set alias "LAN"         set snmp-index 3             config ipv6                 set ip6-address fd01:af0:8003:2::af/64                 set ip6-allowaccess ping https ssh                 set ip6-send-adv enable                 set ip6-manage-flag enable                 set ip6-other-flag enable                     config ip6-prefix-list                         edit fd01:af0:8003:2::/64                     next                 end             end         next     end DHCPv6 Stateful config: FGT-A(server) # show     config system dhcp6 server         edit 1              set dns-service default              set subnet fd01:af0:8003:2::/64              set interface "port3"                  config ip-range                      edit 1                      set start-ip fd01:af0:8003:2::1                      set end-ip fd01:af0:8003:2::ffff                  next              end          next       end To specify the DNS server with IPv6, the default mode in dns-service needed to change. Once the option is set to specify, the specific DNS server can be set as below: config system dhcp6 server     edit 1         set dns-service specify         set dns-server1 2606:4700:4700::1111         set dns-server2 2606:4700:4700::1001         end     next end Configure IPv6 firewall policies to allow traffic from LAN to WAN: config firewall policy     edit 1         set name "LAN ipv6"         set uuid efa28f06-4af6-51ef-5593-ddd60f598b8c         set srcintf "port3"         set dstintf "port1"         set action accept         set srcaddr6 "fd01:af0:8003:2::/64"         set dstaddr6 "all"         set schedule "always"         set service "ALL"         set logtraffic all         set nat enable     next end To verify the DHCP-assigned IP address, run the following command: exec dhcp6 lease-list port3 Interface DUID IAID IP/Prefix Expiry port3 00:01:00:01:2e:35:1b:a8:00:66:6c:69:17:01 67135084 fd01:af0:8003:2::1 Fri Aug 2 04:08:24 2024 port3 00:01:00:01:2e:33:78:a0:00:6b:72:79:12:01 33581938 fd01:af0:8003:2::2 Fri Aug 2 04:09:14 2024 port3 00:01:00:01:2e:35:1b:5e:00:70:65:74:07:01 67137637 fd01:af0:8003:2::3 Fri Aug 2 04:12:16 2024 Run the below command to check the IPv6 route table: get router info6 routing-table database routing table for VRF=0 S *> ::/0 [10/0] via 2001:af0:8003:2::1, port1, 19:12:47, [1024/0] C *> ::1/128 via ::, root, 1d01h43m C *> 2001:af0:8003:2::/64 via ::, port1, 19:13:12 C *> fd01:af0:8003:2::/64 via ::, port3, 02:33:49 Related article:  Technical Tip: How to use debug flow and sniffer to capture IPv6 traffic
