Technical Tip: How to configure IPsec Site-to-Site VPN between FortiGate and Opnsense

[xshkurti]

Description	This article describes how to configure S2S IPsec VPN between FortiGate device and Opnsense appliance.
Scope	FortiOS.

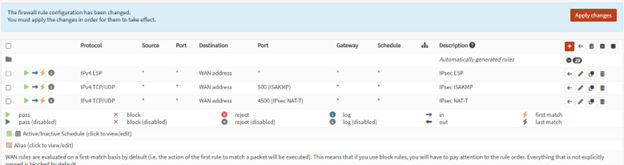

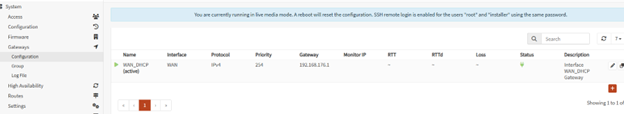

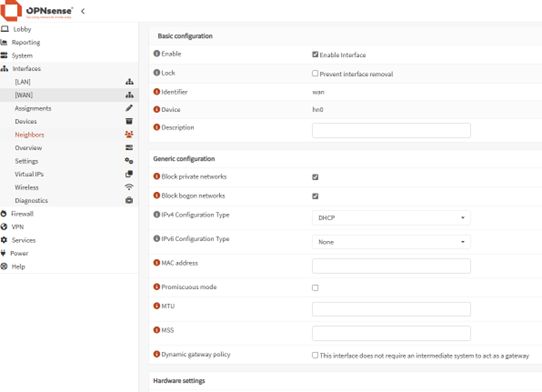

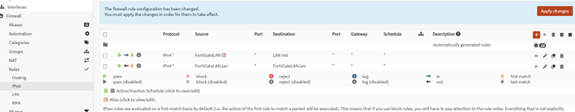

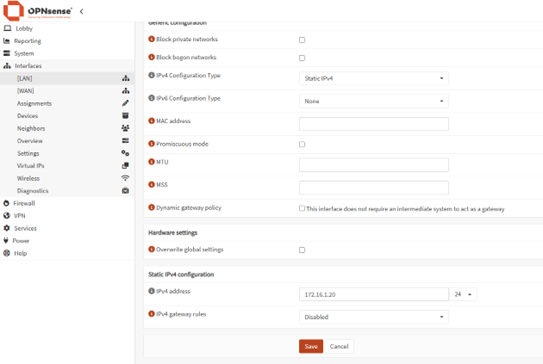

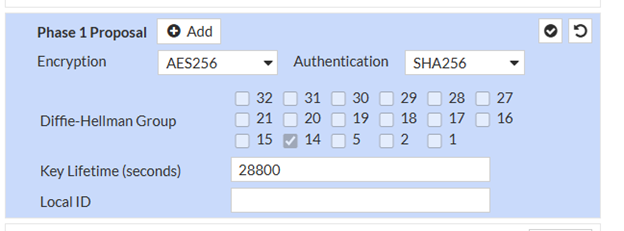

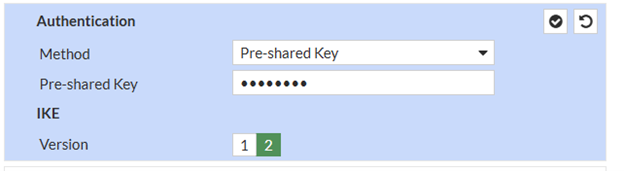

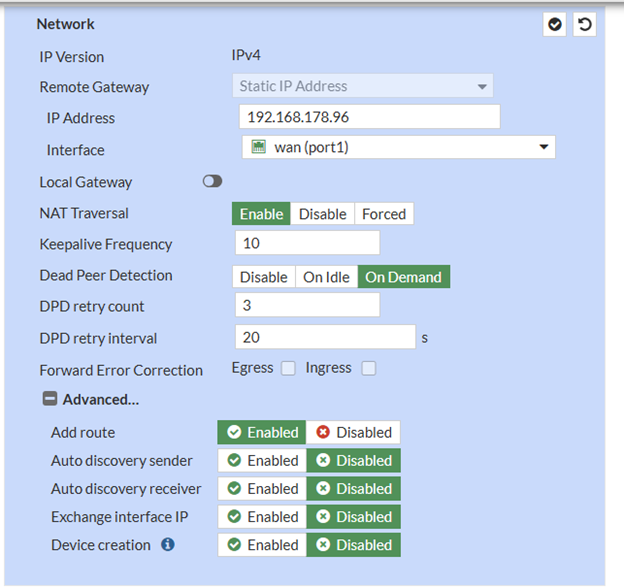

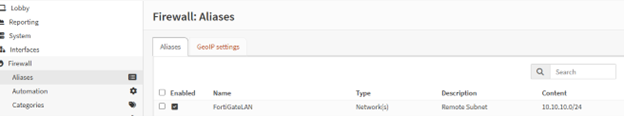

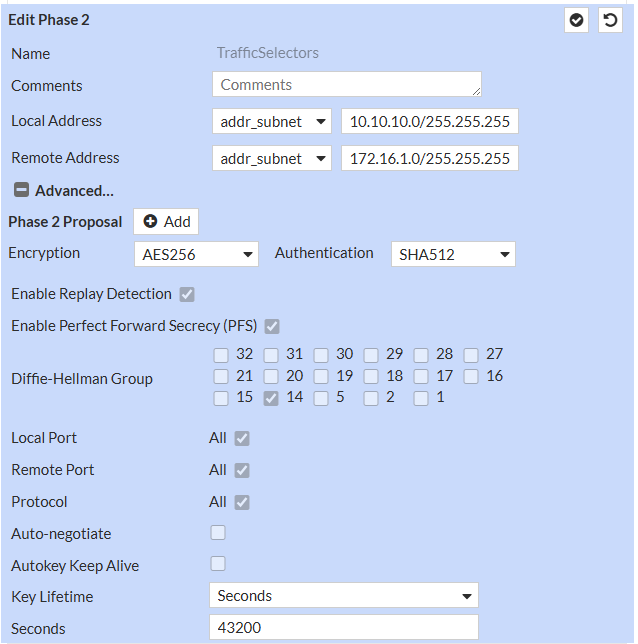

Solution	The lab environment consists of 1 FortiGate and 1 Opnsense device, both installed as virtual appliances on top of Hyper-V More details on how to install FortiGate VM on Hyper-V can be found at this link: Technical Tip: Install FortiGate-VM on Hyper-V and apply Permanent Trial License Steps on how to set up Opnsense on top of Hyper-V can be found in the vendor knowledge base. This article does not cover this topic. Below are the configurations that should be checked prior to setup ipsec tunnel. Setup Opnsense:  Interface configuration - Interfaces. LAN port with static IP address 172.16.1.20. WAN port with DHCP configuration (static config is similar to LAN port).                               Routes and default route. System -> Gateways -> Configuration: Firewall rules to allow IPsec traffic through WAN port. Create new rules under Firewall -> Rules -> WAN to allow IPsec traffic.                                    Phase 1: Interface configuration under VPN -> IPsec -> Tunnel Settings and press '+' under the Phase1 section. General information for phase1-interface. Connection method: default. Key Exchange version: V2. Internet Protocol: IPv4. Interface: WAN. Remote gateway: 192.168.179.54. Description: Connection to FortiGate WAN IP. Phase1-proposal (Authentication). Authentication method: Mutual PSK. My identifier: My IP address. Peer identifier: Peer IP address. Pre-Shared Key: pre-shared key. Phase1-proposal (Algorithms). Encryption algorithm: AES. Hash algorithm: SHA512. DH key group: 14 (2048 bit). Lifetime: 28800 sec. Advanced options. Rekey, NAT-T, and DPD can be configured under this section. For this test, DPD and NAT Traversal will be enabled. Phase2 Interface configuration under VPN -> IPSEC -> Tunnel Settings and press + in front of phase1 that was just created. General settings: Mode: Tunnel IPv4. Description: LocalTraffic-to-FortigateInternalSubnet. Local Network. Type: LAN Subnet. Remote Network. Type: Network. Address: 10.10.10.0/24. Phase2 proposal SA-KeyExchange. The final view should be like this:                                                       Create firewall addresses for local and remote subnets to link them in firewall rules. Firewall: Aliases. Name: FortiGateLan. Type: Networks. Content: 10.10.10.0/24.                                      Firewall Rules to allow traffic from the local network to the remote network and the return traffic as well Firewall -> Rules -> IPsec. Create 2 rules for in and out traffic.                                               Setup FortiGate IPsec. config vpn ipsec phase1-interface     edit "ToOpnsense"         set interface "port1"         set peertype any         set net-device disable         set proposal aes256-sha256         set comments "VPN: ToOpnsense (Created by VPN wizard)"         set dhgrp 14         set wizard-type static-fortigate         set remote-gw 192.168.178.96         set psksecret ENC ******     next end GUI Setup: Phase2 interface: config vpn ipsec phase2-interface     edit "TrafficSelectors"         set phase1name "ToOpnsense"         set proposal aes256-sha512          set dhgrp 14         set src-subnet 10.10.10.0 255.255.255.0         set dst-subnet 172.16.1.0 255.255.255.0     next end Note that if private IP ranges are used for testing purposes, Opensense will block them unless 'Block private networks' under Interfaces –> WAN is disabled. Related document: IPsec VPN tunnels - Fortinet Community
