Description
This article describes how to enable the configuration of policies with multiple source/destination interfaces or 'any' through GUI and CLI.
Useful Links:
Feature visibility
Solution
To enable the feature through the GUI:
Go to System -> Feature Visibility and, under the Additional Features, allow the Multiple Interface Policies and then select Apply.
To enable the feature through the CLI:
config system settings
set gui-multiple-interface-policy enable
end
After enabling the feature, adding multiple interfaces or 'any' in a firewall policy on the GUI is allowed.

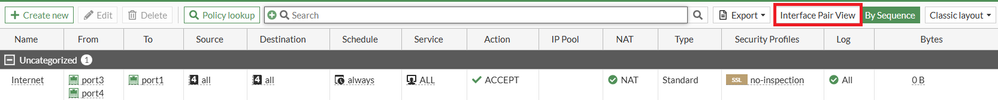

Note: On FortiOS 7.0.x, 7.2.x, and older: putting multiple incoming/outgoing interfaces or using 'any' interface will cause the 'Interface Pair View' to be greyed out as shown below.
