Technical Tip: How to add an SLA target to an existing Health Check

[nathan_h]

Description

This article describes how to add an SLA target to an existing Health Check. Use this SLA target on another SD-WAN rule.

Scope

FortiGate v7.0, v7.2, v7.4.

Solution

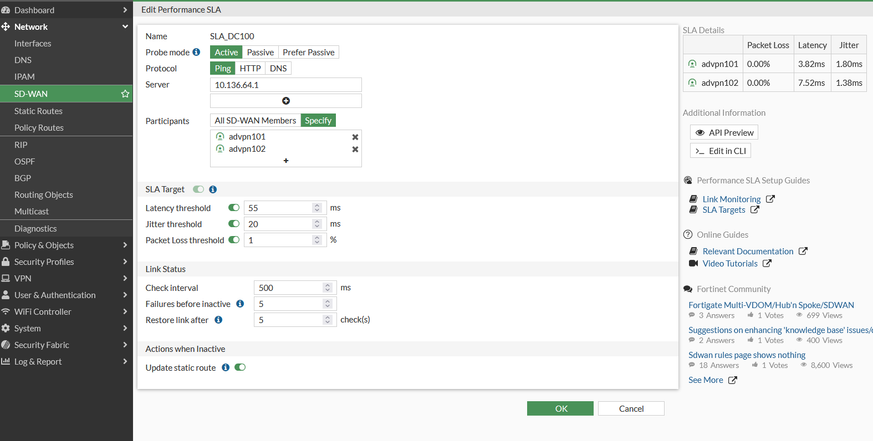

SD-WAN Performance SLA:

SD-WAN Rule:

CLI Configuration:

config system sdwan
    set status enable
    config zone
        edit "sdwan-dc100"
    next
end

config members
    edit 101
        set interface "advpn101"
        set zone "sdwan-dc100"
        set source 10.136.32.16
    next
        edit 102
            set interface "advpn102"
            set zone "sdwan-dc100"
            set source 10.136.32.16
        next
            edit 104
                set interface "advpn104"
                set zone "sdwan-dc100"
            next
        end

config health-check
    edit "SLA_DC100"
        set server "10.136.64.1"
        set embed-measured-health enable
        set members 101 102
            config sla
                edit 1
                    set latency-threshold 55
                    set jitter-threshold 20
                    set packetloss-threshold 1
                next
            end
        next
     end

config service
    edit 2
        set name "SLA2"
        set mode sla
        set dst "192.168.2.22"
        set src "192.168.1.11"
            config sla
                edit "SLA_DC100"
                    set id 1
                next
            end
                set priority-zone "sdwan-dc100"
            next
                edit 1
                    set name "Original"
                    set mode sla
                    set dst "Corporate_subnets"
                    set src "Corporate_subnets"
                        config sla
                            edit "SLA_DC100"
                                set id 1
                            next
                        end
                            set priority-zone "sdwan-dc100"
                        next
                    end
                end

1. Add SLA target on Health check SLA_DC100 via CLI:

FGT-SDW-1 (health-check) # edit SLA_DC100
FGT-SDW-1 (SLA_DC100) # config sla
FGT-SDW-1 (sla) # edit 2
new entry '2' added
FGT-SDW-1 (2) # set latency-threshold 100
FGT-SDW-1 (2) # set jitter-threshold 30
FGT-SDW-1 (2) # set packetloss-threshold 5
FGT-SDW-1 (2) # end
FGT-SDW-1 (SLA_DC100) # end
FGT-SDW-1 (sdwan) # end

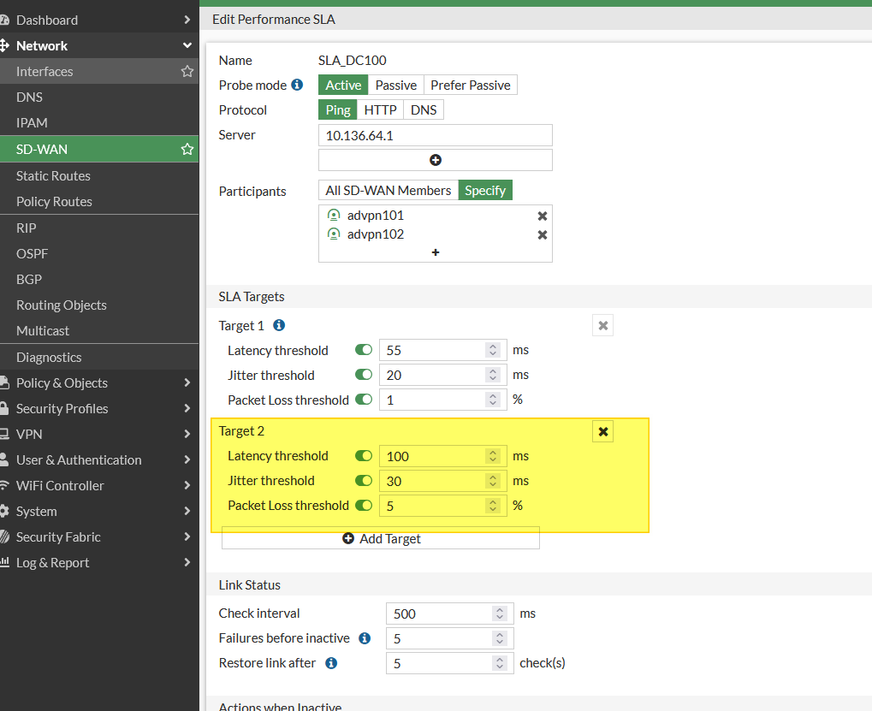

2. GUI will show the 2nd SLA Target:

 

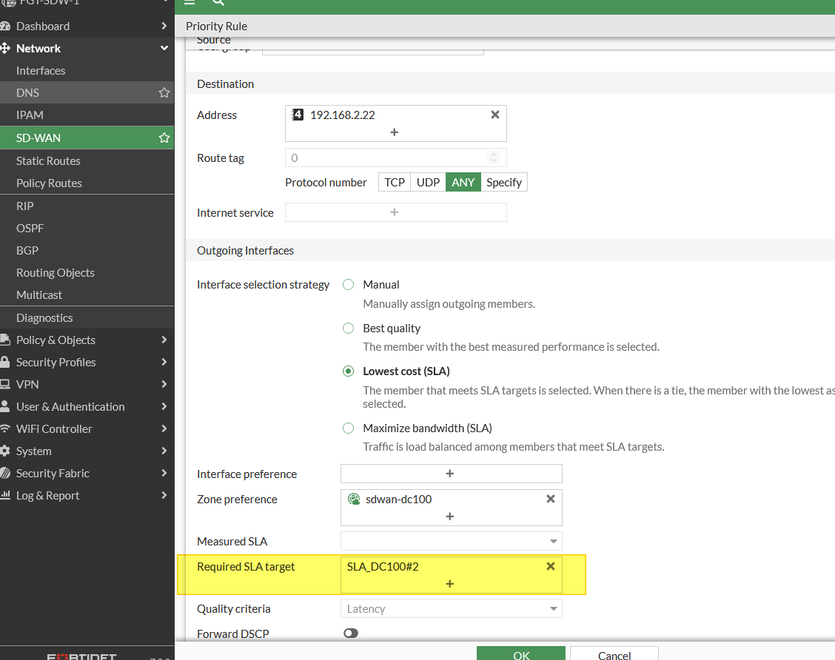

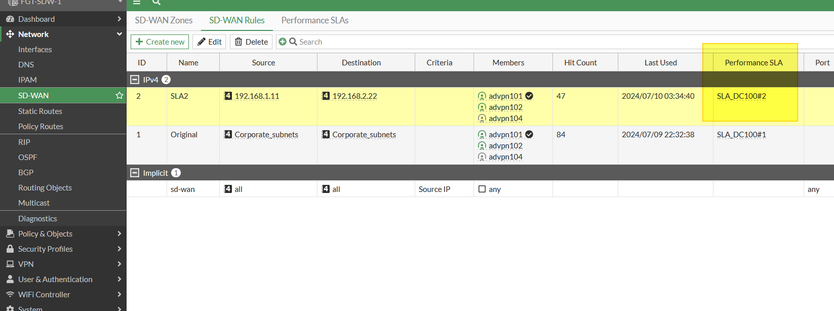

3. It is now possible to use it on another SD-WAN Policy

 

Related document:

SD-WAN Performance SLA with Multiple Servers
