Technical Tip: How to Create a NAT64 Firewall Policy for a VIP

[RobBlenk]

Description	This article describes how to create a NAT 64 firewall policy to allow traffic to a virtual IP on the network.
Scope	FortiOS

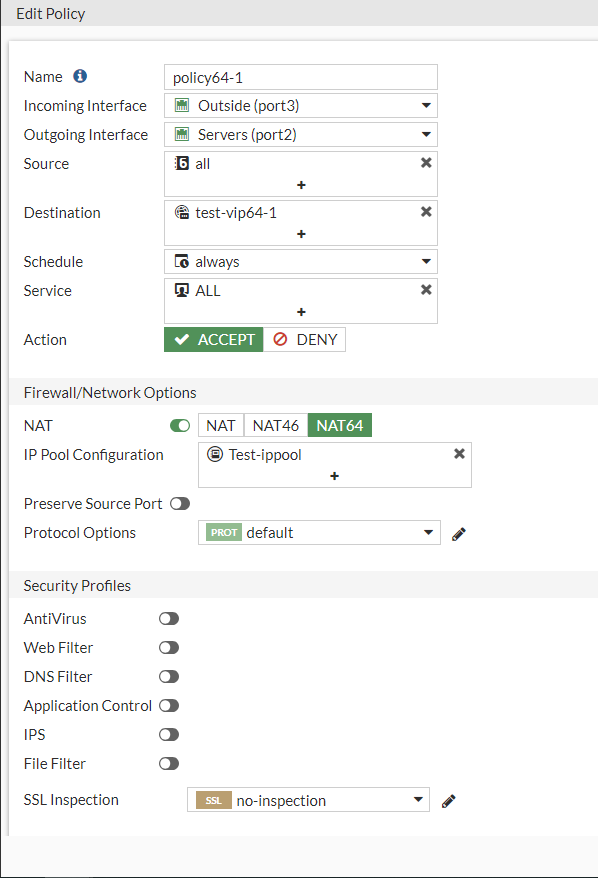

Solution	Step 1: Enable IPv6 in the GUI: Technical Tip: IPv6 support describes how to do that in detail. Step 2: Create a NAT64 VIP object. Note: The external IPv6 address must be different but in the same range as the public address on the external facing interface. In this context, the VIP extip is 2404:a800:2a00::b47 and the public IPv6 address on the interface is 2404:a800:2a00::b46. CLI: config firewall vip6     edit "test-vip64-1"         set uuid bfd1d040-abe9-51ee-a64b-35170902c7b9         set extip 2404:a800:2a00::b47 <----- Ensure that this is not the same as the IP of the WAN.         set nat66 disable         set nat64 enable         set ipv4-mappedip 172.16.150.162     next end Step 3: Create an SNAT IP pool with an IP address that is not the same as the interface IP or not used anywhere else on the network. The 'arp reply' should be enabled for this address. CLI: config firewall ippool     edit "Test-ippool"         set startip 172.16.100.1         set endip 172.16.100.1         set arp-reply enable           set nat64 enable     next end Step 4: Create the firewall policy enabling NAT64 in the NAT section. CLI: config firewall policy     edit 1         set name "policy64-1"         set uuid 0084683e-abf7-51ee-cd9c-fa9e15de6489         set srcintf "port3"         set dstintf "port2"         set action accept         set nat64 enable         set srcaddr "all"         set dstaddr "all"         set srcaddr6 "all"         set dstaddr6 "test-vip64-1"         set schedule "always"         set service "ALL"         set logtraffic all         set auto-asic-offload disable         set ippool enable         set poolname "Test-ippool"     next end Debug flow: 2024-12-30 17:31:02 id=20085 trace_id=21 func=resolve_ip6_tuple_fast line=4840 msg="vd-root:0 received a packet(proto=58, 2001:4860:4861::2:19017->2404:a800:2a00::b47:128) from port3." 2024-12-30 17:31:02 id=20085 trace_id=21 func=resolve_ip6_tuple line=4979 msg="allocate a new session-00000021" 2024-12-30 17:31:02 id=20085 trace_id=21 func=get_vip64_addr line=1178 msg="find DNAT64: IP-172.16.150.162, port-8(fixed port)" 2024-12-30 17:31:02 id=20085 trace_id=21 func=vf_ip6_route_input line=1212 msg="find a route: gw-2001:4860:4860::3 via naf.root err 0 flags 01000001" 2024-12-30 17:31:02 id=20085 trace_id=21 func=fw6_forward_handler line=457 msg="Check policy between port3 -> naf.root" 2024-12-30 17:31:02 id=20085 trace_id=21 func=iprope6_fwd_check line=543 msg="in-[port3], out-[naf.root], skb_flags-00000040, vid-1, app_id: 0, url_cat_id: 0" 2024-12-30 17:31:02 id=20085 trace_id=21 func=__iprope6_check line=1539 msg="gnum-100004, check-ffffffffa010d512" 2024-12-30 17:31:02 id=20085 trace_id=21 func=iprope6_check_one_policy line=1359 msg="checked gnum-100004 policy-1, ret-matched, act-accept" 2024-12-30 17:31:02 id=20085 trace_id=21 func=get_new_addr64 line=1114 msg="find SNAT64: IP-172.16.100.1(from IPPOOL), port-60802" 2024-12-30 17:31:02 id=20085 trace_id=21 func=iprope6_check_one_policy line=1516 msg="policy-1 is matched, act-accept" 2024-12-30 17:31:02 id=20085 trace_id=21 func=iprope6_policy_group_check line=3183 msg="after check: ret-matched, act-accept, flag-08050501, flag2-00204200" 2024-12-30 17:31:02 id=20085 trace_id=21 func=iprope6_fwd_check line=562 msg="after iprope6_captive_check(): is_captive-0, ret-matched, act-accept, idx-1" 2024-12-30 17:31:02 id=20085 trace_id=21 func=iprope6_reverse_dnat_check line=131 msg="in-[port3], out-[naf.root], skb_flags-00000040, vid-1" 2024-12-30 17:31:02 id=20085 trace_id=21 func=__iprope6_check line=1539 msg="gnum-100002, check-ffffffffa010d512" 2024-12-30 17:31:02 id=20085 trace_id=21 func=iprope6_policy_group_check line=3183 msg="after check: ret-no-match, act-accept, flag-00000000, flag2-00000000" 2024-12-30 17:31:02 id=20085 trace_id=21 func=fw6_forward_handler line=591 msg="Allowed by Policy-1: SNAT" 2024-12-30 17:31:02 id=20085 trace_id=21 func=ip6_nat_af_input line=297 msg="nat64 ipv6 received a packet proto=58" 2024-12-30 17:31:02 id=20085 trace_id=21 func=init_ip_session_common line=6046 msg="allocate a new session-0000007e, tun_id=0.0.0.0" 2024-12-30 17:31:02 id=20085 trace_id=21 func=iprope_dnat_check line=5336 msg="in-[naf.root], out-[]" 2024-12-30 17:31:02 id=20085 trace_id=21 func=iprope_dnat_tree_check line=827 msg="len=0" 2024-12-30 17:31:02 id=20085 trace_id=21 func=iprope_dnat_check line=5348 msg="result: skb_flags-02000000, vid-0, ret-no-match, act-accept, flag-00000000" 2024-12-30 17:31:02 id=20085 trace_id=21 func=vf_ip_route_input_common line=2611 msg="find a route: flag=04000000 gw-172.16.150.162 via port2" 2024-12-30 17:31:02 id=20085 trace_id=21 func=iprope_fwd_check line=782 msg="in-[naf.root], out-[port2], skb_flags-02000000, vid-0, app_id: 0, url_cat_id: 0" 2024-12-30 17:31:02 id=20085 trace_id=21 func=__iprope_check line=2272 msg="gnum-100004, check-ffffffffa002c077" 2024-12-30 17:31:02 id=20085 trace_id=21 func=__iprope_check_one_policy line=2025 msg="checked gnum-100004 policy-1, ret-matched, act-accept" 2024-12-30 17:31:02 id=20085 trace_id=21 func=__iprope_user_identity_check line=1814 msg="ret-matched" 2024-12-30 17:31:02 id=20085 trace_id=21 func=__iprope_check_one_policy line=2242 msg="policy-1 is matched, act-accept" 2024-12-30 17:31:02 id=20085 trace_id=21 func=__iprope_check line=2289 msg="gnum-100004 check result: ret-matched, act-accept, flag-08010001, flag2-00006200" 2024-12-30 17:31:02 id=20085 trace_id=21 func=iprope_fwd_check line=819 msg="after iprope_captive_check(): is_captive-0, ret-matched, act-accept, idx-1" 2024-12-30 17:31:02 id=20085 trace_id=21 func=iprope_fwd_auth_check line=838 msg="after iprope_captive_check(): is_captive-0, ret-matched, act-accept, idx-1" 2024-12-30 17:31:02 id=20085 trace_id=21 func=fw_forward_handler line=881 msg="Allowed by Policy-1:"
