Network diagram:
BGP is established between FGT_A and FGT_B.
All LAN routes/subnets are being advertised and received by FGT_B.
FortiGate B:
get route info bgp neighbors 192.168.254.81 routes
VRF 0 BGP table version is 4, local router ID is 192.168.254.82
Status codes: s suppressed, d damped, h history, * valid, > best, i - internal,
S Stale
Origin codes: i - IGP, e - EGP, ? - incomplete
Network Next Hop Metric LocPrf Weight RouteTag Path
*> 10.10.0.0/24 192.168.254.81 0 0 0 100 i <-/1>
*> 10.10.1.0/24 192.168.254.81 0 0 0 100 i <-/1>
*> 10.10.2.0/24 192.168.254.81 0 0 0 100 i <-/1>
*> 10.10.3.0/24 192.168.254.81 0 0 0 100 i <-/1>
Total number of prefixes 4
get route info bgp neighbors 192.168.254.81 advertised-routes
VRF 0 BGP table version is 4, local router ID is 192.168.254.82
Status codes: s suppressed, d damped, h history, * valid, > best, i - internal
Origin codes: i - IGP, e - EGP, ? - incomplete
Network Next Hop Metric LocPrf Weight RouteTag Path
*> 20.20.0.0/24 192.168.254.82 100 32768 0 i <-/->
*> 20.20.1.0/24 192.168.254.82 100 32768 0 i <-/->
*> 20.20.2.0/24 192.168.254.82 100 32768 0 i <-/->
*> 20.20.3.0/24 192.168.254.82 100 32768 0 i <-/->
1. Block/Deny Advertisement of 20.20.0.0/24 and 20.20.1.0/24 from FGT_B to FGT_A.
- Create Prefix-List for block routes. Go to Network -> Routing-Objects -> Create New -> Prefix List.
- Create a rule to permit 20.20.0.0/24 and 20.20.1.0/24. Optionally, set ge and le to make the configuration simpler. See Technical Tip: 'How to combine operators 'ge' and 'le' in prefix-list for route-map for filtering BG....

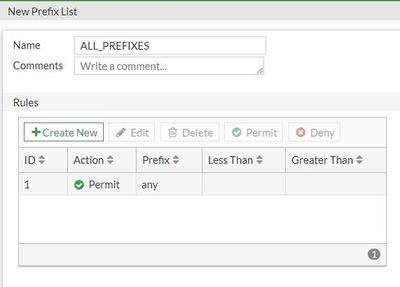

- Create a Prefix-List for Any routes.
- Create Route-Map to deny advertisement for routes 20.20.0.0/24 and 20.20.1.0/24 then Permit other prefixes. Go to Network -> Routing-Objects -> Create New -> Route Map.
- Use the route-map on BGP neighbor configuration in outgoing direction. Go to Network -> BGP -> Neighbor -> Edit Neighbor (IP). Do not forget to select Apply to commit the changes.
- Soft reset BGP peer (OUT) to refresh BGP routing table without tearing down existing peering sessions. See Technical Tip: BGP soft reset to refresh BGP routing table without tearing down existing peering ses....
Result:
Routes 20.20.0.0/24 and 20.20.1.0/24 are not advertised to FGT_A.
On FGT_B:
execute router clear bgp ip 192.168.254.81 soft out
get router info bgp neighbors 192.168.254.81 advertised-routes
VRF 0 BGP table version is 8, local router ID is 192.168.254.82
Status codes: s suppressed, d damped, h history, * valid, > best, i - internal
Origin codes: i - IGP, e - EGP, ? - incomplete
Network Next Hop Metric LocPrf Weight RouteTag Path
*> 20.20.2.0/24 192.168.254.82 100 32768 0 i <-/->
*> 20.20.3.0/24 192.168.254.82 100 32768 0 i <-/->
Total number of prefixes 2
2. Deny/Block receiving of 10.10.0.0/24 and 10.10.1.0/24 routes from FGT_A.
- Create a Prefix-List for block routes. Go to Network -> Routing-Objects -> Create New -> Prefix List.
- Create a rule to permit 10.10.0.0/24 and 10.10.1.0/24. Optionally, set ge and le to make the configuration simpler. See Technical Tip: 'How to combine operators 'ge' and 'le' in prefix-list for route-map for filtering BG....
- Create a Route-Map to block/deny receiving of routes 10.10.0.0/24 and 10.10.1.0/24, then Permit other prefixes. Go to Network -> Routing-Objects -> Create New -> Route Map.
- Use the route-map on the BGP neighbor configuration in the incoming direction. Go to Network -> BGP -> Neighbor -> Edit Neighbor (IP).
Remember to select Apply to commit the changes.
- Soft reset the BGP peer (IN) to refresh the BGP routing table without tearing down existing peering sessions.
Result:
Routes 10.10.0.0/24 and 10.10.1.0/24 are not accepted by FGT_B.
On FGT_B:
execute router clear bgp ip 192.168.254.81 soft in
get router info bgp neighbors 192.168.254.81 routes
VRF 0 BGP table version is 10, local router ID is 192.168.254.82
Status codes: s suppressed, d damped, h history, * valid, > best, i - internal,
S Stale
Origin codes: i - IGP, e - EGP, ? - incomplete
Network Next Hop Metric LocPrf Weight RouteTag Path
*> 10.10.2.0/24 192.168.254.81 0 0 0 100 i <-/1>
*> 10.10.3.0/24 192.168.254.81 0 0 0 100 i <-/1>
Total number of prefixes 2
|
