Article Id 270794
Description

This article describes that in some cases, the error 'unable to connect to FortiGuard server' will not show up but traffic denied by UTM.



There is no error in the system dashboard and the license status shows correct.

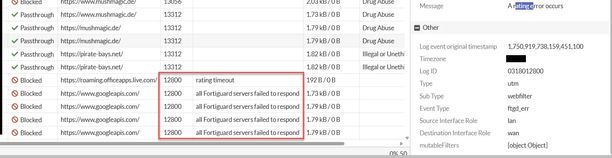

Issue identified from Logs & Monitor -> Forward traffic and there are logs displayed with UTM denied with the error 'All FortiGuard servers failed to respond.'




Scope Any version.
Solution

In this case, the issue shall not be displayed with FortiGuard from GUI as it did not show any error on the dashboard or FortiGuard section.



Verify from the update daemon debug and it can be possible to see the error below:



di de reset

diagnose debug application update -1

diagnose debug enable



upd_comm_connect_fds[474]-Failed TCP connect
upd_comm_connect_fds[459]-Trying FDS 173.243.138.67:443
tcp_connect_fds[269]-Failed connecting after sock writable
upd_comm_connect_fds[474]-Failed TCP connect
do_update[672]-UPDATE failed



To identify the issue, check the dia debug rating output and it will show as below:



dia deb rating

Locale       : spanish

Service      : Web-filter

Status       : Enable

License      : Contract



Service      : Antispam

Status       : Enable

License      : Contract



Service      : Virus Outbreak Prevention

Status       : Disable



Num. of servers : 1

Protocol        : https

Port            : 443

Anycast         : Enable

Default servers : Included



-=- Server List (Mon Jun 26 17:31:57 2023) -=-



IP                                             Weight    RTT Flags   TZ   FortiGuard-requests  Curr Lost Total Lost             Updated Time

2620:101:9000:140:173:243:140:16                    0      0 DIF      0                 49408      49407      49407



As seen from the above output, it displays only one server which shows the flag DIF. It means the above server is down and FortiGate is not able to connect to the FortiGuard server.



It means there is an issue with the filtering service availability:
Urlfilter can be restarted to check if the device can connect to FortiGuard:



diag test app urlfilter 99
diag deb rating



or FortiGuard anycast can be disabled and the protocol UDP with port 53 or 8888 can be chosen:



config system fortiguard

    set fortiguard-anycast disable

    set protocol udp

    set port 8888

    set sdns-server-ip 208.91.112.220

end






After this change, it can be possible to see the ratings output something like below:



diagnose debug rating

Locale       : english



Service      : Web-filter

Status       : Enable

License      : Contract



Service      : Antispam

Status       : Disable



Service      : Virus Outbreak Prevention

Status       : Disable



Num. of servers : 30

Protocol        : udp

Port            : 8888

Anycast         : Disable

Default servers : Included



-=- Server List (Wed Aug 16 23:02:28 2023) -=-



IP                                             Weight    RTT Flags   TZ   FortiGuard-requests  Curr Lost Total Lost

           Updated Time

208.184.237.61                                     35    321 D FT    -8                   230        224        224 W

ed Aug 16 22:39:53 2023

208.184.237.62                                     40    284   FT    -8                    92         84         84 W

ed Aug 16 22:39:53 2023

208.184.237.64                                     40    286   FT    -8                    86         84         84 W
