Article Id 255698
Description

This article describes how to capture logs PRI trunk in the Fortivoice for further troubleshooting.

Scope FortiVoice PRI trunk calls.
Solution

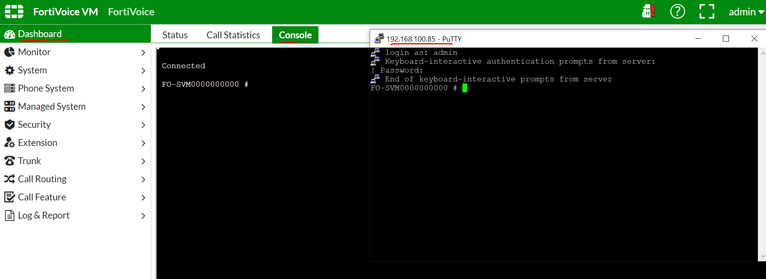

1) Open a CLI by console GUI or by SSH:

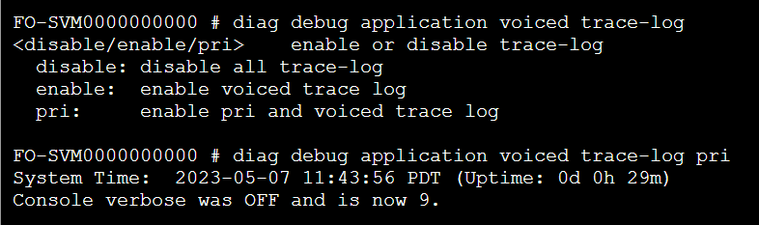

2) Activate trace log for PRI trunk.



diag debug application voiced trace-log pri






3) Make test calls using PRI trunk and once done run the below command to disable the trace.



diag debug application voiced trace-log disable






4) Download 'trace-log' from GUI: System -> Maintenance -> Configuration (at the bottom of the page) and attach the trace-log to the ticket.



Select 'Prepare'. After a couple of minutes, select 'Refresh' and then get the trace log 'Download trale log...'
A .log file is generated.








5) Send the log to Fortinet support to be analyzed.



Note:

Capturing trace logs has not caused service interruption.

Capture trace logs to help to do call troubleshooting and make a proper analysis of the issue.
