The requirement is to set up multiple ISP connections terminating on FortiGate over an L2 FortiLink setup.

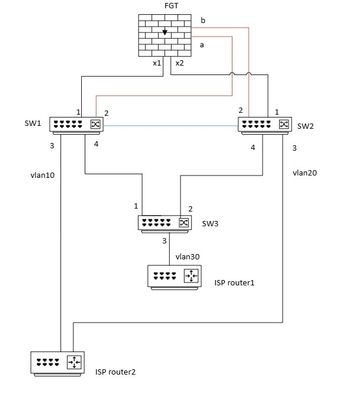

Topology:

Network Setup:
- SW1, SW2, and SW3 are FortiSwitch devices.
- SW1 and SW2 are configured in an MCLAG-ICL pair and managed by FortiGate.
- Aggregate interface name: EXT (FortiGate ports a, b).
- FortiLink interface name: fortilink (FortiGate ports x1, x2).
ISP Router Connections:
- ISP Router 1 is connected to SW3 with VLAN 30 tagged and terminated at VLAN interface VLAN30, created under the FortiLink interface.
- ISP Router 2 is connected to the MCLAG-ICL pair on port3, carrying different VLANs from the ISP:
- The ISP Router 2 to SW1 link carries VLAN 10 and terminates at VLAN interface VLAN10, created under the FortiLink interface.
- The ISP Router 2 to SW2 link carries VLAN 20 (PPPoE) and terminates at VLAN interface VLAN20, created under the external aggregate interface EXT.
Since the FortiSwitch devices are managed by FortiGate, the configuration is pushed from FortiGate.
Configuration on FortiGate:
Configuring VLAN: FortiSwitch VLAN Configuration Guide
Configuring Trunk: FortiSwitch Trunk Configuration Guide
Configuring Ports: FortiSwitch Port Configuration Guide
VLAN 10 Configuration under FortiLink:
config system interface edit "VLAN10" set vdom "root" set mode dhcp set allowaccess ping https ssh http set role wan set interface "fortilink" set vlanid 10 next
end
Similarly, create VLAN 30 with vlanid 30.
Create dummy vlan 20 under fortilink interface.
config system interface
edit "VLAN20" set vdom "root" set interface "fortilink" set vlanid 20 next end end
VLAN 20 Configuration (PPPoE) under External Aggregate Interface (name EXT):
config system interface edit "EXT" set vdom "root" set type aggregate set member "a" "b" set device-identification enable set lldp-transmission enable set lacp-mode active next edit "VLAN20" set vdom "root" set mode pppoe set allowaccess ping https ssh http set role wan set username "test@in" set password <PASSWORD> set interface "EXT" set vlanid 20 next end
FortiSwitch Configurations Pushed from FortiGate:
SW1 Configuration:
config switch-controller managed-switch edit <SW1-SERAIL-NO> config ports edit port3 set native-vlan VLAN10 set dhcp-snooping trusted next edit "EXT-trunk" set allowed-vlans "VLAN20" set dhcp-snooping trusted set type trunk set mode lacp-active set mclag enable set members "port2" next end
SW2 Configuration:
config switch-controller managed-switch edit <SW2-SERAIL-NO> config ports edit port3 set native-vlan VLAN20 set dhcp-snooping trusted next edit "EXT-trunk" set allowed-vlans "VLAN20" set dhcp-snooping trusted set type trunk set mode lacp-active set mclag enable set members "port2" next end
SW3 Configuration:
config switch-controller managed-switch edit <SW3-SERAIL-NO> config ports edit port3 set allowed-vlans "VLAN30" set dhcp-snooping trusted next end
Note:
Since this is a FortiLink setup, trunks are automatically formed between FortiGate and FortiSwitch devices, as well as between FortiSwitch devices. VLANs are dynamically assigned on FortiSwitch FortiLink trunk ports.
Troubleshooting:
If ISP VLANs are not getting an IP from the ISP, use the following commands to diagnose the issue.
On FortiSwitch (Example: SW3):
diagnose switch physical-ports summary port3
- Check if the ISP MAC address is learned on port3:
diagnose switch mac-address list | grep port3
- Verify data rate (RX Rate) incrementing on port3:
diagnose switch physical-port datarate port3
- Capture and traffic received on FortiSwitch port connecting to ISP: port-mirror
Logs to Provide to TAC Before Opening a Case:
- Network Topology.
- FortiGate Logs:
get system status execute switch-controller get-conn-status execute switch-controller get-sync-status all execute dhcp lease-list fnsysctl ifconfig
- FortiGate Backup Configuration.
- FortiSwitch Logs from the ISP-connected switch:
show full-configuration diagnose debug crashlog read diag debug report
|
