Technical Tip: How to troubleshoot LDAP authentication issues in FortiSIEM

[mbenvenuti]

Description	This article describes how to troubleshoot LDAP authentication issues with FortiSIEM.
Scope	FortiSIEM.

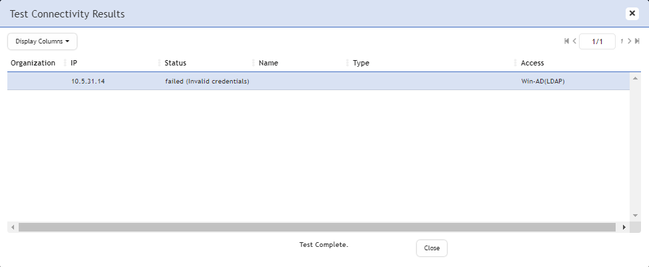

Solution	When setting up LDAP authentication or a user is not able to login with an invalid password, follow the steps below to check the credentials being used: Connect as root to the CLI of the FortiSIEM node (super or collector) doing the LDAP query. Run the next commands to activate debug logs: cp /opt/phoenix/config/log4j2.xml /opt/phoenix/config/log4j2.xml.bak sed -i 's/<Logger name=\"com.ph.phoenix\" level=\"info\" additivity=\"false\">/<Logger name=\"com.ph.phoenix\" level=\"debug\" additivity=\"false\">/' /opt/phoenix/config/log4j2.xml tail -f /opt/glassfish/domains/domain1/logs/phoenix.log | egrep -i 'ldap|auth' In another CLI window, run the next command to take tcp packets (replace <ad_server_ip> by the IP of the LDAP server): tcpdump host <ad_server_ip> -vvv -w /tmp/ldap_auth_test.pcap Run the test from the FortiSIEM from: A portal for a user configured with external authentication Admin -> Settings -> External Authentication -> Select profile -> Test. Admin ->Credentials -> Step 2 -> Test credentials. Stop the tail and tcpdump command with Ctrl + C. Check for explicit errors written in the logs. Retrieve the /tmp/ldap_auth_test.pcap file with WinSCP and open it with WireShark. Check the credential details from the Bind request:
